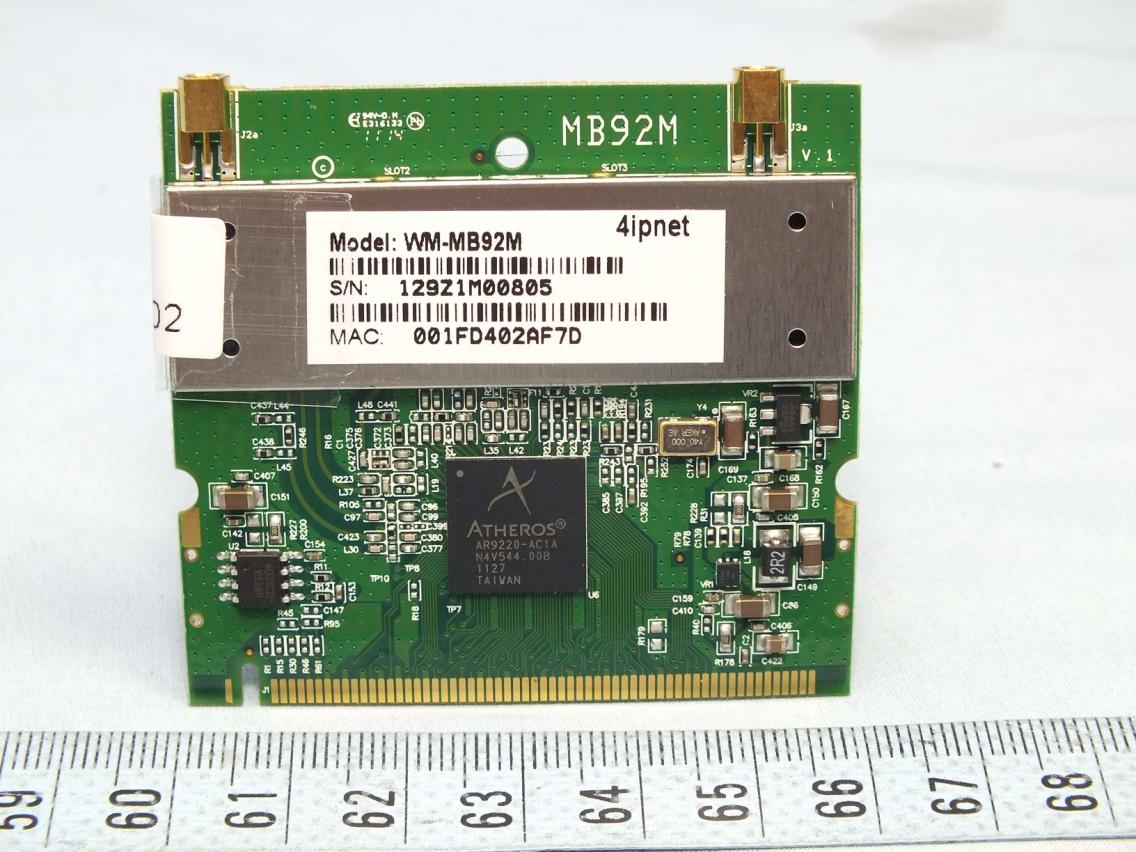

FCC ID: VZ9120002 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch January 27, 2014 Dear Application Examiner, We, 4IPNET, INC., claim that the EUT, FCC ID: VZ9120002 is a 802.11a/b/g/n Wireless module and would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input, it is integrated in chip SE2593A20 and AR9220. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9220. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: VZ9120002 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further question. Thanks for your attention. Best Regards, ____________________________ Daniel Lee Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

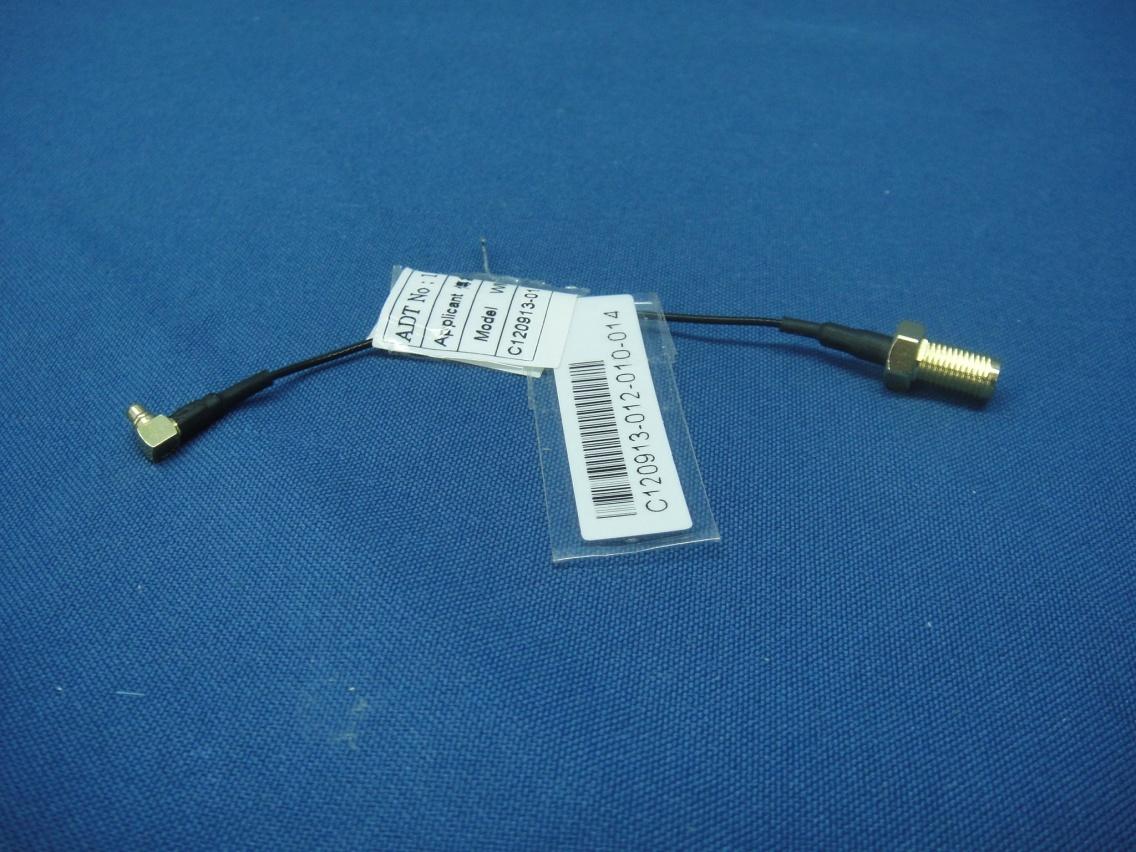

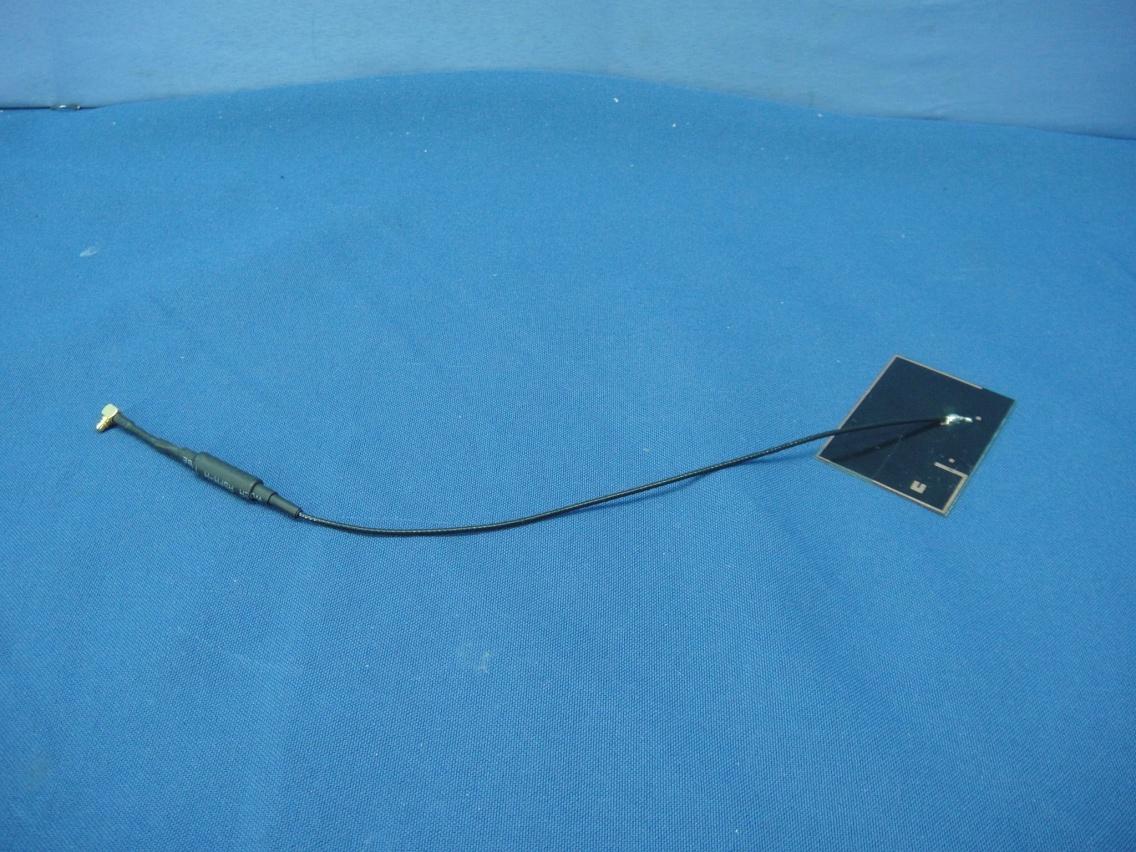

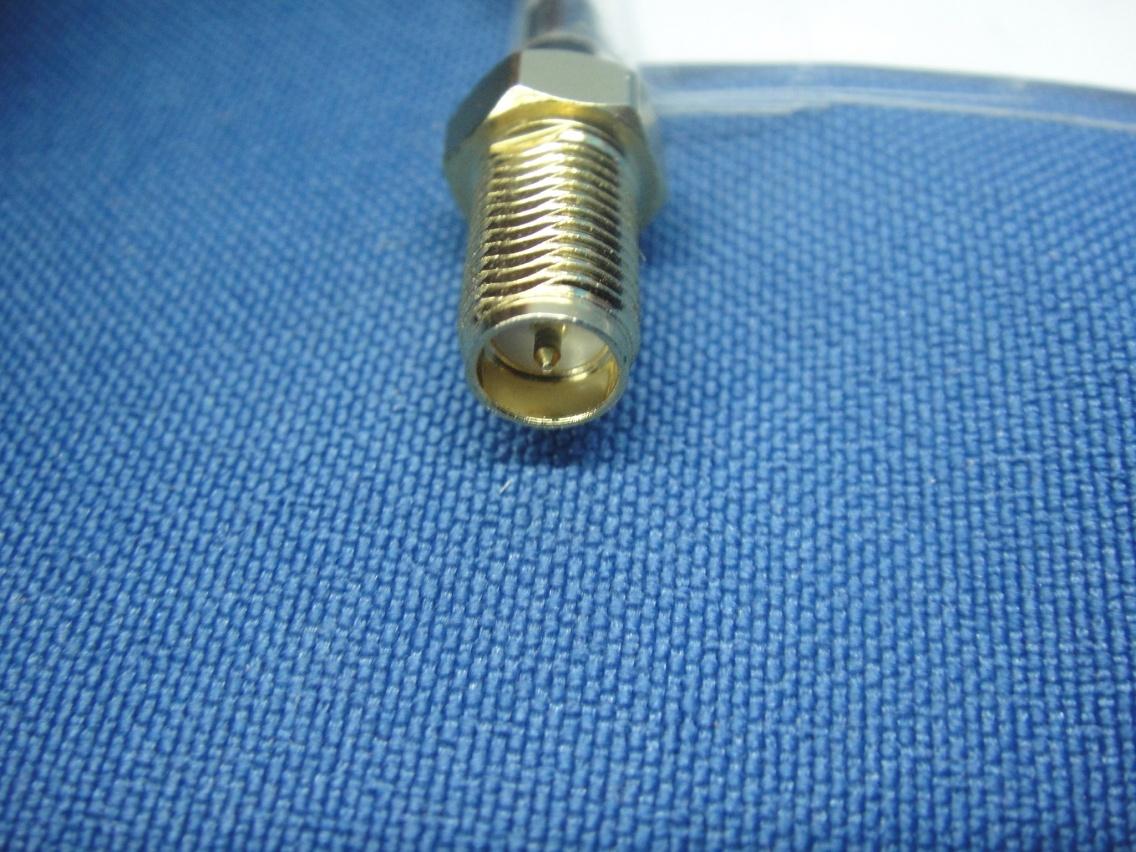

Report No.: 120921C21 Page 1 CONSTRUCTION PHOTOS OF EUT With PIFA antenna With Dipole antenna 120921C21 120921C21 Report No.: 120921C21 Page 2 120921C21 120921C21 Report No.: 120921C21 Page 4 120921C21 120921C21 Report No.: 120921C21 Page 5 120921C21 120921C21 Report No.: 120921C21 Page 6 120921C22 Report No.: 120921C21 Page 7 120921C21 120921C21 Report No.: 120921C21 Page 8 120921C21

Report No.: 120921C21 Page 3 120921C21 120921C21

Report No.: SA120921C21 A 1 of 11 Report Format Version 5.0.0 Reference No.:140127C21 RF EXPOSURE REPORT REPORT NO.: SA120921C21A MODEL NO.: WM-MB92M FCC ID: VZ9120002 RECEIVED: Sep. 21, 2012 TESTED: Dec. 26 to 27, 2012 ISSUED: Feb. 05, 2014 APPLICANT: 4IPNET, INC. ADDRESS: 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C. CA 94089 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA120921C21 A 2 of 11 Report Format Version 5.0.0 Reference No.:140127C21 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA120921C21 A 3 of 11 Report Format Version 5.0.0 Reference No.:140127C21 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120921C21A Original release Feb. 05, 2013 Report No.: SA120921C21 A 4 of 11 Report Format Version 5.0.0 Reference No.:140127C21 1. CERTIFICATION PRODUCT: 802.11a/b/g/n Wireless Module BRAND NAME: 4ipnet MODEL NO.: WM-MB92M TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: 4IPNET, INC. TESTED DATE: Dec. 26 to 27, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WM-MB92M) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 05, 2014 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Feb. 05, 2014 ( May Chen, Manager ) Report No.: SA120921C21 A 5 of 11 Report Format Version 5.0.0 Reference No.:140127C21 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: No. Brand Part No. Antenna Type Gain (dBi) Connector Type 1 UNI LINK MCS-304-01 Dipole 2.4GHz: 2.7 Re-SMA(M) 5GHz :4 2 UNI LINK UT-700-04 PIFA 2.4GHz: 3.7 MMCX plug 5GHz :4.5 Note: The dipole antenna has two different colors (black and white) and the dipole antenna (white) was chosen for final test. Report No.: SA120921C21 A 6 of 11 Report Format Version 5.0.0 Reference No.:140127C21 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For PIFA antenna For 15.247(2.4GHz): 802.11b FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 186.209 3.7 20 0.08684 1 802.11g FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 446.684 3.7 20 0.20832 1 802.11n (HT20) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 751.724 6.71 20 0.70111 1 Directional gain = 3.7dBi + 10log(2) = 6.71dBi 802.11n (HT40) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 409.322 6.71 20…

Text truncated - open the document above for the full version.

Report No.: RF120921C21-1 1 of 65 Report Format Version 5.1.0 Reference No.: FCC TEST REPORT(15.407) REPORT NO.: RF120921C21-1 MODEL NO.: WM-MB92M FCC ID: VZ9120002 RECEIVED: Sep. 21, 2012 TESTED: Nov. 29 to Dec. 27, 2012 ISSUED: Jan. 24, 2014 APPLICANT: 4IPNET, INC. ADDRESS: 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF120921C21-1 2 of 65 Report Format Version 5.1.0 Reference No.: Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 13 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 14 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 17 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.......... 24 4.2.3 TEST INSTRUMENTS .......................................................................................... 25 4.2.4 TEST PROCEDURES .......................................................................................... 26 4.2.5 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.6 TEST SETUP ....................................................................................................... 27 4.2.7 EUT OPERATING CONDITION ............................................................................ 27 4.2.8 TEST RESULTS (MODE 1, PIFA ANTENNA) ....................................................... 28 4.2.9 TEST RESULTS (MODE 2, DIPOLE ANTENNA) .................................................. 37 4.3 TRANSMIT POWER MEASUREMENT ................................................................ 46 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .............................................. 46 4.3.2 TEST INSTRUMENTS .......................................................................................... 46 4.3.3 TEST PROCEDURE ............................................................................................. 47 4.3.4 DEVIATION FROM TEST STANDARD ...................…

Text truncated - open the document above for the full version.

Report No.: 120810E25C 1 of 4 Reference No.: 121009E05 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120810E25C 2 of 4 Reference No.: 121009E05 RADIATED EMISSION TEST(PIFA Antenna) Report No.: 120810E25C 3 of 4 Reference No.: 121009E05 RADIATED EMISSION TEST(DIPOLE Antenna) Report No.: 120810E25C 4 of 4 Reference No.: 121009E05
