VZ9130001Enterprise Access Point

EAP220 V1.00 Enterprise Access Point Quick Installation Guide EAP220 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. i Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of 4IPNET, INC. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from 4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. All rights reserved. To download up-to-date version, please visit www.4ipnet.com. Quick Installation Guide EAP220 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. ii FCC CAUTION This equipment has been tested and proven to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device contains a low power transmitter which will send out Radio Frequency (RF) signal when transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Quick Installation Guide EAP220 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. iii CE CAUTION Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP220 For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement. • Radio: EN 300.328 : • EMC: EN 301.489-1, EN 301.489-17, • EMC: EN 55022 Class B, EN 55024 : + A1 + A2 including the followings: EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Safety: EN 60950-1 + A11, Caution:  This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements. European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance. Taiwan NCC Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。 Quick Installation Guide EAP220 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. 1 Preface Package Contents 4ipnet EAP220 is a high-end 802.11a/b/g/n 2.4GHz/ 5GHz MIMO Access Point (AP) with two RF cards (2.4GHz RF Card A / 5GHz RF Card B) embedded to maximize deployment flexibility and feasibility for IT administrators. Complying with the latest industrial wireless security standards that are required in the tightly secured enterprise network environments, EAP220 makes the wireless communication fast, secure and easy. It supports business-grade secure encryption - 802.1X and Wi-Fi Protected Access (WPA and WPA2) ; by pushing a purposely built button, the 4ipWES (Press-n-Connect) feature makes it easy to bridge wireless links of multiple EAP220s for forming a wider wireless network coverage. EAP220 also features multiple ESSIDs with VLAN tags and multiple Virtual APs; great for enterprise applications, such as separating traffic from different departments using different ESSIDs. The PoE LAN port is able to receive power from Power over Ethernet (PoE) sourcing devices. Its metal case is IP50 anti-dust compliant, which means that EAP220 is well suited to WLAN de…

Text truncated - open the document above for the full version.

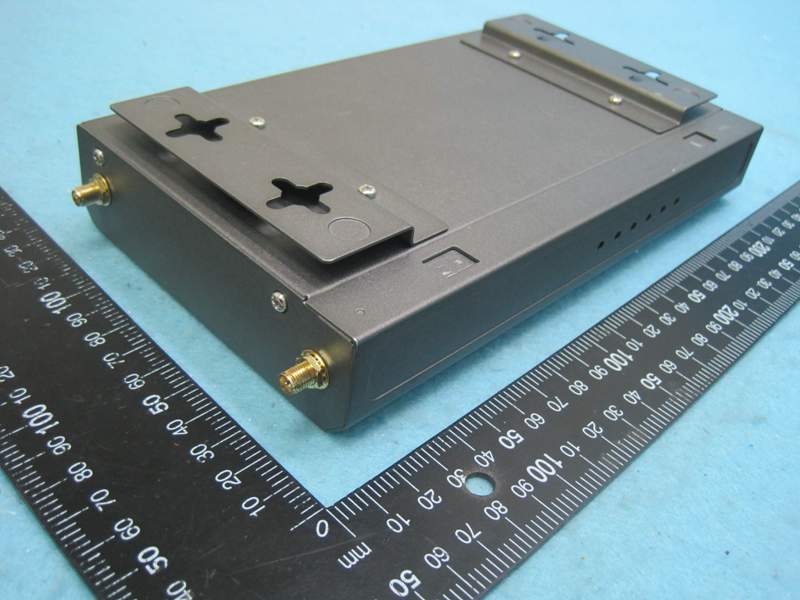

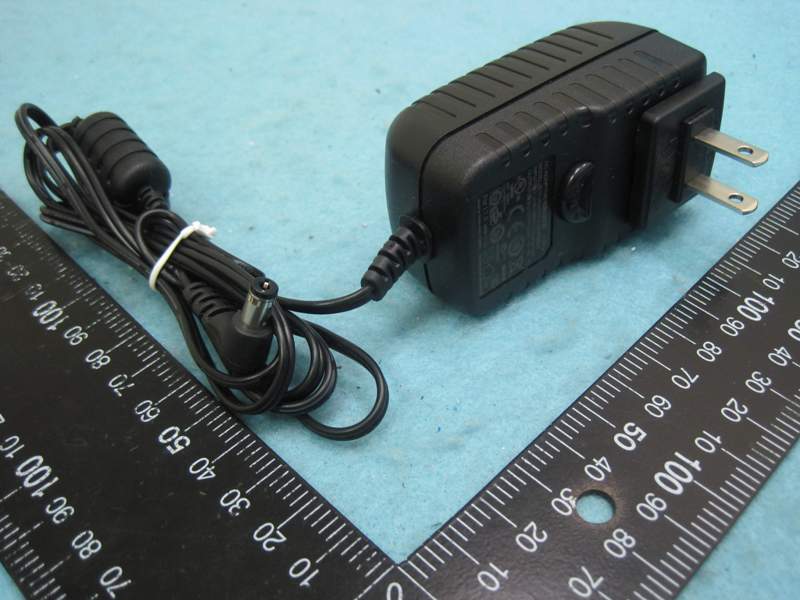

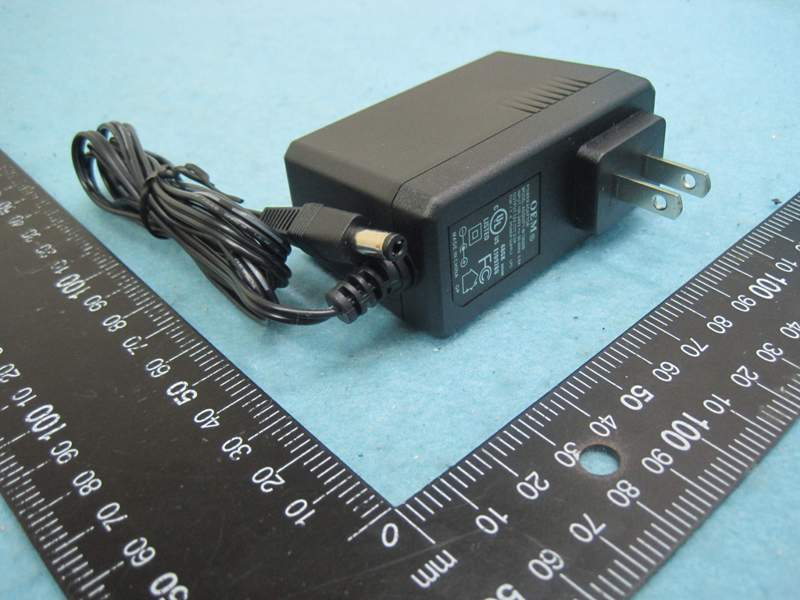

Report No.:331209 SPORTON International Inc. PAGE NUMBER : 1 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:331209 SPORTON International Inc. PAGE NUMBER : 2 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 3 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 4 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 5 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 6 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Adaptor 1 (Fixed plug) Brand: OEM Model: ADS0271-W120200 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 7 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Adaptor 2 (Removable plug) Brand: Ktec Model: KSAS0241200200D5 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 8 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 9 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 10 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Console Cable RJ-45 Cable

Label Size: 7 cm × 4 cm Label location

Report No.:331209 SPORTON International Inc. PAGE NUMBER : 1 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:331209 SPORTON International Inc. PAGE NUMBER : 2 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 3 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 4 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 5 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 6 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 7 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 8 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 9 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255 Report No.:331209 SPORTON International Inc. PAGE NUMBER : 10 OF 10 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 19, 2013 FAX : 886-2-2696-2255

Report No.: FR331209 FCC ID: VZ9130001 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR331209 FCC ID: VZ9130001 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR331209 FCC ID: VZ9130001 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n 20: 16.91 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.70 1.8621 16.9095 49.0847 0.018193 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a: 29.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.70 1.8621 29.9898 997.6525 0.369768 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b: 29.94 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.70 1.4791 29.9406 986.4130 0.290408 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.369768 / 1 + 0.290408 / 1 = 0.660176, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR331209 FCC ID: VZ9130001 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR331209 FCC ID: VZ9130001 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 23°C Humidity 55% Test Engineer Jim Huang Configurations 2.4G + 5G Horizontal Report No.: FR331209 FCC ID: VZ9130001 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company 4IPNET, INC. Applicant Address 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C. FCC ID VZ9130001 Manufacturer’s company 4IPNET, INC. Manufacturer Address 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C. Product Name (1) Enterprise Access Point (2) Managed Access Point Brand Name 4ipnet, Cipherium, USC Model No. EAP220, A220, MAP100 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Mar. 12, 2013 Final Test Date May 27, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR331209AA Report Format Version: 01 Page No. : i of ii FCC ID: VZ9130001 Issued Date : Jun. 19, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Multiple List.........................................................................................................................................................................10 3.8. Table for Supporting Units .................................................................................................................................................................10 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.10. EUT Operation during Test .................................................................................................................................................................11 3.11. Duty Cycle ........................................................................................................................................................................................12 3.12. Test Configurations ...........................................................................................................................................................................16 4. TEST RESULT ................................................................................................................................................... 18 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................18 4.2. Maximum Conducted Output Power Measurement.........................................................................................................................22 4.3. Power Spectral Density Measurement ..............................................................................................................................................25 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................33 4.5. Radiated Emissions Measurement ....................................................................................................................................................40 4.6. Emissions Measurement ....................................................................................................................................................................66 4.7. Antenna Requirements .....................................................................................................................................................................90 5. LIST OF MEASURING EQUIPMENTS ...............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR331209 FCC ID: VZ9130001 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR331209 FCC ID: VZ9130001 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR331209 FCC ID: VZ9130001 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR331209 FCC ID: VZ9130001 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR331209 FCC ID: VZ9130001 Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode: Mode 3 FRONT VIEW REAR VIEW
