VZ9130003Enterprise Access Point

EAP717 V1.00 Enterprise Access Point Quick Installation Guide EAP717 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. i Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of 4IPNET, INC. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from 4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. All rights reserved. To download up-to-date version, please visit www.4ipnet.com. Quick Installation Guide EAP717 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. ii FCC CAUTION This equipment has been tested and proven to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. The device contains a low power transmitter which will send out Radio Frequency (RF) signal when transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only. Quick Installation Guide EAP717 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. iii CE CAUTION Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP717 For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement. • Radio: EN 300.328 : • EMC: EN 301.489-1, EN 301.489-17, • EMC: EN 55022 Class B, EN 55024 : + A1 + A2 including the followings: EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Safety: EN 60950-1 + A11, Caution:  This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements. European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance. Taiwan NCC Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至 無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。 Quick Installation Guide EAP717 Enterprise Access Point ENGLISH Copyright © 4IPNET, INC. All rights reserved. 1 Preface Package Contents The 4ipnet EAP717 Enterprise Access Point is an on-the-wall as well as a ceiling-mounted Wi-Fi IEEE 802.11n/a/b/g 2 x 2 MIMO access point, designed to blend into a working or a living environment practically and elegantly with its simplistic yet classy design. The EAP717 is ideal for appearance accentuated applications such as hotels as it has a small and inconspicuous form factor. The RH11 telephone pass through socket is yet another convenient feature for hotel applications. The two Ethernet LAN Ports eliminates the need for a network switch for additional IP Device connections. When coupled with the 4ipnet WHG series Controller, the EAP717 supports Tunnel-based AP Management, and comes with all standards demanded by enterprise applications, including business-grade security (802.1X, WPA and WPA2), and multiple ESSIDs with VLAN tags to separate the traffics of different departments. A centralized WLAN management allows enterprises and organizations to support a wide array of value added applications, such as load balancing, bandwidth control, and access control. The patent-pending 4ipWES (Press-n-Connect) technology bridges multiple EAP717s at the touch of a button, which enables a quick and automatic WDS Easy Setup by pr…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0

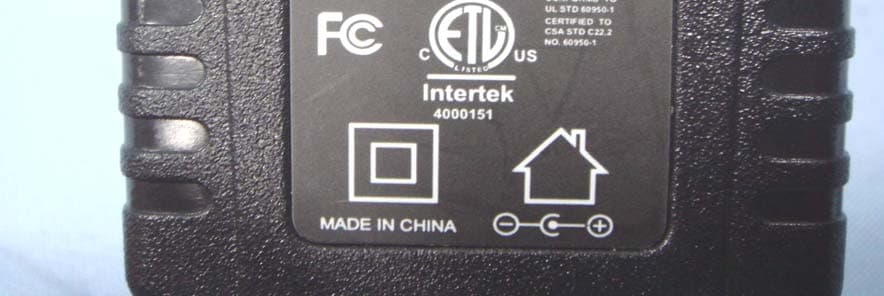

Report No: T130819L01 Page 1 / 11 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130819L01 Page 2 Rev.00 Report No: T130819L01 Page 3 Rev.00 Report No: T130819L01 Page 4 Rev.00 JF015WR-0500200UH

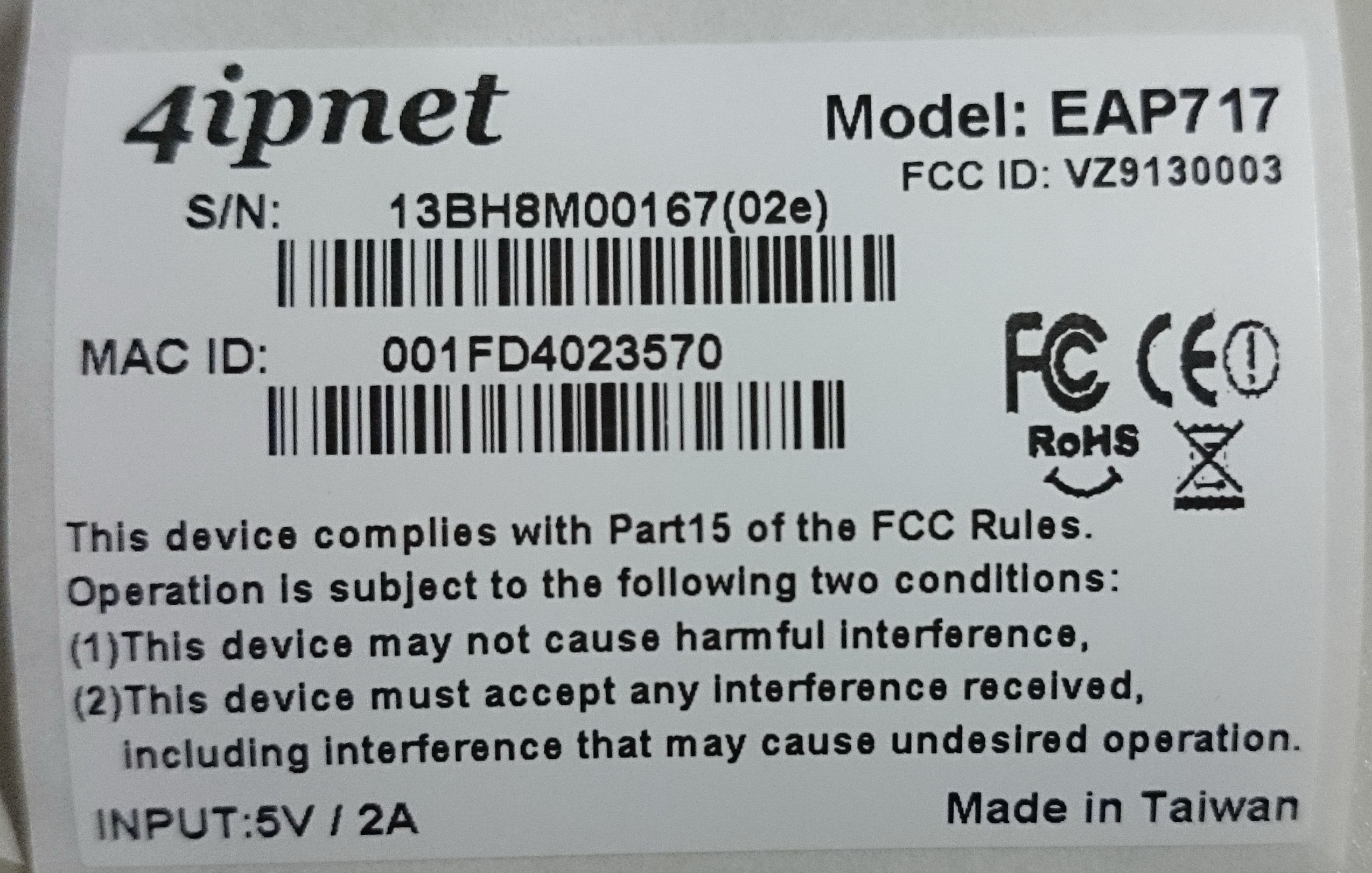

Label location

Report No: T130819L01 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130819L01 Page 6 Rev.00 Report No: T130819L01 Page 7 Rev.00 Report No: T130819L01 Page 8 Rev.00 Report No: T130819L01 Page 9 Rev.00 Report No: T130819L01 Page 10 Rev.00 Antenna Report No: T130819L01 Page 11 Rev.00

Compliance Certification Services Inc. Report No.: T130819L01 - MF Date of Issue: November 07, 2013 Page 1 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Enterprise Access Point Model Number EAP717 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Chain 0: PIFA Antenna Gain : 3.0 dBi (Numeric gain: 2.00) Chain 1: PIFA Antenna Gain : 3.0 dBi (Numeric gain: 2.00) Max. output power IEEE 802.11b Mode: 19.50 dBm (89.125 mW) IEEE 802.11g Mode: 16.00 dBm (39.811 mW) IEEE 802.11n HT 20 Mode: 19.00 dBm (79.433 mW) IEEE 802.11n HT 40 Mode: 19.00 dBm (79.433 mW) IEEE 802.11a Mode: 14.00 dBm (25.119 mW) IEEE 802.11n HT20 Mode: 17.00 dBm (50.119 mW) IEEE 802.11n HT40 Mode: 17.00 dBm (50.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130819L01 - MF Date of Issue: November 07, 2013 Page 2 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2013/11/07 Initial Issue ALL Scott Hsu 01 2013/12/23 Modify MIMO mode MPE evaluation 1,4 Scott Hsu Compliance Certification Services Inc. Report No.: T130819L01 - MF Date of Issue: November 07, 2013 Page 3 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130819L01 - MF Date of Issue: November 07, 2013 Page 4 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 89.125 2 20 0.0355 1 IEEE 802.11g mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 39.881 2 20 0.0159 1 IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 79.433 2 20 0.0316 1 IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 3 2422 79.433 2 20 0.0316 1 IEEE 802.11a mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 165 5825 25.119 2 20 0.0100 1 IEEE 802.11a HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 149 5745 50.119 2 20 0.0199 1 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 151575550.1192200.01991

Compliance Certification Services Inc. Report No.: T130819L01-RP1 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 1 Rev.00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For Enterprise Access Point Model: EAP717 Trade Name: 4ipnet Issued to 4IPNET, INC. 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 17, 2013 Initial Issue All Landy Huang Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................7 3.1 EUT CONFIGURATION.......................................................................................................7 3.2 EUT EXERCISE.................................................................................................................7 3.3 GENERAL TEST PROCEDURES...........................................................................................7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................8 3.5 DESCRIPTION OF TEST MODES..........................................................................................9 4. INSTRUMENT CALIBRATION .......................................................................................10 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................10 4.2 MEASUREMENT EQUIPMENT USED........................................................................10 4.3 MEASUREMENT UNCERTAINTY ..............................................................................11 5. FACILITIES AND ACCREDITATIONS ...........................................................................12 5.1 FACILITIES.....................................................................................................................12 5.2 EQUIPMENT...................................................................................................................12 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................12 5.4 TABLE OF ACCREDITATIONS AND LISTINGS......................................................................13 6. SETUP OF EQUIPMENT UNDER TEST ........................................................................14 6.1 SETUP CONFIGURATION OF EUT......................................................................................14 6.2 SUPPORT EQUIPMENT....................................................................................................14 7. FCC PART 15 REQUIREMENTS ...................................................................................15 7.1 26 DB EMISSION BANDWIDTH..........................................................................................15 7.2 MAXIMUM CONDUCTED OUTPUT POWER..........................................................................24 7.3 BAND EDGES MEASUREMENT ................................................................................28 7.4 PEAK POWER SPECTRAL DENSITY...................................................................................35 7.5 PEAK EXCURSION..........................................................................................................44 7.6 RADIATED UNDESIRABLE EMISSION.................................................................................53 7.7 POWERLINE CONDUCTED EMISSIONS..............................................................................65 7.8 FREQUENCY STABILITY...................................................................................................70 APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................78 8. APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................83 Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: 4IPNET, INC. 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C Manufacturer: 4IPNET, INC. 3F-3, No. 369, Fusing N. Rd., Taipei 105, Taiwan,R.O.C Equipment Under Test: Enterprise Access Point Trade Name: 4ipnet Model: EAP717 Date of Test: August 28 ~ September 26, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407. The test results of this report relate only to the tes…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 78 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 79 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 80 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 81 Rev.00 Powerline Conducted Emissions Setup Photos (PoE Mode) Compliance Certification Services Inc. Report No.: T130819L01-RP2 FCC ID: VZ9130003 Date of Issue: October 17, 2013 Page 82 Rev.00 Powerline Conducted Emissions Setup Photos (Adapter Mode)
