VZKITACTIVE RFID TAG USED FOR LOCATION AND PERIMETER PROTECTION OF ASSETS

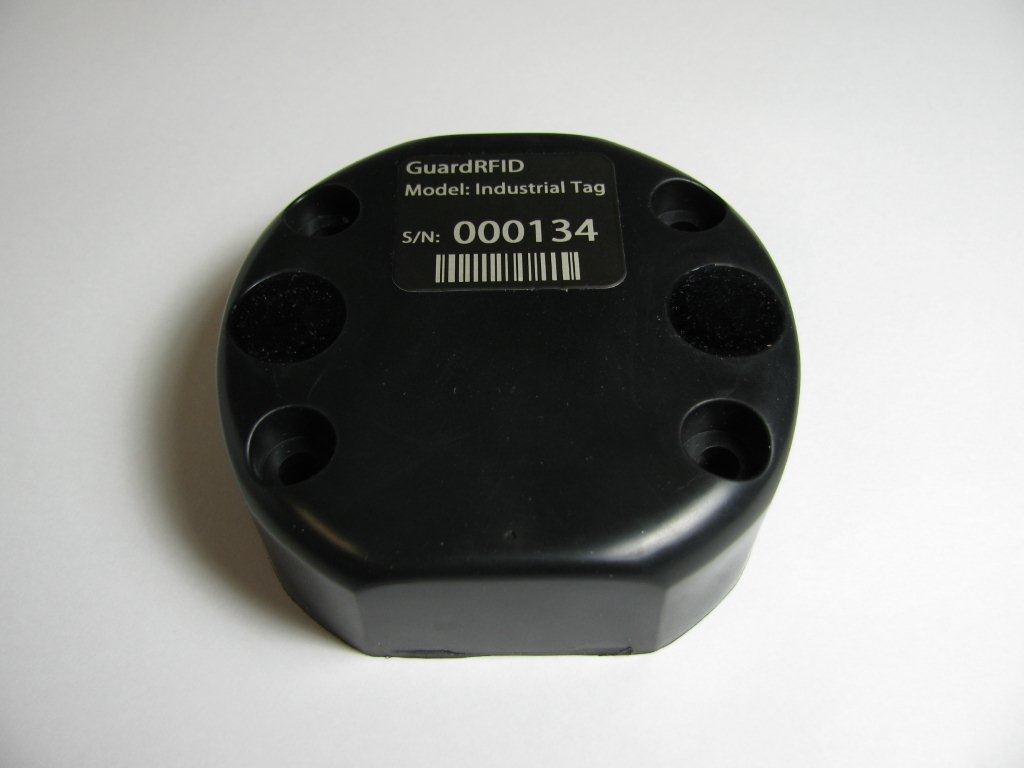

PRODUCT INFORMATION 02-00002-104 Specifications Subject to Change Without Notice. © 2011 Guard RFID Solutions, Inc. Guard RFID Solutions Inc. #140 – 766 Cliveden Avenue Delta, BC Canada V6M 6C7 Tel: 866.785.7343 Fax: 604.524.4018 www.guardrfid.com Conforms to UL-294 FCC ID: VZKIT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Industrial Tag IT-1BLF, IT-2BLF FE A T U R E S:  Ruggedized tag for internal and external use – waterproof and highly shock resistant  Superior range  Long battery life of 48 months  Built-in Motion Sensor (IT-2BLF)  Flexible mounting options  Can be used on literally any surface, including metal surfaces DE S C R I P T I O N: The IT-1BLF and IT-2BLF are highly ruggedized Active Tags that are waterproof and can withstand significant shock and vibration, as they are specially developed for tracking, location and protection of items indoors and outdoors in industrial or commercial applications. They are designed to be mounted by the use of screws in the holes provided in the tag housing, or by means of a built-in magnet for application on magnetic surfaces. The tag may be placed on metal objects, with little degradation of its performance. The tags contains a UHF transmitter and a Low Frequency (LF) Receiver. They periodically transmit location “Blink” messages, and send an instantaneous message when entering GuardRFID’s Tag Exciter field. This combination enables tags to be tracked and located in real time, as well as allowing for instant detection of tags at choke points, such as doors or gates. This functionality also allows use of tags in access control and security applications, as each tag has a unique identity and can be configured to have its own rules pertaining to discovery and access privileges. The IT-2BLF also contains a motion sensor which can be used to control the Blink rate of the tag or for reporting the tag in motion for business processes or security purposes. Transmission of data from the tags is exceptionally rapid, allowing literally hundreds of Tags to be detected simultaneously at choke points, and also enabling a high density of Tags to coexist within the system coverage area. SP E C I F I C A T I O N S: IT-1 B L F IT-2B L F Part Number 61-10205 61-10206 Transmit Frequency 433 MHz 433 MHz Receive Frequency 125 KHz 125 KHz Battery Life 48 months 48 months Blink Interval 5 minutes 5 minutes static, 20 sec. during motion Sensors None Motion Dimensions 2.8” x 2.96” x 1.00” (71 x 75 x 25.4 mm) 2.8” x 2.96” x 1.00” (71 x 75 x 25.4 mm ) Weight 80 gm 80 gm Operating Temperature -22° F to 122°F (-30°C to 50°C) -22° F to 122°F (-30°C to 50°C) Humidity 0 – 100%, waterproof enclosure 0 – 100%, waterproof enclosure Regulatory FCC Part 15 Approved FCC Part 15 Approved Warranty Prorated over 48 months Prorated over 48 months

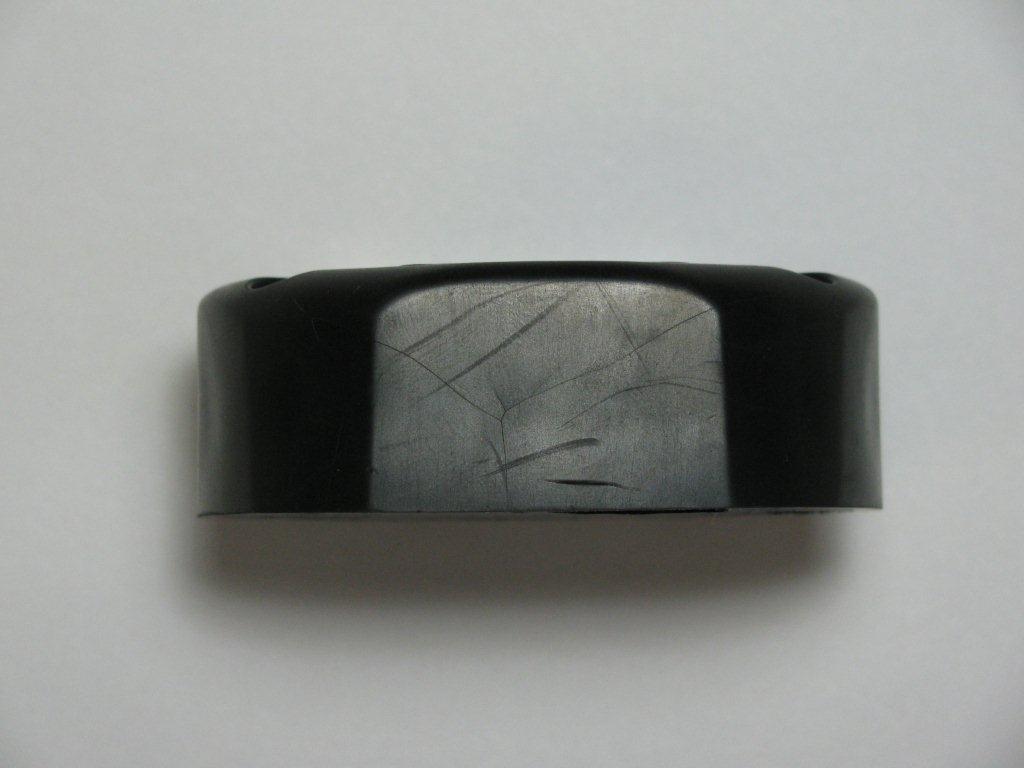

#140 – 760 Cliveden Place Delta, BC Canada V3M 6C7 T: 604.998.4018 F: 604.524.4018 www.guardrfid.com August 30, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (VZKIT). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Theory of Operation Block Diagram Internal photos IT_SCH..pdf IT_Theory of Operation.pdf IT_Block Diagram.pdf IT_Internal.jpg The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. This device is fully sealed by means of PCB encapsulation into potting compound and outside enclosure gluing. It cannot be disassembled without product destruction. Even if the enclosure is forcefully opened, the PCBA is still encapsulated into potting compound which is at the same time embedded into enclosure side ribs (to prevent separation of PCBA and enclosure). Also, potting compound is applied not only over the components, but also under some of the components where this is possible. Separation of potting compound and PCBA is not possible without damaging the PCBA. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dalibor Pokrajac VP of Engineering Guard RFID Solutions Inc. 604-282-7584

REPORT For Guard RFID Solutions Inc. #140 – 766 Cliveden Place Delta, British Columbia V3M 6C7, Canada Date: June 28, 2011 Report No.: 10385-1E Revision No.: 0 Project No.: 10385 Equipment: RFID TAG Model No.: INDUSTRIALTAG FCC ID: VZKIT ONE STOP GLOBAL CERTIFICATION SOLUTIONS 3133-20800 Westminster Hwy, Richmond, BC V6V 2W3, Canada Phone: 604-247-0444 Fax: 604-247-0442 www.labtestcert.com Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: June 28, 2011 Report No.: 10385-1E Project No.: 10385 Revision No.: 0 Page 2 of 42 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 TABLE OF CONTENTS TEST REPORT ................................................................................................................................................ 3 FCC Part 15.231/IC RSS 210 .......................................................................................................................... 3 General product information: ............................................................................................................................ 5 Frequencies...................................................................................................................................................... 6 List of auxiliary and/or support equipment provided by the applicant .............................................................. 6 Software and Firmware .................................................................................................................................... 6 Worst-case configuration and mode of operation during testing...................................................................... 6 Modifications Required for Compliance............................................................................................................ 6 Test Equipment Verified for function ................................................................................................................ 6 Measurement Uncertainty ................................................................................................................................ 7 Markings ........................................................................................................................................................... 8 Test Summary .................................................................................................................................................. 9 Summary of the operation of RF Transmission.............................................................................................. 10 Test Limits................................................................................................................................................... 10 Reviewed Results: ...................................................................................................................................... 10 Field Strength of Fundamental ....................................................................................................................... 13 Test Limits................................................................................................................................................... 13 Test Setup................................................................................................................................................... 14 Test Results: ............................................................................................................................................... 14 Field Strength of Spurious Emission .............................................................................................................. 17 Test Limits................................................................................................................................................... 17 Test Setup................................................................................................................................................... 18 Test Results: ............................................................................................................................................... 19 Radiated Emission; Unintentional Radiators .................................................................................................. 26 Test Limits................................................................................................................................................... 26 Test Setup for Pre-scan .............................................................................................................................. 26 Test Setup for Open Area Test Site(OATS) ............................................................................................... 27 Test Results: ............................................................................................................................................... 27 The Bandwidth of the emission ...................................................................................................................... 30 Test Limits................................................................................................................................................... 30 Test Setup................................................................................................................................................... 30 Test Results: ............................................................................................................................................... 30 Conducted Emission ...................................................................................................................................... 33 Test Limits..............................................................…

Text truncated - open the document above for the full version.

Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: June 28, 2011 Report No.: 10385-1E Project No.: 10385 Revision No.: 0 Page 35 of 41 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 APPENDIX C: Test setup photos - Test configuration for Field Strength measurement at OATS #1 Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: June 28, 2011 Report No.: 10385-1E Project No.: 10385 Revision No.: 0 Page 36 of 41 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 - Test configuration for Field Strength measurement at OATS #2 Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: June 28, 2011 Report No.: 10385-1E Project No.: 10385 Revision No.: 0 Page 37 of 41 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 - Set-up for Orthogonal X - Set-up for Orthogonal Y - Set-up for Orthogonal Z
