VZKSTACTIVE RFID TAG USED FOR LOCATION AND PERIMETER PROTECTION OF PEOPLE AND ASSETS

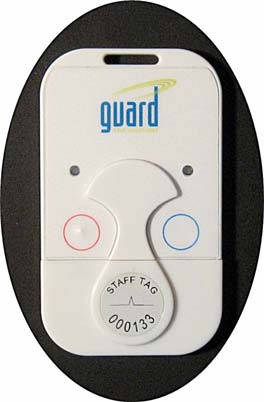

PRODUCT INFORMATION 02-00038-107 Specifications Subject to Change Without Notice. © 2011 Guard RFID Solutions, Inc. Conforms to UL-294 FCC ID: VZKST This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Guard RFID Solutions Inc. #140 – 766 Cliveden Avenue Delta, BC Canada V6M 6C7 Tel: 866.785.7343 Fax: 604.524.4018 www.guardrfid.com Staff Tag ST-1BLF, ST-3BLF-TR FE A T U R E S:  Low profile for attachment to Proximity Cards  12 months battery life – Replaceable batteries  2-way communications for Paging capability  Two configurable buttons for custom functions  Audio-Visual Indicators, Motion and Fall Detection  Splash-resistant DE S C R I P T I O N: The ST-1BLF and ST-3BLF-TR are low profile tags for tracking, location and security of personnel. These tags have locating “Blink” message capability for RTLS applications and also include a Low Frequency (LF) Receiver so that they can be instantly detected at areas of interest such as building exits, secure rooms, or workstations. The tags can trigger security-related action, identification/authentication, and patient interaction recording upon entering detection or security zones created using GuardRFID Tag Exciters. The ST-3BLF-TR has two buttons to allow users to send configurable alerts to the system as well as two visual indicators. It also has a UHF Receiver so that the tag-wearer can receive alerts or acknowledgements from the system through the indicators and an audible buzzer, and contains a sensor to provide the ability to sense motion or detect a fall. This enables powerful staff duress call and personnel safety capability, as well as paging functionality. The low profile design ensures that they can be comfortably carried using a clip or lanyard. They can also be coupled with existing personnel badges or proximity cards using the convenient adhesive label on the tag. Splash-resistance ensures that these tags can be worn outdoors and can be easily cleaned and sterilized. SP E C I F I C A T I O N S: ST-1 B L F ST-3 B L F-TR Part Number 61-10401 61-10400 Transmit Frequency 433 MHz 433 MHz Receive Frequency 125 KHz 433 MHz and 125 KHz Battery Life 12 months – replaceable batteries 12 months – replaceable batteries Beacon Interval 10 sec Programmable, 10 sec to 10 min – default 30 sec User Interfaces None 2 x buttons, 2 x Visual Indicators, Audio transducer Sensors None Fall and Motion Detection Dimensions 3.28 x 1.94 x 0.17” (83 x 49 x 4.3 mm) 3.28 x 1.94 x 0.17” (83 x 49 x 4.3 mm) Weight 20 gm 20 gm Operating Temperature -4° F to 122°F (-20°C to 50°C) -4° F to 122°F (-20°C to 50°C) Humidity 0 – 100% RH non-condensing 0 – 100% RH non-condensing Regulatory FCC Part 15 Approved FCC Part 15 Approved Warranty Prorated over 12 months Prorated over 12 months

#140 – 760 Cliveden Place Delta, BC Canada V3M 6C7 T: 604.998.4018 F: 604.524.4018 www.guardrfid.com September 2, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (VZKST). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Theory of Operation Block Diagram ST_Schematic.pdf ST_TheoryofOperation.pdf ST_BlockDiagram.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dalibor Pokrajac VP of Engineering Guard RFID Solutions Inc. 604-282-7584

Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: Sep. 14, 2011 Report No.: 10385-3E Project No.: 10385 Revision No.: 0 Page 34 of 42 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 APPENDIX B: Photos - EUT: Top View - EUT: Bottom View - EUT: Side View

DESCRIPTION: FILE NAME: SIZE OF SCALE: DRAWN: CHECKED: DATE: REV SHEET REVISION DESCRIPTION ECR No. ANGULAR: DECIMAL: TOLERANCES UNLESS NOTED OTHERWISE 1:1 11 - Bazlul Karim 13-20036-100 (SERIAL NUMBER LABEL, STAFF TAG 3).pdf 1-00 - Release for production A DO NOT SCALE DRAWING 13-20036-100 PART NO. UNITS: Sept 06, 2011 INCHES FINISH: MATERIAL: SERIAL NUMBER LABEL, STAFF TAG 3 N/A 0.003" VINYL WITH ADHESIVE THIRD ANGLE PROJECTION #140-766 CLIVEDEN PLACE, DELTA, BC, CANADA V3M 6C7 TEL: (604)-998-4018 FAX: (604)-524-4018 www.guardrfid.com GUARD RFID SOLUTIONS INC .XX ± 0.10 .XXX ± 0.005 .XXXX ± 0.0005 ±0°-15° NOTES: 1.) PRODUCT TO BE APPROVED BY GUARD RFID SOLUTIONS PRIOR TO PRODUCTION. 2.) OVERALL DIMENSIONS: DIAMETER 0.67 INCH (17 MM) 3.) COLOR: BLACK TEXT ON WHITE COLOR BACKGROUND 4.) MATERIAL: 0.003 INCH VINYL PLUS CLEAR ADHESIVE AT BACK 5.) ADHESIVE: 3M 467 OR EQUIVALENT BASE STOCK - 0.003" VINYL COLOR WHITE ADHESIVE ON BACK SIDE RELEASE LAYER LABEL LAYOUT (top view) LABEL CONSTRUCTION (side view) SERIAL NUMBER TEXT - ARIAL 11 PT SERIAL NUMBERS TO BE PROVIDED AT TIME OF ORDER TEXT “STAFF TAG” - ARIAL 7 PT TEXT “ FCC ID : VZKST” - ARIAL 4 PT . . . . . . . . . . . . DIA 0.67 INCH (17 MM) S T A F F T A G 0 0 0 1 2 4 F C C I D : V Z K S T S T A F F T A G 0 0 0 0 0 1 F C C I D : V Z K S T S T A F F T A G 0 0 0 0 1 0 F C C I D : V Z K S T S T A F F T A G 0 0 0 0 0 2 F C C I D : V Z K S T S T A F F T A G 0 0 0 0 1 1 F C C I D : V Z K S T

Label Location

Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: Sep. 14, 2011 Report No.: 10385-3E Project No.: 10385 Revision No.: 0 Page 35 of 42 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 - EUT: Internal View _Top - EUT: Internal View _Bottom

REPORT For Guard RFID Solutions Inc. #140 – 766 Cliveden Place Delta, British Columbia V3M 6C7, Canada Date: Spe. 14, 2011 Report No.: 10385-3E Revision No.: 0 Project No.: 10385 Equipment: RFID TAG Model No.: STAFF TAG FCC ID: VZKST ONE STOP GLOBAL CERTIFICATION SOLUTIONS 3133-20800 Westminster Hwy, Richmond, BC V6V 2W3, Canada Phone: 604-247-0444 Fax: 604-247-0442 www.labtestcert.com Prepared by: LabTest Certification Inc. Client:Guard RFID Solutions Inc. Date Issued: Jan. 09, 2012 Report No.: 10385-3E Project No.: 10385 Revision No.: 1 Page 2 of 45 This document shall not be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from LabTest Certification Inc. DCN: 1034, Rev 2 TABLE OF CONTENTS TEST REPORT ................................................................................................................................................ 3 FCC Part 15.231/IC RSS 210 .......................................................................................................................... 3 General product information: ............................................................................................................................ 4 Frequencies...................................................................................................................................................... 5 List of auxiliary and/or support equipment provided by the applicant .............................................................. 5 Software and Firmware .................................................................................................................................... 5 Worst-case configuration and mode of operation during testing...................................................................... 5 Modifications Required for Compliance............................................................................................................ 5 Test Equipment Verified for function ................................................................................................................ 5 Measurement Uncertainty ................................................................................................................................ 6 Markings ........................................................................................................................................................... 7 Test Summary .................................................................................................................................................. 8 Summary of the operation of RF Transmission................................................................................................ 9 Test Limits..................................................................................................................................................... 9 Reviewed Results: ........................................................................................................................................ 9 Field Strength of Fundamental ....................................................................................................................... 12 Test Limits................................................................................................................................................... 12 Test Setup................................................................................................................................................... 13 Test Results: ............................................................................................................................................... 13 Field Strength of Spurious Emission .............................................................................................................. 16 Test Limits................................................................................................................................................... 16 Test Setup................................................................................................................................................... 17 Test Results: ............................................................................................................................................... 18 Radiated Emission; Intentional Radiators ...................................................................................................... 25 Test Limits................................................................................................................................................... 25 Test Setup for Pre-scan .............................................................................................................................. 26 Test Setup for Open Area Test Site(OATS) ............................................................................................... 26 Test Results: ............................................................................................................................................... 26 Radiated Emission; Unintentional Radiators .................................................................................................. 28 Test Limits................................................................................................................................................... 28 Test Setup for Pre-scan .............................................................................................................................. 28 Test Setup for Open Area Test Site(OATS) ............................................................................................... 29 Test Results: ............................................................................................................................................... 29 The Bandwidth of the emission .........................................................................…
