W59XAP1210High Power Wireless 300N Low Profile Access Point

Simply Connected Quick Install Guide XAP-1210 High Power Wireless 300N Low Profile Access Point Use the XAP-1210 to: • Deliver Broader WI-Fl Coverage and Eliminate Client Device Roaming Issues with Fewer APs • Improve Data Rates with Multi-Stream Wireless 802.lln Technology • Optimize VoIP, Streaming Media and Other Demanding Applications • Create a Secure Guest Network • Simplify Wi-Fi Installation while Minimizing Setup Time and Costs XAP-1210 Quick Install Guide Model Number: XAP-1210 Quick lnsta/ I Guide High Power Wireless 300N Low Profile Access Point FCC ID: W59XAP1210 IC: 8584A-XAP1210 © 2014 Luxul. All Rights Reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. DOCUMENT CONVENTIONS These graphical alerts are used in this document to indicate notable situations: NOTE: Tips, hints, or special requirements that you should take note of. CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction. WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage. FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CONTACT LUXUL Sales P: 801-822-5450 E: [email protected] Technical Support P: 801-822-5450 E: [email protected] 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 I luxuLcom I 801-822-5450 LUX-QIG-XAP-1210 0630140308 LUlif'UL PACKAGE CONTENTS The following Items should be Included In the box: ... One: XAP-1210 Wireless AP ... One: Mounting Bracket and Hardware ... One: PoE Injector and Power Cord ... Two: Ethernet Cables ... One: Quick Install Guide Simply Connected NOTE: If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for ret'um/replacement. HARDWARE DESCRIPTION XAP-1210 LED XAP-1210 front LED XAP-1210 LED Indicators Nll'M Status Function ---- Power On The XAP-1210 is powered and woricing properly. Off Blinking XAP-1210 Rear Ports The XAP-1210 Is not receiving power or the LED has been turned off in the APs software interface. The XAP-1210 is booting up. XAP-1210 Rear Ethernet port XAP-1210 Rear Power port ID 2014 Umil AU Jl4htl RmonC Otl>cr~nl ~~'""th:P"'P"1Yoftldlcpa:llle°""'"" XAP-1210 Quick lnsta/ I Guide PoE Injector LED Indicators Name Status Function ___ . ..._ __ _ PWR On Power is connected to the injector Off Injector is not receiving power PREPARING FOR INSTALLATION System and Power Requirements ~ Computer with supported Web browser. Minimum supported web browser ver- sions include: I.E. 9.0, Firefox 2.5, Safari 5.0, Chrome 3.0 and up. The Web browser is used to configure the XAP-1210. ~ The POE injector power supply requires AClOOV -240V, 50Hz - 60Hz. XAP-1210 INSTALLATION Access Point Placement The XAP-1210 high powered access point is designed for optimal performance as well as for simple and efficient installation and setup. It designed for mounting on the ceiling, wall or placed on a desktop or other flat surface. Because the signal generated by the XAP-1210 is omnidirectional, the unit should be mounted on a ceiling or wall directly in the center of the desired coverage area . • XAP-1210 Coverage Pattern Ceiling and Wall Mounting The XAP-1210 comes with a square mounting bracket to mount it to the wall or ceiling. Use the Mounting Pattern (Page 6-7) for mounting bracket alignment. 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 I luxuLcom I 801-822-5450 LUX-QIG-XAP-1210 0630140308 LU~UL Simply Connected XAP-1210 mounted on a ceiling XAP-1210 mounted on a wall Desktop Installation Place on any flat surface XAP-1210 on a desktop or flat surface Connecting the Ethernet Cable With the XAP-1210 properly mounted, you can now plug the Ethernet Cable into the RJ-45 connector. NOTE: Category-5, super Category-5 or Category-6 unshielded twisted pair {CAT5/CAT5e/CAT6 UTP) cables can be used. For best results, it is recommended that Category-6 shielded twisted pair be used to ensure stable data transmission at highest data rates. Connecting to the Power Source The XAP-1210 is PoE ready and supports 802.3at PoE. A PoE injector is included with the device. To apply power, simply connect the opposite end of the Ethernet cable to which the access point is already connected to the provided PoE injector or other PoE switch or injector. An Ethernet cable length of up to 300 feet can be used. DO NOT yet apply power to the PoE injector or switch. © 2014 Luxul All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners MOUNTING PATTERN @~I __ @.___I -- J @ J @ XAP-1210 Quick lnsta/ I Guide PoE Injector Setup ~ Data In: Connect an Ethernet cable from your router or switch to the Data In port of the included PoE Injector ~ Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out port of the included PoE Injector to the PoE Port of the XAP-1210 ~ AC Power: Connect the included AC Cord to the Power Input of the Included Injector first and then to the AC outlet. NOTE: The XAP-1210 is not a router and will need to be connected to a network with a router in order to deliver Internet access. From your Router or Switch XAP-1210 POE Injector Power Source The PoE Injector combines power and data to the XAP-1210 CAUTION: Because the XAP-1210 is a High-Powered access point it is normal for it to …

Text truncated - open the document above for the full version.

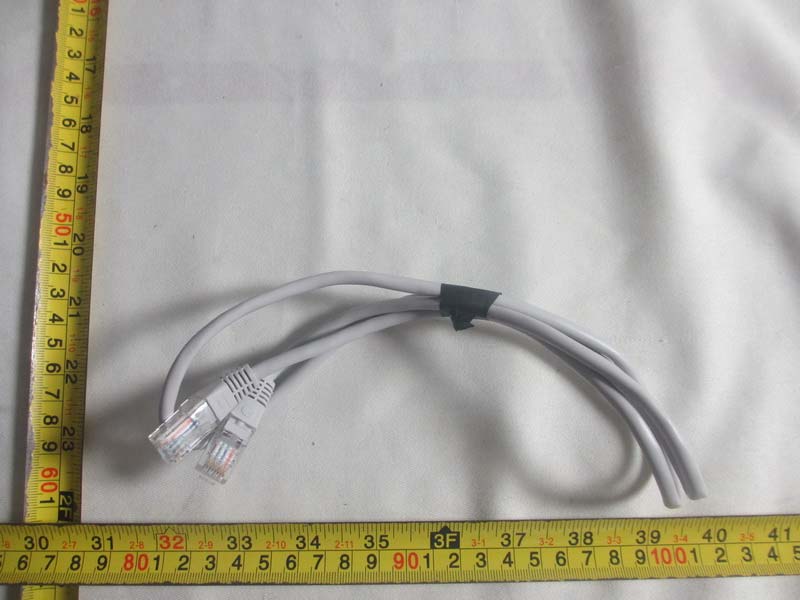

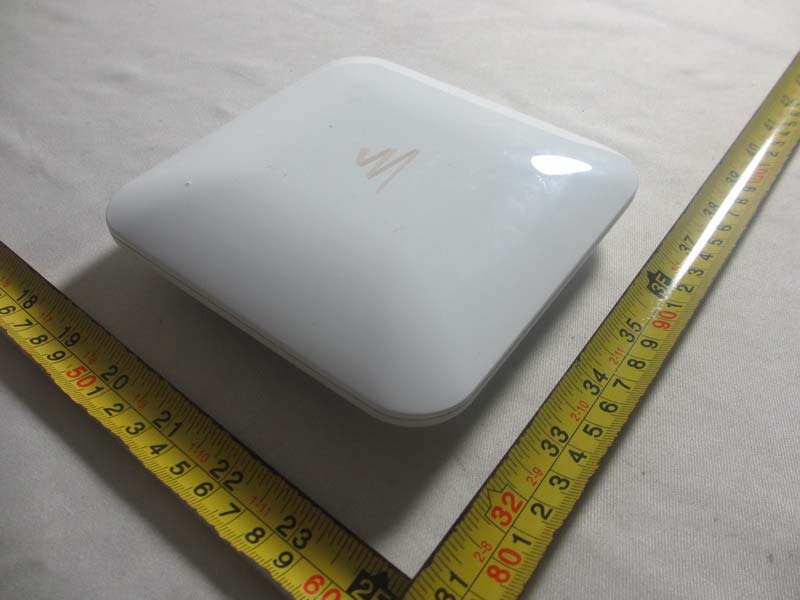

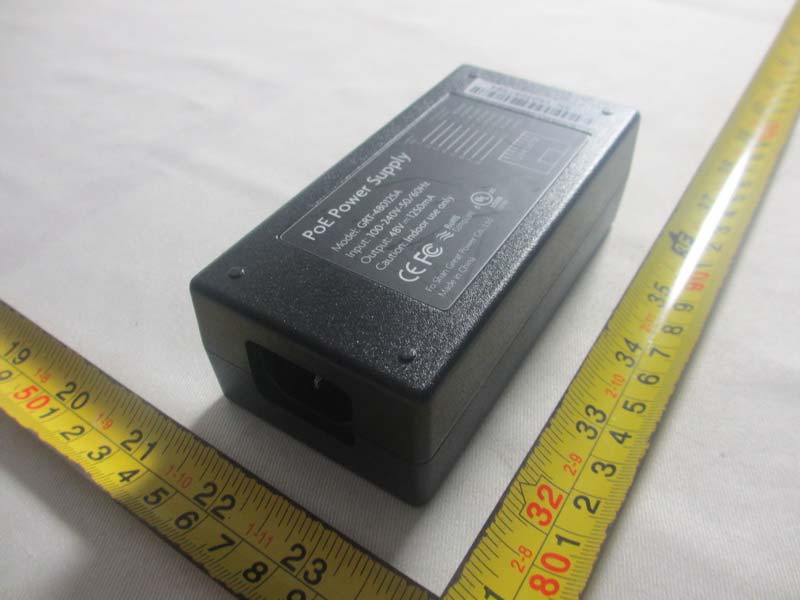

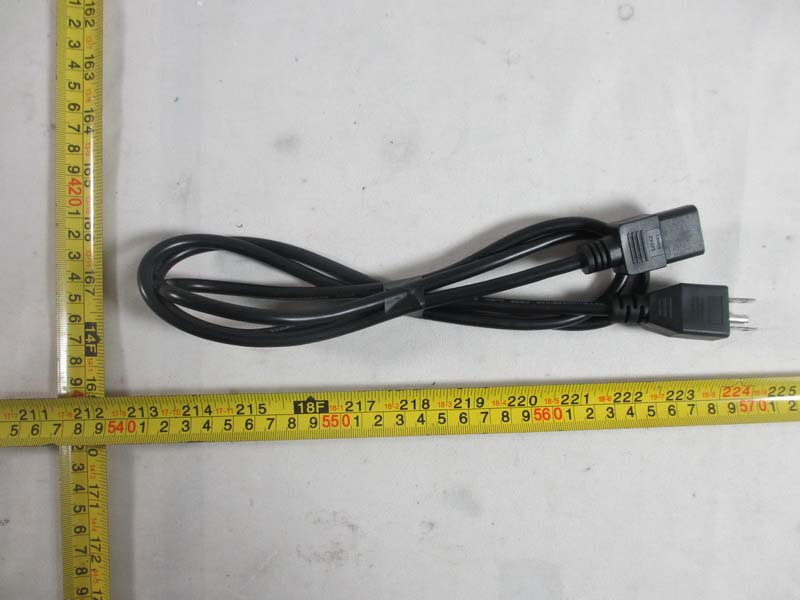

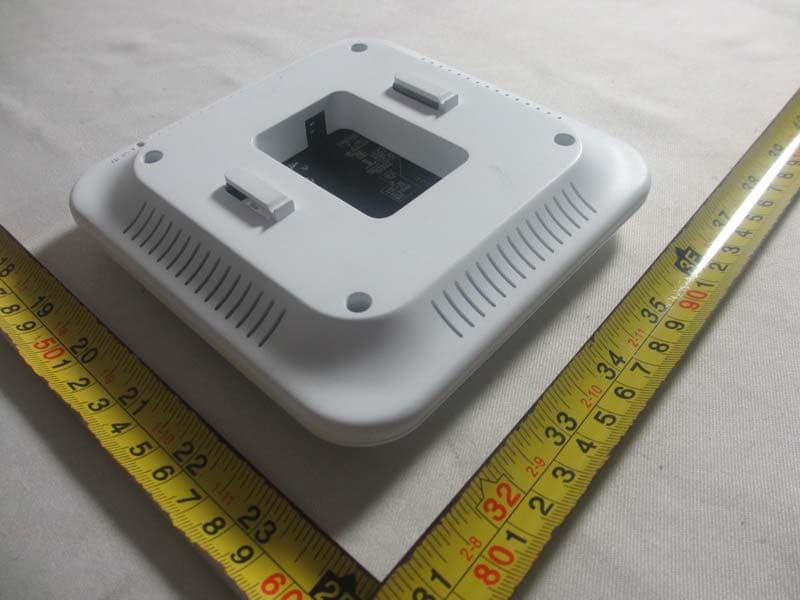

RV-0000000 Project No.: 1406C041 Page 2 of 12 RV-0000000 Project No.: 1406C041 Page 3 of 12 RV-0000000 Project No.: 1406C041 Page 4 of 12 RV-0000000 Project No.: 1406C041 Page 5 of 12 RV-0000000 Project No.: 1406C041 Page 6 of 12

RV-0000000 Project No.: 1406C041 Page 7 of 12 RV-0000000 Project No.: 1406C041 Page 8 of 12 RV-0000000 Project No.: 1406C041 Page 9 of 12 RV-0000000 Project No.: 1406C041 Page 10 of 12 R V-0000000 Project No.: 1406C041 Page 11 of 12 Antenna location R V-0000000 Project No.: 1406C041 Page 12 of 12 Antenna location

Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: W59XAP1210 Project No. : 1406C041 Equipment : High Power Wireless 300N Low Profile Access Point Model : XAP-1210 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Page 2 of 4 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A Printed Antenna N/A 2 2 N/A N/A Printed Antenna N/A 2 Page 3 of 4 TEST RESULTS EUT： High Power Wireless 300N Low Profile Access Point Model Name : XAP-1210 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 23.78 238.7811 0.075326951 Complies 2 1.5849 24.30 269.1535 0.084908341 Complies 2 1.5849 23.60 229.0868 0.072268721 Complies EUT： High Power Wireless 300N Low Profile Access Point Model Name : XAP-1210 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 25.84 383.7072 0.121045981 Complies 2 1.5849 26.27 423.6430 0.133644281 Complies 2 1.5849 26.06 403.6454 0.127335761 Complies Page 4 of 4 EUT： High Power Wireless 300N Low Profile Access Point Model Name : XAP-1210 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 26.57 453.9416 0.143202421 Complies 2 1.5849 26.94 494.3107 0.155937431 Complies 2 1.5849 26.22 418.7936 0.132114461 Complies EUT： High Power Wireless 300N Low Profile Access Point Model Name : XAP-1210 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 23.94 247.7422 0.078153851 Complies 2 1.5849 25.44 349.9452 0.110395251 Complies 2 1.5849 24.07 255.2701 0.080528641 Complies Note: the calculated distance is 20 cm.

Report No.: NEI-FCCP-1-1406C041 Page 1 of 147 FCC Radio Test Report FCC ID: W59XAP1210 This report concerns (check one): Original Grant Class II Change Project No. : 1406C041 Equipment : High Power Wireless 300N Low Profile Access Point Model Name : XAP-1210 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Tested by: BTL Inc. EMC Laboratory Date of Receipt: May. 07, 2014 Date of Test: May. 07, 2014 ~ Jun. 24, 2014 Issued Date: Jun. 25, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Report No.: NEI-FCCP-1-1406C041 Page 2 of 147 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-1406C041 Page 3 of 147 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.2 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: NEI-FCCP-1-1406C041 Page 4 of 147 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F - MAXIMUM OUTPUT POWER 104 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 108 ATTACHMENT H - POWER SPECTRAL DENSITY 133 Report No.: NEI-FCCP-1-1406C041 Page 5 of 147 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1406C041 Original Issue. Jun. 25, 2014 Report No.: NEI-FCCP-1-1406C041 Page 6 of 147 1. CERTIFICATION Equipment : High Power Wireless 300N Low Profile Access Point Brand Name : Luxul Xen™ Model Name : XAP-1210 Applicant : Luxul Wireless Date of Test : May. 07, 2014 ~ Jun. 24, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1406C041) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-1406C041 Page 7 of 147 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requi…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-1406C041 Page 131 of 147 TX HT40 mode CH06 (30MHz to 1000MHz) TX HT40 mode CH06 (1000MHz to 10 th Harmonic) Report No.: NEI-FCCP-1-1406C041 Page 132 of 147 TX HT40 mode CH09 (30MHz to 1000MHz) TX HT40 mode CH09 (1000MHz to 10 th Harmonic) Report No.: NEI-FCCP-1-1406C041 Page 133 of 147 ATTACHMENT H - POWER SPECTRAL DENSITY Report No.: NEI-FCCP-1-1406C041 Page 134 of 147 Test Mode :TX B Mode_CH01/06/11 TX CH01 Report No.: NEI-FCCP-1-1406C041 Page 135 of 147 TX CH06 TX CH11 Report No.: NEI-FCCP-1-1406C041 Page 136 of 147 Test Mode :TX G Mode_CH01/06/11 TX CH01 Report No.: NEI-FCCP-1-1406C041 Page 137 of 147 TX CH06 TX CH11 Report No.: NEI-FCCP-1-1406C041 Page 138 of 147 Test Mode : TX N-20M Mode_CH01/06/11_ANT 1 TX CH01 Report No.: NEI-FCCP-1-1406C041 Page 139 of 147 TX CH06 TX CH11 Report No.: NEI-FCCP-1-1406C041 Page 140 of 147 Test Mode : TX N-20M Mode_CH01/06/11_ANT 2 TX CH01 Report No.: NEI-FCCP-1-1406C041 Page 141 of 147 TX CH06 TX CH11 Report No.: NEI-FCCP-1-1406C041 Page 142 of 147 Test Mode : TX N-20M Mode_CH01/06/11_Total Test Channel Frequency (MHz) Power Density (dBm) Limit (dBm) CH01 2412 -11.01 8 CH06 2437 -8.66 8 CH11 2462 -10.17 8 Report No.: NEI-FCCP-1-1406C041 Page 143 of 147 Test Mode : TX N-40M Mode_CH03/06/09_ANT 1 TX CH03 Report No.: NEI-FCCP-1-1406C041 Page 144 of 147 TX CH06 TX CH09 Report No.: NEI-FCCP-1-1406C041 Page 145 of 147 Test Mode : TX N-40M Mode_CH03/06/09_ANT 2 TX CH03 Report No.: NEI-FCCP-1-1406C041 Page 146 of 147 TX CH06 TX CH09 Report No.: NEI-FCCP-1-1406C041 Page 147 of 147 Test Mode : TX N-40M Mode_CH03/06/09_Total Test Channel Frequency (MHz) Power Density (dBm) Limit (dBm) CH03 2422 -17.06 8 CH06 2437 -12.38 8 CH09 2452 -15.16 8

Report No.: NEI-FCCP-1-1406C041 Page 26 of 147 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: NEI-FCCP-1-1406C041 Page 27 of 147 Radiated Measurement Photos 9KHz to 30MHz Report No.: NEI-FCCP-1-1406C041 Page 28 of 147 Radiated Measurement Photos 30MHz to 1000MHz Report No.: NEI-FCCP-1-1406C041 Page 29 of 147 Radiated Measurement Photos Above 1000MHz
