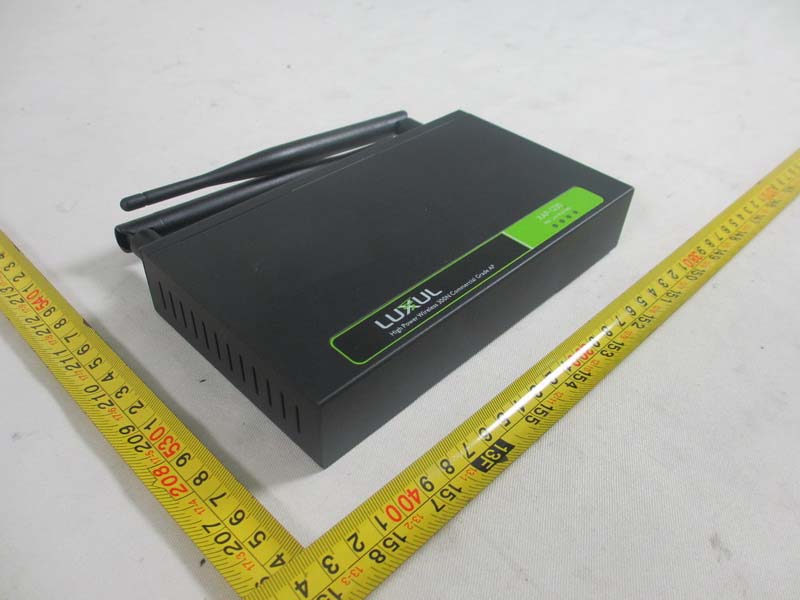

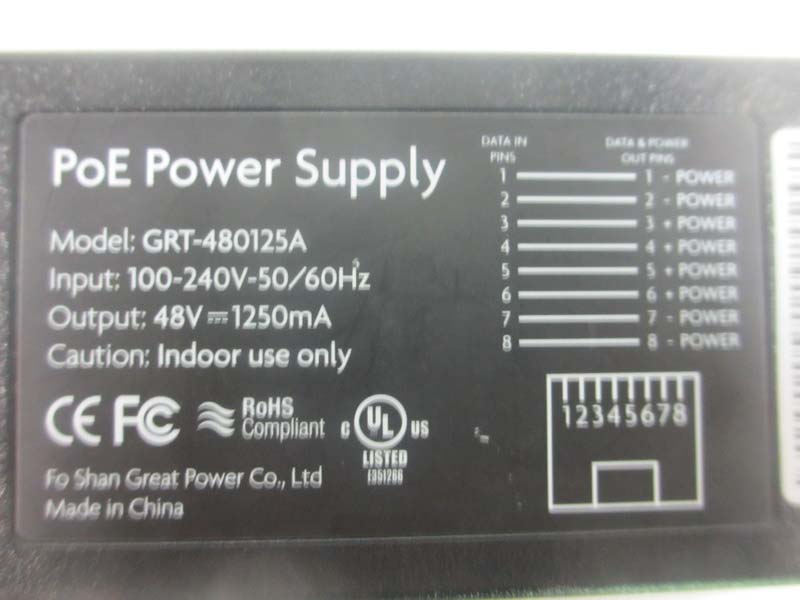

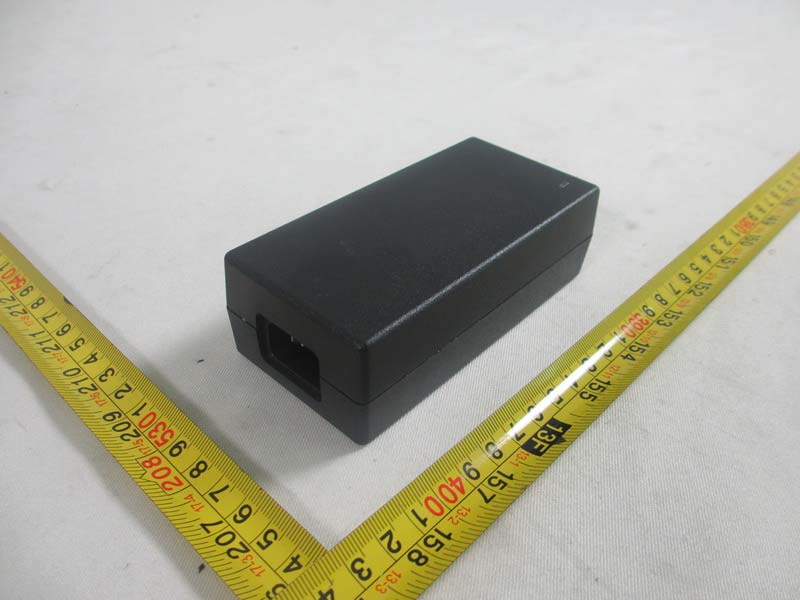

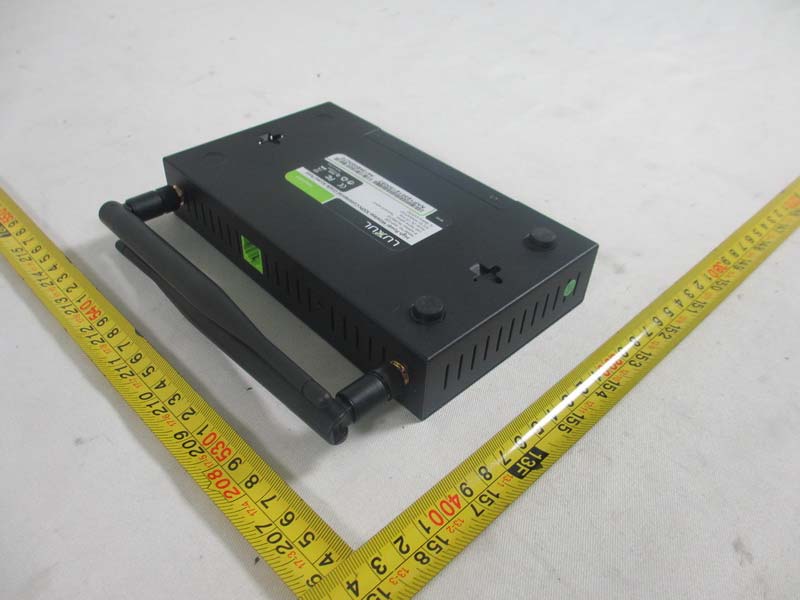

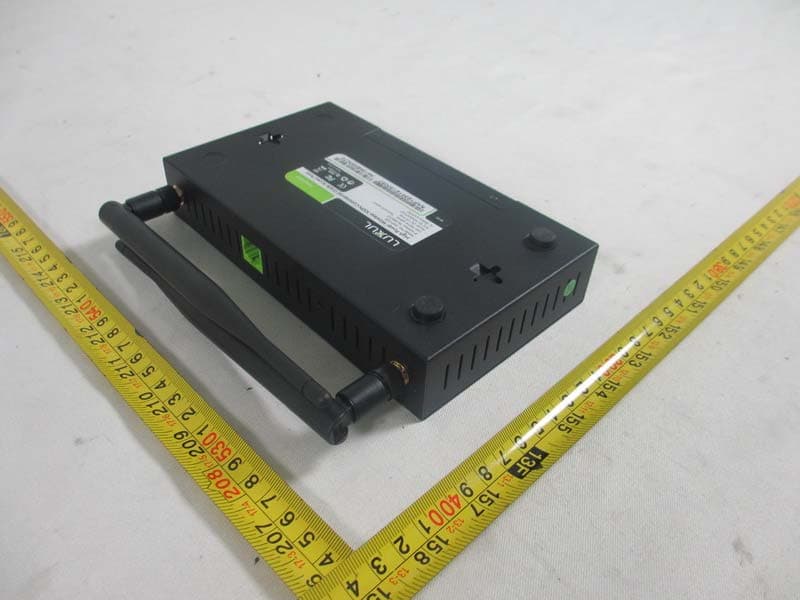

W59XAP1230High Power Wireless 300N Commercial Grade Access Point

Simply Connected Quick Install Guide XAP-1230 High Power Wireless 300N Commercial Grade Access Point Use the XAP-1230 to: „ Deliver Broader Wi-Fi Coverage and Eliminate Client Device Roaming Issues with Fewer APs „ Improve Data Rates with Multi-Stream Wireless 802.11n Technology „ Optimize VoIP, Streaming Media and Other Demanding Applications „ Create a Secure Guest Network „ Simplify Wi-Fi Installation while Minimizing Setup Time and Costs Commercial GradeCommercial Grade Quick Install Guide XAP-1230 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XAP-1230 1127130325 2 Quick Install Guide Model Number: XAP-1230 High Power Wireless 300N Commercial Grade Access Point FCC ID: W59XAP1230 IC: 8584A-XAP1230 © 2013 Luxul. All Rights Reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. DOCUMENT CONVENTIONS These graphical alerts are used in this document to indicate notable situations: NOTE: Tips, hints, or special requirements that you should take note of. CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction. WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage. FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CONTACT LUXUL Sales P: 801-822-5450 E: [email protected] Technical Support P: 801-822-5450 E: [email protected] Simply Connected © 2013 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 3 PACKAGE CONTENTS „ One: XAP-1230 Wireless Access Point „ Two: 5dBi Dipole Antenna „ One: PoE Injector and Power Cord „ Two: Ethernet Cables „ Four: Rubber Feet „ One: Quick Install Guide NOTE: If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for return/replacement. HARDWARE DESCRIPTION The XAP-1230 high powered access point is designed for optimal performance as well as for simple and efficient installation and setup. It implements Luxul’s Xen3D™ high performance technology and is packaged for installation on a desktop or wall. It can also be placed discreetly in a closet, attic or other non-public area. Note that the signal generated by the XAP-1230 is Omnidirectional and the unit should be placed in a location that is central to the desired coverage area. XAP-1230 LED Description The XAP-1230 has four LEDs, positioned horizontally on the bottom right side of the front of the access point. When viewed left to right, LEDs are as follows: 1) Power (Green); 2) LAN Link/Activity (Amber); 3) WLAN Status (Blue); and 4) Bridge Mode (Green). PWRLANBRGWLAN XAP-1230 High Power Wireless 300N Commercial Grade AP XAP-1230 LEDs Quick Install Guide XAP-1230 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XAP-1230 1127130325 4 XAP-1230 LED Indicators Indicator NameDescription Power OnThe power is on OffNo power, check power connections LAN Link/Activity OnThere is an active Ethernet connection FlashingIndicates Ethernet activity OffThere is no active Ethernet connection WLAN Status OnThe wireless radio is active and wireless access is enabled OffThe wireless radio is not active and wireless access is disabled Bridge Mode OnBridge is connected FlashingBridge Mode enabled but not connected OffThe AP is in default “Access Point” mode. At startup, the Green Power LED will stay on while the amber LAN Link light flashes. The blue LED will come on once the XAP-1230 wireless radio is active. PoE Injector LED Indicators Name StatusFunction PoE OnIndicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device OffIndicates no power is being delivered to the connected device FlashingFlashing: An error indicating a power fault PWR OnPower is connected to the PoE Injector OffInjector is not receiving power Simply Connected © 2013 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 5 Back Panel The back of the XAP-1230 provides two SMA antenna connectors and one RJ-45 connection that is used to deliver both power and data to the access point. RESET XAP-1230 Rear Panel Reset Button: The Reset button is used to clear the current settings of the XAP-1230 and restore factory default settings. To Restore the Default Settings: With the XAP-1230 powered on, press and hold the Reset button for 15 seconds. When all the LEDs except the power LED turn off, release the reset button. The power LED will stay solid. The XAP-1230 will be set to factory defaults. CAUTION: Pressing and holding the Reset button will remove any custom configurations done to the XAP-1230. Bottom Panel The Bottom of the XAP-1230 has two key holes to allow for easy and flexible mounting on a wall or other solid surface. For desktop or shelf mounting, it also has guides for placement of the four rubber feet provided. PREPARING FOR INSTALLATION System and Power Requirements „ Computer supporting TCP/IP and equipped with a Web browser. Supported Web browser versions include, Microsoft IE 8.0 and up, Mozilla Firefox 10 and up, Safari 2.0 and up, Google Chrome 4.0 and up, Opera 10 and up. The Web browser is used to configure the XAP-1230. „ The PoE injector power supply requires AC100V ~ …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1401C158 Page 2 of 10 Neutron Engineering Inc. Project No.: 1401C158 Page 3 of 10 Neutron Engineering Inc. Project No.: 1401C158 Page 4 of 10 Neutron Engineering Inc. Project No.: 1401C158 Page 5 of 10 Neutron Engineering Inc. Project No.: 1401C158 Page 6 of 10

军却夜曲 I~"U埠UflU 81.00 ··冒町冒冒 EEOO@aw 坦thmmMmMmmle咄阳fi<PIojnl 平面放叶'‘ E‘阜I!I I .雀" n..j.._........ 撮HJn.1 国噩. ，-阳 叩 " 一击 一 旦旦 m-h 0L45APVl.Q-LUXQl铜陋贴 附61'3ómm R_~mm IHt, 800刨扳醺我画过咂眩 ...‘}:. P切问'" .，协d< 3M9448胶 , .. 副监" μ 旦"-"一晴

Neutron Engineering Inc. Project No.: 1401C158 Page 6 of 9 Neutron Engineering Inc. Project No.: 1401C158 Page 7 of 9 Neutron Engineering Inc. Project No.: 1401C158 Page 8 of 9 Neutron Engineering Inc. Project No.: 1401C158 Page 9 of 9

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W59XAP1230 Project No. : 1401C158 Equipment : Hi gh Power Wireless 300N Commercial Grade Access Point Model : XAP-1230 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 Tenda Q5003 Dipole R-SMA 5 1 Tenda Q5003 Dipole R-SMA 5 Neutron Engineering Inc. TEST RESULTS EUT： High Power Wireless 300N Commercial Grade Access Point Model Name ： XAP-1230 Temperature： 18 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX B Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.04 100.9253 0.051044671 Complies 5 3.1623 21.82 152.0548 0.076904251 Complies 5 3.1623 22.15 164.0590 0.082975591 Complies EUT： High Power Wireless 300N Commercial Grade Access Point Model Name ： XAP-1230 Temperature： 18 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX G Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 26.91 490.9079 0.248284941 Complies 5 3.1623 26.92 492.0395 0.248857291 Complies 5 3.1623 26.84 483.0588 0.244315131 Complies Neutron Engineering Inc. EUT： High Power Wireless 300N Commercial Grade Access Point Model Name ： XAP-1230 Temperature： 18 °C Relative Humidity： 60 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M Mode_Total/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 29.16 824.1381 0.416821751 Complies 5 3.1623 29.18 827.9422 0.418745711 Complies 5 3.1623 28.55 716.1434 0.362201601 Complies EUT： High Power Wireless 300N Commercial Grade Access Point Model Name ： XAP-1230 Temperature： 18 °C Relative Humidity： 60 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M Mode_Total/CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 29.11 814.7043 0.412050431 Complies 5 3.1623 29.17 826.0379 0.417782621 Complies 5 3.1623 27.14 517.6068 0.261788381 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 1 of 128 FCC Radio Test Report FCC ID: W59XAP1230 This report concerns (check one): Original Grant Class II Change Issued Date : Feb. 24, 2014 Project No. : 1401C158 Equipment : High Power Wireless 300N Commercial Grade Access Point Model Name : XAP-1230 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 22, 2014 Date of Test: Jan. 22, 2014 ~ Feb. 22, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 2 of 128 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 7.1 APPLIED PROCEDURES / LIMIT 77 7.1.1 TEST PROCEDURE 77 7.1.2 DEVIATION FROM STANDARD 77 7.1.3 TEST SETUP 77 7.1.4 EUT OPERATION CONDITIONS 77 7.1.5 EUT TEST CONDITIONS 77 7.1.6 TEST RESULTS 78 8 . POWER SPECTRAL DENSITY TEST 108 8.1 APPLIED PROCEDURES / LIMIT 108 8.1.1 TEST PROCEDURE 108 8.1.2 DEVIATION FROM STANDARD 108 8.1.3 TEST SETUP 108 8.1.4 EUT OPERATION CONDITIONS 108 8.1.5 EUT TEST CONDITIONS 108 8.1.6 TEST RESULTS 109 9 . MEASUREMENT INSTRUMENTS LIST 123 10 . EUT TEST PHOTO 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1401C158 Original Issue. Feb. 24, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 6 of 128 1. CERTIFICATION Equipment : High Power Wireless 300N Commercial Grade Access Point Brand Name : Luxul Xen™ Model Name : XAP-1230 Applicant Luxul Wireless Date of Test : Jan. 22, 2014 ~ Feb. 22, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1401C158) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section FCC Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS NOTE: (1)” N/A” denotes test is no…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 125 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 126 of 128 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 127 of 128 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C158 Page 128 of 128 Radiated Measurement Photos Above 1000MHz
