W59XAP1500High Power Dual Band Wireless 900N Low Profile Access Point

Simply Connected Quick Install Guide XAP-1500 High Power Dual-Band Wireless 900N Low Profi le Access Point Use the XAP-1500 to: „ Deliver Broader Wi-Fi Coverage and Eliminate Client Device Roaming Issues with Fewer APs „ Maximize Data Rates with Concurrent Dual-Band (2.4GHz and 5GHz) Technology „ Optimize VoIP, Streaming Media and Other Demanding Applications „ Create a Secure Guest Network „ Simplify Wi-Fi Installation while Minimizing Setup Time and Costs „ Minimize Unsightly Cables and Equipment Low Profi le Access PointLow Profi le Access Point Quick Install Guide XAP-1500 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 luxul.com | 801-822-5450 2 HIGH POWER DUAL-BAND WIRELESS 900N LOW PROFILE ACCESS POINT Model Number: XAP-1500 FCC ID: W59XAP1500 IC: 8584A-XAP1500 Quick Install Guide © 2013 Luxul. All Rights Reserved. No part of this publication may be modifi ed or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either ex- pressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. DOCUMENT CONVENTIONS These graphical alerts are used in this document to indicate notable situations: NOTE: Tips, hints, or special requirements that you should take note of. CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction. WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage. FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CONTACT LUXUL Sales P: 801-822-5450 E: [email protected] Technical Support P: 801-822-5450 E: [email protected] Simply Connected © 2013 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 3 PACKAGE CONTENTS The following items should be included in the box: „ One: XAP-1500 Dual Band Wireless AP „ One: Mounting Bracket and Hardware „ One: PoE Injector and Power Cord „ Two: Ethernet Cables „ One: Quick Install Guide NOTE: If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for return/replacement. HARDWARE DESCRIPTION XAP-1500 LEDs XAP-1500 Side LEDs XAP-1500 LED Indicators NameStatusFunction LEDs on the side of the enclosure Power OnIndicates the device is on 2.4GHz OnIndicates the confi guration and broadcasting of a 2.4GHz network 5GHz OnIndicates the confi guration and broadcasting of a 5GHz network Ethernet Port LEDs PoE (Power and Data Input) LAN (Data Out) YellowConnected device is 10/100Mbps GreenConnected device is 1000Mbps Yellow or Green Flashing Indicates data packets are being passed Quick Install Guide XAP-1500 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 luxul.com | 801-822-5450 4 XAP-1500 Rear Port View PoE Injector LED Indicators Name StatusFunction PoE OnIndicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device OffIndicates no power is being delivered to the connected device FlashingFlashing: An error indicating a power fault PWR OnPower is connected to the PoE Injector OffInjector is not receiving power PREPARING FOR INSTALLATION System Requirements „ Computer supporting TCP/IP and equipped with a Web browser. Supported Web browser versions include I.E. 9.0, Firefox 3.6, Safari 5.0, Chrome 6.0, Opera 10.6 and up. The Web browser is used to confi gure the XAP-1500. „ Power must be AC 100-240V~0.3A 50/60Hz. XAP-1500 INSTALLATION The XAP-1500 high powered access point is designed for optimal performance as well as for simple and effi cient installation and setup. It designed for mount- ing on the ceiling, wall or placed on a desktop or other fl at surface. Because the signal generated by the XAP-1500 is omnidirectional, the unit should be mounted on a ceiling or wall directly in the center of the desired coverage area. Note that orientation of the unit is less important than the mounting location. Simply Connected © 2013 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 5 Ceiling and Wall Mounting The XAP-1500 comes with a circular mounting bracket to mount it to the wall or ceiling. Use the Mounting Pattern (Page 6-7) for mounting bracket alignment. XAP-1500 mounted on a ceiling XAP-1500 mounted on a wall Desktop Installation Attach the included rubber foot pads to the circular mounting bracket and place on any fl at surface XAP-1500 on a desktop or fl at surface WARNING!: The circular mounting bracket is required in all installation positions to allow for adequate airfl ow. CAUTION: Because the XAP-1500 is a High-Powered access point it is normal for it to be hot to the touch MOUNTING PATTERN Quick Install Guide XAP-1500 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 luxul.com | 801-822-5450 8 Hardware Setup „ Data In: Connect an Ethernet cable from your router or switch to the Data In port of the included PoE Injector „ Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out port of the included PoE Injector to the PoE Port of the XAP-1500 „ AC Power: Connect the included AC Cord to the Power Input of the Included Injector first and then to the AC outlet. NOTE: The XAP-1500 is not a router and will need to be connected to a network with a router in order to deliver Internet access. Power Source POE Injector From your Router or Switch XAP-1500 DATA I N DATA & PWR OUT The PoE Injector combines power and data to the XAP-1500 CAUTION: The XAP-1…

Text truncated - open the document above for the full version.

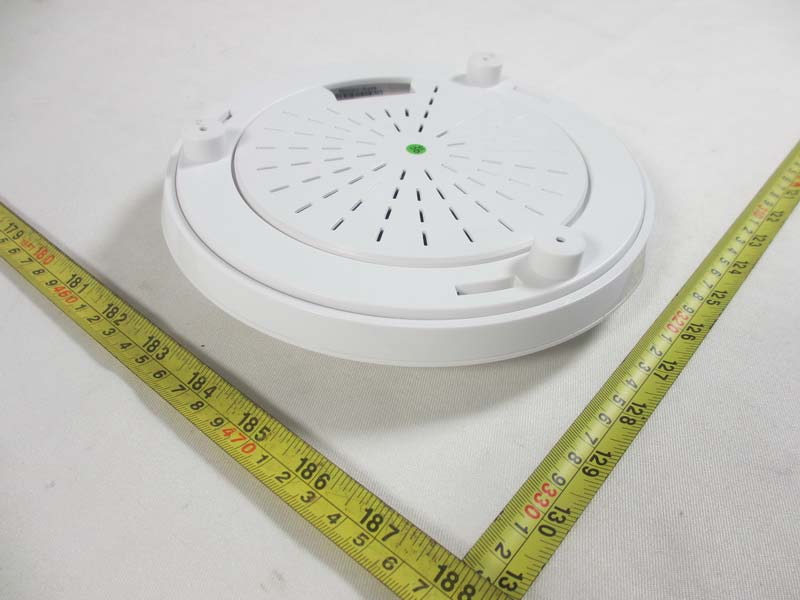

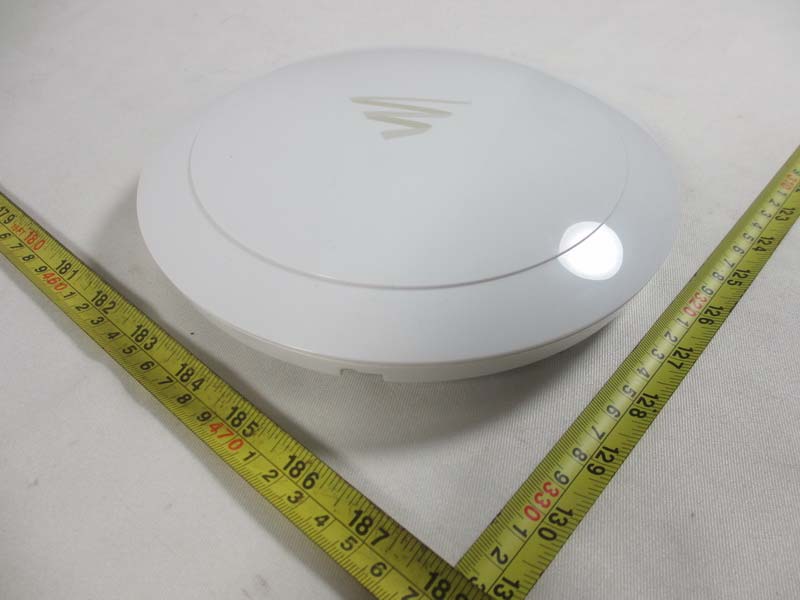

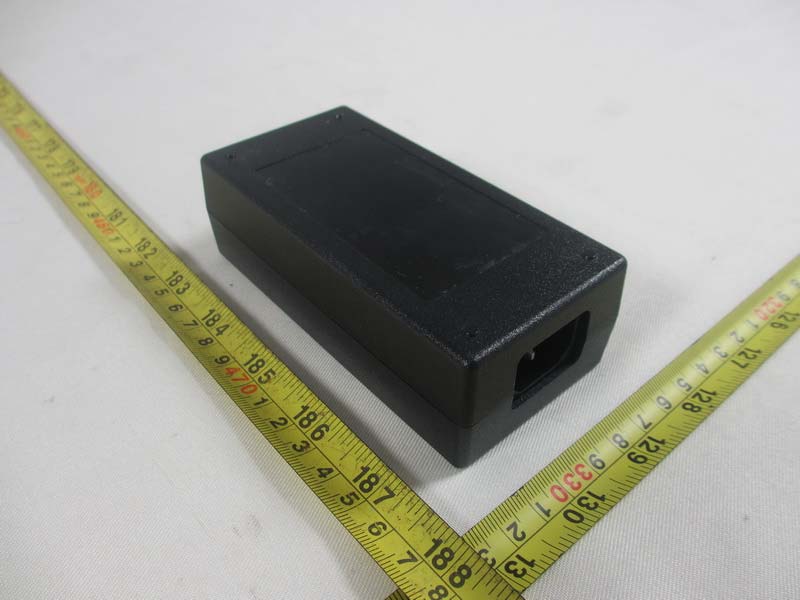

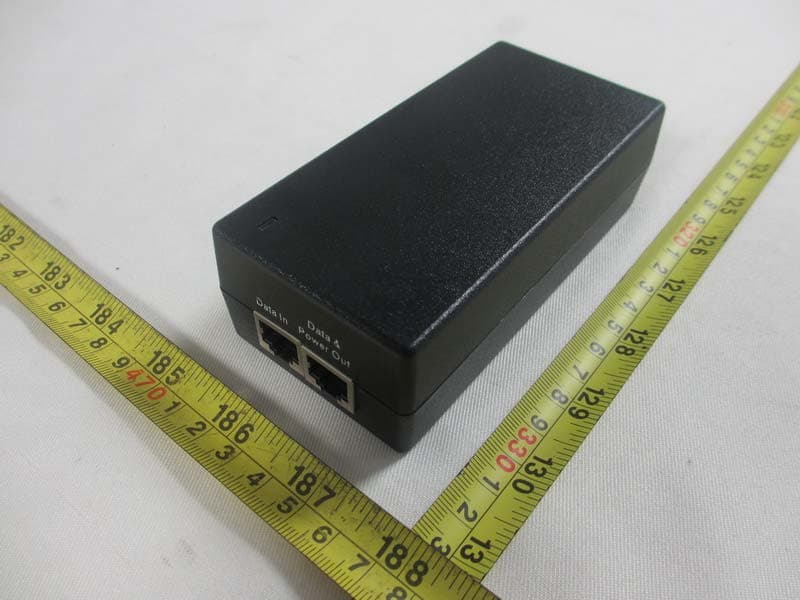

Neutron Engineering Inc. Project No.: 1310C127 Page 2 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 3 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 4 of 10

Pantone 376 Black

Label location

Neutron Engineering Inc. Project No.: 1310C127 Page 5 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 6 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 7 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 8 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 9 of 10 Neutron Engineering Inc. Project No.: 1310C127 Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W59XAP1500 Project No. : 1310C127 Equipment : High Power Dual Band Wireless 900N Ceiling Mount Access Point Model Name : XAP-1500 Applicant : Luxul Wireless Address : 14203 Minuteman Dr, Suite 201,Draper ,Utah, United States Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant.BrandModel Name Antenna Type Connector Gain (dBi) Note 0Q5078 Internal Antenna N/A 5.0 TX/RX 1Q5078 Internal Antenna N/A 5.0 TX/RX 2Q5078 Internal Antenna N/A 5.0 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides three completed transmitters and three receivers (3T3R). Operating Mode TX Mode 1TX 3TX 802.11a V (ANT 0 or ANT 1 or ANT 2) - 802.11n(20MHz) - V (ANT 0 + ANT 1 + ANT 2) 802.11n(40MHz) - V (ANT 0 + ANT 1 + ANT 2) Neutron Engineering Inc. TEST RESULTS EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX A Mode/CH36, CH40, CH48 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.66 29.2415 0.018405621 Complies 14.85 30.5492 0.019228721 Complies 15.04 31.9154 0.020088631 Complies EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N20 Mode/CH36, CH40, CH48 / ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 8.72 7.4473 0.004687601 Complies 8.64 7.3114 0.004602041 Complies 8.54 7.1450 0.004497281 Complies EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N20 Mode/CH36, CH40, CH48 / ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 9.26 8.4333 0.005308241 Complies 9.39 8.6896 0.005469531 Complies 9.41 8.7297 0.005494781 Complies Neutron Engineering Inc. EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N20 Mode/CH36, CH40, CH48 / ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 9.26 8.4333 0.005308241 Complies 9.42 8.7498 0.005507451 Complies 9.47 8.8512 0.005571221 Complies EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N20 Mode/CH36, CH40, CH48 / ANT 0+ANT 1+ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 13.86 24.3220 0.015309131 Complies 13.94 24.7742 0.015593741 Complies 13.93 24.7172 0.015557881 Complies Neutron Engineering Inc. EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N40 Mode/CH38, CH46 / ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.84 6.0814 0.003827811 Complies 7.89 6.1518 0.003872131 Complies EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N40 Mode/CH38, CH46 / ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 8.49 7.0632 0.004445801 Complies 9.15 8.2224 0.005175481 Complies EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N40 Mode/CH38, CH46 / ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 9.13 8.1846 0.00515170 1 Complies 9.18 8.2794 0.00521135 1 Complies Neutron Engineering Inc. EUT: High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Temperature: 25±C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 1/TX N40 Mode/CH38, CH46 / ANT 0+ANT 1+ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 13.29 21.3304 0.01342612 1 Complies 13.55 22.6464 0.01425445 1 Complies Note:The evaluated distance is 20cm.

Report No.: NEI-FCCP-2-1310C127 Page 1 of 147 Neutron Engineering Inc. FCC Radio Test Report FCC ID: W59XAP1500 This report concerns (check one): Original Grant Class I Change Issued Date : Nov. 06, 2013 Project No. : 1310C127 Equipment : High Power Dual Band Wireless 900N Low Profile Access Point Model Name : XAP-1500 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 22, 2013 Date of Test: Oct. 22, 2013~ Nov. 05, 2013 Report No.: NEI-FCCP-2-1310C127 Page 2 of 147 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-2-1310C127 Page 3 of 147 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION 15 4.1.2 MEASUREMENT INSTRUMENTS LIST 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 24 4.2.8 TEST RESULTS - ABOVE 1000MHZ 31 5 . 26dB SPECTRUM BANDWIDTH 63 5.1 APPLIED PROCEDURES / LIMIT 63 5.1.1 MEASUREMENT INSTRUMENTS LIST 63 5.1.2 TEST PROCEDURE 63 5.1.3 DEVIATION FROM STANDARD 63 5.1.4 TEST SETUP 63 5.1.5 EUT OPERATION CONDITIONS 63 5.1.6 TEST RESULTS 64 6 . MAXIMUM CONDUCTED OUTPUT POWER 70 Report No.: NEI-FCCP-2-1310C127 Page 4 of 147 Neutron Engineering Inc. Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 70 6.1.1 MEASUREMENT INSTRUMENTS LIST 70 6.1.2 TEST PROCEDURE 70 6.1.3 DEVIATION FROM STANDARD 71 6.1.4 TEST SETUP 71 6.1.5 EUT OPERATION CONDITIONS 71 6.1.6 TEST RESULTS 72 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 88 7.1 APPLIED PROCEDURES / LIMIT 88 7.1.1 MEASUREMENT INSTRUMENTS LIST 88 7.1.2 TEST PROCEDURE 88 7.1.3 DEVIATION FROM STANDARD 88 7.1.4 TEST SETUP 88 7.1.5 EUT OPERATION CONDITIONS 88 7.1.6 TEST RESULTS 89 8 . POWER SPECTRAL DENSITY TEST 103 8.1 APPLIED PROCEDURES / LIMIT 103 8.1.1 MEASUREMENT INSTRUMENTS LIST 103 8.1.2 TEST PROCEDURE 103 8.1.3 DEVIATION FROM STANDARD 103 8.1.4 TEST SETUP 103 8.1.5 EUT OPERATION CONDITIONS 103 9 . PEAK EXCURSION MEASUREMENT 120 9.1 APPLIED PROCEDURES / LIMIT 120 9.1.1 MEASUREMENT INSTRUMENTS LIST 120 9.1.2 TEST PROCEDURE 120 9.1.3 DEVIATION FROM STANDARD 120 9.1.4 TEST SETUP 121 9.1.5 EUT OPERATION CONDITIONS 121 9.1.6 TEST RESULTS 122 10 . FREQUENCY STABILITY MEASUREMENT 136 10.1 APPLIED PROCEDURES / LIMIT 136 10.1.1 MEASUREMENT INSTRUMENTS LIST 136 10.1.2 TEST PROCEDURE 136 10.1.3 DEVIATION FROM STANDARD 136 10.1.4 TEST SETUP 137 10.1.5 EUT OPERATION CONDITIONS 137 10.1.6 TEST RESULTS 138 11. EUT TEST PHOTO 145 Report No.: NEI-FCCP-2-1310C127 Page 5 of 147 Neutron Engineering Inc. REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-2-1310C127 Original Issue. Nov. 06, 2013 Report No.: NEI-FCCP-2-1310C127 Page 6 of 147 Neutron Engineering Inc. 1. CERTIFICATION Equipment : High Power Dual Band Wireless 900N Low Profile Access Point Brand Name : Luxul Xen™ Model Name : XAP-1500 Applicant : Luxul Wireless Date of Test : Oct. 22, 2013~ Nov. 05, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.4 : 2009; FCC KDB 789033 D01 General UNII Test Procedures v01r03 . The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1310C127) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C127 Page 160 of 162 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C127 Page 161 of 162 Radiated Measurement Photos 300MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C127 Page 162 of 162 Radiated Measurement Photos Above 1000MHz
