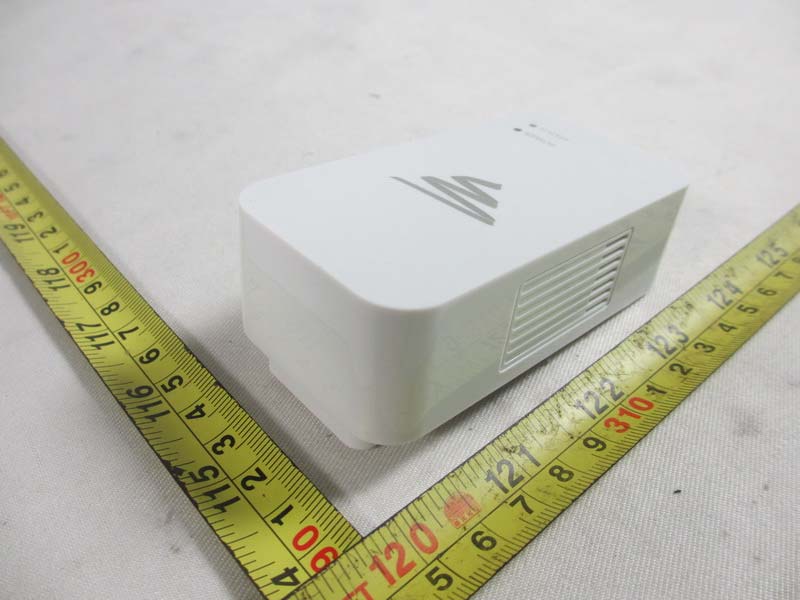

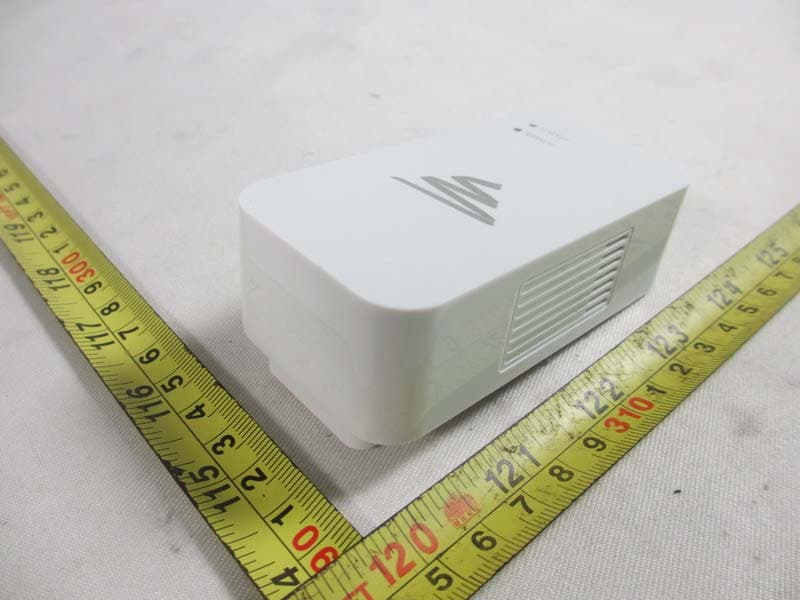

W59XVWP30Wireless Range Extender

14203 Minuteman Drive, Ste 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 © 2014 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners LUX-QIG-XVW-P30-txt 063140843 Simply Connected Use the XVW-P30 to:  Extend the Coverage Area of an Existing Wi-Fi Network  Eliminate Wireless Dead Spots  Deliver Reliable Wi-Fi Performance at Speeds up to 300Mbps  Simplify Wi-Fi Expansion while Minimizing Setup Time and Costs Quick Install Guide XVW-P30 Wireless Range Extender  After entering the password it will take approximately 30 seconds to fi nish the setup. After 30 seconds, check the Status LED on the wireless range extender.  If it is solid green, the wireless range extender has been successfully installed and is now working. If it is fl ashing blue/green there was a problem with the setup process, most likely the password was not entered correctly or the wrong wireless router was selected. Reset/ Factory Default the wireless range extender again and re-install. Parameter: Default Value Default IP address: 192.168.0.11 Default user name: admin Default password: admin  Connect a Client Device The XVW-P30 is now confi gured and extending your wireless network. Connecting a Client Device  Connecting a Wireless Client Device: Connect the client device to the SSID used to confi gured the XVW-P30. This will require the passphrase used when confi guring the XVW-P30.  Connecting an Ethernet Only Device: Simply set the IP Address to be obtained through DHCP and connect the device to LAN1 or LAN2 WARNINGS AND SAFETY INFORMATION  Verify that the electrical circuits have appropriate grounding and overload protection.  Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment operation specifi cations.  The XVW-P30 is designed for indoor use only. DO NOT place this outdoors.  DO NOT install in or near hot or humid places, such as a kitchen or bathroom. Take care to minimize exposure to excessive heat or moisture.  Small parts and plastic bags used for packaging may be harmful to small children. KEEP All ACCESSORIES OUT OF THE REACH OF CHILDREN!  The XVW-P30 may become hot when in use for extended time periods. This is normal and is not a malfunction. DO NOT install where it will be exposed to paper, cloth or other fl ammable materials. REGULATORY COMPLIANCE The device complies with internationally recognized standards covering human exposure to electromagnetic fi elds from radio devices. This equipment also complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. Unauthorized antennas, modifi cations, or attachments could cause damage and may violate regulatory approvals. Any changes or modifi cations not expressly approved by the party responsible for compliance could void the authority to operate the equipment. Equipment version marketed in the U.S. is restricted to usage of channels 1-11 only. Health and Safety Recommendations Warnings for the use of Wireless Devices: Please observe all warning notices with regard to the usage of wireless devices Potentially Hazardous Atmospheres: You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Safety in Hospitals: Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. 9 10 11 12 1314 RF Exposure Guidelines Safety Information: The device complies with internationally recognized standards covering human exposure to electromagnetic fi elds from radio devices. Warning: Exposure to Radio Frequency (RF) Radiation: The radiated output of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized.  The end user must avoid any extended human RF exposure directly in front of the device, up to a distance of 20cm, when unit is on.  When servicing the equipment and selecting a location for the antennas, it is important to note that a minimum distance of 20cm is required between personnel and the device or antenna to comply with the radio frequency exposure limit.  The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The following safety precautions should be observed:  Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. FCC Statement—Wireless FCC 2.4GHz 802.11bgn This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1310C160A Page 2 of 8 Neutron Engineering Inc. Project No.: 1310C160A Page 3 of 8

Neutron Engineering Inc. Project No.: 1310C160A Page 4 of 8 Neutron Engineering Inc. Project No.: 1310C160A Page 5 of 8 Neutron Engineering Inc. Project No.: 1310C160A Page 6 of 8 Neutron Engineering Inc. Project No.: 1310C160A Page 7 of 8 Neutron Engineering Inc. Project No.: 1310C160A Page 8 of 8

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W59XVWP30 Project No. : 1310C160A Equipment : Wireless Range Extender Model : XVW-P30 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connecto r Gain (dBi) Note 1 N/A NA Printed N/A 3 TX/RX 2 N/A NA Printed N/A 3 TX/RX Neutron Engineering Inc. TEST RESULTS EUT： Wireless Range Extender Model Name : XVW-P30 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 18.12 64.8634 0.025760271 Complies 3 1.9953 18.16 65.4636 0.025998621 Complies 3 1.9953 18.07 64.1210 0.025465391 Complies EUT： Wireless Range Extender Model Name : XVW-P30 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 20.15 103.5142 0.041110271 Complies 3 1.9953 20.13 103.0386 0.040921391 Complies 3 1.9953 20.14 103.2761 0.041015721 Complies Neutron Engineering Inc. EUT: Wireless Range Extender Model Name : XVW-P30 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 24.09 256.4484 0.101847501 Complies 3 1.9953 24.17 261.2161 0.103740991 Complies 3 1.9953 24.1 257.0396 0.102082281 Complies EUT: Wireless Range Extender Model Name : XVW-P30 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 24.18 261.8183 0.103980131 Complies 3 1.9953 24.15 260.0160 0.103264341 Complies 3 1.9953 24.1 257.0396 0.102082281 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 1 of 128 FCC Radio Test Report FCC ID: W59XVWP30 This report concerns (check one): Original Grant Class II Change Issued Date : Mar. 05, 2014 Project No. : 1310C160A Equipment : Wireless Range Extender Model Name : XVW-P30 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Feb. 24, 2014 Date of Test: Feb. 24, 2014 ~ Mar. 04, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 2 of 128 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 7.1 APPLIED PROCEDURES / LIMIT 77 7.1.1 TEST PROCEDURE 77 7.1.2 DEVIATION FROM STANDARD 77 7.1.3 TEST SETUP 77 7.1.4 EUT OPERATION CONDITIONS 77 7.1.5 EUT TEST CONDITIONS 77 7.1.6 TEST RESULTS 78 8 . POWER SPECTRAL DENSITY TEST 108 8.1 APPLIED PROCEDURES / LIMIT 108 8.1.1 TEST PROCEDURE 108 8.1.2 DEVIATION FROM STANDARD 108 8.1.3 TEST SETUP 108 8.1.4 EUT OPERATION CONDITIONS 108 8.1.5 EUT TEST CONDITIONS 108 8.1.6 TEST RESULTS 109 9 . MEASUREMENT INSTRUMENTS LIST 123 10 . EUT TEST PHOTO 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1310C160A Original Issue. Mar. 05, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 6 of 128 1. CERTIFICATION Equipment : Wireless Range Extender Brand Name : Luxul Xen™ Model Name : XVW-P30 Applicant : Luxul Wireless Manufacturer : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Date of Test : Feb. 24, 2014 ~ Mar. 04, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1310C160A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1310C160A Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PAS…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C160A Page 125 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C160A Page 126 of 128 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C160A Page 127 of 128 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C160A Page 128 of 128 Radiated Measurement Photos Above 1000MHz
