W59XWR600Daul Band Wireless 600N Router

Simply Connected Quick Install Guide XWR-600 Dual-Band Wireless 600N Router Use the XWR-600 to: „ Provide an Affordable Concurrent Dual-Band Wi-Fi Network „ Combine High Performance Gigabit and 802.11n Wireless Functionality „ Minimize Wireless Interference and Maximize Data Rates „ Create a Secure Guest Network Use the XWR-600 to: Quick Install Guide XWR-600 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XWR-600 0123140437 2 Quick Install Guide Model Number: XWR-600 Dual-Band Wireless 600N Router FCC ID: W59XWR600 IC: 8584A-XWR600 © 2014 Luxul. All Rights Reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. DOCUMENT CONVENTIONS These graphical alerts are used in this document to indicate notable situations: NOTE: Tips, hints, or special requirements that you should take note of. CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction. WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage. FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CONTACT LUXUL Sales P: (801) 822-5450 E: [email protected] Technical Support P: (801) 822-5450 E: [email protected] Simply Connected © 2014 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 3 PACKAGE CONTENTS The following items should be included in the box: „ XWR-600 Dual-Band Wireless 600N Router „ 2 Dual Band RPSMA Male Antennas „ Ethernet Cable „ Power Adaptor „ Quick Installation Guide NOTE: If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for return/replacement. HARDWARE DESCRIPTION XWR-600 LED Indicators IndicatorNameStatusFunction WPS LED ONIndicates the XWR-600 is ready for WPS pairing. 5GHzONIndicates a 5GHz wireless network is broadcasting. 2.4GHzONIndicates a 2.4GHz network is broadcasting. 1-4 LEDONIndicates a device is connected to the Ethernet port number. FLASHINGindicates data packets are being transmitted to the connected device. Internet LED ONIndicates the XWR-600 is connected to the ISP. FLASHINGIndicates data packets are being transmitted USB LED ONIndicates a USB enabled device is connected and configured. Power LED ONON indicates power is applied to the XWR-600. OFFIndicates power is not applied to the XWR-600. Quick Install Guide XWR-600 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XWR-600 0123140437 4 Rear Panel XWR-600 Rear Panel View „ Antenna Ports: 2 RPSMA female antenna ports to connect the included antennas „ Power Input: Power adapter included NOTE: To hard reboot the router, remove the power adapter. Wait 10 seconds and re-apply power. „ WAN Port: 1 Black RJ-45 Ethernet Port for Internet connection „ LAN 1 - 4 Ports: 4 Green RJ-45 Ethernet Ports for connecting to the local network NOTE: It is recommended that a Luxul switch be used in conjunction with the XWR-600 to increase number of local ports available. „ WPS/Reset Button: Used to confi gure WPS or restore factory default settings CAUTION: Holding the WPS button longer than 10 seconds will result in a factory reset Side Panel XWR-600 Side Panel View „ USB Port: 1 USB 2.0 ports for connecting USB based printers and hard drives Simply Connected © 2014 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners 5 PREPARING FOR INSTALLATION System Requirements „ Computer supporting TCP/IP and equipped with a Web browser. Supported Web browser versions include I.E. 9.0, Firefox 3.6, Safari 5.0, Chrome 6.0, Opera 10.6 and up. The Web browser is used to confi gure the XWR-600. „ Power must be AC 100-240V~ 1.0A 50/60Hz. XWR-600 INSTALLATION Desktop Installation For use as a desktop device, position the XWR-600 on a desk or other horizontal surface with adequate room around the XWR-600 for ventilation. Wall Installation The XWR-600 Is keyholed to allow installation on a wall or ceiling. Use the Mounting Pattern (Page 8-9) for keyhole alignment. Hardware Setup „ Attach Antennas: Connect the included Dual Band Antennas to both antenna ports. NOTE: Both antennas should be installed prior to powering up the XWR-600 and are required for optimal performance. „ WAN Connection: Connect the Ethernet cable from the modem/router equip- ment provided by your Internet Service Provider (ISP) to the black WAN port of the XWR-600. „ AC Power: Connect the included AC Adapter to the XWR-600 fi rst and then to the AC outlet. Quick Install Guide XWR-600 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XWR-600 0123140437 6 CONFIGURATION Default IP Address The XWR-600 default IP address is 192.168.0.1. This address can be changed. However, for hassle free installation of other XenConnect™ plug and play Luxul devices, it is recommended that the default IP value be maintained. Parameter:Default Value Default IP address:192.168.0.1 Default user name: admin Default password:admin Connect a Client Device Use a computer or mobile device to connect via Ethernet or wireless to the XWR-600. The DHCP server on the XWR-600 is configured by default. If your client device is set to obtain an address automatically, no …

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Daul Band Wireless 600N Router Model Name XWR-600 Brand Name Luxul Xen™ Applicant Luxul Wireless Address 14203 Minuteman Drive, Suite 201, Draper, UT USA Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 Report(s) NEI-FCCE-1-1401C155 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

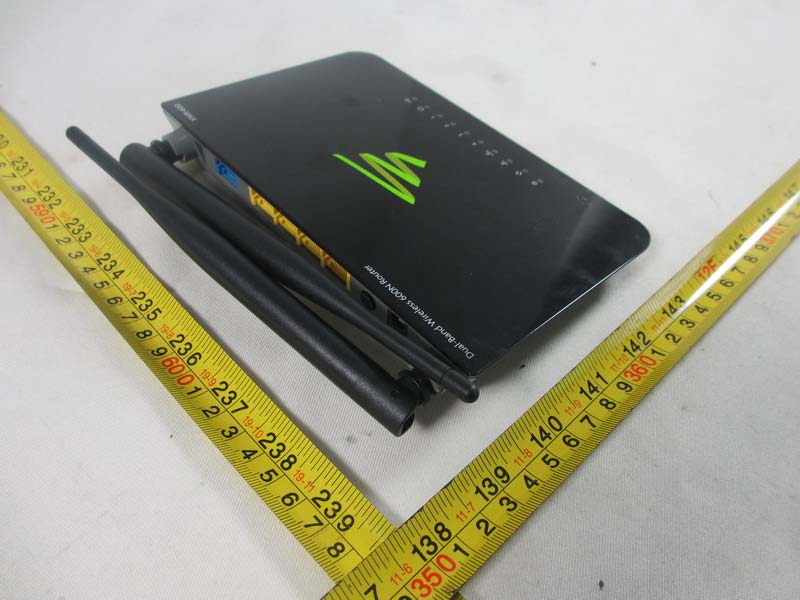

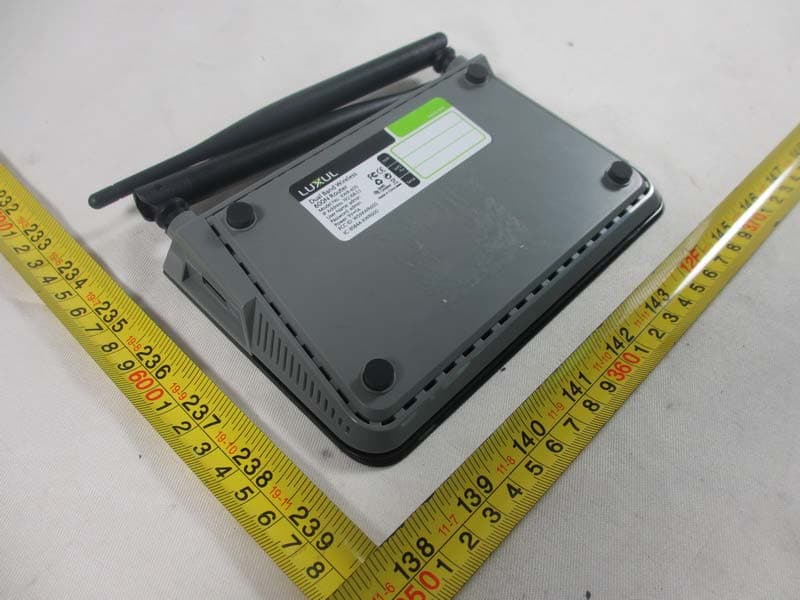

Neutron Engineering Inc. Project No.: 1401C155 Page 2 of 9 Neutron Engineering Inc. Project No.: 1401C155 Page 3 of 9 Neutron Engineering Inc. Project No.: 1401C155 Page 4 of 9 Neutron Engineering Inc. Project No.: 1401C155 Page 5 of 9

ODEHOORFDWLRQ

Neutron Engineering Inc. Project No.: 1401C155 Page 6 of 9 0DLQERDUG 0DLQERDUG Neutron Engineering Inc. Project No.: 1401C155 Page 7 of 9 0DLQERDUG 0DLQERDUG Neutron Engineering Inc. Project No.: 1401C155 Page 8 of 9 5)PRGXOH,& Neutron Engineering Inc. Project No.: 1401C155 Page 9 of 9 5)PRGXOHFU\VWDO 5)PRGXOHDQWHQQDFRQQHFWRU

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W59XWR600 Project No. : 1401C155 Equipment : Daul Band Wireless 600N Router Model Name : XWR-600 Applicant : Luxul Wireless Address : 14203 Minuteman Dr，Suite 201, Draper, Utah, United States Manufacturer : Luxul Wireless Address : 14203 Minuteman Dr，Suite 201, Draper, Utah, United States According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 LUXUL Q5095 Dipole N/A 6.08 TX/RX 2 LUXUL Q5096 Dipole N/A 6.08 TX/RX Operating Mode TX Mode 1TX 2TX 802.11a V (ANT 1 or ANT 2)- 802.11n(20MHz) - V (ANT 1 + ANT 2) 802.11n(40MHz) - V (ANT 1 + ANT 2) Neutron Engineering Inc. TEST RESULTS EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX A Mode Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 6.08 4.0551 20.11 102.5652 0.082784761 Complies 6.08 4.0551 20.2 104.7129 0.084518231 Complies 6.08 4.0551 20.46 111.1732 0.089732621 Complies EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX N-20M Mode-Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 6.08 4.0551 22.65 184.0772 0.148576581 Complies 6.08 4.0551 22.69 185.7804 0.149951351 Complies 6.08 4.0551 22.69 185.7804 0.149951351 Complies EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX N-40M Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 6.08 4.0551 22.6 181.9701 0.146875841 Complies 6.08 4.0551 22.71 186.6380 0.150643491 Complies Note: The calculated distance is 20cm.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W59XWR600 Project No. : 1401C155 Equipment : Daul Band Wireless 600N Router Model Name : XWR-600 Applicant : Luxul Wireless Address : 14203 Minuteman Dr，Suite 201, Draper, Utah, United States Manufacturer : Luxul Wireless Address : 14203 Minuteman Dr，Suite 201, Draper, Utah, United States According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 LUXUL Q5095 Dipole N/A 4.05 TX/RX 2 LUXUL Q5096 Dipole N/A 4.05 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT 1 or ANT 2)- 802.11g V (ANT 1 or ANT 2)- 802.11n(20MHz) - V (ANT 1 + ANT 2 802.11n(40MHz) - V (ANT 1 + ANT 2) Neutron Engineering Inc. TEST RESULTS EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX B Mode Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.05 2.5410 19.17 82.6038 0.041778261 Complies 4.05 2.5410 19.26 84.3335 0.042653081 Complies 4.05 2.5410 19.17 82.6038 0.041778261 Complies EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX G Mode Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.05 2.5410 23.75 237.1374 0.119936221 Complies 4.05 2.5410 23.86 243.2204 0.123012821 Complies 4.05 2.5410 23.22 209.8940 0.106157421 Complies EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX N-20M Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.05 2.5410 26.07 404.5759 0.204621081 Complies 4.05 2.5410 25.97 395.3666 0.199963331 Complies 4.05 2.5410 25.81 381.0658 0.192730471 Complies Neutron Engineering Inc. EUT: Daul Band Wireless 600N Router Model Name : XWR-600 Temperature: 25 °C Relative Humidity: 55 % Pressure: AC 120V/60Hz Test Mode : TX N-40M Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.05 2.5410 25.74 374.9730 0.189648921 Complies 4.05 2.5410 25.27 336.5116 0.170196401 Complies 4.05 2.5410 25.6 363.0781 0.183632851 Complies Note: The calculated distance is 20cm

Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 1 of 107 FCC Radio Test Report FCC ID: W59XWR600 This report concerns (check one): Original Grant Class II Change Issued Date : Feb. 20, 2014 Project No. : 1401C155 Equipment : Daul Band Wireless 600N Router Model Name : XWR-600 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 22, 2014 Date of Test: Jan. 22, 2014 ~ Feb. 19, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 2 of 107 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 3 of 107 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 20 4.2.5 EUT OPERATING CONDITIONS 21 4.2.6 EUT TEST CONDITIONS 21 4.2.7 TEST RESULTS (9K~ 30MHZ) 22 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 23 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 30 5 . BANDWIDTH TEST 50 5.1 APPLIED PROCEDURES 50 5.1.1 TEST PROCEDURE 50 5.1.2 DEVIATION FROM STANDARD 50 5.1.3 TEST SETUP 50 5.1.4 EUT OPERATION CONDITIONS 50 5.1.5 EUT TEST CONDITIONS 50 5.1.6 TEST RESULTS 51 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 4 of 107 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 61 6.1 APPLIED PROCEDURES / LIMIT 61 6.1.1 TEST PROCEDURE 61 6.1.2 DEVIATION FROM STANDARD 61 6.1.3 TEST SETUP 61 6.1.4 EUT OPERATION CONDITIONS 61 6.1.5 EUT TEST CONDITIONS 61 6.1.6 TEST RESULTS 62 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 65 7.1 APPLIED PROCEDURES / LIMIT 65 7.1.1 TEST PROCEDURE 65 7.1.2 DEVIATION FROM STANDARD 65 7.1.3 TEST SETUP 65 7.1.4 EUT OPERATION CONDITIONS 65 7.1.5 EUT TEST CONDITIONS 65 7.1.6 TEST RESULTS 66 8 . POWER SPECTRAL DENSITY TEST 89 8.1 APPLIED PROCEDURES / LIMIT 89 8.1.1 TEST PROCEDURE 89 8.1.2 DEVIATION FROM STANDARD 89 8.1.3 TEST SETUP 89 8.1.4 EUT OPERATION CONDITIONS 89 8.1.5 EUT TEST CONDITIONS 89 8.1.6 TEST RESULTS 90 9 . MEASUREMENT INSTRUMENTS LIST 102 10 . EUT TEST PHOTO 104 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 5 of 107 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-3-1401C155 Original Issue. Feb. 20, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 6 of 107 1. CERTIFICATION Equipment : Daul Band Wireless 600N Router Brand Name : Luxul Xen™ Model Name : XWR-600 Applicant Luxul Wireless Date of Test : Jan. 22, 2014 ~ Feb. 19, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-3-1401C155) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-3-1401C155 Page 7 of 107 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS NOTE: (1)” N/A” denotes test is not applicable in this test report. (2) The test follows FCC …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 1 of 128 FCC Radio Test Report FCC ID: W59XWR600 This report concerns (check one): Original Grant Class II Change Issued Date : Feb. 20, 2014 Project No. : 1401C155 Equipment : Daul Band Wireless 600N Router Model Name : XWR-600 Applicant : Luxul Wireless Address : 14203 Minuteman Drive, Suite 201, Draper, UT USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 22, 2014 Date of Test: Jan. 22, 2014 ~ Feb. 19, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 2 of 128 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 7.1 APPLIED PROCEDURES / LIMIT 77 7.1.1 TEST PROCEDURE 77 7.1.2 DEVIATION FROM STANDARD 77 7.1.3 TEST SETUP 77 7.1.4 EUT OPERATION CONDITIONS 77 7.1.5 EUT TEST CONDITIONS 77 7.1.6 TEST RESULTS 78 8 . POWER SPECTRAL DENSITY TEST 108 8.1 APPLIED PROCEDURES / LIMIT 108 8.1.1 TEST PROCEDURE 108 8.1.2 DEVIATION FROM STANDARD 108 8.1.3 TEST SETUP 108 8.1.4 EUT OPERATION CONDITIONS 108 8.1.5 EUT TEST CONDITIONS 108 8.1.6 TEST RESULTS 109 9 . MEASUREMENT INSTRUMENTS LIST 123 10 . EUT TEST PHOTO 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1401C155 Original Issue. Feb. 20, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 6 of 128 1. CERTIFICATION Equipment : Daul Band Wireless 600N Router Brand Name : Luxul Xen™ Model Name : XWR-600 Applicant Luxul Wireless Date of Test : Jan. 22, 2014 ~ Feb. 19, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1401C155) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS NOTE: (1)” N/A” denotes test is not applicable in this test report. (2) The test foll…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 125 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 126 of 128 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 127 of 128 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C155 Page 128 of 128 Radiated Measurement Photos Above 1000MHz
