W8F800942XXXNOZZLE READER UNR

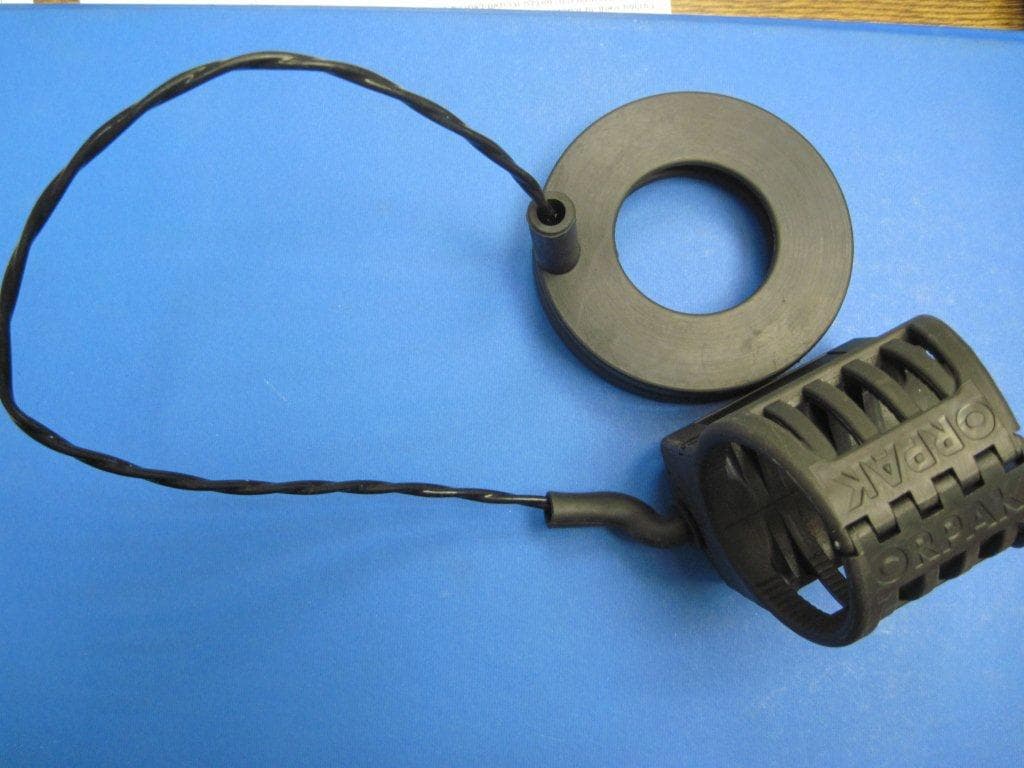

μNR Operating Instructions P/N 817439451 Rev A 1. SCOPE This document provides a general and functional description of the μNozzle Reader (hereafter referred to as μNR) units. 2. μNR DESCRIPTION The μNR is a self-contained, battery operated transceiver installed on the dispenser’s fueling nozzle. μNR uses RFID technology to read the vehicle FuelOmat data and transfer it to the WGT network through the nearest WGT. The μNR uses an internal battery and requires only mechanical interface to the fueling nozzles. The following NR types are available (Figure 1and Figure 2): Figure 1. μNR-F Figure 2. μNR-B/T – Rectangular Coil (Left) & Round Coil (Right) μNR Operating Instructions 1 3. OPERATING INSTRUCTIONS Proceed as follows: 1. Remove the nozzle from the boot 2. Insert the nozzle spout into the vehicle fuel inlet 3. The μNR detects the FuelOpass and the indication LED blink twice 4. Turn on the pump handle and dispense fuel 5. Turn the pump handle off 6. Return the nozzle to the boot 4. TECHNICAL SPECIFICATIONS Table 1 lists the specifications for the μNR units. Table 1. μNR Specifications Parameter Description Supply Voltage: P/N 812539200 (x2) Battery replacement should be performed only by authorized service personnel Power Consumption: Active mode: 25mA typical. Standby mode: 20μA Battery Life Span 2 to 3 years typical Operating Temperature: -40° to +60 °C Storage Temperature: -40° to +60 °C Dimensions (HxWxD): μNR Assembly: 27.2x39.3x44.2mm NR-B Back Clamp: 106x56.9x72.2mm Communication Interface: 1. RF communication method to WGT: • Frequency: 2.405- 2.480 GHz • Typical transmission power: 3dbm (2mW) 2. RFID communication method with FuelOpass: • Frequency: 119-135 kHz 2 μNR Operating Instructions FCC Compliance Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures: – Re-orient or re-locate the receiving antenna. – Increase the distance between the device and the receiver. – Connect the device to an outlet on a circuit different from the one that supplies power to the receiver. – Consult the dealer or an experienced radio/TV technician. WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with FCC Rules Part 15 and with Industry Canada licence- exempt RSS standard(s). Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement. μNR Operating Instructions 3

REPLACE WITH OFFICIAL COMPANY LOGO / LETTERHEAD Date: 06.06. 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: W8F800942XXX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: CONF APPENDIX μNR BlkDia.pdf CONF APPENDIX μNR PartsLst.pdf CONF APPENDIX μNR Schem.pdf CONF APPENDIX μNR 2.4 GHz 125 kHz IntPho.pdf CONF APPENDIX μNR OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The μNR pcb which containing both 2.4 GHz and 125 kHz transmitters is covered in epoxy. Removal of the epoxy will cause damage to the circuit boards and the transmitters will cease to function. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thank you, Signature: ______________ Printed Name: Gidi Segal Quality Assurance Director Orpak Systems Ltd.

REPLACE WITH OFFICIAL COMPANY LOGO / LETTERHEAD Date: 2.06.2013 To Whom It May Concern We hereby authorize I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: W8F800942XXX Thank you, Signature: ______________ Printed Name: Gidi Segal Quality Assurance Director Orpak Systems Ltd.

Date: 29.05.2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: FCC ID: W8F800942XXX Thank you, Gidi Segal Quality Assurance Director Orpak Systems Ltd. Tel: +972-3-577-6866 Fax: +972-3-579-6310 E-mail: [email protected] Website: www.orpak.com Fueling your business for success  Consider the environment - do you really need to print this email? CONFIDENTIAL!

Date: June 25, 2013 attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The uNR FCC ID: W8F800942XXX and label is so small that it cannot include the statement specified in FCC Part 15 Sub-part A, Section 15.19 (a) (3) “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation." Due to this reason, we are using the provisions of Part 15 Sub-part A, Section 15.19 (a) (5) and this statement appears in a prominent location in the user manual. Please contact me if there is any information you may need. Sincerely, Gidi Segal Quality Assurance Director Orpak Systems Ltd. Tel: +972-3-577-6866 Fax: +972-3-579-6310 E-mail: [email protected] Website: www.orpak.com Fueling your business for success  Consider the environment - do you really need to print this email? CONFIDENTIAL!

Date: 29.5.2013 To Whom It May Concern I hereby declare that there is no tune-up procedure for: FCC ID: W8F800942XXX Thank you, Gidi Segal Quality Assurance Director Orpak Systems Ltd. Tel: +972-3-577-6866 Fax: +972-3-579-6310 E-mail: [email protected] Website: www.orpak.com Fueling your business for success  Consider the environment - do you really need to print this email? CONFIDENTIAL!

Test Report E128130.01 Orpak Systems Ltd. Page 1 of 54 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 23 June 2013 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Orpak Systems Ltd. Equipment under test: Nozzle Reader μNR Written by: _____________________________ R. Pinchuck, Documentation Approved by: _____________________________ I. Siboni, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E128130.01 Orpak Systems Ltd. Page 2 of 54 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Orpak Systems Ltd. Nozzle Reader μNR FCC ID: W8F800942XXX IC: 8264A-800942XXX This report concerns: Original Grant: X Class I Change: Class II Change: Equipment type: Spread Spectrum/Digital Device 2400-2483.5 MHz and Part 15 Low Power Transmitter Below 1705 kHz μNR-T (Round Coil) Limits used: 47CFR15 Section 15.209 47CFR15 Section 15.247 Measurement procedure used is KDB 558074 D01 18 January 2012 and ANSI C63.4: 2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Gideon Segal ITL (Product Testing) Ltd. Orpak Systems Ltd. Kfar Bin Nun 31 Lechi St. D.N. Shimshon 99780 P.O.B. 1461 Israel Bnei-Brak, 51114 e-mail [email protected] Israel Tel: +972- 3 - 577 - 6868 Fax: +972- 3 - 579 - 6310 e-mail: [email protected] Test Report E128130.01 Orpak Systems Ltd. Page 3 of 54 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description: .......................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 8 3. TEST SETUP PHOTO-------------------------------------------------------------------------------------- 9 4. FIELD STRENGTH OF FUNDAMENTAL 125 KHZ TRANSMITTER ------------------------- 11 4.1 Test Specification ............................................................................................ 11 4.2 Test Procedure ................................................................................................ 11 4.3 Test Results..................................................................................................... 11 4.4 Test Instrumentation Used, Field Strength of Fundamental ............................ 13 5. RADIATED EMISSION, 9 KHZ – 30 MHZ FOR LOW FREQUENCY TRANSMITTER (125 KHZ) ---------------------------------------------------------------------------------------------------- 14 5.1 Test Specification ............................................................................................ 14 5.2 Test Procedure ................................................................................................ 14 5.3 Test Results..................................................................................................... 14 5.4 Test Instrumentation Used, Radiated Measurements ..................................... 16 5.5 Field Strength Calculation ............................................................................... 17 6. BANDWIDTH ------------------------------------------------------------------------------------------------ 18 6.1 Test Specification ............................................................................................ 18 6.2 Test procedure ................................................................................................ 18 6.3 Test Results..................................................................................................... 18 6.4 Test Equipment Used. ..................................................................................... 19 7. 6DB MINIMUM BANDWIDTH --------------------------------------------------------------------------- 20 7.1 Test Specification ............................................................................................ 20 7.2 Test procedure ................................................................................................ 20 7.3 Test Results..................................................................................................... 20 7.4 Test Equipment Used, 6dB Minimum Bandwidth ............................................ 22 8. 26DB MINIMUM BANDWIDTH ------------------------------------------------------------------------- 23 8.1 Test Specification ............................................................................................ 23 8.2 Test procedure ................................................................................................ 23 8.3 Test Results........................…
