WBQAQPAVRFMPIPRemote Control Device for Water/Dust Proof MP3/iPod TM Digital Media Locker TM

Model AQ-DM-2R TMTM Water/Dust Proof MP3/iPod Digital Media Locker With Floating RF LCD Wireless Remote Control INSTRUCTION MANUAL Please read this Instruction Manual before installation and operation MODEL: AQ-DM-1R FILE NAME: IB-STI-IDK2-14, 080517.cdr MHz EXT TM iPod + MP3 iPod classic 80G, 160G iPod nano 3G 4G, 8G iPod touch 8G, 16G iPod 5G 30G, 60G, 80G TM TMTMTM TM AQ-DM-1R AQ-RFDM-1 Keep Dry R 1 3 4 5 6 7 8 9 1 10 TM TM MP3/iPodWater/Dust Proof Digital Media Locker LOCATION OF CONTROLS 2 AQ-DM-1R Keep Dry 1 2 3 4 5 6 7 8 9 10 Digital Media Locker Knob and Protective Door ON/Off Power Button Water/Dust Protection Inner Gasket 3.5mm Aux Input Jack for MP3 Devices Water Retarding and Drainage Groove ON/Off Power LED TM Security Strap for Digital Media Devices (MP3/iPod) TM iPod Connector TM iPodCradle (totally 5 iPod Cradle adaptors) PartDescription Auxillary Locker Knobs TM INSTALLATION Cable Connection CONTENTS: Please make sure the following items are included. TM a) AQ-DM-1R Digital Media Locker b) Water/Dust Proof RF Wireless Remote Control c) Six (6) Finishing Covers for Stainless Mounting Screws TM d) Five (5) iPod Cradles e) One (1) CR-2032 batteries 3 GETTING STARTED 12 pin Harness Cable RCA Output Jack FM Radio Antenna Left Audio Right Audio FM Radio: The AQ-DM-1R has U.S. and Euro FM Frequency capability. In both applications, make sure the FM Antenna is fully extended at the highest possible level (Height) for best performance. 2. Plug and Play Connector: The AQ-DM-1R incorporates a 12 pin "plug and play" connector harness. Owner product application options may require an "optional" connector option. Contact your dealer for details. 1. 3. RCA Inputs: The AQ-DM-1R was developed with flexibility to use RCA based Audio Media. The AQ-DM-1R has 1 set of RCA Audio Auxiliary Inputs so you can connect other RCA based devices. For non-OEM use, wiring harness must be ordered separately Part number AQ-UNH-1 or AQ-UNH-2 AQ-DM-1R Keep Dry A B A B C Remote Control LCD Remote Control Buttons Battery Door. PartDescription C 2 RF LCD Wireless Remote Control LOCATION OF CONTROLS TM if your music player is not an IPod, You will only be able to use the volume and power control on the remote MHz EXT Music ModeFM Radio Mode Press once: Change from Operation mode to Standby mode. Press and hold: Change from Standby mode to Operation mode. Press once: Volume DOWN 3 decibels Press and hold: Fast volume down Press once: Volume UP 3 decibels Press and hold: Fast volume up Press once: Toggle external power Press and hold: No change Press once: Change to FM Radio Mode Press and hold: No change Press once: No change to Ipod/ MP3 Press and hold: No change to Ipod/ MP3 Press once: No change to memory Press and hold: No change to memory Press once: No change to memory Press and hold: No change to memory Press once: No change to memory Press and hold: No change to memory Press once: Last track Press and hold: Fast Rewind Press once: Toggle Play/Pause TM Press and hold: Turn iPod OFF Press once: Next track Press and hold: Fast Forward Press once: No change Press and hold: No change Press once: Toggle to ipod/ Music Mode Press and hold: No change Press once: Decrease Memory Location Press and hold: No change Press once: Toggle to Memory Mode Press and hold: No change Press once: Increase Memory Location Press and hold: No change Press once: -50kHz Press and hold: Scan backward Press once: Mute Press and hold: No change Press once: +50kHz Press and hold: Scan forward Press once: Volume DOWN 3 decibels Press and hold: Fast volume down Press once: Volume UP 3 decibels Press and hold: Fast volume up Press once: Toggle external power Press and hold: No change Buttons Power 12V trigger Volume up Volume down FM Radio Memory + Memory Memory - Music Fast Rewind Pause/ Play Fast Forward Control AQ-RFDM-1 In order to prolong remote battery life the LCD will shut off in 10 seconds if no other button is pressed. To turn remote back on press power once and then press the command desired. Open Close I I 5 Remove the Water/Dust Proof RF Wireless Remote control from the Digital TM Media Locker. Unscrew the waterproof cap on the back of the remote control , place the CR-2032 in the RF Remote control and replace the waterproof cap. Always activate the on-off button when operating the Digital Media TM Locker. By doing so, your battery life will be extended. The remote control LCD will display " - -" whenever it is turned ON. TM This display will remain until Radio mode or iPod mode is selected. The LCD will also display " - -" if it is out of its 20ft range. This remote control use state-of-art technology and will inform you if the dock is receiving the command from the remote control. In any case, if the LCD display "- -" again in either mode, this means that your remote control is out of range of reception. Please try the feature again. Important Notes on the Use of Remote Control GETTING STARTED Power ON Button TM To activate the Digital Media Locker, press the on/off button. On will be indicated by a RED LED. TM For applications where normal Digital Media Locker operation requires an independent 12V battery (Boat, RV), power down the AQ-DM-1R via the RF remote control. This will insure against independent battery drain. Other applications using 12V power converters are compatible with the AQ-DM-1R. RF Wireless Remote Control Synchronizing If you loose your remote control and buy another new remote control, please follow the above to start pairing before normal usage. Always ensure to connect and disconnect your media player with dry hands. MHz EXT TM Each Digital Media Locker comes with a matching RF Wireless LCD Remote control to maximize wireless performance. For all newly purchased remote controls, you will need to activate/Synchroize those remote controls to the AQ-DM-1R by following the steps below: a. Press and hold the button (Memory) on the remote control and then press the Power button simultaneously for 2 seconds…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM - REMOTE CONTROLMODEL NO.: AQ-DM-1R ST INNOVATIONS INDUSTRIAL LTD.JUL 1, 2008 A+jbA+jb MATCHING NETWORK MATCHING NETWORK BALUNBALUN MICROPROCESSERMICROPROCESSER TRANCEIVERTRANCEIVER CONTROLSCONTROLS KEYPADSKEYPADS LCDLCDEEPROMEEPROM DATADATA 4MHz 16MHz

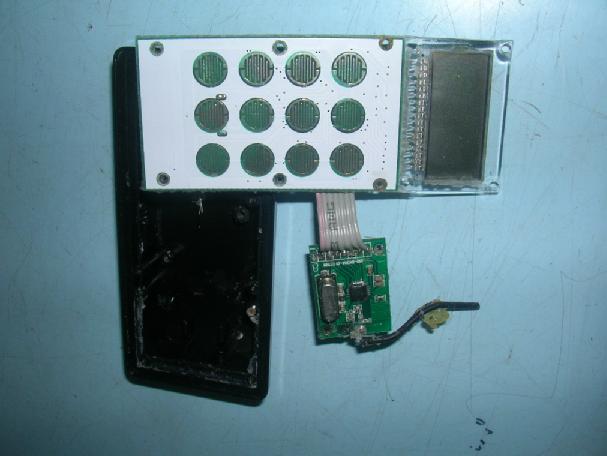

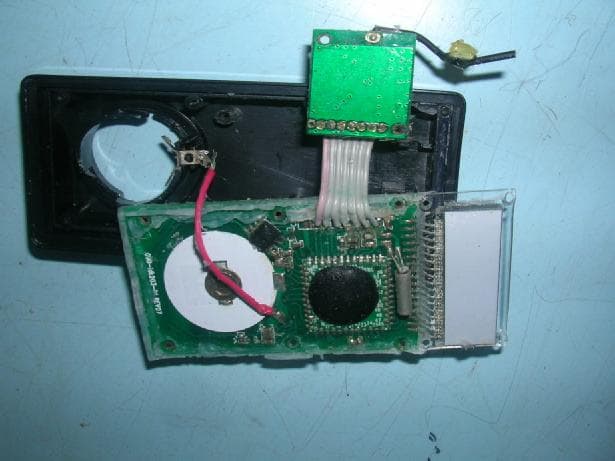

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID WBQAQPAVRFMPIR Circuit Description The 16 MHz crystal oscillator drives the IC. The modulation provided by IC. The output of the IC has the matching network consisting of L1, L2, L3 and C21, C22, that limit the harmonic content and matching the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 3.5cm long whip antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3V dc battery (CR2032) primary battery. Operation Descriptions The transceiver in RX is a host operating at 2448 MHz band. The transmitter is powered by a 3 V battery (1 pc of CR2032) and the transmitting frequency is crystal controlled. The transmitter will be synchronized with the RX. The operation is achieved by different combinations of form pulse modulating signal on the 2448 MHz carrier frequency. Remarks: The EUT transmit RF signal while any buttons is being pressed. Modulation provided by IC, the type of modulation is GFSK.

MODEL NO. AQ-DM-1R, AQ-DM-2, AQ-DM-2B (STI-IDK-2) XUNDER DEVELOPMENTBOM #: DESCRIPTION MEDIA LOCKER X PILOT RUNREVISION 顾客產品編號: MASS PRODUCTIONDATE % PART NUMBER DESCRIPTIONUSAGE UNIT SPAREPOSITION REV. ST INNOVATIOATIONS INDUSTRIAL LTD BILL OF MATERIAL ( B.O.M. ) REMOTE CONTROL 0 218-IDK201-01 INLAY WITH CONDUCTING PADS 1PCS 1 TX 0 035-IDK201-01 LCD, 3V, 1/3 DUTY, 1/3 BIAS 1PCS 1 TX 0 616-170043-01 SCREW 1.4×4KA, "+" HEAD, NICKEL 10PCS 1 TX 0 211-IDK202-01PLASTIC, LENS, PC1PCS 1 TX 0 204-IDK202-01PLASTIC,BOTTOM, PC1PCS 1 TX 0 207-IDK201-01PLASTIC, BATTERY,DOOR, PC1PCS 1 TX 0 293-IDK205-01 RUBBER, SILICON, BATTERY DOOR 1PCS 1 TX 5 323-131202-01 EVA, D/S TAPE X1, DIA. 13X2MM, BLACK 1PCS 1 TX BATTERY DOOR 0 037-167221-2B CRYSTAL,SMD-94US,16MHz, 30PPM 1PCS 11 0 037-406221-1B CRYSTAL,94US,4MHz, 30PPM 1PCS 1 9 078-251508-01 FLAT CABLE, GRAY, 8P, 8X2X25+2+2mm. 1PCS 1 BS1 0 033-934601-01 IC, SERIAL EEPROM, CATALYST(CSI),CAT93C46v1 1PCS 0 BU2 0 023-104309-02 CAP, CERAMIC, 0603, 100N, -20%/+80%, 50V,X7R 8 PCS 0 BC1,BC3,BC4,BC5,BC6,BC7,BC11,BC27 0 005-272204-01 INDUCTOR, MULTILAYER, 0402, 5%,2.7NH 1PCS 1 BL3 0 005-392204-01 INDUCTOR, MULTILAYER, 0402, 5%,3.9NH 1PCS 1 BL2 0 005-822204-01 INDUCTOR, MULTILAYER, 0402, 5%,8.2NH 1PCS 1 BL1 0 017-103302-01 RES, SMD, , 0603, 10K, 5%2PCS 1 BR1,BR8 0 017-104302-01 RES, SMD, , 0603, 100K, 5%1PCS 1 BR20 0 017-105302-01 RES, SMD, , 0603, 1M, 5%1PCS 1 BR4 0 017-223302-01 RES, SMD, , 0603, 22K, 5%2PCS 1 BR5,BR9 9 017-473302-01 RES, SMD, , 0603, 33K, 5%4PCS 1 BR2,BR3,BR6,BR7 0 023-102309-02 CAP, CERAMIC, 0603, 1000P, +/-10%, 50V,X7R1PCS 1 BC26 0 023-120309-01 CAP, CERAMIC, 0603, 12P, NPO,50V2PCS 1 BC13,BC14 0 023-1R0202-00CAP, CERAMIC, 0402, 1P, NPO,50V1PCS 1 BC22 0 023-1R5202-00CAP, CERAMIC, 0402, 1P5, NPO,50V1PCS 1 BC21 0 023-220309-01 CAP, CERAMIC, 0603, 22P, NPO,50V2PCS 1 BC23,BC24 0 023-222202-00 CAP, CERAMIC, 0402, 2N2, NPO,50V1PCS 1 BC20 0 023-333309-02 CAP, CERAMIC, 0603, 33N, -20%/+80%%, 50V,X7R1PCS 1 BC25 0 023-4R7202-00CAP, CERAMIC, 0402, 4P7, NPO,50V1PCS 1 BC19 0 033-495001-05 IC,OTP, HT49R50(dies package) 1PCS 3 BU1 0 033-240101-01 IC,2.4GHz TRANSCEIVER,QFN20,4X4mm,nRF24L01 1PCS 0 BU6 0 072-383022-10 PVC WIRE, BLACK, UL 1007 AWG #22 Wire3+35mm1PCS 1 ANT2 0 472-IDK201-01 Battery Plate + 型号: 1PCS 1 BB+ 0 472-IDK202-01 Battery Plate - 1PCS 1 BB- 制表:________________确认:________________审核:________________ MODEL NO.AQ-DM-1R, AQ-DM-2, AQ-DM-2B (STI-IDK-2) XUNDER DEVELOPMENTBOM #: DESCRIPTIONMEDIA LOCKER XPILOT RUNREVISION 顾客產品編號: MASS PRODUCTIONDATE % PART NUMBER DESCRIPTIONUSAGEUNITSPAREPOSITION R E V . ST INNOVATIOATIONS INDUSTRIAL LTD BILL OF MATERIAL ( B.O.M. ) 0 616-200043-01 SCREW 2×5PA, "十" HEAD, NICKEL 6PCS1 制表:________________确认:________________审核:________________

STC Test Report Date : 2008-07-07 Page 1 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (AQA001): Aquatic AV 1476 Camden Ave, Campbell, CA 95008 Manufacturer: Aquatic AV 1476 Camden Ave, Campbell, CA 95008 Description of Samples: Product: iPod Media Player Brand Name: Aquatic AV Model Number: AQ-DM-1R FCC ID: WBQAQPAVRFMPIP Date Samples Received: 2008-06-19 Date Tested: 2008-06-25 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 4. Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-07-07 Page 2 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Sample Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 20dB Bandwidth Emission of Fundamental Emission Page 11-12 of 17 STC Test Report Date : 2008-07-07 Page 3 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Periodic operation Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2008-07-07 Page 4 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Aquatic AV 1476 Camden Ave, Campbell, CA 95008 Manufacturer Aquatic AV 1476 Camden Ave, Campbell, CA 95008 STC Test Report Date : 2008-07-07 Page 5 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: iPod Media Player Manufacturer: Aquatic AV Brand Name: Aquatic AV Model Number: AQ-DM-1R Additional Model Number(s): AQ-DM-2, AQ-DM-2B Input Voltage: 3Vd.c. (“CR3123” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Aquatic AV, iPod Media Player. The EUT transmit RF signal while any buttons is being pressed, Modulation provided by IC; the type of modulation is GFSK. 1.4 Date of Order 2008-06-19 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2008-06-23 1.7 Country of Origin China STC Test Report Date : 2008-07-07 Page 6 of 17 No. : HM161674 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231a ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C6…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
