WMUHAC-GWW1-MLoRaWAN Gateway

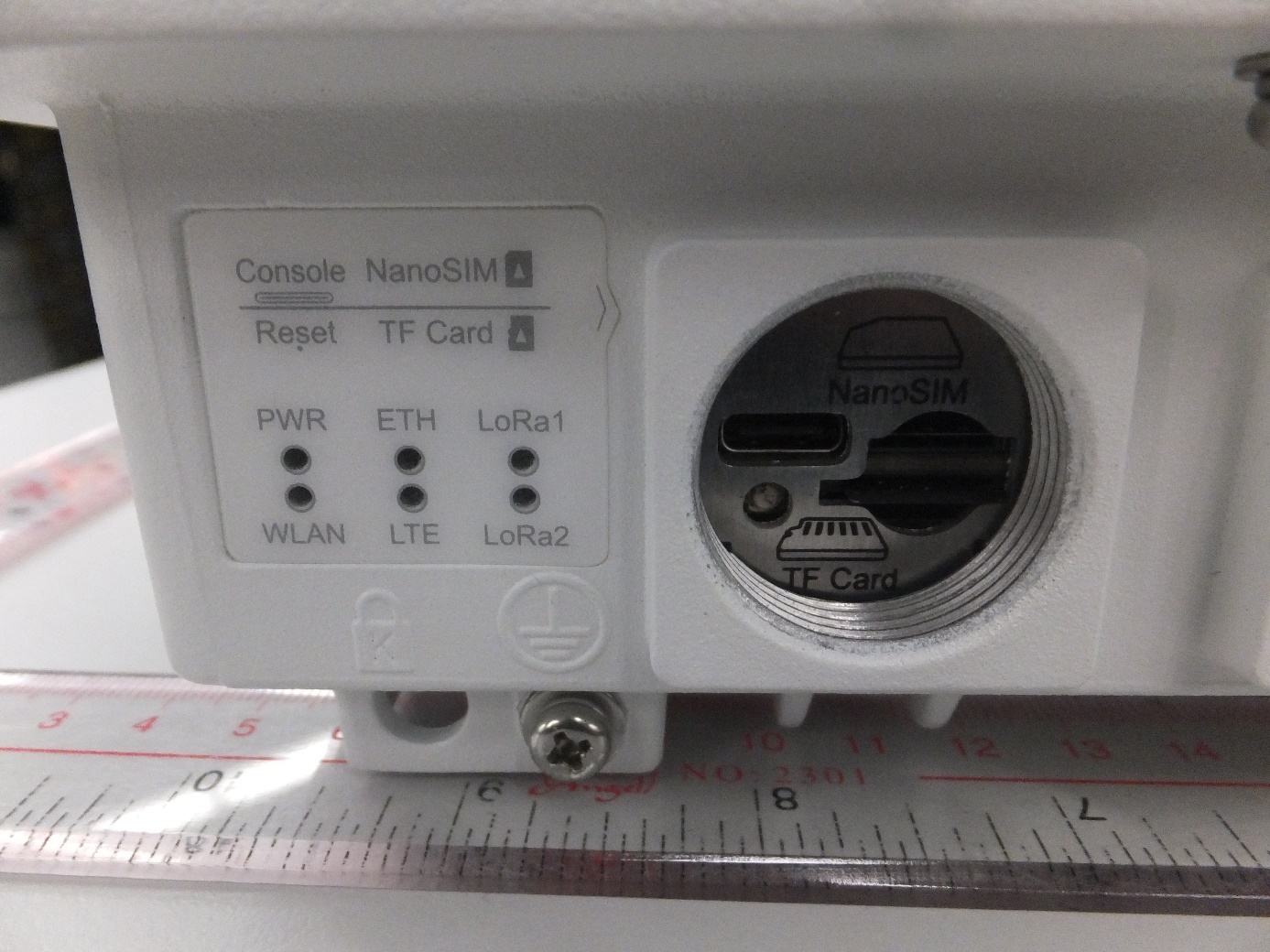

User manual for HAC-GWW1-M 1 Product description WisGate Edge is HACwireless flagship line of commercial-grade gateways. Customizable in terms of the backhaul connectivity options, antenna type, and power provisioning. WisGate Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability. Supports up to 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure. The gateway provides a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK). Manufacturers Address Shenzhen HAC Telecom Technology Co., LTD Floor 9, Block A, Building 1, Shenzhen International Innovation Valley, Xingke 1st Street, Nanshan District, Shenzhen, China 2 Product specifications 2.1 Models Main model: HAC-GWW1-M 2.2 Product Features Full LoRaWAN Stack support in Built-In Server mode Supports 2.4 G Wi-Fi AP for configuration 100M Base-T Ethernet with PoE Power supply - PoE (IEEE 802.3 af), 37~57 VDC - 12V/1A - Support HAC Battery Plus Ingress protection IP67 Enclosure material – Aluminum and plastic Operating temperatures -30 ̊C to +55 ̊C Installation method Pole or wall mounting Multi back-haul with Ethernet and Wi-Fi Cellular LTE Cat 4 network (optional, available with C versions) BLE connectivity (optional, available with H versions) OpenWRT software supports Web UI for easy configuration and monitoring Can integrate with both private (e.g. Chirp Stack) and public (e.g. TTN) network servers SD card for system logs backup Built-in Network Server for easy deployment of applications and integration of gateways 3 Packing List Device (1x) Cable Gland(1x) Power Cord(1x) Installation Bracket(1x) LoRa antenna(1x or 2x) Power Adapter (1x) Waterproof Tape (1x) 12V Cable(1x) PVC Insulating tape (1x) Installation Guide(1x) 4 Interfaces and connectors The gateway’s interfaces and connectors are illustrated below: Console NanoSIM Ground Pad Ethernet(POE) Reserved 12V DC IN Reset TF Card Antenna Port (LoRa2) Antenna Port (LoRa) Note: the SD card and the SIM card do not support hot-swap. Please always turn off the gateway before you insert or take off SIM or SD card. Note: Do not power the Gateway without a connected antenna/s. This may damage the radios. 5 Status LEDs Name Status PWR ON/OFF ETH ON/OFF/FLASH LoRa1 ON/OFF/FLASH LoRa2 ON/OFF/FLASH WLAN ON/OFF/Slow FLASH/FLASH LTE Flash slowly/ Flash quickly (Available for C model) Description • ON – device power on • OFF –device power off • ON – link up • OFF – link down • Flash - Data Transmitting and Receiving • ON - LoRa1 is working • OFF - LoRa1 is not working • Flash - Indicate that LoRa1 Packet Transmitting and Receiving • ON - LoRa2 is working • OFF - LoRa2 is not working • Flash - Indicate that LoRa2 Packet Transmitting and Receiving •OFF-Wi-Fi disable AP Mode • ON - WLAN is working • Flash - Data Transmitting and Receiving STA Mode • Flash slowly (1Hz) - Connection Disconnected • ON - Connection Successful • Flash - Data Receiving and Sending • Flash slowly 1 (200ms Bright/1800ms Dark)- Unregistered network (Network searching) • Flash slowly 2 (200ms Dark/1800ms Bright)- Idle status (online) • Flash quickly - Data Transmitting and Receiving 6 Installation Step 1: Fix the device bracket on the bottom of the enclosure with four M6*12 screws following the direction shown in the figure below. Step 2: Tighten the pole clamp bar with bolts, washer, and nuts. Notes: The diameter of a pole that brackets support is 50-100mm. If the pole diameter is more than this value, the steel strips can be used. Standard delivery without steel strip and the user should purchase separately. Step 3: Hang up the device and fasten it with two M6*12 Screws. 7 Connecting Power over Ethernet Step 1: Connect the other end of the Ethernet cable from the enclosure to the Ethernet port labeled POE on the adapter. Step 2: Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the adapter. Step 3: Connect the Power Cord to the power port on the adapter. Connect the other end of the Power Cord to a power outlet. 8 Weather protection Tape sealed antenna and cable connections: Step 1: to better protect the Ethernet cable gland and the antenna connector from the weather, you need to cover them with PVC tape. Clean the surface area of the connector that will be wrapped. Wrap a layer of PVC tape with a 50% overlap according to the rotation direction of the connector. Continue wrapping the PVC tape to about 10 mm below the end of the connector. Step 2 Cut off about 50 cm waterproof tape. Stretch it to double the length. Wrap three layers around the connector with a 50% overlap. Hold the tape in place with your hand for a few seconds. 3. Step 3: Wrap three additional layers with PVC tape with natural uncoiling force and a 50% overlap. Make sure to cover the head and the tail of the connector. 9 Accessing the gateway WI-FI AP MODE By default, the Gateway will work in Wi-Fi AP Mode which means that you can find an SSID named "HAC-GWW1-XM" on your PC's Wi-Fi Network List. "XXXX" is the last two bytes of the Gateway MAC address. To access the Web Management Platform, input the IP Address: 192.168.230.1in your Web browser.  NOTE No password is required to connect via Wi-Fi Using your preferred Web browser, input the aforementioned IP Address and you should see the same Log-in Page shown in the following image. Login with the credentials provided below: Username: root Password: root For WisGate Edge Pro models V2 and H you need to set the login password at the first login. WAN PORT (ETHERNET) Connect the Ethernet cable to the port ma…

Text truncated - open the document above for the full version.

ShenzhenHACTelecomTechnologyCo.,LTD U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 4/21/2023 ATTN.:ReviewingEngineer FCCID:WMUHAC-GWW1-M Persection2.911(d)(7)oftheFCCrules,ShenzhenHACTelecomTechnologyCo.,LTD(“the applicant”)certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothe followingU.S.agent*forserviceofprocess: CompanyName:JOCAustraliaInc PhysicalU.S.CompanyAddress:18351ColimaRoadSte585Rowland Heights,California,91748UnitedStatesofAmerica Agentcontactname/Title:Benjamin.Smith/VicePresident AgentEmailAddress:[email protected]/[email protected] TelNo.:+1(626)2174778 FRNNo.:0033379421 Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned: Signed: Printedname:KoalaZhang Title:CEO CompanyName:ShenzhenHACTelecom TechnologyCo.,LTD Date:4/21/2023 AgentSigned(ifdifferenttoApplicant): Signed: Printedname: Benjamin.Smith Title:VicePresident CompanyName: JOCAustraliaInc Date:4/21/2023 * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceof process.

Shenzhen HAC Telecom Technology Co., LTD Page 1 of 1 Authority to Act as Agent Date: ____2023-04-25__________ TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TUV Rheinland of North American Inc., 1279 Quarry Lane, Suite A, Pleasanton, CA 94566, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ____ Shenzhen HAC Telecom Technology Co. Ltd. and Fl.6, Building 2, Jiuxiangling New Industry Park, No.4227, Xilihu Road, Nanshan, Shenzhen, Guangdong, 518040 China _________. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date:____2023-04-25_______________ Agreement is valid for 12 months from the above date. By: __________________________________ Mr Koala Zhang _____________ (Signature)(Print name) _______ Sales Manager ____________ ________+86-0755-23981078_______________ (Title)(Telephone) On behalf of: ______Shenzhen HAC Telecom Technology Co. Ltd.____________________ (Company Name)

Shenzhen HAC Telecom Technology Co., LTD MS-0044715 Page 1 of 1 Revision 1 Date: 2023-04-25____ Federal Communications Commission Equi pment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subj ect: Confidentiality Request f or FCC ID: WMUHAC-GWW1-M Purs uant to FCC 47 CRF 0.457(d), the applicant requests that a part of the s ubject FCC/IC application be hel d confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Bl ock Di agrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schemati cs Short Term Permanent Tes t Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Shenzhen HAC Telecom Technology Co. Ltd. has s pent s ubstantial effort i n developing this product and i t is one of the fi rs t of i ts kind in i ndustry. Having the s ubject i nformation easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the des ign will result i n fi nancial hardship. Permanent Confidentiality: The appl icant requests the exhi bits listed above as permanently confidential be permanently wi thheld from public review due to materi als that contain trade s ecrets and proprietary i nformation not customarily released to the publ ic. (*** Excepti onal case for Permanent Confidentiality for thes e Exhibits by PAG onl y) Short-Term Confidentiality: The appl icant requests the exhi bits selected above as s hort term confidential be wi thheld from public view for a period of s peci fy number of days not to exceed 180 days from the date of the Grant of Equi pment Authorization and prior to marketi ng. This i s to avoid premature release of s ensitive i nformation prior to marketing or release of the product to the publ ic. Applicant i s also aware that they are res ponsible to notify TUV Rhei nland in the event i nformati on regarding the product or the product i s made available to the publ ic. TUV Rhei nland wi ll then release the documents l isted above for publ ic disclosure pursuant to FCC Public Noti ce DA 04-1705. Si ncerely, By: _______________________________________________ Koala Zhang (Si gnature/ Sal es Manager) (Pri nt name) Tel : +86-0755-23981078 Emai l : [email protected]

Label location:

Wi-Fi module LTE module EG95-NA Lora Module

1 RF Exposure Compliance 1.1 Test Standards 1.2 MPE Limits of FCC and IC MPE Limit for FCC Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 1.3 Test Result T e st Result: PASS This device is mobile device, and the applicant declares that the minimum separation distance is greater than 20cm, detail minimum distance refer to to below calculation table. Therefore MPE measurement or computational modeling should be used to determine compliance. MPE Calculation is based on the conducted power, and considering maximum power and antenn gain. The following formula is used to MPE evaluation. (1) The power density according to far-field model is: 2 ),( 4R GP S      Where: P = input power of the antenna. G = antenna gain relative to an isotropic antenna. Test standard : FCC 47 CFR Part 2 Section 2.1091 FCC ID: WMUHAC-MLWR Co-located with WLAN modular with FCC ID: WMUHAC-WF and LTE modular with FCC ID: XMR201807EG95NA Host: LoRaWAN Gateway Host Model: HAC-GWW1-M , = elevation and azimuth angles. R = distance from the antenna to the point of investigation. (2) For single or multiple RF sources, the calculated power density should comply with following: 1 ,   i iLimit i S S Where: i S = the power density when the f is i . iLimit S , = the reference level requirement for power density when f is i . f = operating frequency. A. Stand-alone operation mode (worst mode) Operating Mode Band PG (dBm) PG (W) Calculation (mW/cm 2 ) FCC Limit (mW/cm 2 ) Verdict Lora 902-928MHz 30.49 1.119 0.056 0.601 Pass WIFI 2.4GHz 28.94 0.77983 0.039 1.0 Pass WCDMA II 29.00 0.79433 0.040 1.0 Pass IV 29.00 0.79433 0.040 1.0 Pass V 29.00 0.79433 0.040 0.55 Pass LTE 2 29.00 0.79433 0.040 1.0 Pass 4 29.00 0.79433 0.040 1.0 Pass 5 29.00 0.79433 0.040 0.55 Pass 12 29.00 0.79433 0.040 0.47 Pass 13 29.00 0.79433 0.040 0.52 Pass Note: 1. The Lora module has three different antenna: 5.0dBi, 5.8dBi and 8 dBi, and the maximum e.r.i.p. configuration be evaluated as above. 2. The Wi-Fi module has two antennas and supported SISO & MIMO, the maximum e.r.i.p. configuration be evaluated (MIMO) as above. B. Simultaneous Transmission operation mode (worst mode) FCC Operating Mode Lora Ratio1 Lora Ratio2 WIFI Ratio LTE Ratio Sum Ratio Limit Result Lora+ WIFI+ LTE 0.093 0.093 0.039 0.085 0.310 <1 Pass Note: 1. The GSM/ UMTS /LTE modes cannot transmit simultaneous 2. The above RF output power refer to original FCC ID: WMUHAC-WF , WMUHAC-MLWR , XMR201807EG95NA. 3. R = 0.4m

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23WJ7J 001 Auftrags-Nr.: Order no.: 168424086 Seite 1 von 25 Page 1 of 25 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-04-25 Auftraggeber: Client: Shenzhen HAC Telecom Technology Co., LTD Floor 9, Block A, Building 1, Shenzhen International Innovation Valley, Xingke 1st Street, Nanshan District, Shenzhen, China Prüfgegenstand: Test item: LoRaWAN Gateway Bezeichnung / Typ-Nr.: Identification / Type no.: HAC-GWW1-M (Trademark: HAC) Auftrags-Inhalt: Order content: Type Test Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart B Section 15.107 CFR47 FCC Part 15: Subpart B Section 15.109 ICES-003 Issue 7 October 2020 Wareneingangsdatum: Date of sample receipt: 2021-10-25 Refer to photos documents Prüfmuster-Nr.: Test sample no: A003147238 Prüfzeitraum: Testing period: 2021-11-04 – 2021-11-08 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Hardy Suo Datum: Date: 2023-05-09 Ausstellungsdatum: Issue date: 2023-05-10 Stellung / Position Project Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: WMUHAC-GWW1-M This report is based on original report CN21RU4P 001 for RAKwireless with FCC ID: 2AF6B-RAK5146, the FCC ID: 2AF6B-RAK5146 for RAK has take a FC ID change procedure to FCC ID: WMUHAC-MLWR for HAC, all the test data are derived from the original report CN21RU4P 001. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601-1604, 17-18/F., Tower A, Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen, Guangdong, China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN23WJ7J 001 Seite 2 von 25 Page 2 of 25 Test Summary 5.1 Conducted emissions RESULT:Pass 5.2 Radiated emissions RESULT:Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN23WJ7J 001 Seite 3 von 25 Page 3 of 25 Contents 1GENERAL REMARKS..........................................................................................................................4 1.1COMPLEMENTARY MATERIALS............................................................................................................4 2TEST SITES........................................................................................................................................4 2.1TEST FACILITIES................................................................................................................................4 2.2LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................5 2.3TRACEABILITY...................................................................................................................................6 2.4CALIBRATION.....................................................................................................................................6 2.5MEASUREMENT UNCERTAINTY............................................................................................................6 2.6LOCATION OF ORIGINAL DATA............................................................................................................6 2.7STATUS OF FACILITY USED FOR TESTING............................................................................................6 3GENERAL PRODUCT INFORMATION.....................................................................................................7 3.1PRODUCT FUNCTION AND INTENDED USE............................................................................................7 3.2RATINGS AND SYSTEM DETAILS..........................................................................................................7 3.3INDEPENDENT OPERATION MODES......................................................................................................8 3.4NOISE GENERATING AND NOISE SUPPRESSING PARTS........................................................................8 3.5SUBMITTED DOCUMENTS....................................................................................................................8 4TEST SET-UP AND OPERATION MODES................................................................................................9 4.1PRINCIPLE OF CONFIGURATION SELECTION.........................................................................................9 4.2TEST OPERATION AND TEST SOFTWARE.............................................................................................9 4.3SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT...........................................................................9 4.4COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN23WJ7J 001 Seite 23 von 25 Page 23 of 25 6Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions, AC Mains Photograph 2: Set-up for Radiated Emissions, below 1GHz Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN23WJ7J 001 Seite 24 von 25 Page 24 of 25 Photograph 3: Set-up for Radiated Emissions, above 1GHz
