WMUHAC-UBEEV3XZigbee Module

HAC-UBee 2.4G Low Power Data Radio Module (Based on ZigBee protocol) V3.X SHENZHEN HAC TELECOM TECHNOLOGY CO., LTD Address : 3rd Area, 19 th Fl, Tower A, HaiSong Building, Tai Ran 9 th Rd, Futian, ShenZhen, China. Te l : +86-755-23981078 23981077 Fax : +86-755-23981007 E-mail : [email protected] Website : http://www.rf-module-china.com HAC-Ubee manual V3.X SHENZHEN HAC TECHNOLOGY CO., LTD. FAX:+86-755-23981007 E-MAIL：[email protected] www.rf-module-china.com - 2 - Catalogue I. Features of HAC-Ubee Wireless Module .................................................................................. 3 II. Applications of HAC-Ubee Wireless Module .......................................................................... 4 III. Using Methods of HAC-Ubee Wireless Module ....................................................................... 4 IV. Development Kit for HAC-Ubee Wireless Module................................................................... 8 V. Working Mode of HAC-Ubee Wireless Module ....................................................................... 13 VI. Assistant Software ..................................................................................................................... 34 VII. Appendix .................................................................................................................................. 35 HAC-Ubee manual V3.X SHENZHEN HAC TECHNOLOGY CO., LTD. FAX:+86-755-23981007 E-MAIL：[email protected] www.rf-module-china.com - 3 - I Features of HAC-Ubee Wireless Module HAC-Ubee is a kind of low power wireless module based on Zigbee protocol stack. The features are shown as follow: 1. Low power transmission with 2.5mW（4dBm）, and receiving sensitivity is -105dBm （BER=10-2）. 2. ISM frequency band with no require of applying frequency. The carrier frequency is 2.4GHz. 3. High anti-interference and Low BER (Bit error Rate) Based on the Quadrature Phase Shift Keying (QPSK) modulation, the high-efficiency forward error correction channel encoding technology is used to enhance data’s resistance to both transient interference and random interference. Narrowband interference of the same frequency can be suppressed by Direct Sequence Spread Spectrum. The 16 CRC verify bits can be used to check mistake. 4. The transmitting speed in the air can reach up to 250kbps. 5. Transmission Distance Within the visible range, the reliable transmission distance is 300m. 6. Multi-channels HAC-Ubee offers 16 channels. It will select the suitable and reliable communication channel automatically according to the user’s environment. 7. UART interface HAC-Ubee provides a UART interface of TTL level . The default interface baud rate is 38400bps ex-factory , and the parity is no-parity (8N1). 8. Low power consumption The receiving current is less than or equal to 27mA, and the transmitting current is less than or equal to 40mA. 9. Small size and light weight 10. By using SoC , the transceivers have less peripheral circuits, higher reliability,and lower failure rate. 11. Offering many kinds of antenna connecting methods, such as PCB antenna, Chip antenna, IPX antenna connecting base and so on. 12. It can meet for the protocol of IEEE 802.15.4 for 2.4GHz and the application of ZigBee， it can make network automatically. 13. This device complies with part 15 of the FCC rules. Operation is subject to the following two HAC-Ubee manual V3.X SHENZHEN HAC TECHNOLOGY CO., LTD. FAX:+86-755-23981007 E-MAIL：[email protected] www.rf-module-china.com - 4 - conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. II. Applications of HAC-Ubee Wireless Module HAC-Ubee low power wireless module is suitable for: ﹡Home appliances intelligent control. ﹡Auto Meter Reading system. ﹡Industry telemetry and automatic data collection system. ﹡Security and alarm. ﹡Wireless monitor for hotel and equipment of computer room, door’s security, personnel orientation. ﹡Traffic and the control for street lamp. ﹡Logistics, active RFID, POS system and wireless handheld terminal. III. Using Methods of HAC-Ubee Wireless Module 3.1 Technical Parameter of HAC-Ubee Parameter Name Minimum Typical Value Maximum Unit Electric Performance （25°C） Power Supply 3.0 3.3 3.6 V Interface Level -0.3 VCC + 0.3≤3.6 V Transmitting Current 36 38 40 mA Receiving Current 25 26 27 mA Sleeping Current 3 μA Wireless Performance（25°C） HAC-Ubee manual V3.X SHENZHEN HAC TECHNOLOGY CO., LTD. FAX:+86-755-23981007 E-MAIL：[email protected] www.rf-module-china.com - 5 - Working Frequency 2.405 2.480 GHz Transmitting Power 3.8 4.0 4..2 dBm Receiving Sensitivity -97 dBm Transmitting Rate 250 Kbps General Performance Interface baud rate 2400 38400 115200 bps Working Temperature -40 80 °C Size 25.5 X 24.4 X 4 mm Table 1 Technical Parameter of HAC-Ubee 3.2 The Size of HAC-Ubee Picture 1 The Size of HAC-Ubee 3.3 Pin Definition of HAC-Ubee Pin Definition Input/Output Function Instruction 1 VCC IN Power Supply, +3.0~3.6V 2 TXD OUT Output serial data 3 RXD IN Input serial data HAC-Ubee manual V3.X SHENZHEN HAC TECHNOLOGY CO., LTD. FAX:+86-755-23981007 E-MAIL：[email protected] www.rf-module-china.com - 6 - 4 DIO1 IN/OUT Data I/O1 5 RESET IN Low level reset 6 DIO2 IN/OUT Data I/O2 7 DIO3 IN/OUT Data I/O3 8 DIO4/DD IN/OUT Data I/O4 / Program data 9 DIO5/DC IN/OUT Data I/O5 / Program clock 10 GND Power supply (Negative),Ground 11 DIO6 IN/OUT Data I/O6 12 DIO7 IN/OUT Data I/O7 13 DIO8 IN/OUT Data I/O8 14 DIO9 IN/OUT Data I/O9 15 DIO10 IN/OUT D…

Text truncated - open the document above for the full version.

Date: April 9 th , 2011 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD，5/F, Block 4, Anhua Industrial Zone., No.8 Tai Ran Rd. Che Gong Miao, Fu Tian District, Shenzhen, CHINA.，Hanson Chueng to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with __ Shenzhen HAC Telecom Technology Co., Ltd. 1903, Tower A of Haisong Bldg, 9 th Tairan Road, Chegongmiao, Futian, Shenzhen, China. _( applicant name and address). Dated this: April 9 th , 2011 Agency agreement expiration date: 12 Months Dated this April 9 th 2011 By: Koala Zhang Signature Printed Title: Sales Manager On behalf of : Shenzhen HAC Telecom Technology Co., Ltd. Telephone: 86-755-23981078

April 9 th , 2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _ FCC ID: WMUHAC-UBEEV3X ___ Product Name: Zigbee Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this April 9 th 2011 By: Koala Zhang Signature Printed Title: Sales Manager On behalf of : Shenzhen HAC Telecom Technology Co., Ltd. Telephone: 86-755-23981078

Request for Modular Approval Attestation for the 2.4GHz Zigbee Module (FCC ID: WMUHAC-UBEEV3X) Per the FCC Public Notice DA-00-1407 for the Part15 Unlicensed Modular Transmitter approval the following information is provided; 1. PN DA-00-1407 Page 2 Item 1: “ the EUT must have its own RF Shielding” Answer: The EUT has been shielded, Please see exhibition External Photos 2. PN DA-00-1407 Page 2 Item 2: “The EUT must have buffered modulation/data inputs. Answer: The EUT has buffered data inputs, it is integrated in chip CC2530F256 3. PN DA-00-1407 Page 2 Item 3: “The EUT must have its own power supply regulation and VCO built-in. Answer: The EUT interface provides 1.8VDC, and on board IC CC2530F256 has its own VCO inside. 4. PN DA-00-1407 Page 2 Item 4: The antenna must either be permanently attached or employ or employ a “unique” antenna connector. Any antenna used with module must be approved with the module at the time of initial authorization. Professional installation provision may not be applied to modules regarding use of any other antenna other than the one authorized at the time of certification of the module. Answer: The EUT meets the antenna requirements. It is PCB antenna and helical antenna with SMA connector. Refer to the photo shown in test report. 5. PN DA-00-1407 Page 2 Item 4: Any antenna used with the module must be approved with the module. (The “professional installation” provision (15.203) may not be applied to modules) Answer: The EUT’s antenna and the board are approved together. 6. PN DA-00-1407 Page 2 Item: The modular transmitter must be tested in a stand-alone configuration. i.e., the module must not be inside another device during testing. Answer: The EUT is tested in a stand alone configuration via a extender. Please see the test setup photo 7. PN DA-00-1407 Page 2 Item: Unless the module is battery powered, it must comply with the AC line conducted requirements found in section 15.207. Answer: The conducted emissions are done. Please see page 10 and 11 of test report. 8. PN DA-00-1407 Page 2 Item: AC, DC, and data input/output lines must not contain ferrites, unless they will be marked with the module. Answer: There is no ferrite on the EUT and during the testing. 9. PN DA-00-1407 Page 2 Item: The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number Answer: The EUT has own FCC ID label.

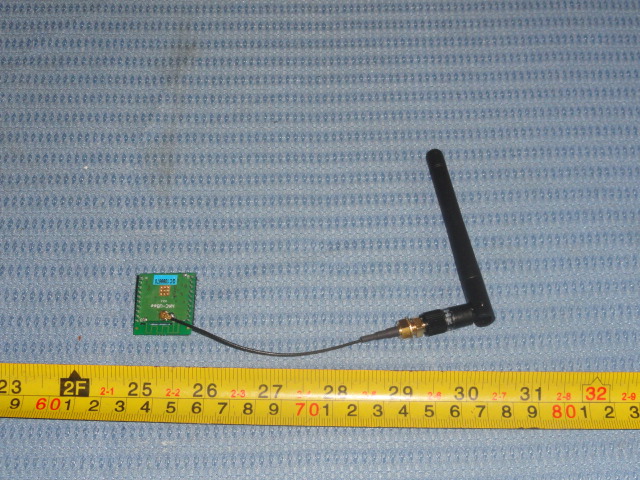

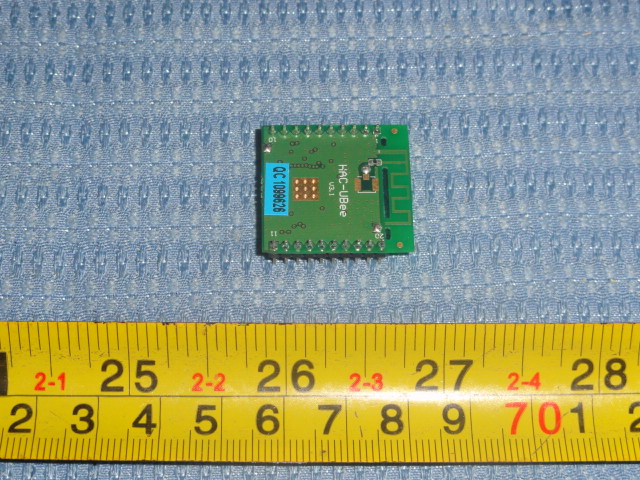

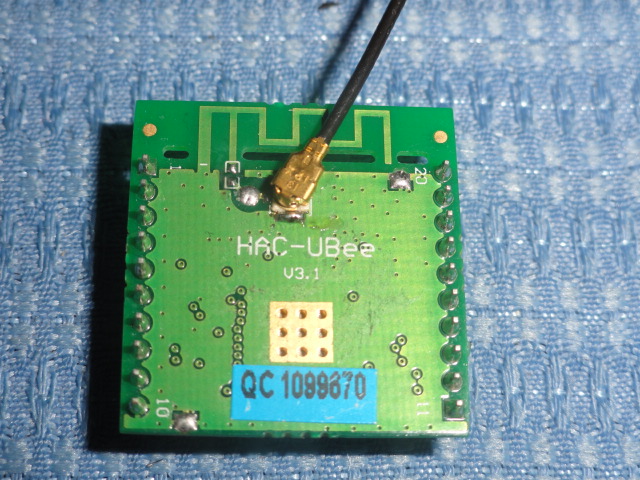

14.3 Photo for the EUT EUT With Dipole Antenna EUT With Dipole Antenna EUT With Inverted F PCB Antenna EUT With Inverted F PCB Antenna

FCC ID: WMUHAC-UBEEV3X

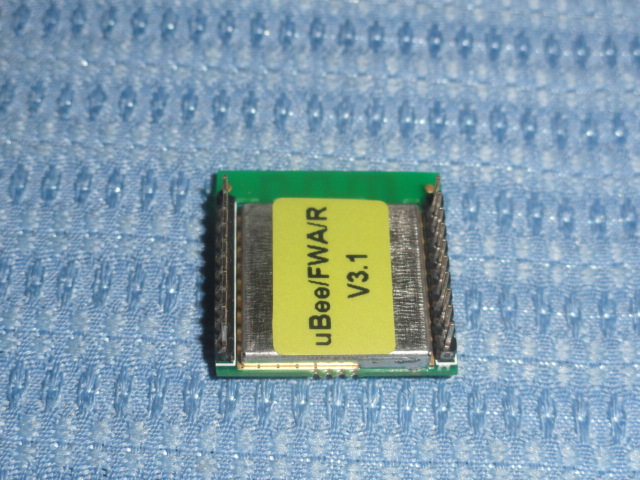

FCC ID Label Location

EUT With Dipole Antenna EUT Internal Photos with Shielding Removed off

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This modular can be used in a Portable device. KDB616217 was used as the guidance. According to §1.1310 and §2.1093 RF exposure is calculated. Measurement Result This is a Zigbee Module and the conducted output power is 4.27dBm (2.673mW). For EUT with Inverted F PCB Antenna: so the EIRP is 2.673*1.288=3.443mW which is lower than low threshold 60/fGHz mW (60/2.480GHz= 24.19mW), and the antenna is 1.1dBi which is less than 6dBi. For EUT with Dipole Antenna: so the EIRP is 2.673*1.641=4.386mW which is lower than low threshold 60/fGHz mW (60/2.480GHz= 24.19mW), and the antenna is 2.15dBi which is less than 6dBi. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No: FCC 1104050 File reference No: 2011-04-09 Applicant: Shenzhen HAC Telecom Technology Co., Ltd. Product: Zigbee module Model No: HAC-UBee Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: April 09, 2011 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1104050 Page 2 of 61 Date: 2011-04-09 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. Report No: 1104050 Page 3 of 61 Date: 2011-04-09 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition...............................…

Text truncated - open the document above for the full version.

Conducted Emissions Radiated Emissions
