WNG-CSM-BC400Wireless Advanced LCD Bed and Chair Monitor

In these User Instructions, the word WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. The word CAUTION means a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. CAUTION also may be used to alert against unsafe practices. WARNING SAFETY INFORMATION Your CareSense Wireless Advanced LCD Bed and Chair Monitor (CSM-BC400) monitors a bed, chair, or room for occupancy. If a patient/resident attempts to leave the bed or chair, the monitor sounds an alarm. When you hear the alarm, check the patient/resident immediately. The CareSense Advanced Bed and Chair Monitor can be used to monitor both bed and chair exits using the following CareSense sensor pads. The pads listed below also allow the monitor to track the in-use time of the pad and activate an alarm notification when the designated usage time for the pad (45 days or 1 year) has expired. Timed Corded Sensor Pads • CSP-B45-TC10 (45 day 10" x 30" bed pad) • CSP-B365-TC10 (1 year 10" x 30" bed pad) • CSP-B365-TC20 (1 year 20" x 30" bed pad) • CSP-C45-TC10 (45 day 10" x 15" chair pad) • CSP-C365-TC10 (1 year 10" x 15" chair pad) Timed Wireless Sensor Pads • CSP-B45-TW10 (45 Day 10" x 30" Bed Pad) • CSP-B365-TW10 (1 Year 10" x 30" Bed Pad) • CSP-B365-TW20 (1 Year 20" x 30" Bed Pad) • CSP-C45-TW10 (45 Day 10" x 15" Chair Pad) • CSP-C365-TW20 (1 Year 10" x 15" Chair Pad) The CareSense Wireless Advanced LCD Bed and Chair Monitor may also be used with the following CareSense sensors: Standard Non-Timed Sensor Pads • CSP-B45-NC4 (45 Day 4" x 30" Bed Pad) • CSP-B45-NC10 (45 Day 10" x 30" Bed Pad) • CSP-B365-NC4 (1 Year 4" x 30" Bed Pad) • CSP-B365-NC10 (1 Year 10" x 30" Bed Pad) • CSP-B365-NC20 (1 Year 20" x 30" Bed Pad) • CSP-C45-NC10 (45 Day 10" x 15" Chair Pad) • CSP-C365-NC10 (1 Year 10" x 15" Chair Pad) Toilet Seat Sensor Pad (TSP-TS-1) When the patient/resident attempts to exit the toilet, removing their body weight from the seat will activate the monitor alarm. Easy Release Seat Belt When the patient/resident attempts to exit the chair by unfastening the seat belt, the monitor will alarm. • CS-SB2054 (Buckle) • CS-SB2054V (Velcro) Floor Mat/Cushion When the patient/resident attempts to exit the bed, and places their body weight on the floor mat, the monitor will alarm. • CS-FMS-C2448 (wired mat) • CS-FCS-C3668 (wired cushion) • CS-FMS-W2448 (wireless mat) Wireless Nurse Call Relay Monitor (CSM-WNCR1): The Wireless Nurse Call Relay Monitor allows the caregiver to place this Wireless Advanced LCD Bed and Chair Monitor outside of the patient room for increased common area alarm visibility. The Wireless Relay Monitor is placed next to and connected to the patient station to signal to Nurse Call. See “Using the Monitor with the Nurse Call Relay”. 1. Unscrew and remove the battery cover. 2. Install the four included AA batteries. Make sure they are oriented correctly (see the illustration below). 3. Replace the battery cover and tighten the screw. 1. Visually inspect the monitor for physical damage. If damage is noted, remove it from service. 2. Make sure the monitor is securely mounted to the wheelchair, headboard, wall bracket, or magnetic bracket. 3. Connect the sensor to the monitor. If you are using the monitor with a wireless pad/mat, synchronize to the monitor (see “Wireless Chair and Bed Pad Use” or “Wireless Floor Mat Use”) 4. Plug the AC power cord into an outlet (optional for battery backup and to minimize battery replacement). 5. When placing pressure on the pad or when fastening the seat belt, the following will occur confirming that the cord is connected/pad is synchronized and the batteries have been installed properly: • The monitor will beep (if the volume is on) and the red ALARM/LOW BATTERY LED will flash two times simultaneously. • The LCD will read “IN USE” • The green IN USE LED will blink approximately every two seconds NOTE: When using the floor mat or floor cushion, the IN USE LED will not blink and the LCD will not read “IN USE” when operational (as when used with a pad or the seat belt). Follow step 6 to insure proper function. 6. When doing one of the following: • Bed, Chair or Toilet Seat Pad – pressure is being applied and released • Seat Belt – the seat belt is fastened • Floor Mat/Cushion – step onto the mat/cushion • Call Cord – press the call cord button The following will occur, confirming that the unit is operational: • The monitor will alarm (if volume is on) • The red ALARM/LOW BATTERY and side LEDs will flash • The LCD will read “ALARM” • Nurse Call will alarm (if connected) 7. To cancel the alarm, press the RESET button and reset Nurse Call at the Patient Station (if connected). NOTE: If there is any other visual or audible alarm, see the LED/LIGHT ALARM INDICATORS and TROUBLESHOOTING sections of this manual. For further assistance, read the directions supplied with the sensor pad, mat, cushion, or seat belt or call Curbell toll-free at 1-800-235-7500. The monitor’s strain relief helps prevent damage to the cord and input jack if there is excessive tension on the cord. To use the strain relief, plug the sensor pad/seat belt/floor mat cord intot he monitor and run it around the strain relief, as in the illustration below. The monitor is factory set at the highest volume. To adjust the volume, the switch on the left side of the monitor must be in the “KEY OFF” position, or if in the “KEY ON” position, requires first overriding with the CareSense key (see “Tamper Resistance”). To Turn Volume Up 1. Press and hold the VOLUME button to turn up. The LED will read “VOL. ” and show bars on the bottom indicating the volume level, 1 bar indicates the lowest sound level and 7 bars the highest (see illustration below). When the volume is set to zero, the LED will read “VOL. OFF”. 2. Release the button when desired volume is reached. To Turn Volume Down 1. Press and release the VOLUME button, then press and hold butt…

Text truncated - open the document above for the full version.

Original Web Site: www.rondish .com UNIT G&H, 4/F, BLOCK 1, KWAI TAK IND. CTR E-Mail: [email protected] 15-33 KWAI TAK ST., KWAI CHUNG, N.T. Phone: (852)-25431955 FAX : (852)-25417411 AGENCY AUTHORIZATION LETTER FCC ID: WNG-CSM-BC400 Date: August 2 8 , 2009 To whom it may concern: We, the undersigned,hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, ________________________ Terrence Ying/Senior Project Engineer Phone: (852)-25431955 FAX : (852)-25417411 Email: [email protected]

Original Date: Aug. 28, 2009 Federal communications commission Authorization and Evaluation Division FCC ID: WNG-CSM-BC400 Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1. Schematics 2. Block diagram 3. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, ___________________________ Terrence Ying/Senior Project Engineer Phone: (852)-25431955 FAX : (852)-25417411 Email: [email protected]

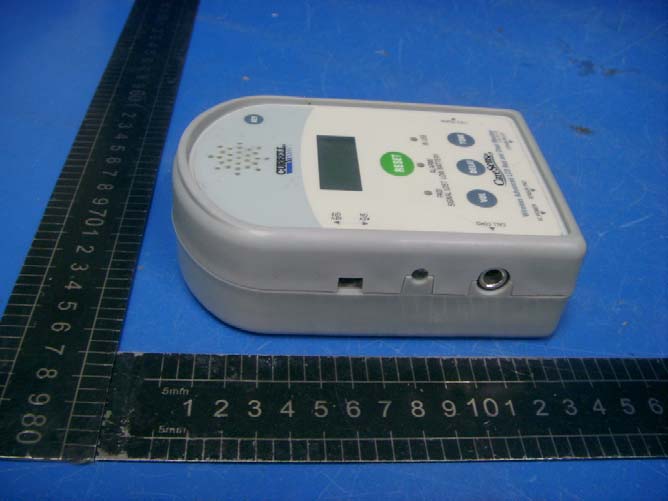

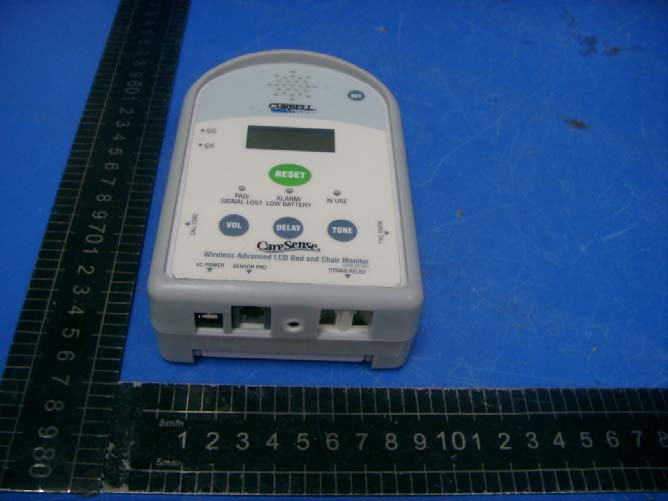

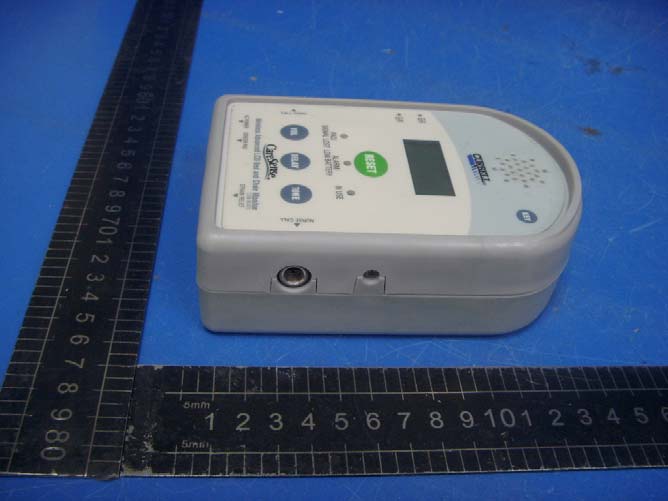

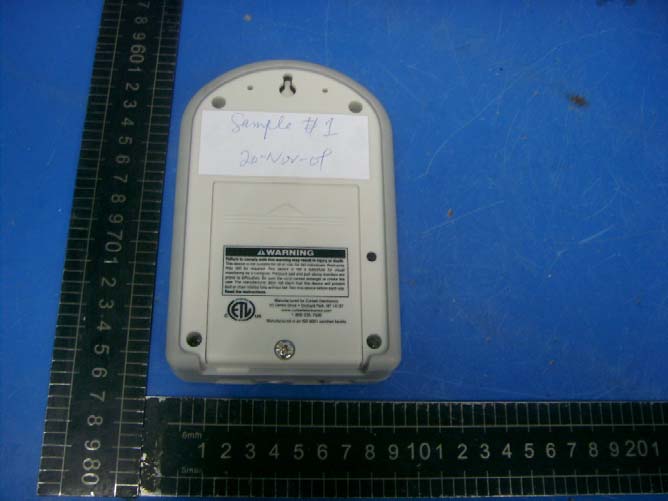

EXTERNAL PHOTOS OF EUT: EUT Model :CSM-BC400 Front View Rear View Bottom View Left Side View Right Side View Battery Cover Opend View AC/DC Adaptor View

Wireless Advanced LCD Bed and Chair Monitor (CSM-BC400) FCC ID: WNG-CSM-BC400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

INTERNAL PHOTOS OF EUT: EUT Model :CSM-BC400 Inside View Mainboard front view Mainboard rear view LCD board rear view LCD board front view Receiver Module Front View PCB Front View of Receiver Module PCB Rear View of Receiver Module

www.ecmg-global.com FCC Test Report On Model Name: Wireless Advanced LCD Bed and Chair Monitor Model Number: CSM-BC400 Trade Marks: Curbell FCC ID Number: WNG-CSM-BC400 Prepared for Rondish Co., Ltd According to FCC Part 15 (2009), Subpart B Test Report #: RON-0912-10327-FCCID Prepared by: May Wang Reviewed by: Jawen Yin QC Manager: Paul Chen Test Report Released by: August 8, 2010 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Paul Chen Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: Shenzhen Academy of Metrology and quality Inspection. Bldg. of Metrology & Quality Inspection, Longzhu Road, Nanshan District, Shenzhen, Guangdong, China. Tel: 86-755-26941599 Fax: 86-755-2694161 FCC Registration Number: 274801 CNAS Registration Number: L0579 Table of Contents GOVERNMENT DISCLAIMER NOTICE _________________________________________________ 2 REPRODUCTION CLAUSE ___________________________________________________________ 2 OPINIONS AND INTERPRETATIONS __________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY ______________________________________ 2 ADMINISTRATIVE DATA ____________________________________________________________ 3 EUT DESCRIPTION _________________________________________________________________ 4 TEST SUMMARY ___________________________________________________________________ 5 TEST MODE JUSTIFICATION_________________________________________________________ 6 TEST MODE APPLICABILITY AND TESTED DETAIL_____________________________________ 6 EQUIPMENT MODIFICATION ________________________________________________________ 6 EUT SAMPLE PHOTOS ______________________________________________________________ 7 TEST SYSTEM DETAILS ____________________________________________________________ 12 TESTING SYETEM CONFIGURATION ________________________________________________ 13 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS ___________________________ 14 ATTACHMENT 2 – RADIATED EMISSION MEASUREMENT _____________________________ 19 FCC Test Report #: RON-0912-10327-FCCID Prepared for Rondish Co., Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 1 of 25 List Attached Files Exhibit Type File Description File Name Test Report Test Report WNG-CSM-BC400 _Test report.pdf Operation Description Technical Description WNG-CSM-BC400_operation description.pdf External Photos External Photos WNG-CSM-BC400_External Photos Internal Photos Internal Photos WNG-CSM-BC400_Internal Photos Block Diagram Block Diagram WNG-CSM-BC400_Block Diagram.pdf Schematics Circuit Diagram WNG-CSM-BC400 _Schematics.pdf ID Label/Location Label and Location WNG-CSM-BC400 _Label & Location.pdf User Manual User Manual WNG-CSM-BC400 _User Manual.pdf Test setup photos Test setup photos WNG-CSM-BC400 _Test Setup Photos FCC Test Report #: RON-0912-10327-FCCID Prepared for Rondish Co., Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 2 of 25 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Worldwide Certification Solution Inc. Opinions and Interpretations This test report relates to the abovementioned equipment under test(EUT).Without the permission of ECMG Worldwide Certification Solution Inc. Test Lab this test report is not permitted to be duplicated in extracts.This test report does not entitle to carry any test mark on this or similar products.The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: RON-0912-10327-FCCID Prepared for Rondish Co., Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 3 of 25 Administrative Data Test Sample : Wireless Advanced LCD Bed and Chair Monitor Model Numbers : CSM-BC400 Model Tested : CSM-BC400 Date Tested : December 22, 2009 Applicant : Rondish Co., Ltd Unit G & H, 4/F, Block 1, Kwai Tak Ind. Ctr, 15- 33 Kwai Tak St., Kwai Chung, N.T., Hong Kong Telephone : (852)-25431955 Fax : (852) - 25417411 Manufacturer : Rondish Co., Ltd Unit G & H, 4/F, Block 1, Kwai Tak Ind. Ctr, 15- 33 Kwai Tak St., Kwai Chung, N.T., Hong Kong Telephone : (852)-25431955 Fax : (852) - 25417411 FCC Test Report #: RON-0912-10327-FCCID Prepared for Rondish Co., Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 4 of 25 EUT Description Rondish Co., Ltd, Model tested CSM-BC400 (referred to as the EUT in this report) is a Wireless Advanced LCD Bed and Chair Monitor. The EUT is a 433.92MHz wireless receiver and technical specfication of EUT are as below: Receiver Frequency: 433.92MHz +/- 0.5 Power Source: Four AA alkaline batteries (Energizer Industrial batteries or equivalent are recommended) AC adaptor (output: DC 6V 300 mA) Dimensions: 5.3" H x 3.5" W x 1.7" D Weight: Approximately 9.6 oz (not including batteries) Note: F…

Text truncated - open the document above for the full version.

Test set up Photograph Model: CSM-BC400 Conducted Emission Test Set-up Radiated Emission Test Set-up(30MHz-1000MHz) Radiated Emission Test Set-up(Above 1GHz)
