WNG-ILB-21-FSKWireless Indication Light, Wireless Extender

ILB-21-FSK User Manual (V0.3) Page 1 of 4 Wireless Indication Light (ILB-21-FSK) User Manual ILB-21-FSK (Indication light) • Dual-color LED light – shows RED for normal call devices or WHITE for bath units • Call forward function to extend range • Includes wall-mount bracket and screws • Uses 6 x C-type alkaline batteries • Low battery alert Corridor lights provide a visual indication when a call is active in the area, have a buzzer with adjustable volume for audible indication, and will expand the wireless range. Follow the below steps to configure light. Step 1: Power the light – Insert 6 x C-type alkaline batteries into the light. A lead is also provided to connect with a 12V power source if the alarm will be frequently used as a call light with multiple calls a day. In this case batteries may only last weeks or months, so connecting to a DC supply is recommended. When used as a bathroom light with infrequent calls (e.g. 1 minute per day) the batteries can last up to 1 year. ILB-21-FSK User Manual (V0.3) Page 2 of 4 Step 2: Enter pairing – Press the Program button on the back of the indication light. The red and white sections will both stay ON to indicate the light is ready for pairing. Step 3: Read-in wireless devices – Trigger the device you want to add into memory. If the device code is accepted into memory the light will beep three times and flash either the red or white section. The WCP-11 call/reset button will flash the white LED to confirm they are paired; other wireless devices will flash the red LED to confirm. The light has memory capacity for 15 devices. In the event the light memory is already full, an attempt to read in another device will result in a long beep to indicate is has not been accepted. Step 4: Secure mounting plate – Screw the plastic mounting plate to the wall where you will want to locate the indication light. Make sure the plate is secured before mounting the light. Step 5: Mount the light – Snap the indication light onto the mounting plate. You will hear a “click” when the light is securely in place. Note: To remove light to change batteries, press the release level at the bottom of the mounting bracket and lift. Light Displays: White – bath, bed/chair/floor, motion sensor Red – bedhead, pendent Flashing – emergency Release lever ILB-21-FSK User Manual (V0.3) Page 3 of 4 IMPORTANT NOTICE • Risk of fire or explosion if the battery is replaced by an incorrect type. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. ILB-21-FSK User Manual (V0.3) Page 4 of 4 History Version Description V0.1 - 1 st release. V0.2 - Added Product Name, IMPORTANT NOTICE for FCC and battery. V0.3 - Updated IMPORTANT NOTICE.

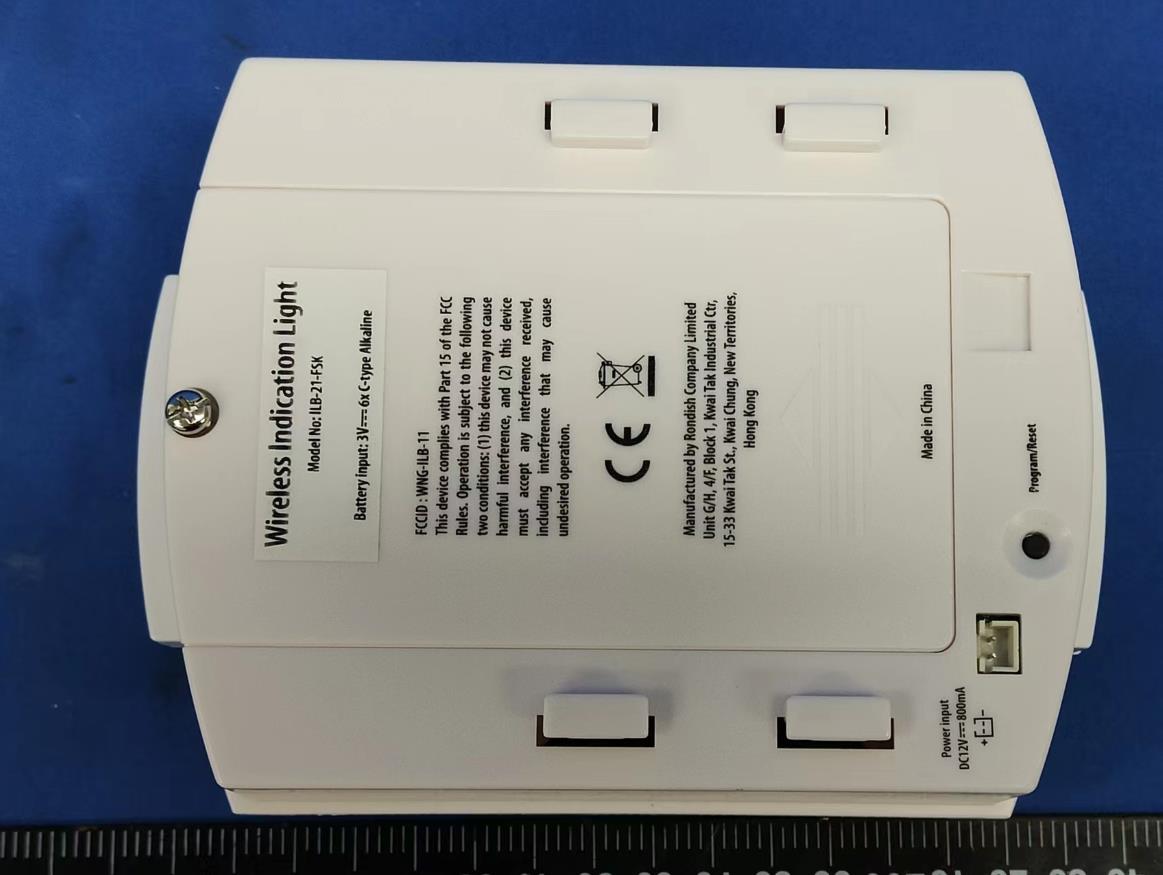

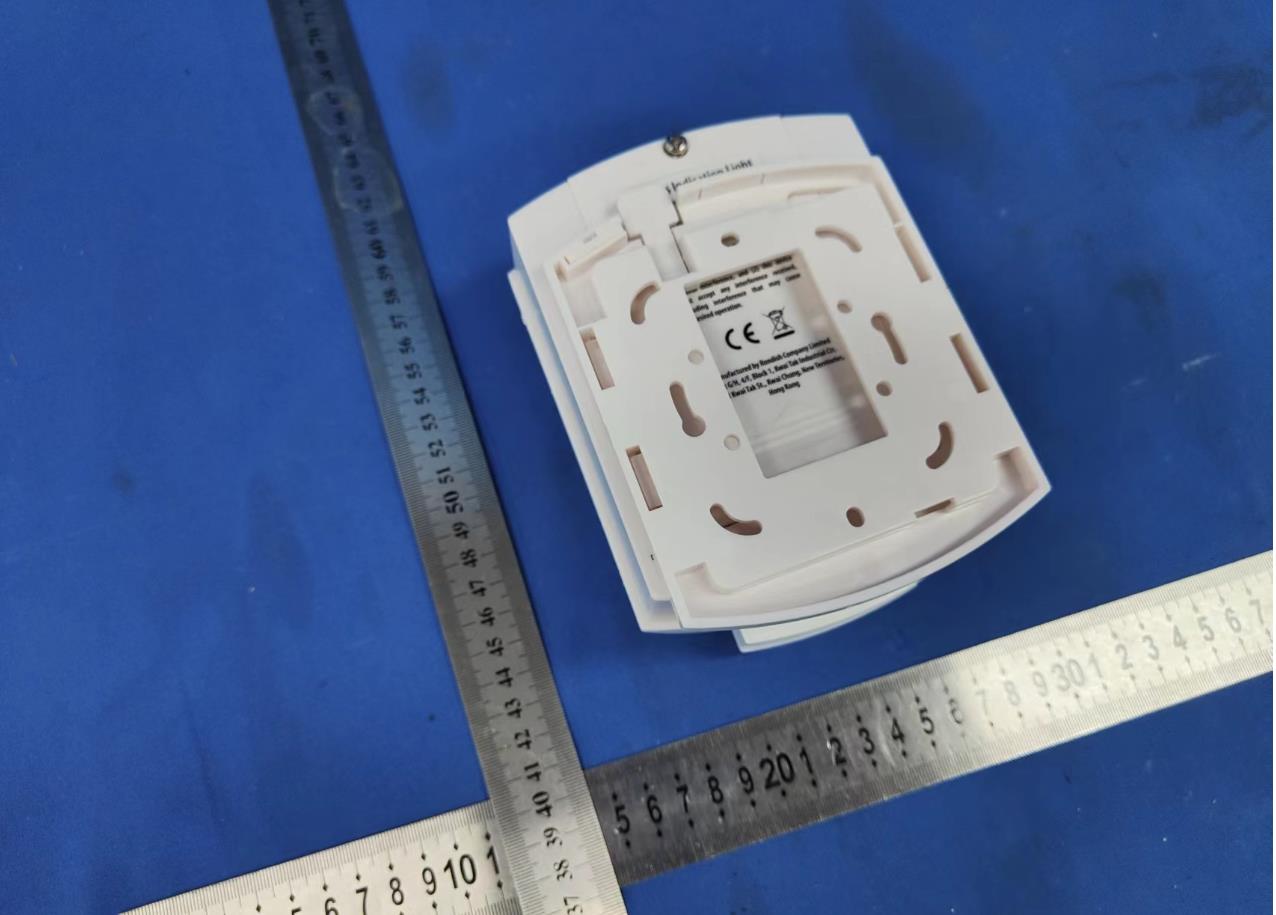

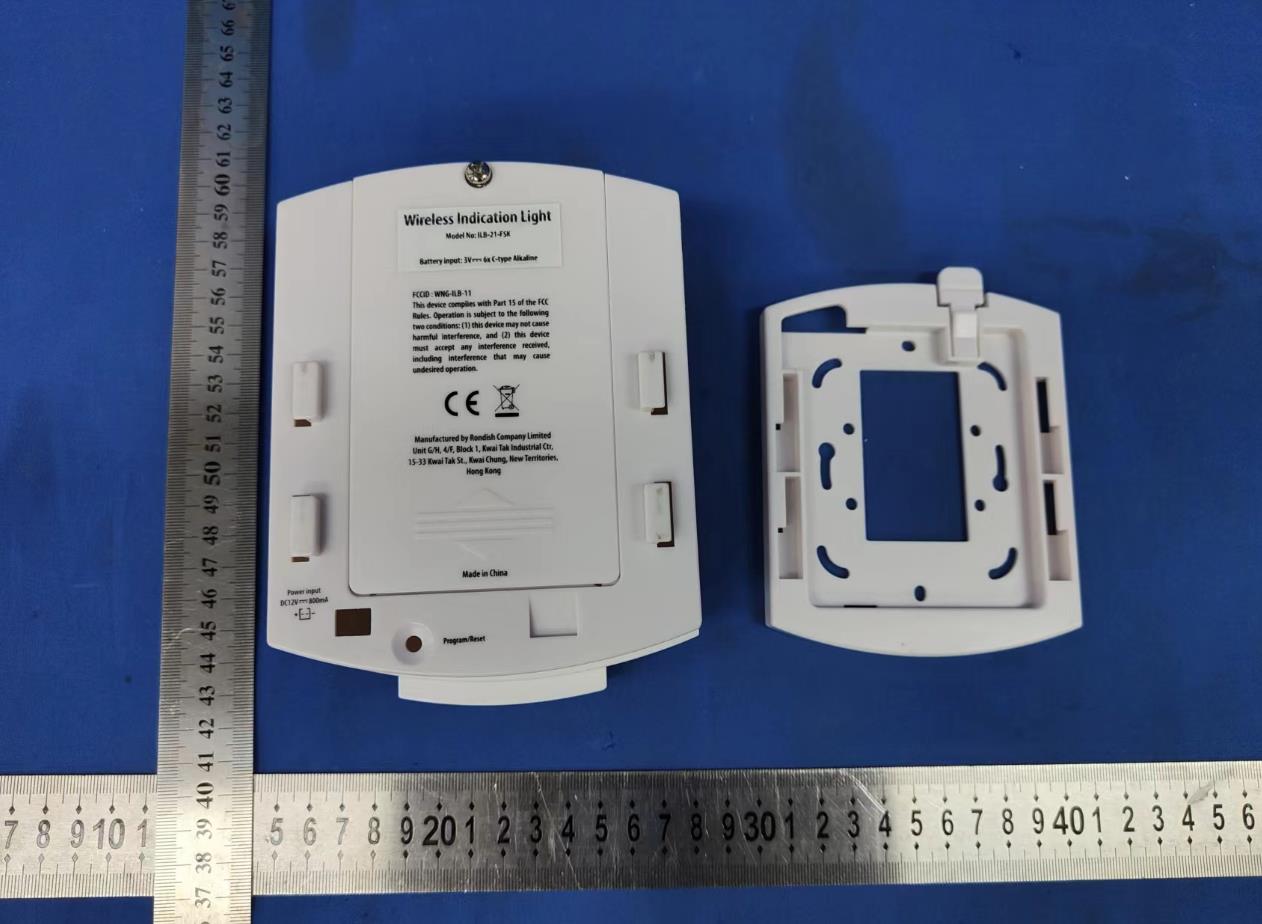

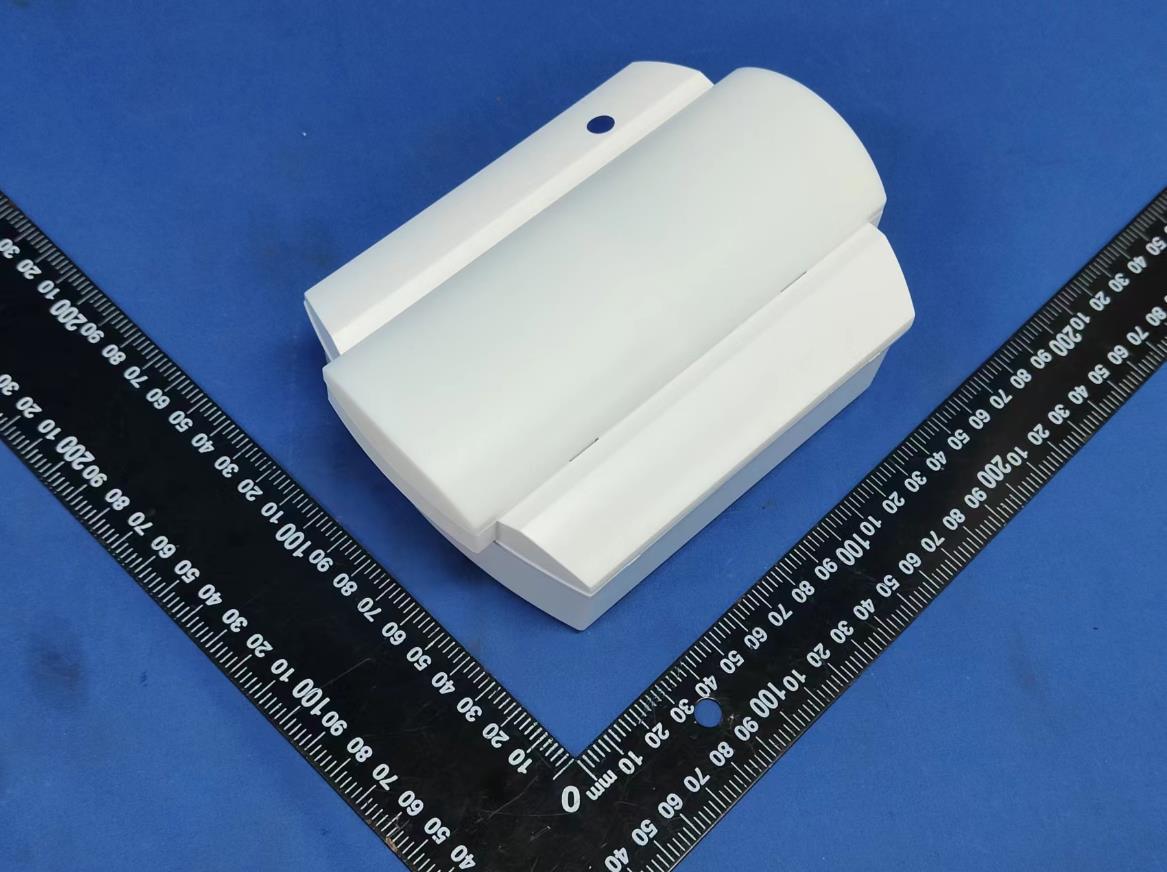

Description: Overall view Photo 1. Description: Rear view Photo 2. Description: Rear view Photo 3. Description: Rear view Photo 4. Description: Rear view Photo 5. Description: DC input port view

Customer: Date: Model: Type Art Ver.: Size: Color: Rondish 2022-11-28 ILB-21-FSK Silk Screen Art_ILB-21-FSK_SC (20221128) \ Black Pantone Reflex Blue C Wireless Indication Light Model No: ILB-21-FSK Made in China Battery input: 3V 6x C-type Alkaline FCCID : WNG-ILB-21-FSK This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured by Rondish Company Limited Unit G/H, 4/F, Block 1, Kwai Tak Industrial Ctr, 15-33 Kwai Tak St., Kwai Chung, New Territories, Hong Kong Use 2mm flat head screw driver to remove Program/Reset Power input DC12V 800mA

Photo 1. Description: internal view for 6XC –type alkaline batteries Photo 2. Description: internal view Photo 3. Description: Internal view Photo 4. Description: Internal PCB view Photo 5. Description: Internal PCB view Photo 6. Description: Internal PCB view Photo 7. Description: Internal PCB view for DC input circuit Photo 8. Description: Internal PCB view for DC input circuit

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Wireless Indication Light, Wireless Extender Identification / Type No. : ILB-21-FSK, ILB-21-EXT FCC ID : WNG-ILB-21-FSK Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 Measurement Record: EIRP[dBm] = E[dBuV/m]− 95.2 Since maximum peak output power of the transmitter is -15 dBm ≈ 0.0316mW < 22mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v06.

115mm x 3mm x 1oz copper PCB antenna

Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 101 and 201, Building 2, Dongfangming Industrial Area, No 83. Dabao Rd., Area 33 Shanghe Neibourhood, Xin’an Community, Bao’an District, Shenzhen, P.R. China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 22 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report Product name: Wireless Indication Light, Wireless Extender Model name: ILB-21-FSK, ILB-21-EXT FCC ID: WNG-ILB-21-FSK Test Report Number: EFGX22110322-IE-01-E05 Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 101 and 201, Building 2, Dongfangming Industrial Area, No 83. Dabao Rd., Area 33 Shanghe Neibourhood, Xin’an Community, Bao’an District, Shenzhen, P.R. China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 22 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of approval holder 4 1.4 Details of Manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 7 2.5 Test equipment utilized 8 2.6 Auxiliary Equipment Used during Test: 8 2.7 Test software information 8 2.8 Customized Configurations 8 2.9 Test Environments 8 2.10 Test results 9 3 Technical Requirement 10 3.1 Conducted Emission 10 3.2 Automatically Deativate 11 3.3 20dB bandwidth 13 3.4 Field strength of fundamental , Field strength of spurious emission for transmitter and Restricted bands 15 Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 22 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Product Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Product Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Product Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator: 2023-01-18 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2023-01-18 Abert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 22 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of approval holder Name : Rondish Co. Ltd Address : UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China Telephone : ./. Fax : ./. 1.4 Details of Manufacturer Name : Rondish Co. Ltd Address : UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China Telephone : ./. Fax : ./. Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 22 1.5 Application details Date of receipt of application : 2022-11-23 Date of receipt of test item : 2022-11-23 Date of test : 2022-11-23 to 2023-01-12 Date of issue : 2023-01-18 1.6 Test item Product type : Wireless Indication Light, Wireless Extender Model name : ILB-21-FSK, ILB-21-EXT Brand : Rondish Serial number : N/A Ratings : DC input: 12V, 800mA or 3V, Class III (Supplied by 12VDC external power or 6 X C-type Alkaline batteries-every two in series) Test voltage : 3VDC FCC ID : WNG-ILB-21-FSK PMN : Wireless Indication Light, Wireless Extender RadioTechnical data Frequency range : 434.40MHz Radio Tech. : N/A Frequency channel : 1 Channel Modulation : FSK Antenna type : PCB antenna Additional information : All models are the same, except for model name and function,Their function shows below: ILB-21-FSK:It receives and transmits the signal in 434.40MHz(FSK) and receives the signal in 433.92MHz(OOK) ILB-21-EXT:It receives and transmits the signal in 434.40MHz(FSK) After review, full tests were performed on model ILB-21-FSK. Test Report No.: EFGX22110322-IE-01-E05 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 22 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard …
