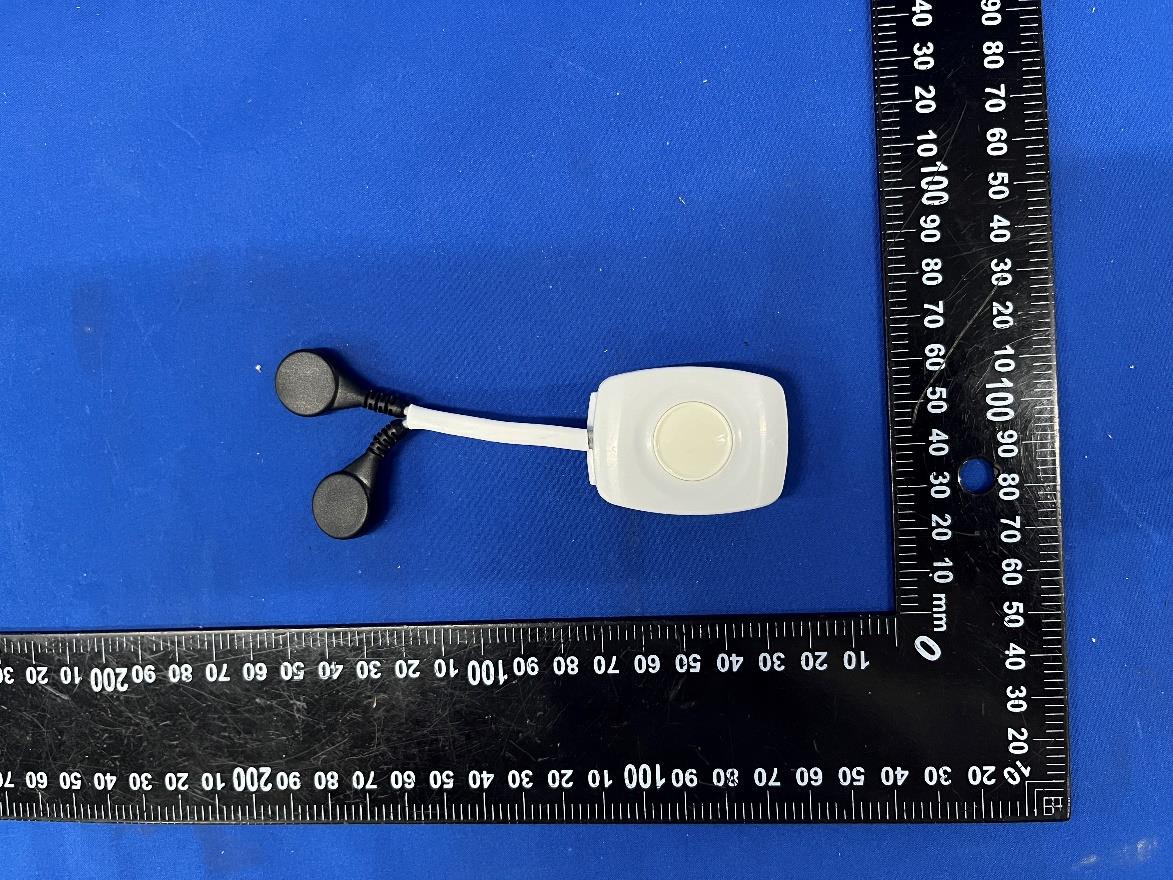

WNG-PT-11Pad Transmitter

Rondish Company Limited Sensor Pad User Instructions V0.5 (26 st Oct 2022) Sensor Pad by Rondish CORDED SETUP Step1: Connect Cable – Connect the cable onto the snap terminals. We recommend you feed through the hole for strain relief. Step2: plug the cable into the port at the bottom of your bed alarm monitor. Sensor Pad by Rondish CORDLESS SETUP Step1: Activate Transmitter – Transmitters are delivered in storage mode to preserve battery life. To activate a PT-11 transmitter, press and hold the button for 10 seconds until the LED remains ON. Step 2: Connect Transmitter – Connect the transmitter onto the snap terminals Step 3: Synch with Alarm – Press and release the transmitter button to synch the sensor pad with a monitor in pairing mode. Sensor Pad by Rondish INSTALL THE PAD Position Sensor pad – Place the sensor pad on a chair or wheelchair seat under buttocks. If chair cushion is used sensor pad must be placed on top of chair cushion directly under buttocks of user. Position Sensor pad – if you want an alarm when the patient sits up, locate the sensor pad beneath their shoulders. Sensor Pad by Rondish If you want an alarm when the patient exits their bed, locate the alarm beneath their hips. PRESSURE PAD TEST Step 1 : Press sensor pad – you should hear a “beep beep” confirming it is active Step 2 : Release sensor pad and confirm your bed monitor alarms properly Step 3 : If your monitor unit does not alarm : • Check the sensor pad is properly connected to a monitor (for corded use) • Move the monitor closer to the sensor pad or repeat the cordless setup to make sure the transmitter and the monitor are syncing correctly. (for cordless use). Test regularly to ensure alarms are working Sensor Pad by Rondish properly. This product uses radio frequency signals, which can be affected by building layout and construction materials. The manufacturer cannot guarantee the wireless range you get will match the estimates provided. You should test that there are no “dead areas” in your facility where alarms cannot be received. Sensor Pad by Rondish IMPORTANT NOTICE For PT-11, Sensor Pad  Risk of fire or explosion if the battery is replaced by an incorrect type.  If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.  Keep new and used batteries away from children.  If the battery compartment does not close securely, stop using the product and keep it away from children.  If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.  Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.

2023-10-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: WNG-PT-11 [RONDISH CO. LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Name: TERRENCE YING 2023-10-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: WNG-PT-11 RONDISH CO. LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: TERRENCE YING

Designs in Security / Healthcare / Communication Date: 10-Oct-2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Pad Transmitter / PT-11 / FCC ID: WNG-PT-11) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Signature: Name: TERRENCE YING Applicant: RONDISH CO. LTD Address: UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China TEL: 852-25431955

Designs in Security / Healthcare / Communication Date: 10-Oct-2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Eurofins Electrical Testing Service (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: TERRENCE YING Applicant: RONDISH CO. LTD Address: UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China TEL: 852-25431955

1. λ㐣ⴰᵫᐾ: GS1᪟ᢝⴘ䭤 2. ႆ҂: Verdana, 4pt 3. せ̯㵻(01) ͩπৰВⴰ̼㘬इ 4. せλ㵻(11) ͩ⩎πᬔᱎ(YYMMDD)(ࢄᠸ) 5. せ̸㵻(21) द݆ႇᎾڴͩ, ᓴ䶪ᠸࢄᠶ⹩ ᱛ⺗㠲ణ⩠: 00000001㜢00000030 ऻ̯⺗䉖͜,ఏᏃჍ䭴䰯㺰,ⰧऻᎾ݆दञ䛼฼ܩ⣟ 6. 䉣8日Ⴭ䭴ᅩᄧ: 25x8mm 7. 㨌㞡㮉15日ͩܯ⬄ᬏ䰯ݦ࢟ȡ ᅶ᠋ৡ鹵 : RonDish ⫼Ѣऩো : 2305-24-R&D 䳊ӊ㓪ো : AE1PT110B ൟো :PT-11 ᦣ䗄 : Ѡ㓈ⷕᷛᅤ ⠜ᴀ :B ᴤ᭭ :PVC ⱑᑩ咥ᄫ ᏺᔎ㉬㛊 ḷḜৡ鹵 : AL-PT11-00B ऩᴎ⫼䞣 :1 থᏗ᮹ᳳ :2023 ᑈ 10 ᳜ 31 ᮹ Փ⫼ԡ㕂 : 䌈೼ᴎেջ

Related to EFGX23080184-IE-01-E01 Radio frequency radiation exposure evaluation: portable devices RESULT : Pass Test Specification Test item : Pad Transmitter Identification / Type No. : PT-11 FCC ID : WNG-PT-11 Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 D04 Measurement Record: E.I.R.P = 66.01-95.2 = -29.19dBm Since maximum peak output power of the transmitter is -29.19dBm ≈ 0.0012mW < 22mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D04

Manufacturer name: Shenzhen Dafai Electronic Technology Co., Ltd Manufacturer address: 101, Building A, Xiangdeyi Industrial Park, No. 180 Changxing Road, Zhangkengjing Community, Guanhu Street, Longhua District, Shenzhen. Antenna Dimension: 92mm x 1.2mm x 1oz copper

Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 101 and 201, Building 2, Dongfangming Industrial Area, No 83. Dabao Rd., Area 33 Shanghe Neibourhood, Xin’an Community, Bao’an District, Shenzhen, P.R. China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 22 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report Product name: Pad Transmitter Model name: PT-11 FCC ID: WNG-PT-11 Test Report Number: EFGX23080001-IE-03-E01 Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 101 and 201, Building 2, Dongfangming Industrial Area, No 83. Dabao Rd., Area 33 Shanghe Neibourhood, Xin’an Community, Bao’an District, Shenzhen, P.R. China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 22 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of approval holder 4 1.4 Details of Manufacturer 4 1.5 Application details 4 1.6 Test item 4 1.7 Test standards 5 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Measurement uncertainty 6 2.4 Test mode 6 2.5 Test equipment utilized 7 2.6 Auxiliary Equipment Used during Test: 7 2.7 Test software information 7 2.8 Customized Configurations 7 2.9 Test Environments 7 2.10 Test results 8 3 Technical Requirement 9 3.1 Conducted Emission 9 3.2 Automatically Deativate 10 3.3 20dB bandwidth 12 3.4 Field strength of fundamental , Field strength of spurious emission for transmitter and Restricted bands 14 Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 22 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Product Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Product Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Product Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator: 2023-10-23 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2023-10-23 Abert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 22 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of approval holder Name : Rondish Co. Ltd Address : UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China Telephone : ./. Fax : ./. 1.4 Details of Manufacturer Name : Rondish Co. Ltd Address : UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K HONGKONG, China Telephone : ./. Fax : ./. 1.5 Application details Date of receipt of application : 2023-08-01 Date of receipt of test item : 2023-08-01 Date of test : 2023-08-01 to 2023-10-23 Date of issue : 2023-10-23 1.6 Test item Product type : Pad Transmitter Model name : PT-11 Brand : Rondish Serial number : N/A Ratings : DC 3V (1 * “CR2450” battery) Test voltage : DC 3V FCC ID : WNG-PT-11 PMN : Pad Transmitter Additional information : N/A RadioTechnical data Frequency range : 433.92MHz Radio Tech. : N/A Frequency channel : 1 Channel Modulation : OOK Antenna type : PCB antenna Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 22 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. Test Report No.: EFGX23080001-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 22 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. or The deviations as specified were ascertained in the course of the tests performed. 2.2 Test environment Temperature : 20 ... 25°C Relative humidity content : 30 ... 6…

Text truncated - open the document above for the full version.
