WNG-DON-30Receiver Dongle

Rondish Company Limited Nexus Call System User Instructions V1.7 (2 nd March 2021) NEXUS CALL SYSTEM by Rondish P2 Contents Contents ........................................................................................................................................................ 2 1. PRODUCT OVERVIEW ............................................................................................................................... 4 1.1 System Layout ................................................................................................................................. 4 1.2 Compatible Equipment .................................................................................................................. 6 1.3 General Operation .......................................................................................................................... 9 1.3.1 Nexus Behavior Table .............................................................................................................. 9 2. USER INTERFACE .................................................................................................................................... 10 2.1 Home Screen ................................................................................................................................. 10 2.2 Alarm Screen ................................................................................................................................. 11 2.2.1 Display Details ........................................................................................................................ 11 2.2.2 Admin Reset ........................................................................................................................... 12 2.2.3 Dongle Error ........................................................................................................................... 13 2.3 Device Management .................................................................................................................... 13 2.3.1 Add New Device..................................................................................................................... 13 2.3.2 Device Location ...................................................................................................................... 15 2.3.3 Delete Device ........................................................................................................................... 16 2.4 Event Log ....................................................................................................................................... 16 2.5 Settings ............................................................................................................................................ 17 2.5.1 Change Settings ..................................................................................................................... 17 2.5.2 Backup/Restore ...................................................................................................................... 18 2.5.3 Export Log ............................................................................................................................... 18 3. INSTALLING NEXUS ................................................................................................................................ 19 3.1 Call Points ...................................................................................................................................... 19 3.2 Indication Lights ............................................................................................................................ 20 3.3 Bed Monitors ................................................................................................................................. 23 3.4 Door Monitors ............................................................................................................................... 23 3.5 Wall-mounting the Panel ............................................................................................................. 24 3.6 Maintaining Nexus ........................................................................................................................ 24 3.7 Updating Nexus ............................................................................................................................ 25 NEXUS CALL SYSTEM by Rondish P3 4. TROUBLESHOOTING .............................................................................................................................. 26 5. FCC & CE warning statements...................................................................................................................26-27 NEXUS CALL SYSTEM by Rondish P4 1. PRODUCT OVERVIEW Nexus is a wireless nurse call system designed for ease of programming, installation and use. This allows rapid deployment of a low-cost call system during influenza season when hospital resources are stretched, or permanent installation for a long-term care facility or hospital ward looking for a reliable call solution. Nexus works using a 10” Android tablet for the display – the tablet comes with a protective folio for placement on a desk, or can be wall-mounted with the use of an optional bracket. Alternately, a TV Box running Nexus can be connected to a larger computer monitor for a more visible display. Up to three calls can be displayed on the screen, with higher priority calls automatically moved to the top of the alarm display. Alarm priority levels are Emergency, Bath, and standard Call. If more than three calls happen to be active at the same time, Nexus will display the three highest priority events, and additional calls will display as the higher priority events are reset. All events are logged with a record of event location, call type, time of trigger and duration before reset. Indication lights placed throughout the ward or building show if there is an active call in t…

Text truncated - open the document above for the full version.

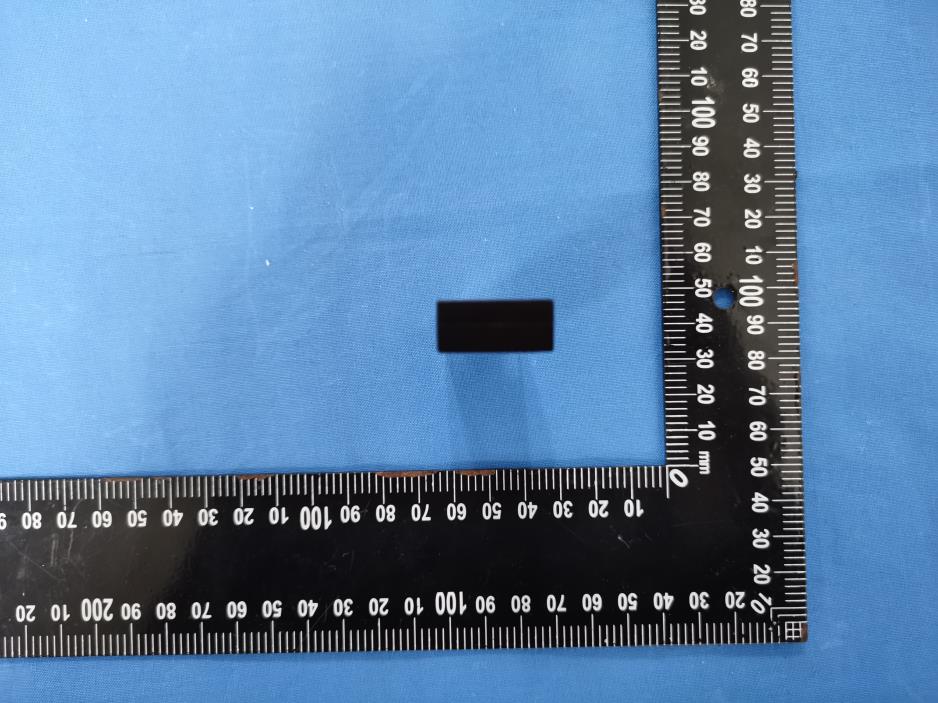

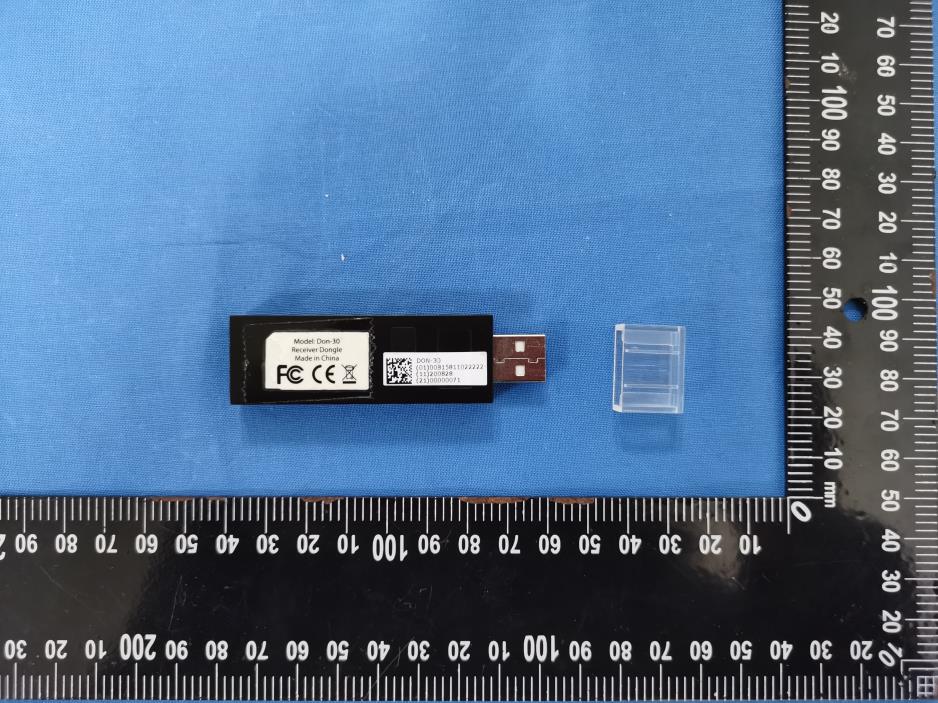

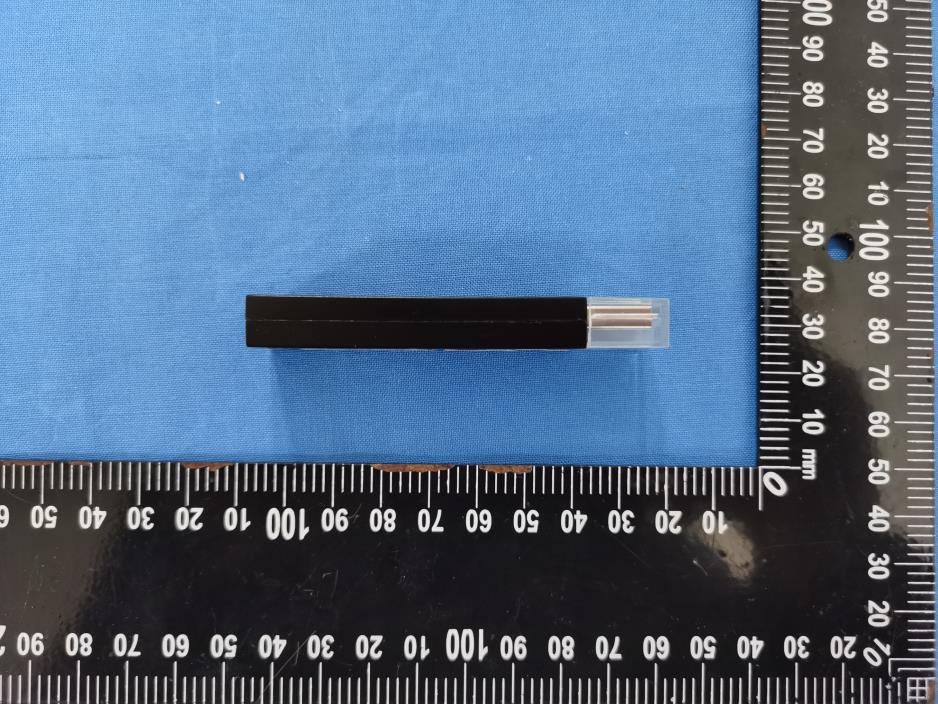

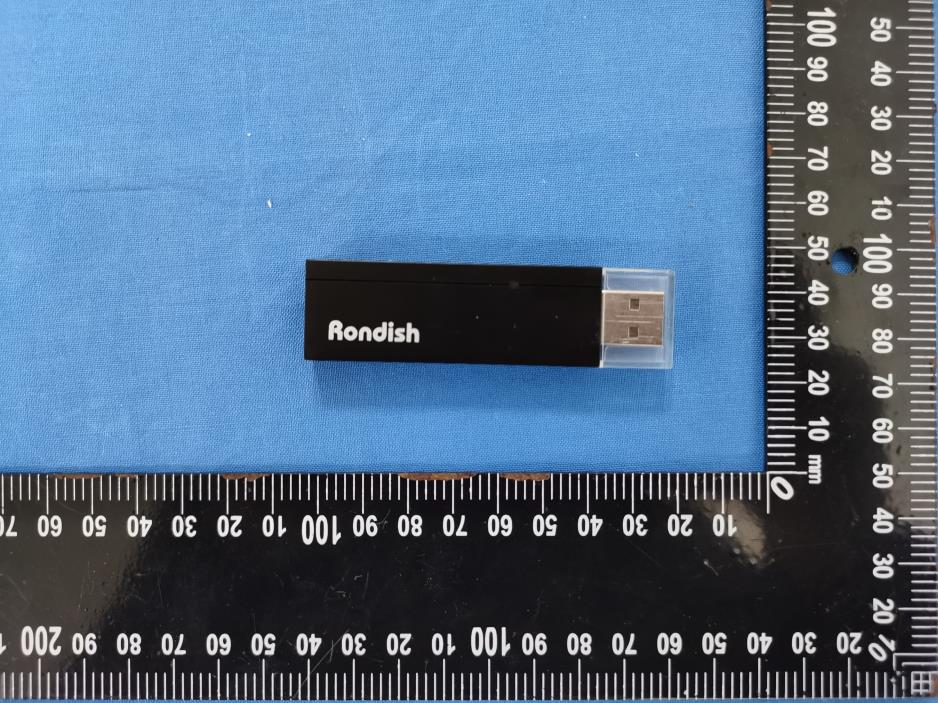

Page 1 of 5 External Photos Model Number: DON-30 FCC ID: WNG-DON-30 Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7) EUT Photo (8)

Back: Label Model: DON-30 Receiver Dongle FCCID: WNG-DON-30 Made in China Model: DON-30 Receiver Dongle FCCID: WNG-DON-30 Made in China 24.5mm 13.5mm Customer: Date: Model: Type: IDD Ver.: Size: Print Color: Label Color: Rondish 2021-03-02 DON-30 Label Art_DON-30_LB(20210302) 24.5 x 13.5mm Black White

Page 1 of 4 Internal Photos Model Number: DON-30 FCC ID: WNG-DON-30 Page 2 of 4 EUT Photo (1) EUT Photo (2) Page 3 of 4 EUT Photo (3) EUT Photo (4) Page 4 of 4 EUT Photo (5) EUT Photo (6)

A Test Lab Techno Corp. 101-104, 1F, A building, Safflower ridge industrial area, Taoyuan street, Nanshan district, Shenzhen Tel：+86-755-23987770 / Fax：+86-755-26637771 MPE Report Test Report No. ： SZ2102FS12 Applicant ： RONDISH COMPANY LIMITED Product Type ： Receiver Dongle Trade Name ： Rondish Model Number ： DON-30 Received Date ： Nov. 23, 2020 Test Period ： Jan. 14 ~ Jan. 22, 2021 Issue Date ： Feb. 25, 2021 Test Specification ： ANSI / IEEE Std.C95.1-1992 / IEEE Std. 1528-2013 47 CFR § 2.1091 47 CFR § 1.1310 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Louis Shen) (Joyce Feng) Report Number: SZ2102FS12 Rev. 00 Page 1 of 5 Contents 1. Description of Equipment under Test (EUT) ....................................................... 3 2. Human Exposure Assessment ............................................................................ 4 3. Test Results ........................................................................................................... 5 Report Number: SZ2102FS12 Rev. 00 Page 2 of 5 1. Description of Equipment under Test (EUT) Applicant RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Manufacturer RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Product Type Receiver Dongle Trade Name Rondish Model Number DON-30 FCC ID WNG-DON-30 Frequency Range Operate Band Frequency Range (MHz) SRD 434.79 Antenna Information ANT Model Type Max. Gain (dBi) ANT-0 AN1603 Chip Antenna SRD 0.5 RF Evaluation 0.000 mW/cm 2 Temperature Range 5 ~ 40°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 / 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: SZ2102FS12 Rev. 00 Page 3 of 5 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR § 1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation 2 4R PG S   Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: SZ2102FS12 Rev. 00 Page 4 of 5 3. Test Results Band Frequency (MHz) Limit (mw)/cm 2 Distance [R] (cm) Max tune-up Power (upper limit) [P] (dBm) ANT Gain (dBi) Numeric Gain [G] Duty Cycle Power with Duty cycle [TP] (mW) Power Density [S] (mw/cm 2 ) 434.79 434.79 0.29 20 -51.53 0.5 1.12 1 0.000 0.000 Note: 1.Mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicat MPE distance is less. 2.The Numeric Gain calculated by 10^(ant. Gain(dBi) /10). 3.Each band max power which perform MPE of any configurations. Report Number: SZ2102FS12 Rev. 00 Page 5 of 5

Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. R F Te s t R e p o r t Issued Date: Jan. 26, 2021 Applicant ： RONDISH COMPANY LIMITED Product Type ： Receiver Dongle Trade Name ： Rondish Model Number ： DON-30 FCC ID ： WNG-DON-30 EUT Rated Voltage ： DC 5 V, 0.05 A Test Voltage ： DC 5 V Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Receive Date ： Nov. 23, 2020 Test Period ： Jan. 14 ~ Jan. 22, 2021 Issue by A Test Lab Techno Corp. 101-104, 1F, A building, Safflower ridge industrial area, Taoyuan street, Nanshan district, Shenzhen Tel：+86-755-23987770 / Fax：+86-755-26637771 http://www.atl-lab.com.tw/e-index.htm American Association for Laboratory Accreditation number: 3464.02 Test Firm MRA designation number: CN1168 Approved By ： Reviewed By ： (Manager) (Louis Shen) (Testing Engineer) (Joyce Feng) Report Number: SZ2101FR11 Rev. 00 Page 1 of 23 Revision History Rev. Issue Date Revisions 00 Jan. 26, 2021 Initial Issue Report Number: SZ2101FR11 Rev. 00 Page 2 of 23 TABLE OF CONTENTS 1 General Information ........................................................................................................ 4 1.1. Summary of Test Result .......................................................................................... 4 1.2. Measurement Uncertainty ....................................................................................... 4 2 EUT Description............................................................................................................... 5 3 Test Methodology ............................................................................................................ 5 3.1. Mode of Operation .................................................................................................. 5 3.2. EUT Test Step ......................................................................................................... 6 3.3. Configuration of Test System Details ...................................................................... 6 3.4. Test Instruments ..................................................................................................... 7 3.5. Test Site Environment ............................................................................................. 7 4 Measurement Procedure ................................................................................................. 8 4.1. AC Power Line Conducted Emission Measurement ............................................... 8 4.2. Radiated Emissions Measurement ....................................................................... 10 4.3. 20 dB Bandwidth Measurement ............................................................................ 14 4.4. Antenna Requirement ........................................................................................... 15 5 Test Results ................................................................................................................... 16 Annex A. Conducted Emission ........................................................................................ 16 Annex B. Conducted Test Results ................................................................................... 18 Annex C. Radiated Emissions Measurement .................................................................. 19 Report Number: SZ2101FR11 Rev. 00 Page 3 of 23 1 General Information 1.1. Summary of Test Result Standard Item Results Remark 15.207 AC Power Conducted Emission PASS ---- 15.231(a) Transmitter Deactivation Time PASS ---- 15.231(b) Transmitter Radiated Emissions PASS ---- 15.231(c) 20 dB Bandwidth PASS ---- 15.203 Antenna Requirement PASS ---- CFR 47 Part 15.231(2010) / ANSI C63.10:2013 Standard Description CFR47, Part 15, Subpart C Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Decision Rule ■ Uncertainty is not included. □ Uncertainty is included. 1.2. Measurement Uncertainty Test Item Frequency Range Uncertainty (dB) Conducted Emission 150 kHz ~ 30 MHz 2.7 Radiated Emission 30 MHz ~ 1000 MHz 1.7 1000 MHz ~ 18000 MHz 5.7 18000 MHz ~ 26500 MHz 5.5 26500 MHz ~ 40000 MHz 4.8 RF Bandwidth 4.96 % Report Number: SZ2101FR11 Rev. 00 Page 4 of 23 2 EUT Description Applicant RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Manufacturer RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Product Type Receiver Dongle Trade Name Rondish Model Number DON-30 FCC ID WNG-DON-30 Frequency Range 434.79 MHz Modulation Type ASK, LORA Number of Channels 1 Channel Antenna Type Chip Antenna RF Cable information Cable Loss(dB) Provided by 0.5 dB □Manufacturer ■Testing Laboratory Operate Temp. Range 5~40 °C 3 Test Methodology 3.1. Mode of Operation Test Mode Mode 1: Transmitter Mode Mode 2: Continuous TX Mode Then, the above highest fundamental level mode of the configuration of the EUT and antenna was chosen for all final test items. By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report. X axis mode Y axis mode Z axis mode Tip Tip Front side Tip Front side Report Number: SZ2101FR11 Rev. 00 Page 5 of 23 3.2. EUT Test Step 1. Setup the EUT and simulators as shown on 1.3. Measurement Software No. Description S…

Text truncated - open the document above for the full version.

Test Setup Photographs Conducted Emissions Test Configuration: Front View Report Number: SZ2101FR11 Rev. 00 Page 1 of 3 Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: SZ2101FR11 Rev. 00 Page 2 of 3 Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: SZ2101FR11 Rev. 00 Page 3 of 3
