WNG-NEC-05Wireless Handset

Rondish Company Limited Nexus Call System User Instructions V1.7 (2 nd March 2021) NEXUS CALL SYSTEM by Rondish P2 Contents Contents ........................................................................................................................................................ 2 1. PRODUCT OVERVIEW ............................................................................................................................... 4 1.1 System Layout ................................................................................................................................. 4 1.2 Compatible Equipment .................................................................................................................. 6 1.3 General Operation .......................................................................................................................... 9 1.3.1 Nexus Behavior Table .............................................................................................................. 9 2. USER INTERFACE .................................................................................................................................... 10 2.1 Home Screen ................................................................................................................................. 10 2.2 Alarm Screen ................................................................................................................................. 11 2.2.1 Display Details ........................................................................................................................ 11 2.2.2 Admin Reset ........................................................................................................................... 12 2.2.3 Dongle Error ........................................................................................................................... 13 2.3 Device Management .................................................................................................................... 13 2.3.1 Add New Device..................................................................................................................... 13 2.3.2 Device Location ...................................................................................................................... 15 2.3.3 Delete Device ........................................................................................................................... 16 2.4 Event Log ....................................................................................................................................... 16 2.5 Settings ............................................................................................................................................ 17 2.5.1 Change Settings ..................................................................................................................... 17 2.5.2 Backup/Restore ...................................................................................................................... 18 2.5.3 Export Log ............................................................................................................................... 18 3. INSTALLING NEXUS ................................................................................................................................ 19 3.1 Call Points ...................................................................................................................................... 19 3.2 Indication Lights ............................................................................................................................ 20 3.3 Bed Monitors ................................................................................................................................. 23 3.4 Door Monitors ............................................................................................................................... 23 3.5 Wall-mounting the Panel ............................................................................................................. 24 3.6 Maintaining Nexus ........................................................................................................................ 24 3.7 Updating Nexus ............................................................................................................................ 25 NEXUS CALL SYSTEM by Rondish P3 4. TROUBLESHOOTING .............................................................................................................................. 26 5. FCC & CE warning statements...................................................................................................................26-27 NEXUS CALL SYSTEM by Rondish P4 1. PRODUCT OVERVIEW Nexus is a wireless nurse call system designed for ease of programming, installation and use. This allows rapid deployment of a low-cost call system during influenza season when hospital resources are stretched, or permanent installation for a long-term care facility or hospital ward looking for a reliable call solution. Nexus works using a 10” Android tablet for the display – the tablet comes with a protective folio for placement on a desk, or can be wall-mounted with the use of an optional bracket. Alternately, a TV Box running Nexus can be connected to a larger computer monitor for a more visible display. Up to three calls can be displayed on the screen, with higher priority calls automatically moved to the top of the alarm display. Alarm priority levels are Emergency, Bath, and standard Call. If more than three calls happen to be active at the same time, Nexus will display the three highest priority events, and additional calls will display as the higher priority events are reset. All events are logged with a record of event location, call type, time of trigger and duration before reset. Indication lights placed throughout the ward or building show if there is an active call in t…

Text truncated - open the document above for the full version.

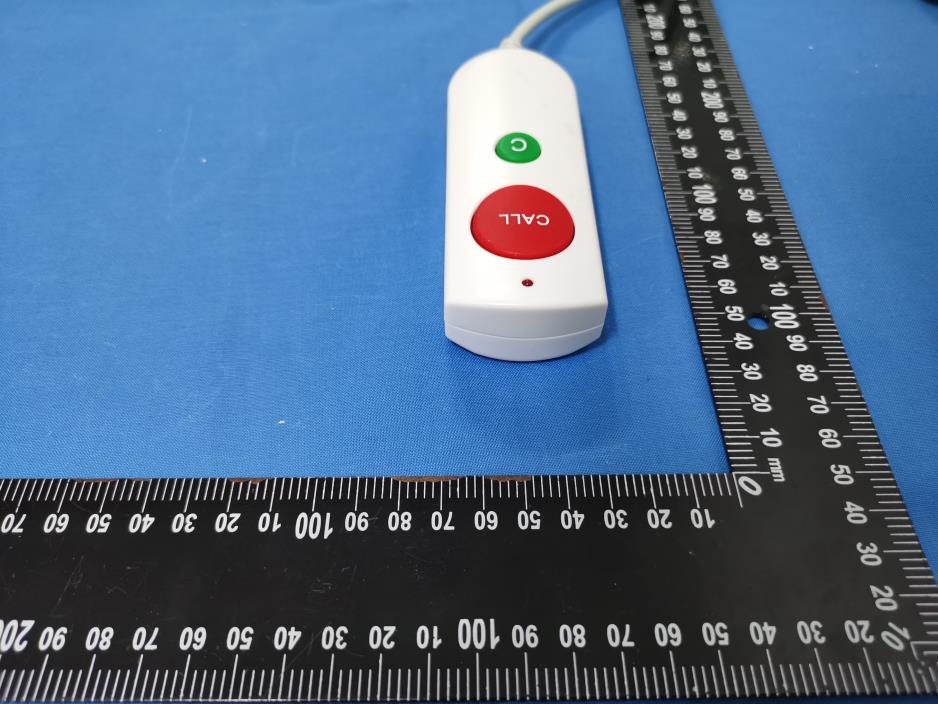

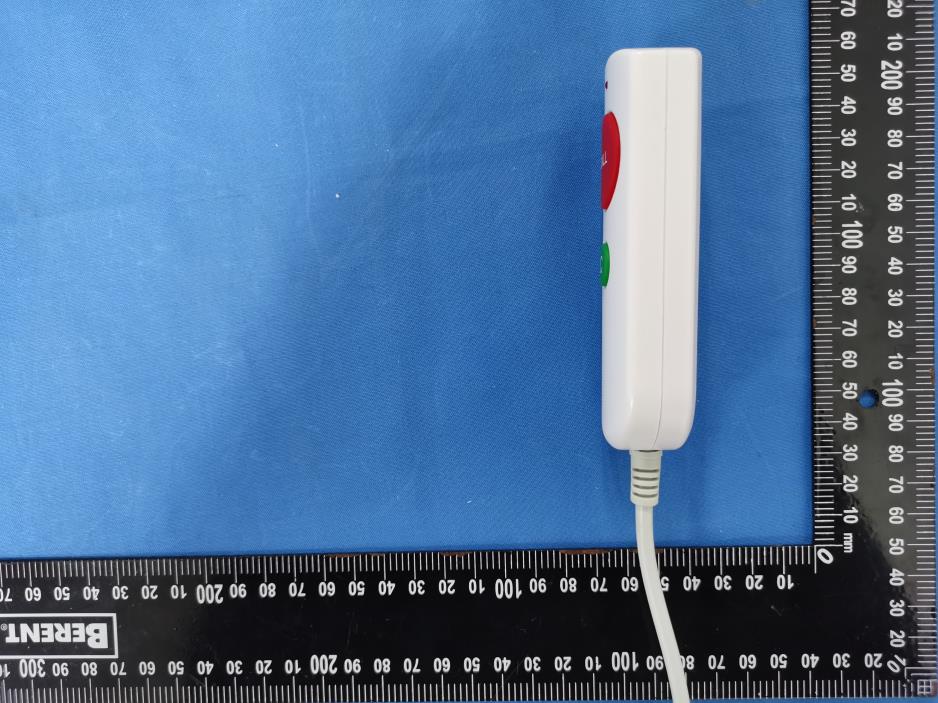

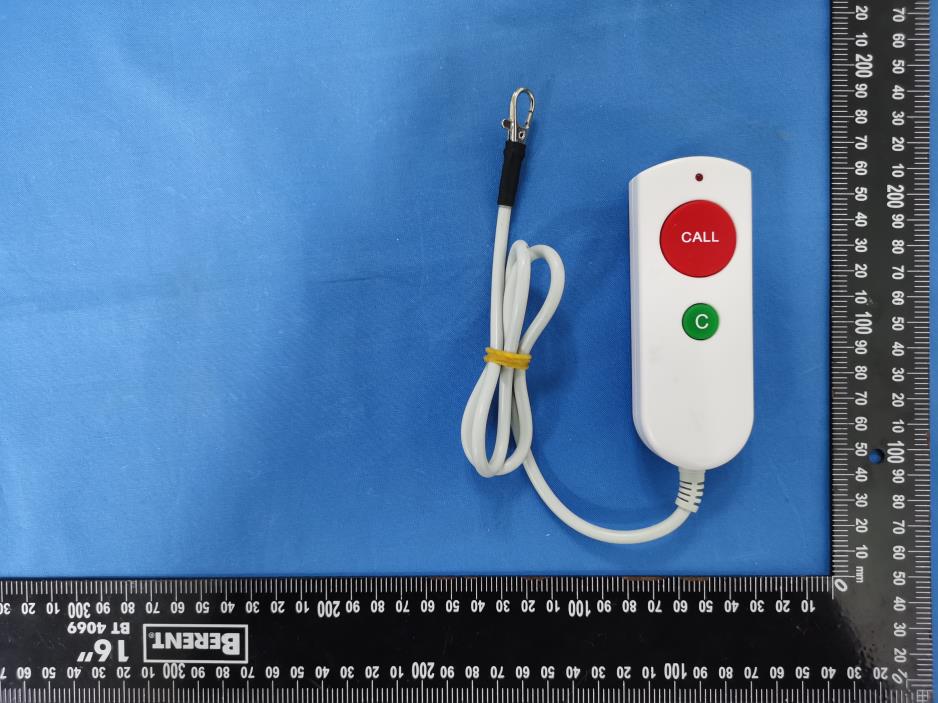

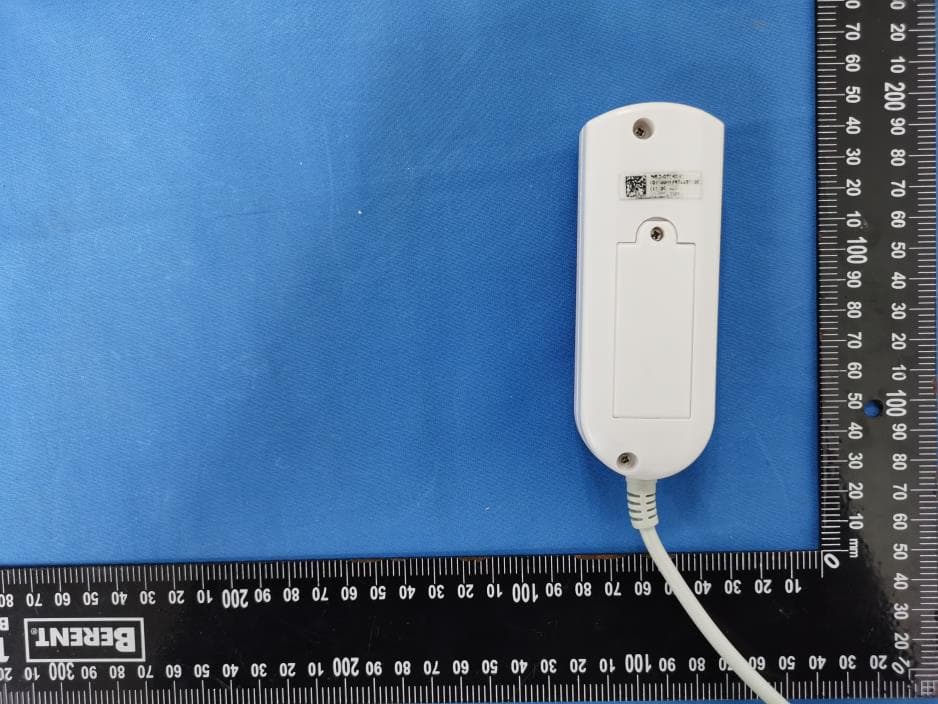

Page 1 of 4 External Photos Model Number: NEC-05 FCC ID: WNG-NEC-05 Page 2 of 4 EUT Photo (1) EUT Photo (2) Page 3 of 4 EUT Photo (3) EUT Photo (4) Page 4 of 4 EUT Photo (5) EUT Photo (6)

Brand: Rondish Model: NEC-05 Artwork Date: 2021-03-10 Remark: FCC Label 40mm 28mm Wireless Handset Model No.: NEC-05 FCC ID: WNG-NEC-05 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 5 Internal Photos Model Number: NEC-05 FCC ID: WNG-NEC-05 Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7)

SAR Exclusion Evaluation Report Applicant ： RONDISH COMPANY LIMITED Product Type ： Wireless Handset Trade Name ： Rondish Model Number ： NEC-05 Date of Received ： Nov. 23, 2020 Test Period ： Mar. 03, 2021 Test Period ： Mar. 17, 2021 Issue by A Test Lab Techno Corp. 101-104, 1F, A building, Safflower ridge industrial area, Taoyuan street, Nanshan district, Shenzhen Tel：+86-755-23987770 / Fax：+86-755-26637771 American Association for Laboratory Accreditation number: 3464.02 Test Firm MRA designation number: CN1168 Approved By ： Tested By ： (Louis Shen) (Joyce Feng) Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: SZ2103FS12 Rev. 00 Page 1 of 6 Revision History Rev. Issue Date Revisions 00 Mar. 17, 2021 Initial Issue Report Number: SZ2103FS12 Rev. 00 Page 2 of 6 Contents 1. Description of Equipment under Test (EUT)........................................................4 2. Reference Applicable Standard ............................................................................5 3. SAR Test Exclusion ...............................................................................................5 3.1 Conducted Power ..................................................................................................6 3.2 Antenna Location ..................................................................................................6 3.3 Evaluation Results .................................................................................................6 Report Number: SZ2103FS12 Rev. 00 Page 3 of 6 1. Description of Equipment under Test (EUT) Applicant RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Manufacturer RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Product Type Wireless Handset Trade Name Rondish Model Number NEC-05 FCC ID WNG-NEC-05 Frequency Range Operate Band Frequency Range (MHz) SRD 433.92 Antenna information Type Max. Gain (dBi) wire antenna 433.92 -3 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1093. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Report Number: SZ2103FS12 Rev. 00 Page 4 of 6 2. Reference Applicable Standard Standard Description Version ANSI/IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 kHz to 100 GHz, New York. 1992 IEEE 1528 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head From Wireless Communications Devices: Measurement Techniques. 2013 FCC 47 CFR Part 2.1093 Radiofrequency radiation exposure evaluation: portable devices. --- FCC KDB 865664 D01 SAR measurement 100 MHz to 6 GHz - describes SAR measurement procedures for devices operating between 100 MHz to 6 GHz v01r04 FCC KDB 865664 D02 RF Exposure Reporting - provides general reporting requirements as well as certain specific information required to support MPE and SAR compliance. v01r02 FCC KDB 447498 D01 General RF Exposure Guidance - provides guidance pertaining to RF exposure requirements for mobile and portable device equipment authorizations. v06 3. SAR Test Exclusion As RF exposure evaluation of portable device, SAR test is not required when the evaluation results. According to KDB 447498 4.3.1, unless excluded by specific FCC test procedures, portable devices shall include SAR data for equipment approval. SAR test necessity will be based on the exclusion result. The test exclusion refers KDB 447498 as below: ≤50 mm: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR >50 mm and <200 mm: a) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100 MHz to 1500 MHz b) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz Report Number: SZ2103FS12 Rev. 00 Page 5 of 6 3.1 Conducted Power The conducted power turn-up tolerance, please reference manufacturer specification. Band Modulation Type Frequency (MHz) Average Power (dBm) SRD ASK 433.92 -21.94 3.2 Antenna Location Ant. Used Antenna to user distance (mm) Side 1 Side 2 Side 3 Side 4 Side 5 Side 6 SRD Antenna 1 6 7 8 5 40 3.3 Evaluation Results The evaluation of SAR test reduction according to KDB447498 SAR test is not required when the results showed “EXEMPT”. SAR test reduction Ant. Used Frequency (GHz) Power Calculated threshold value (dBm) (mW) Side 1 Side 2 Side 3 Side 4 Side 5 Side 6 SRD Antenna 433.92 -24.92 0.003 0.0 0.0 0.0 0.0 0.0 0.0 EXEMPT EXEMPT EXEMPT EXEMPT EXEMPT EXEMPT Exclusion Considerations: SAR is not required Note: 1. Calculated Value include string "mW", that is mean through compare output power with threshold, if the output power more than threshold value the SAR test should be perform. Otherwise, the SAR test could be exempt. (>50mm) 2. Calculated Value only include number format, that is mean through compare output power with threshold, if the threshold value more than 3, the SAR test should be perform. Otherwise, the SAR test could be exempt. (<50mm) 3. When an antenna qualifies for the standalone SAR test exclusion of KDB447498 section 4.3.1 and also transmits simultaneously with other antennas, the standalone SAR value must be estimated according to …

Text truncated - open the document above for the full version.

Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. R F Te s t R e p o r t Issued Date: Mar. 17, 2021 Applicant ： RONDISH COMPANY LIMITED Product Type ： Wireless Handset Trade Name ： Rondish Model Number ： NEC-05 FCC ID ： WNG-NEC-05 EUT Rated Voltage ： DC 3 V Test Voltage ： DC 2.97 V, DC 3.30 V, DC 3.63 V Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Receive Date ： Nov. 23, 2020 Test Period ： Mar. 03, 2021 Issue by A Test Lab Techno Corp. 101-104, 1F, A building, Safflower ridge industrial area, Taoyuan street, Nanshan district, Shenzhen Tel：+86-755-23987770 / Fax：+86-755-26637771 http://www.atl-lab.com.tw/e-index.htm American Association for Laboratory Accreditation number: 3464.02 Test Firm MRA designation number: CN1168 Approved By ： Reviewed By ： (Manager) (Louis Shen) (Testing Engineer) (Joyce Feng) Report Number: SZ2103FR12 Rev. 00 Page 1 of 22 Revision History Rev. Issue Date Revisions 00 Mar. 17, 2021 Initial Issue Report Number: SZ2103FR12 Rev. 00 Page 2 of 22 TABLE OF CONTENTS 1 General Information ........................................................................................................ 4 1.1. Summary of Test Result .......................................................................................... 4 1.2. Measurement Uncertainty ....................................................................................... 4 2 EUT Description............................................................................................................... 5 3 Test Methodology ............................................................................................................ 5 3.1. Mode of Operation .................................................................................................. 5 3.2. EUT Test Step ......................................................................................................... 6 3.3. Configuration of Test System Details ...................................................................... 6 3.4. Test Instruments ..................................................................................................... 7 3.5. Test Site Environment ............................................................................................. 7 4 Measurement Procedure ................................................................................................. 8 4.1. AC Power Line Conducted Emission Measurement ............................................... 8 4.2. Radiated Emissions Measurement ....................................................................... 10 4.3. 20 dB Bandwidth Measurement ............................................................................ 14 4.4. Antenna Requirement ........................................................................................... 15 5 Test Results ................................................................................................................... 16 Annex A. Conducted Test Results ................................................................................... 16 Annex B. Radiated Emissions Measurement .................................................................. 17 Report Number: SZ2103FR12 Rev. 00 Page 3 of 22 1 General Information 1.1. Summary of Test Result Standard Item Results Remark 15.207 AC Power Conducted Emission PASS ---- 15.231(a) Transmitter Deactivation Time PASS ---- 15.231(b) Transmitter Radiated Emissions PASS ---- 15.231(c) 20 dB Bandwidth PASS ---- 15.203 Antenna Requirement PASS ---- CFR 47 Part 15.231(2010) / ANSI C63.10:2013 Standard Description CFR47, Part 15, Subpart C Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Decision Rule ■ Uncertainty is not included. □ Uncertainty is included. 1.2. Measurement Uncertainty Test Item Frequency Range Uncertainty (dB) Conducted Emission 150 kHz ~ 30 MHz 2.7 Radiated Emission 30 MHz ~ 1000 MHz 1.7 1000 MHz ~ 18000 MHz 5.7 18000 MHz ~ 26500 MHz 5.5 26500 MHz ~ 40000 MHz 4.8 RF Bandwidth 4.96 % Report Number: SZ2103FR12 Rev. 00 Page 4 of 22 2 EUT Description Applicant RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Manufacturer RONDISH COMPANY LIMITED UNIT G&H, 4/F, Block 1, KWAI TAK IND. CTR, 15-33 K Hong Kong Product Type Wireless Handset Trade Name Rondish Model Number NEC-05 FCC ID WNG-NEC-05 Frequency Range 433.92 MHz Modulation Type ASK Number of Channels 1 Channel Antenna Type wire antenna RF Cable information Cable Loss(dB) Provided by -2 □Manufacturer ■Testing Laboratory Operate Temp. Range 5 ~40 °C 3 Test Methodology 3.1. Mode of Operation Test Mode Mode 1: Transmitter Mode Mode 2: Continuous TX Mode Then, the above highest fundamental level mode of the configuration of the EUT and antenna was chosen for all final test items. By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report. X axis mode Y axis mode Z axis mode Tip Tip Front side Tip Front side Report Number: SZ2103FR12 Rev. 00 Page 5 of 22 3.2. EUT Test Step 1. Setup the EUT and simulators as shown on 1.3. Measurement Software No. Description Software Version 1 Radiated Emission EZ EMC 1.1.4.4 3.3. Configuration of Test System Details EUT Report Number: SZ2103FR…

Text truncated - open the document above for the full version.

Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: SZ2103FR12 Rev. 00 Page 1 of 2 Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: SZ2103FR12 Rev. 00 Page 2 of 2
