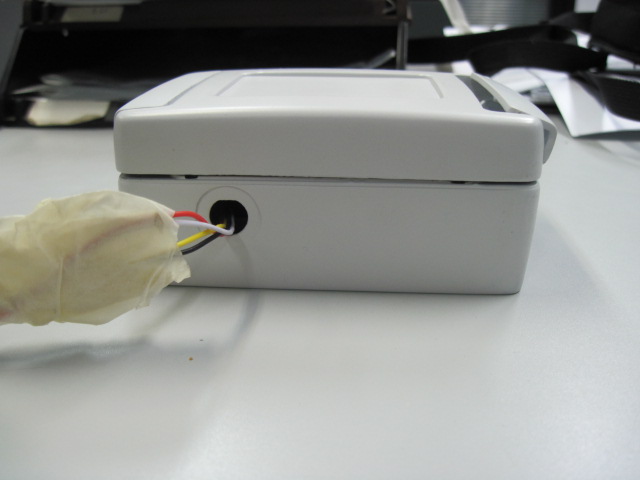

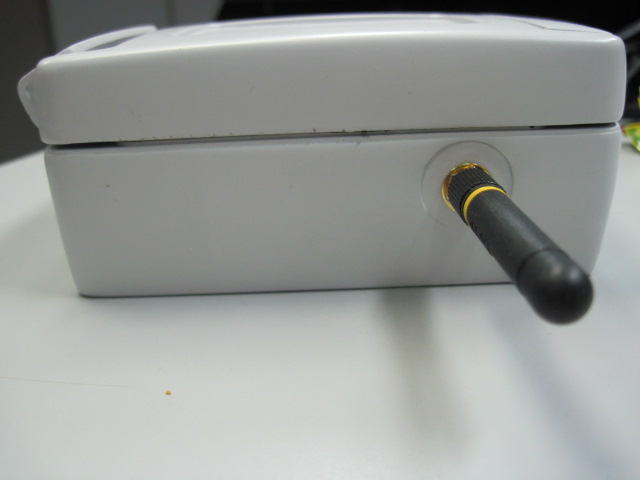

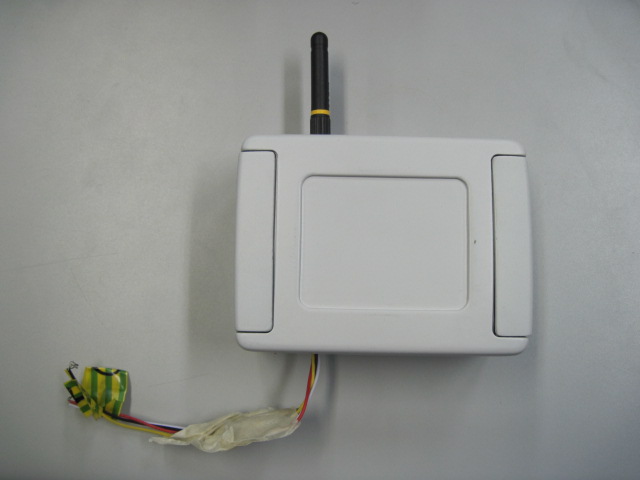

WONBC91005002MICRO BEACON EQ-55

Precyse Technologies, Inc. Date: 17 December 2012 Page 1 of 10 Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 Document No. 20121015-1 Revision 1.2 PBC beacon BC91/005002 Release Date: 15/10/2012 Prepared by: Lior Bilia Distribution (Check all appropriate): Precyse Only Project Team Only Customer and Supplier c:\hardwarews\production\pd-915\bc915\bm915a\documents\bc91405002 user manual.docx Precyse Technologies, Ltd. Date: 17 December 2012 Page 2 of 10 Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 Revision Record Rev. Effective Date Description 1.0 15/10/2012 1 st release 1.1 29/11/2012 Corrections to specifications 1.2 13/12/2012 Added iLocate system model numbers, added External and internal variants and antenna part numbers. Corrected power supply options, removed references to DC power supply. Reference documents # Doc # Description 1 Precyse Technologies, Ltd. Date: 17 December 2012 Page 3 of 10 Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 TABLE OF CONTENTS Section/Title Page Regulatory Information/disclaimers ....................................................................... 4 Abstract ................................................................................................................. 6 Product description ............................................................................................... 6 PBC beacon: ...................................................................................................... 6 Technical Data Sheet – Beacon 915 ..................................................................... 6 Compatibility: .............................................................................................. 6 Performance: ................................................................................................ 6 Communication: .......................................................................................... 6 Electrical: ....................................................................................................... 6 Environmental: ............................................................................................ 6 Antennae .............................................................................................................. 7 Schematics ........................................................................................................... 7 System test configuration ...................................................................................... 7 Beacon ............................................................................................................... 7 Method of operation .............................................................................................. 8 iLocate system block diagram ............................................................................... 8 Unit definitions: ................................................................................................... 10 Precyse Technologies, Ltd. Date: 17 December 2012 Page 4 of 10 Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 Regulatory Information/disclaimers Installation and use of this Wireless Radio device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Instructions concerning human exposure to radio frequency electromagnetic fields: To comply with FCC Section 1.307 (b) (1) for human exposure to radio frequency electromagnetic fields, implement the following instruction: A distance of at least 20cm. between the equipment and all persons should be maintained during the operation of the equipment. Precyse Technologies, Ltd. Date: 17 December 2012 Page 5 of 10 Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician. FCC Warning Modifications not expressly approved by the manufacturer could void the …

Text truncated - open the document above for the full version.

1 www.PrecyseTech.com Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WONBC91005002. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: CONF APPENDIX BC91005002 BlkDia.pdf CONF APPENDIX BC91005002 schem.pdf CONF APPENDIX BC91005002 Partlist.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Lior Bilia Hardware engineer

Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: iLocate Micro beacon: Model BC91005002 FCC ID: WONBC91005002 Thank you, Lior Bilia Hardware engineer Precyse Technologies Inc Tel: 972-3-9227093 Mobile: 972-54-2467600 Fax: 972-3-9227515

The PBC has 4 independent transceivers. The transceivers cannot operate as MIMO or phase array (beam shaping). All the transceivers are connected to a single low power microprocessor unit. Each transceiver in the unit transmits its identification packet at 20% or lower duty cycle. Each transceiver operates at a different 800KHz band (905.0, 905.8, 906.6 etc). One of the channels (One which has the best reception from the base station) acts as a communication channel to the base station. This unit’s function is to provide location information to the mobile agents (tags). Upon packet reception, the tag transmits its signal strength (RSSI) and ID to the base station, and its location can be calculated using various algorithms.

Precyse Technologies 100 Ashford Center North Suite 360 Atlanta, GA 30338 attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The BC91005002 FCC ID: WONBC91005002 Does not require any Tuning procedures in order to function. The device operate within the 902-928MHz ISM band. There are no trimmers, variable capacitors or any other such components within the unit. Please contact me if there is any information you may need. Sincerely, Lior Bilia HW engineer Precyse Technologies Inc Tel: 972-3-9227093 Mobile: 972-54-2467600 Fax: 972-3-9227515

Test Report E123010.01 Precyse Technologies Inc Page 1 of 64 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 20 December 2012 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Precyse Technologies Inc Equipment under test: Micro Beacon EQ-55 BC91005002 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ I. Siboni, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E123010.01 Precyse Technologies Inc Page 2 of 64 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Precyse Technologies Inc Micro Beacon EQ-55 BC91005002 FCC ID: WONBC91005002 This report concerns: Original Grant: X Class I Change: Class II Change: Equipment type: Digital Transmission System Limits used: 47CFR15 Section 15.247 Measurement procedure used is according to KDB 558074 D01 18 January 2012 and ANSI 6.34: 2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Lior Bilia ITL (Product Testing) Ltd. Precyse Technologies Ltd. Kfar Bin Nun Ha’amal 11 D.N. Shimshon 99780 Rosh Ha’ayin 48092 Israel Israel e-mail [email protected] Tel: +972-3- 922-7093 Fax: +972-3- 922-7515 e-mail: [email protected] Test Report E123010.01 Precyse Technologies Inc Page 3 of 64 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 8 3. TEST SETUP PHOTOS ------------------------------------------------------------------------------------ 8 4. 6 DB MINIMUM BANDWIDTH -------------------------------------------------------------------------- 13 4.1 Test Specification ............................................................................................ 13 4.2 Test Procedure ................................................................................................ 13 4.3 Test Results..................................................................................................... 13 4.4 6 dB Minimum Bandwidth Test Equipment Used. ........................................... 15 5. MAXIMUM PEAK POWER OUTPUT ------------------------------------------------------------------ 16 5.1 Test Specification ............................................................................................ 16 5.2 Test Procedure ................................................................................................ 16 5.3 Test Results..................................................................................................... 16 5.1 Maximum Peak Output Power Test Equipment Used ..................................... 18 6. PEAK POWER OUTPUT OUT OF 902-928 MHZ BAND ----------------------------------------- 19 6.1 Test Specification ............................................................................................ 19 6.2 Test Procedure ................................................................................................ 19 6.3 Test Results..................................................................................................... 19 6.4 Peak Power Output of 902-928 MHz Band Test Equipment Used .................. 30 7. BAND EDGE SPECTRUM ------------------------------------------------------------------------------- 31 7.1 Test Specification ............................................................................................ 31 7.2 Test Procedure ................................................................................................ 31 7.3 Test Results..................................................................................................... 31 7.4 Band Edge Spectrum Test Equipment Used ................................................... 33 8. SPURIOUS RADIATED EMISSION, 9 KHZ – 30 MHZ ------------------------------------------- 34 8.1 Test Specification ............................................................................................ 34 8.2 Test Procedure ................................................................................................ 34 8.3 Test Results..................................................................................................... 34 8.4 Field Strength Calculation ............................................................................... 35 8.5 Spurious Radiated Emission, 9 kHz – 30 MHz Test Equipment Used ............ 35 9. SPURIOUS RADIATED…
