WP3KF235PG2Wireless 2-way keyfob

D-303486 KF-235 PG2 Installation Instructions 1 KF-235 PG2 Wireless PowerG 2-Way Keyfob User's Guide 1. INTRODUCTION KF-235 PG2 is a PowerG two-way 4-button keyfob, designed for use with the PowerMaster family of control panels. KF-235 features include arming and disarming of the system as well as viewing status of system and operating a predefined programmable function. Commands are invoked by pressing any of the four command buttons. Status is indicated via the Status LEDs and buzzer after every command. KP-235 PG2 alerts both control panel and user when its battery is depleted and needs to be replaced. Figure 1: External View A. ARM "AWAY" / ARM "LATCHKEY" B. ARM "HOME" C. DISARM D. AUX E. Transmission LED F. Status LEDs 2. INSTALLATION 2.1 Enrollment Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. A general description of the procedure is provided in the following flow chart. Step 1 Step 2 Step 3 Step 4 Step 5 Enter the Installer menu and select “02:ZONES/DEVICES” Select "ADD NEW DEVICE" See Note 1 Enroll the keyfob by holding the button and release it as soon as the yellow LED lights. Alternatively, enter the device ID (printed on the back of the keyfob) Select the desired Keyfob Number for the new keyfob Enter PARTITIONS. See Note 2     Step 6 Step 7 Assign partitions to the keyfob by pressing the , and buttons on the panel Select the "Device Settings" option and refer to section to configure the keyfob parameter (AUX).    means scroll and select Notes: 1. If the keyfob is already enrolled, you can configure the keyfob parameter and assign partitions via the “Modify Devices” option – see Step 2. 2. PARTITIONS will appear only if PARTITIONING was previously enabled in the panel (for further details, see "Partitioning" in the PowerMaster Installer Guide). 2.2 Configuring the Keyfob Parameters Enter the menu and follow the configuration instructions for the KF-235 PG2 keyfob as described in the following table. Option Configuration Instructions Here you select the function of the AUX button on the keyfob device. Options: Arm instant (default); Not Used; Status, Stop Beeps, Skip exit delay, and PGM. Not Used: No function assigned to the AUX button. Status: Control panel displays and announces* the system status. Stop Beeps: Pressing the AUX button will cause the control panel and other devices in the system (such as keyfobs, DEVICE SETTINGS F02:P1 P2 P3 F02:PARTITIONS MODIFY DEVICES AUX A DEVICE SETTINGS ID No. 301-XXXX F02:Keyfob ENTR ID:XXX-XXXX ENROLL NOW or ADD NEW DEVICES 02.ZONES/DEVICES 2 D-303486 KF-235 PG2 Installation Instructions keypads, sirens etc.) to stop beeping (for example during exit or entry delays). Skip exit delay: Pressing the AUX button will immediately stop the exit delay and cause the system to arm instant. PGM: Pressing the AUX button will activate the PGM output. The functions of the PGM output is configured at the corresponding sections of the control panel’s Installer Guide (see “OUTPUTS” menu) and User Guide (see “SCHEDULER ” menu). Arm instant: Pressing the AUX button while the exit delay is in progress will cause the system to arm “instant” - the entry delay is canceled. * Applicable only to control panels that support the voice option.  3. USING THE KEYFOB 3.1 Keyfob Functionality Step Functions User Actions ARM/DISARM LED Indication Arm AWAY Blue LED above AWAY button lights Arm HOME Blue LED above HOME button lights 1 Disarm (OFF) Blue LED above DISARM button lights 2 LATCHKEY Blue LED above AWAY button lights 3 PANIC alarm Press the and buttons simultaneously ( 2 sec.) - 4 AUX According to the state of the alarm system, see section 2.2 3.2 Keyfob Response When executing a command, the keyfob's Transmission LED blinks red once to indicate transmission of the command to the control panel. If the operation is successfully completed, the green LED lights momentarily and a "happy tune" is heard. If the operation fails or cannot be completed, for example, when the system is "not ready", the red LED lights steadily and a "sad tune" is heard. When executing a command and there is a communication failure between the keyfob device and the control panel, the keyfob's Transmission LED remains off and no tune is heard. 3.2.1 Primary LED and Buzzer Response to Keyfob Commands Panel Response Buzzer Indication Transmission LED Indication Success: Operation is successfully completed Happy (success) beep Momentary GREEN Fail: Operation failed Sad (failure) beep Momentary RED No communication: For example, control panel is out of range. None None Keyfob low battery: Note: If transmission is still possible despite the battery condition, the unit will send a low battery signal to the control panel. Depends on the operation that is performed Blinks yellow 2 sec. Trouble in system: Depends on the operation that is performed Lights yellow 2 sec. When forced arming (bypass zones) is performed, the keyfob buzzer “protests” by emitting a continuous tone during the exit delay for 5 seconds (for more details, see the PowerMaster Installer Guide, section 5.5.2). 3.2.2 Arming LED indication When executing a command using the keyfob device, the status of the control panel is indicated by the status LEDs that light blue. System State ARM/DISARM LED Indication Exit from DISARM to AWAY AWAY lights Exit from DISARM to HOME HOME lights Entry from HOME DISARM blinks Entry from AWAY DISARM blinks Exit from HOME TO AWAY AWAY lights Exit from AWAY TO HOME HOME lights Installer mode, Sync mode or when the system is otherwise reachable but unavailable AWAY, HOME, DISARM blink twice, wait, then blink twice again D-303486 KF-235 PG2 Installation Instructions 3 4. MAINTENANCE 4.1 Replacing the Battery A replacement 3V battery, CR-2032, is available from hardware and electrical supply stores. Replace the battery as shown in Figure 2. Caution! Risk of explosion if battery is replaced by an incorrect …

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Visonic Ltd. Address: Habarzel street 24, City: Tel Aviv 69710, Country: Israel . Declare that: Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  Wireless 2–way keyfob Type designation:  KF-235 PG2 Trademark:  Visonic . on our behalf. Date: 1/12/2012 Name: Arik Elshtein .. (2) Function: International Standards Department Manager Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Visonic Ltd. Address : Habarzel street 24 City: Tel Aviv 69710 Country: Israel To: Telefication B.V ., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: WP3KF235PG2 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: January 12, 2012 Name and signature of applicant: Mr. Arik Elshtein Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

January 12, 2012 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a wireless 2-way keyfob, FCC ID:WP3KF235PG2 Dear Gentlemen, Please find attached our application for certification of a wireless 2-way keyfob, FCC ID:WP3KF235PG2, prepared in accordance with FCC Rules, parts 2 and 15, section 15.247. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Arick Elshtein, International Standards Department Manager Visonic Ltd.

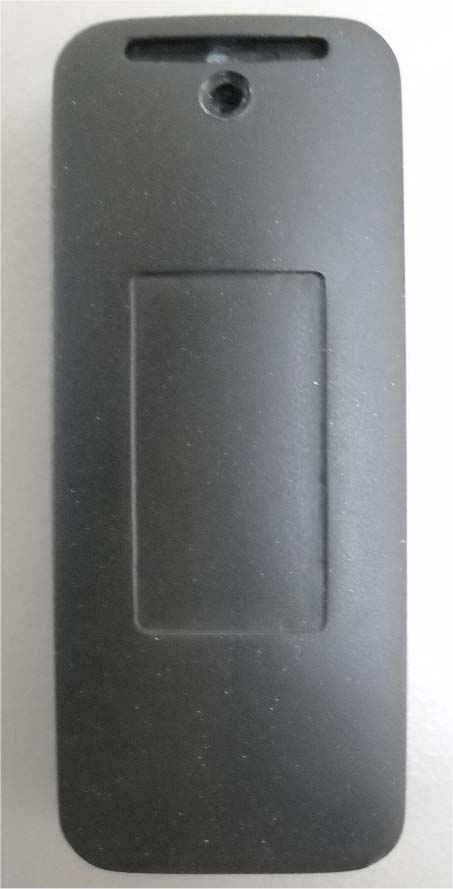

Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 2 of 3 Photograph No.1 Wireless 2-way keyfob KF-235 PG2 front view Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 3 of 3 Photograph No.2 Wireless 2-way keyfob rear side view

Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 1 of 1 Label of wireless 2-way keyfob Label location Label with FCC ID:WP3KF235PG2 and IC:1467C-KF235PG2 will be located at the rear side panel. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Guide, pages 3-4 (Application exhibit Users_manual_22168). FCC ID:WP3KF235PG2 IC:1467C-KF235PG2

Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 1 of 5 INTERNAL PHOTOGRAPHS This document contains 4 photographs Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 2 of 5 Photograph No.1 Wireless 2-way keyfob KF-235 PG2 internal view Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 3 of 5 Photograph No.2 Keyfob PCB front view Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 4 of 5 Photograph No.3 Keyfob PCB rear side view Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 5 of 5 Photograph No.4 Wireless 2-way keyfob KF-235 PG2 antenna

Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 1 of 1 RF exposure information according to FCC CFR 47 part 15, §15.247(i), part 2, §2.1093, RSS-102 The keyfob is a portable device operating in 912.750 – 919.106 MHz band. It is equipped with an integrated internal antenna. No SAR evaluation required if a transmitter power is below the following low threshold: 60/f (GHz) [mW] = 60/0.915863 [mW] = 65.5 [mW] (FCC) or 200 mW (RSS-102). Tunable range, GHz Flow Fhigh Center of tunable band, GHz 60/f SAR limitation, mW 0.912750 0.919106 0.915863 65.5 Maximum measured transmitter power: Pout conducted Pout EIRP dBm mW Maximum antenna gain, dBi dBm mW 27.93 621 -15 12.93 19.6 According to the manufacturer’s declaration in every 6 min the device transmits 2 supervision messages of 6 ms duration each and 2 messages following a key press of 10 ms duration each. Total duration is 32 ms. The duty cycle is 9 x10 –5 . Maximum conducted power is 621 mW. Equivalent conducted power is 621 mW x duty cycle = 621 mW x 9 x10 –5 = 5590 x10 –5 mW =0.056 mW. Threshold for no SAR evaluation is 65.5 mW. Conclusion: No SAR evaluation is required since the maximum transmitter radiated power is below the FCC and RSS-102 threshold.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 96 Report ID: VISRAD_FCC.22168_rev1.doc Date of Issue: 9-Jan-12 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C § 15.247 (FHSS) and subpart B, RSS-210 issue 8 Annex 8 FOR: Visonic Ltd. Wireless PowerG 2-way keyfob Model: KF-235 PG2 FCC ID:WP3KF235PG2 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: VISRAD_FCC.22168_rev1.doc Date of Issue: 9-Jan-12 Page 2 of 96 Table of contents 1 Applicant information .........................................................................................................................................................3 2 Equipment under test attributes ........................................................................................................................................3 3 Manufacturer information ..................................................................................................................................................3 4 Test details ........................................................................................................................................................................3 5 Tests summary ..................................................................................................................................................................4 6 EUT description .................................................................................................................................................................5 6.1 General information ...........................................................................................................................................................5 6.2 Test configuration ..............................................................................................................................................................5 6.3 Changes made in EUT ......................................................................................................................................................5 6.4 Transmitter characteristics ................................................................................................................................................6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 Annex 8 requirements .....................................7 7.1 20 dB bandwidth ................................................................................................................................................................7 7.2 Carrier frequency separation...........................................................................................................................................11 7.3 Number of hopping frequencies ......................................................................................................................................13 7.4 Average time of occupancy .............................................................................................................................................16 7.5 Peak output power...........................................................................................................................................................19 7.6 Band edge radiated emissions ........................................................................................................................................31 7.7 Field strength of spurious emissions...............................................................................................................................35 7.8 Antenna requirements .....................................................................................................................................................80 8 Unintentional emissions ..................................................................................................................................................81 8.1 Radiated emission measurements ..................................................................................................................................81 9 APPENDIX A Test equipment and ancillaries used for tests..........................................................................................85 10 APPENDIX B Measurement uncertainties ......................................................................................................................86 11 APPENDIX C Test laboratory description .......................................................................................................................87 12 APPENDIX D Specification references ...........................................................................................................................87 13 APPENDIX E Test equipment correction factors ............................................................................................................88 14 APPENDIX F Abbreviations and acronyms ....................................................................................................................96 Report ID: VISRAD_FCC.22168_rev1.doc Date of Issue: 9-Jan-12 Page 3 of 96 1 Applicant information Client name: Visonic Ltd. Address: Habarzel street 24, Tel Aviv 69710, Israel Telephone: +972 3645 6714 Fax: +972 3645 6788 E-mail: [email protected] Contact name: Mr. Arick Elshtein 2 Equipment under test attributes Product name: Wireless PowerG 2-way keyfob Product type: Transceiver Model(s): KF-235 PG2 Serial number: 0-102020 Hardware version: 90-204641 Software releas…

Text truncated - open the document above for the full version.

Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 2 of 6 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 3 of 6 Photograph No.2 Setup for carrier, OBW, hopping frequencies and spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 4 of 6 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz range Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 5 of 6 Photograph No.4 Setup for spurious emission field strength measurements at the OATS above 1000 MHz range Visonic Ltd. FCC ID:WP3KF235PG2 IC:1467C-KF235PG2 Page 6 of 6 Photograph No.5 Setup for band edge emission measurements
