WP3TMD560PG2Temperature detector

D-303471 TMD-560 PG2 Installation Instructions 1 TMD-560 PG2 Wireless PowerG Temperature Detector Installation Instructions 1. INTRODUCTION The TMD-560 PG2 is a wireless PowerG detector used with the PowerMaster alarm system. The detector is designed to update the alarm system control panel upon any change of temperature. The control panel then generates an alarm message when the temperature has reached a certain temperature point. A restore message is generated when it crosses back the threshold temperature point. There are a number of selectable fixed temperature points at the control panel and the user can enable one or more temperature point. The TMD-560 PG2 can be used in instances where temperature detection is critical. Other examples of detector usage are as follows:  Activating and deactivating pipe heaters at locations where low temperatures may cause the water in pipes to freeze.  Warn of possible electrical device malfunction due to high or low temperature levels.  Alerting elderly people of a significant rise or drop in room temperature. Figure 1. TMD-560 PG2 with Temperature Probe The TMD-560 PG2 detects both indoor and outdoor temperatures. The detector monitors room temperature using an internal sensor. For outdoor or refrigerator installations, a waterproof temperature probe (optional) is used. When the probe is connected, the temperature measurement is performed only by the probe sensor. When the probe is not connected and its terminals are shorted, the temperature measurement is performed only by the detector's internal sensor. Once the predefined temperature is reached, the alarm system control panel sends a notification to the central station or uses the PGM/X-10 controls to switch on a connected appliance, for example, a heater or air conditioner. Note: When using the temperature probe to monitor refrigerator temperature, the temperature probe is installed inside the refrigerator, while the detector is installed on the wall or ceiling. For outdoor installations, the temperature probe is installed outdoors, while the detector is installed indoors. Based on the unique PowerG technology, the TMD-560 PG2 includes a "smart" anti- collision transmission sequence mechanism that prevents collisions with transmitted messages from other PowerG devices. For further reliability, the TMD-560 PG2 tamper switch is activated when the detector cover (see Figure 2) is removed. Operating power is obtained from an on-board 3 V Lithium battery. A weak battery will result in a “low battery” message. Features  The TMD-560 PG2 is compatible with PowerMaster control panels.  Internal temperature sensor  An external temperature optional probe (cat. no. 99-300890) enables outdoor and refrigerator temperature sensing  Fully supervised PowerG detector  Long battery life  Low battery supervision  Probe disconnected supervision  Link quality indication 2. INSTALLATION, ENROLLING AND CONFIGURING 2.1. Mounting and Battery Insertion 1. Installation: The TMD-560 PG2 can be installed indoors on walls or on ceilings and in any direction. For installing outdoors or on refrigerators use the temperature probe (see Figures. 1 and 3). Mount the bracket in the monitored area as close as possible to the control panel to ensure optimum reception of the RF signal. If there is a short circuit between the two probe terminals (factory default) the detector measures the temperature using its internal sensor. If the probe terminals are not shorted, the internal sensor is disabled and the temperature is measured by the probe. Note: Open probe terminals generate a "Probe Disconnected Trouble" transmission. 2. Insert the battery between the battery clips (see Figure 2), at the correct polarity. For proper operation, only a Lithium battery (type CR123 or equivalent) should be used. Note: When replacing a battery, it is necessary to wait 30 seconds between removing the used battery and inserting the new one. Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer's instructions. 2 D-303471 TMD-560 PG2 Installation Instructions Figure 2. Mounting Figure 3. Temperature Probe Mounting 1. Insert a flat-edged screwdriver into the slot and push upward to remove cover. 2. Remove screw. 3. Separate base from cover. 4. Flex catch and remove P.C. board. 5. Mark and drill 2 holes in the mounting surface. Fasten base with 2 countersunk screws. 6. Reinsert P.C. board into base and connect the two wires of the probe to the terminal block. A. Terminal Jumper B. Enroll button C. LED D. Internal Temperature Sensor 2.2. Enrollment Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. A general description of the procedure is provided in the following flow chart. Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Enter the Installer menu and select “02:ZONES/DEVICES” Select "ADD NEW DEVICE" Option See Note [1] Enroll the device or Enter the device ID Select the desired Zone Number Configure Location, Zone Type & Chime Parameters Configure the Detector      means scroll and select See Note [2] Notes: [1] If the temperature detector device is already enrolled you can configure the temperature detector device parameters via the “Modify Devices” option – see Step 2. [2] Select the "Device Settings" option and refer to section 2.3 to configure the temperature detector device parameters. 2.3. Configuring the Temperature Device Parameters Enter the menu and follow the configuration instructions for the TMD-560 PG2 temperature detector device as described in the following table. Option Configuration Instructions Set the detector to detect temperatures in either Celsius or Fahrenheit. Optional settings: Celsius C (default) or Fahrenheit F. Define whether or not the control panel will report a "very hot" alert when the temperature rises above 35C (95F) for at least 10 minutes. Alert restor…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Visonic Ltd. Address: Habarzel street 24, City: Tel Aviv 69710, Country: Israel . Declare that: Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  temperature detector Type designation:  TMD-560 PG2. Trademark:  Visonic . on our behalf. Date: 05/23/2012 Name: Arik Elshtein .. (2) Function: International Standards Department Manager Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Visonic Ltd. Address : Habarzel street 24 City: Tel Aviv 69710 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: WP3TMD560PG2 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: May 23, 2012 Name and signature of applicant: Mr. Arik Elshtein Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

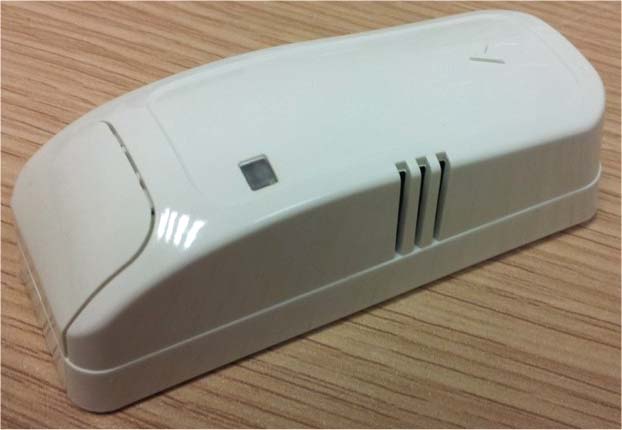

Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 2 of 3 Photograph No.1 Temperature detector TMD-560 PG2 general view Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 3 of 3 Photograph No.2 Temperature detector TMD-560 PG2 rear side view

Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 1 of 1 Label Label location Label with FCC ID:WP3TMD560PG2 and IC:1467C-TMD560PG2 is located at the rear side panel. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Guide, page 4 (Application exhibit User_manual_22354). FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2

Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 1 of 4 INTERNAL PHOTOGRAPHS This document contains 3 photographs Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 2 of 4 Photograph No.1 Temperature detector TMD-560 PG2 internal view Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 3 of 4 Photograph No.2 Temperature detector PCB rear side view Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 4 of 4 Photograph No.3 Temperature detector TMD-560 PG2 antenna

Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Exposure limit according to §15.247(i) and RSS-102 The device is classified as mobile. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 912.75/1500 = 0.61 mW/cm 2 The power density P (mW/cm 2 ) = P T / 4 r 2 P T is the transmitted power, which is equal to the peak transmitter output power 21 dBm plus maximum antenna gain -7 dBi, the maximum equivalent isotropically radiated power EIRP is P T = 21 dBm -7 dBi = 14 dBm = 25.1 mW. The power density at 20 cm (minimum safe distance, required for mobile devices), calculated as follows: 25.1 mW / 4 (20 cm) 2 = 0.005 mW/cm 2 << 0.61 mW/cm 2 General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 79 Report ID: VISRAD_FCC.22354.doc Date of Issue: 4-Apr-12 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C § 15.247 (FHSS) and subpart B, RSS-210 issue 8 Annex 8, ICES-003 Issue 4:2004 FOR: Visonic Ltd. Wireless PowerG Temperature Detector Model: TMD-560 PG2 (915) This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: VISRAD_FCC.22354.doc Date of Issue: 4-Apr-12 Page 2 of 79 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in the EUT ............................................................................................................................................ 5 6.4 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 Annex 8 requirements .................................... 7 7.1 20 dB bandwidth ........................................................................................................................................................... 7 7.2 Carrier frequency separation ....................................................................................................................................... 11 7.3 Number of hopping frequencies .................................................................................................................................. 13 7.4 Average time of occupancy ......................................................................................................................................... 16 7.5 Peak output power ...................................................................................................................................................... 19 7.6 Band edge radiated emissions .................................................................................................................................... 25 7.7 Field strength of spurious emissions ........................................................................................................................... 29 7.8 Antenna requirements ................................................................................................................................................. 61 8 Unintentional emissions .............................................................................................................................................. 62 8.1 Radiated emission measurements .............................................................................................................................. 62 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 68 10 APPENDIX B Measurement uncertainties ................................................................................................................... 69 11 APPENDIX C Test laboratory description ................................................................................................................... 70 12 APPENDIX D Specification references ....................................................................................................................... 70 13 APPENDIX E Test equipment correction factors ......................................................................................................... 71 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 79 Report ID: VISRAD_FCC.22354.doc Date of Issue: 4-Apr-12 Page 3 of 79 1 Applicant information Client name: Visonic Ltd. Address: Habarzel street 24, Tel Aviv 69710, Israel Telephone: +972 3645 6714 Fax: +972 3645 6788 E-mail: [email protected] Contact name: Mr. Arick Elshtein 2 Equipment under test attributes Product name: Wireless PowerG Temperature Detector Product type: Transceiver Model(s): TMD-560 PG2 Hardware version: 02 Software release: 1.2 Receipt date 6/21/2011 3 Manufacturer information Manufacturer name: Visonic Ltd. Add…

Text truncated - open the document above for the full version.

Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 2 of 6 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 3 of 6 Photograph No.2 Setup for carrier field strength, OBW, spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 4 of 6 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz range Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 5 of 6 Photograph No.4 Setup for spurious emission field strength measurements at the OATS above 1000 MHz range Visonic Ltd. FCC ID:WP3TMD560PG2 IC:1467C-TMD560PG2 Page 6 of 6 Photograph No.5 Setup for band edge emissions and hopping parameters measurements
