X3X-CRA-2Wireless PenTablet

Wireless Pen Tablet 6X1xxxx01 R0-Xxx □ Pen □ Tablet （CRA-2） （This book ） □ Quick Start Guide CRA-2 Quick Start Guide ●PACKAGE CONTENTS ●USING THE PRODUCT ●DETAILED USAGE OF THE PRODUCT ●PREPARATION □ Pen holder □ Wireless Dongle □ Extra core x 8 (※Extra cores are in the pen holder.) □ USB cable (For charging or for connecting to a device) ● Charging ●接続端子・スイッチを確認する Side view (left) Use the supplied wireless dongle to connect the tablet to a device wirelessly. ※You can also use the tablet by connecting it to a device using the supplied USB cable. ※ Available functions may differ depending on the document camera used. The tablet will start to recognize the pen if the working range is touched by the pen tip button. The tablet will enter sleep mode after about 45 minutes of inactivity. ※ Only when connected wirelessly When the pen tip becomes round, replace it with the supplied "extra core". Use the supplied pen holder when replacing the pen tip. The Status LED will turn green and go off after the power is on. ● When connecting wirelessly ⇒The tablet will power on when the wireless switch is set to on. ● When connecting with the USB cable ⇒ The tablet will power on when it is connected to a running computer or document camera. 1. Turn on the power. 2. Operate the tablet ● Replacing the pen tip ● Pen operations ● Storage for the pen and wireless dongle ● Shortcut keys ● Connecting to a device ※ Caution ・When replacing the pen tip, be sure to replace it with the supplied "extra core". ・Make sure that children do not put small parts into their mouths. Step1.Rotate the pen holder counterclockwise (arrow ① ) and remove the cover (arrow ② ). Step2.Put the pen to the center of the pen holder. Tilt the pen to remove the pen tip. Step3.Insert the extra core firmly into the pen until it stops. Wireless switch Storage for the wireless dongle Slide and push the dongle into the storage.Push the dongle with your finger to take it out. Pen storage ※ You need to install the EIT on your computer to use the tablet with your computer. Available functions may differ depending on the document camera used. ※ The wireless switch will be used only when the tablet is connected wirelessly. ON（Enabled） By connecting the wireless dongle to a computer or document camera, you can use the CRA-2 wirelessly. OFF（Disabled） The power enters standby mode. ※ You can use the tablet no matter the wireless switch is on or off when connecting with the USB cable. USB port Storage for the pen Insert the pen from the pen tip into the storage. Pull the pen with your finger to take it out. Storage for the wireless dongle Status LED Charging: Red Fully charged: Off ① ⑤ ② ③ ④ Connecting to a computer You can control your computer like a mouse. By using with the EIT, you can add annotations to the screen image. Insert the wireless dongle to the USB port of the computer. NameDescription ① Document camera mode To display the document camera image. ② Whiteboard mode To display the whiteboard screen. ③ Playback mode To display images stored. ④ Operation/ Settings mode ・When connecting to a computer: to control a computer as a mouse ・When connecting to the document camera: to configure pen settings ⑤ Close/ Hide ・When connecting to a computer: to close the EIT ・When connecting to the document camera: to display or hide menus Status LED ① ② ＜ Step1 ＞ Pen holder Cover ＜ Step2 ＞＜ Step3 ＞ Right click (when using with the document camera : eraser) When using with the document camera : eraser Left click Connecting to the document camera You can add annotations to the document camera image or control the document camera. Insert the wireless dongle to the USB port of the document camera. Working area Connect the tablet to a computer with the supplied USB cable. □ IMPORTANT SAFEGUARDS ● Checking the connection ports and switches For detailed information about the Instruction Manual, refer to the following website: https://www.elmousa.com/ https://www.elmoeurope.com/index.php/en/ ■Read Instructions : All the safety and operating instructions should be read before the appliance is operated. ■Retain Instructions : The safety and operating instructions should be retained for future reference. ■Heed Warnings : All warnings on the product and in the operating instructions should be adhered to. ■Follow Instructions : All operating and use instructions should be followed. ■Cleaning : Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ■Attachments : Do not use attachments not recommended by the product manufacturer as they may cause hazards. ■Water and Moisture : Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. ■Placement : Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. ■Ventilation : Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. ■Power Sources : This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home consult your appliance dealer or local po…

Text truncated - open the document above for the full version.

ELMO COMPANY, LIMITED Authorization Letter We, (the approval holder) Company name ELMO COMPANY, LIMITED Addresss 1-3-4, Shioya-cho, Minami-ku, Nagoya-city Aichi, 457-0078 Japan declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Wireless PenTablet Type or Model(s) CRA-2 Tradename or Brand(s) Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Japan 2020/01/13 Tomokazu Ito Senior Manager

ELMO COMPANY, LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-01-13 Subject; Request for Confidentiality FCC ID: X3X-CRA-2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tomokazu Ito Title: Senior Manager

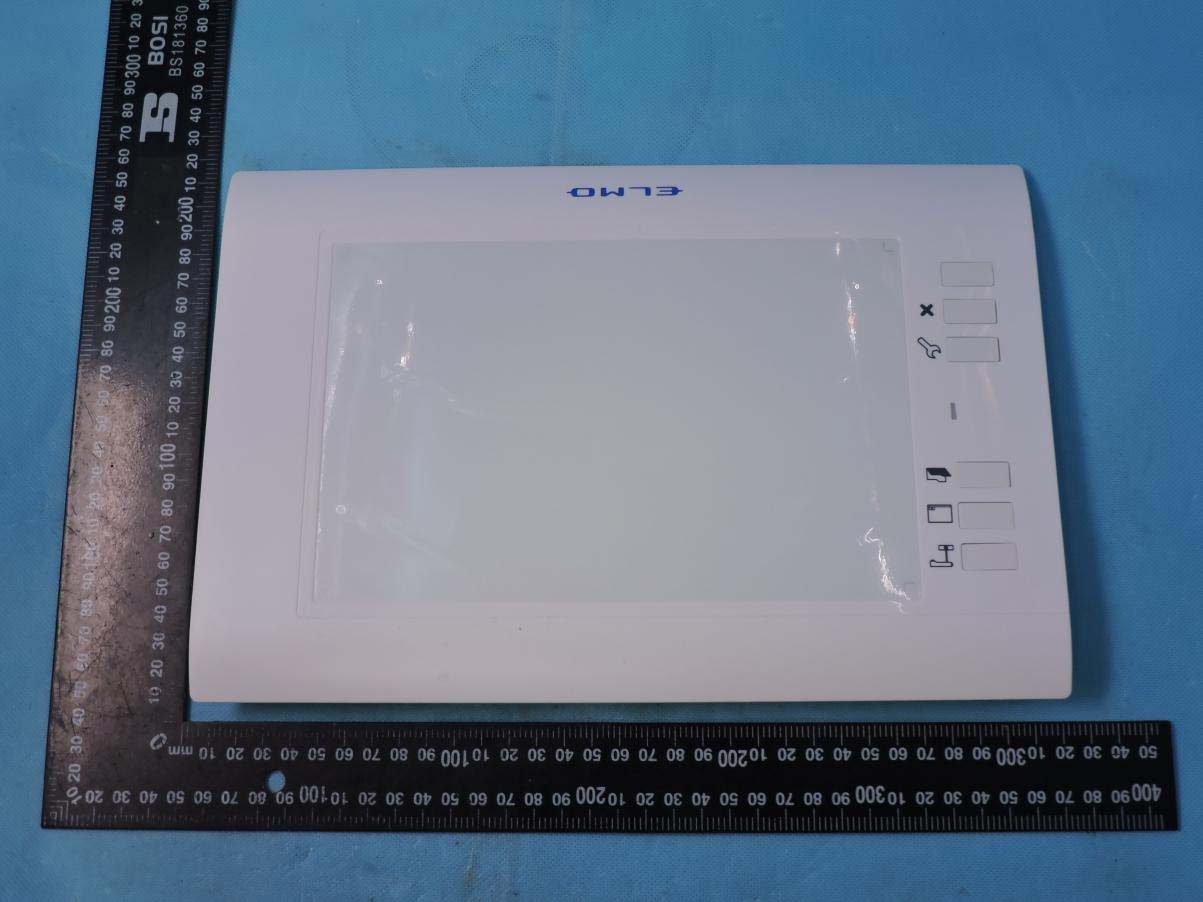

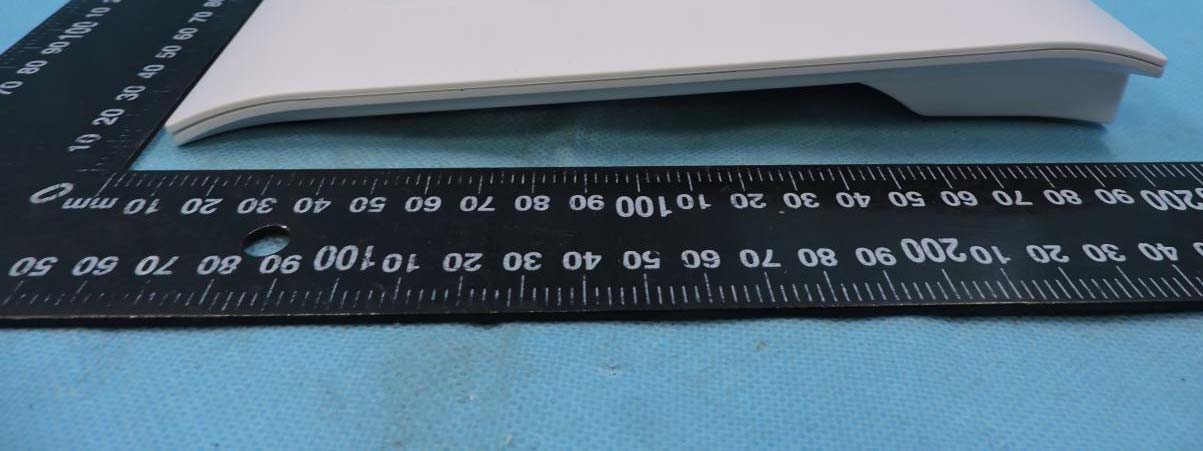

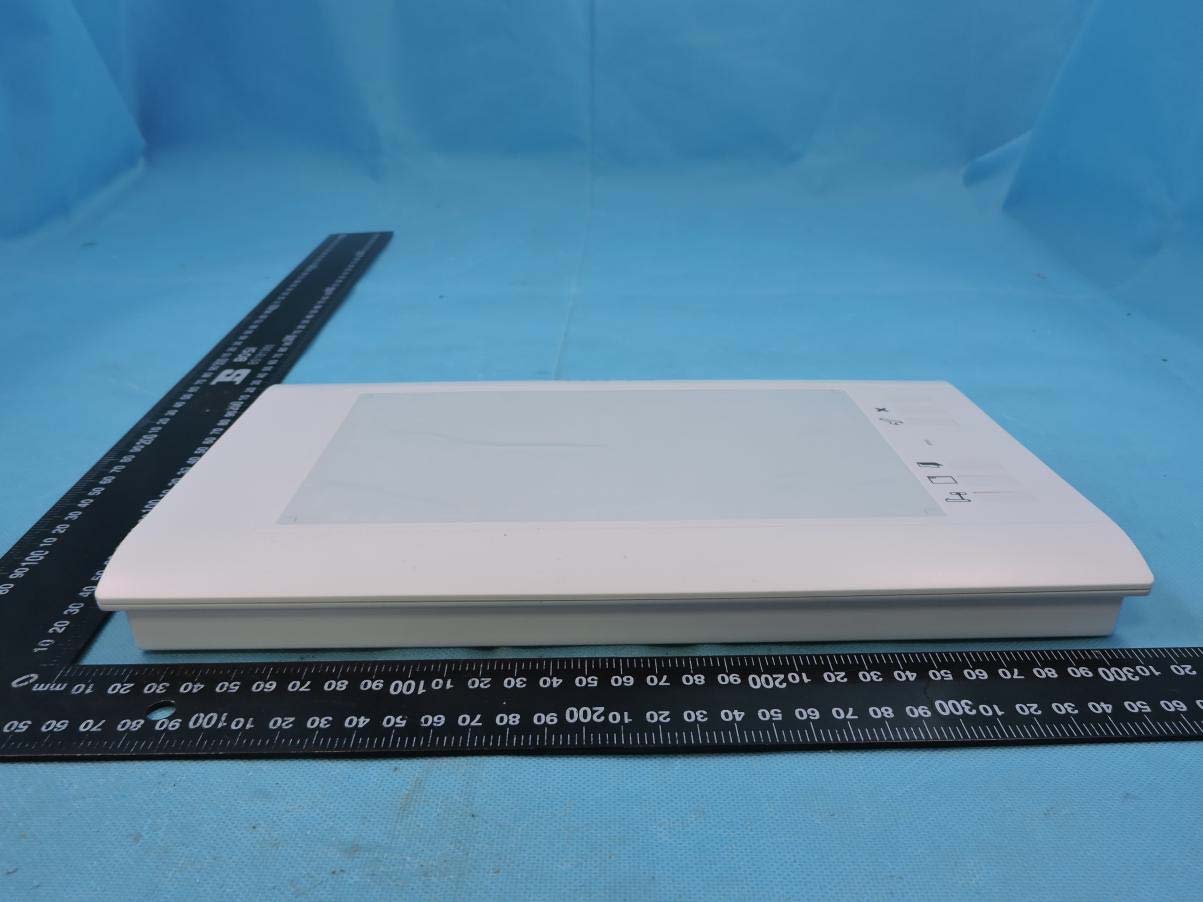

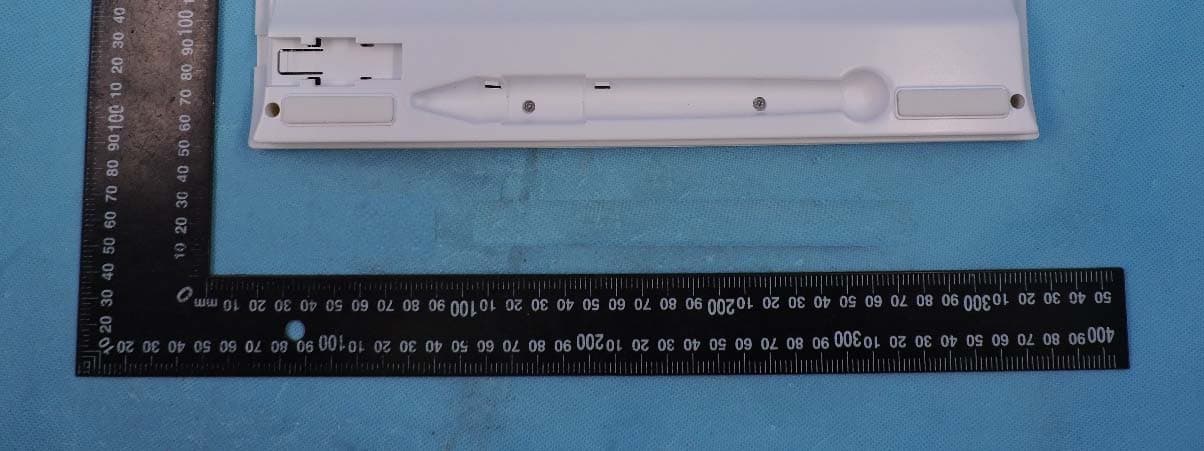

Page 1 of 3 Report No.: STS1912347 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: X3X-CRA-2 IC: 8804A-X3XCRA2 Model: CRA-2 Photo 1 Photo 2 Page 2 of 3 Report No.: STS1912347 Photo 3 Photo 4 Page 3 of 3 Report No.: STS1912347 Photo 5 Photo 6

128G self-adhesive matte film

Page 1 of 3 Report No.: STS1912347 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: X3X-CRA-2 IC: 8804A-X3XCRA2 Model: CRA-2 Photo 1 Photo 2 Photo 3 Antenna Page 2 of 3 Report No.: STS1912347 Photo 4 Page 3 of 3 Report No.: STS1912347 Photo 5

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1912347W02 Issued for ELMO COMPANY, LIMITED 1-3-4, Shioya-cho, Minami-ku, Nagoya-city Aichi, 457-0078 Japan Product Name: Wireless Pen Tablet Brand Name: Model Name: CRA-2 Series Model: N/A FCC ID: X3X-CRA-2 IC: 8804A-X3XCRA2 Test Standard: FCC Part 15.249 RSS 210 Issue 9 S T L A B S Page 2 of 37 Report No.: STS1912347W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : ELMO COMPANY, LIMITED Address .................................. : 1-3-4, Shioya-cho, Minami-ku, Nagoya-city Aichi, 457-0078 Japan Manufacture's Name ............ : ELMO COMPANY, LIMITED Address .................................. : 1-3-4, Shioya-cho, Minami-ku, Nagoya-city Aichi, 457-0078 Japan Factory's Name ..................... : Shenzhen Huion Animation Technology Co.,ltd Address .................................. : Building 28, Quater 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao'anDistrict, Shenzhen, China Product Description Product Name ........................ : Wireless Pen Tablet Brand Name ......................... : Model Name ........................... : CRA-2 Series Model .......................... : N/A Test Standards ...................... : FCC Part15.249 RSS 210 Issue 9 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 26 Dec. 2019 Date of performance of tests .. : 26 Dec. 2019 ~ 10 Jan. 2020 Date of Issue .......................... : 10 Jan. 2020 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory: (Vita Li) Page 3 of 37 Report No.: STS1912347W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5
1.1 TEST FACTORY 6
1.2 MEASUREMENT UNCERTAINTY 6
2. GENERAL INFORMATION 7
2.1 GENERAL DESCRIPTION OF THE EUT 7
2.2 DESCRIPTION OF THE TEST MODES 9
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10
2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11
2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12
3. EMC EMISSION TEST 13
3.1 CONDUCTED EMISSION MEASUREMENT 13
3.2 RADIATED EMISSION MEASUREMENT 17
4. BANDWIDTH TEST 33
4.2 TEST SETUP 33
4.3 EUT OPERATION CONDITIONS 33
4.4 TEST RESULTS 34
5. ANTENNA REQUIREMENT 36
5.1 STANDARD REQUIREMENT 36
5.2 EUT ANTENNA 36
APPENDIX- PHOTOS OF TEST SETUP 37
Page 4 of 37 Report No.: STS1912347W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 10 Jan. 2020 STS1912347W02 ALL Initial Issue Page 5 of 37 Report No.: STS1912347W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.249 , Subpart C RSS 210 Issue 9 Standard Section Test Item Judgment Remark 15.207 RSS-Gen Issue 5 (8.8) Conducted Emission Pass 15.203 RSS-Gen Issue 5 Antenna Requirement Pass 15.249 RSS 210 Issue 9 (B.10) Radiated Spurious Emission Pass 15.205 RSS-Gen Issue 5 Radiated Band Edge Emission Pass 15.249 RSS-Gen Issue 5 20dB Bandwidth Pass RSS-Gen Issue 5 99% Bandwidth Pass NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 6 of 37 Report No.: STS1912347W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±4.43dB 7 Conducted Emission (150KHz-30MHz) ±5dB Page 7 of 37 Report No.: STS1912347W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Pen Tablet Trade Name Model Name CRA-2 Series Model N/A Model Difference N/A Product Description The EUT is a Wireless Pen Tablet Operation Frequency: 2405 ~2478MHz Modulation Type: GFSK Antenna Designation: PCB Antenna Gain(Peak): 3.61 dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Power Rating Input: DC 5V,500mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 1100mAh Hardware version number REV04 Software version number 20191212 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. Page 8 of 37 Report No.: STS1912347W02 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2405 21 2425 41 2445 61 2465 …

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: X3X-CRA-2 IC: 8804A-X3XCRA2 DXX Setup photo Model name: CRA-2 DXX conduction DXX radiation L Page 2 of 2 FCC ID: X3X-CRA-2 IC: 8804A-X3XCRA2 DXX radiation H
