X3XCRV-1RUSB Dongle

Instruction Manual Student Response System （ＣＲＶ-２４／３２） Please read this manual before using this product. Please retain this manual. 2 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lighting storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This marking is located at the bottom of product. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. 3 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. NOTICE: This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by ELMO CO.,LTD. may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radiofrequency radiation exposure Information: The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS). 4 IMPORTANT SAFEGUARDS Follow these guidelines to use the product safely. These "IMPORTANT SAFEGUARDS" indicate important points that should be followed to use this product safely and correctly and prevent damage to the product or other property and injury to you and others. Read carefully b…

Text truncated - open the document above for the full version.

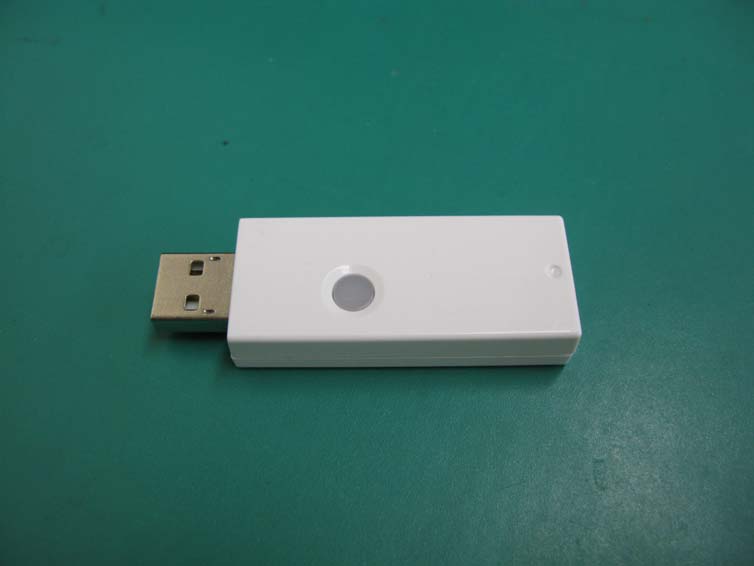

External Photo ELMO COMPANY, LIMITED Model: CRV-CK-1R External Photo ELMO COMPANY, LIMITED Model: CRV-CK-1R External Photo ELMO COMPANY, LIMITED Model: CRV-CK-1R

Internal Photo ELMO COMPANY, LIMITED Model: CRV-CK-1R

Test report No. : 32EE0092-HO-01-B-R2 Page : 2 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .......................................................................................3 SECTION 2: Equipment under test (E.U.T.) ........................................................................3 SECTION 3: Test specification, procedures & results ..........................................................4 SECTION 4: Operation of E.U.T. during testing ..................................................................7 SECTION 5: Conducted Emission ..........................................................................................8 SECTION 6: Radiated Emission .............................................................................................9 APPENDIX 1: Data of EMI test ............................................................................................10 Conducted Emission .................................................................................................................... 10 Radiated Emission ....................................................................................................................... 12 APPENDIX 2: Test instruments ............................................................................................15 APPENDIX 3: Photographs of test setup..............................................................................16 Conducted Emission .................................................................................................................... 16 Radiated Spurious Emission ....................................................................................................... 17 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) ...................................................... 18 Test report No. : 32EE0092-HO-01-B-R2 Page : 3 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : ELMO COMPANY, LIMITED Address : 6-14, MEIZEN-CHO, MIZUHO-KU, NAGOYA, AICHI 467-8567 JAPAN Telephone Number : +81-52-811-5136 Facsimile Number : +81-52-811-5179 Contact Person : Tomokazu Ito SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : USB Dongle Model No. : CRV-CK-1R Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5V Receipt Date of Sample : December 15, 2011 Country of Mass-production : Taiwan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 12MHz, 24MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2479MHz Modulation : GFSK Power Supply (radio part input) : DC3.3V Antenna type : Pattern Antenna Gain : 1.16dBi Test report No. : 32EE0092-HO-01-B-R2 Page : 4 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2012, final revised on February 1, 2012* Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators *The revision on February 1, 2012 does not affect the test specification applied to the EUT. Test Specification : ICES-003 Issue 4 February 2004 Title : Digital Apparatus 3.2 Procedures and results Item Test Procedure Limits DeviationWorst margin Result Conducted emission FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 12.8dB 0.19350MHz, N [AV] 11.0dB 0.46320MHz, N Complied IC: ICES-003 4.1 Radiated emission FCC: ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 2.9dB 37.991MHz Vertical Complied *1) IC: ICES-003 4.1 *Note: UL Japan, Inc’s EMI Work Procedure 13-EM-W0420. *1)Measurements were limited up to 1GHz since the highest frequency of internal source of the EUT is less than 108MHz. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 32EE0092-HO-01-B-R2 Page : 5 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Conducted emission (+dB) 150kHz-30MHz No.1 3.5dB No.2 3.6dB No.3 3.6dB No.4 3.6dB Test room (semi- anechoic chamber) Radiated emission (10m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz No.1 4.1dB 5.0dB 4.8dB No.2 - - - No.3 - - - No.4 - - - *10m = Measurement distance Test room (semi- anechoic chamber) Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 4.2dB 5.0dB 5.1dB 4.7dB 5.7dB 4.4dB 4.3dB No.2 4.1dB 5.2dB 5.1dB 4.8dB 5.6dB 4.3dB 4.2dB No.3 4.5dB 5.0dB 5.2dB 4.8dB 5.6dB 4.5dB 4.2dB No.4 4.7dB 5.2dB 5.2dB 4.8dB 5.6dB 5.1dB 4.2dB *3m/1m/0.5m = Measurement distance Conducted Emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test (3m) The data listed in this report meets the limits unless the uncertainty is taken into consideration. Test report No. :…

Text truncated - open the document above for the full version.

Test report No. : 32EE0092-HO-01-B-R2 Page : 16 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32EE0092-HO-01-B-R2 Page : 17 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32EE0092-HO-01-B-R2 Page : 18 of 18 Issued date : January 16, 2012 Revised date : February 23, 2012 FCC ID : X3XCRV-1R UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
