X4D-COM-PTSystem on Module

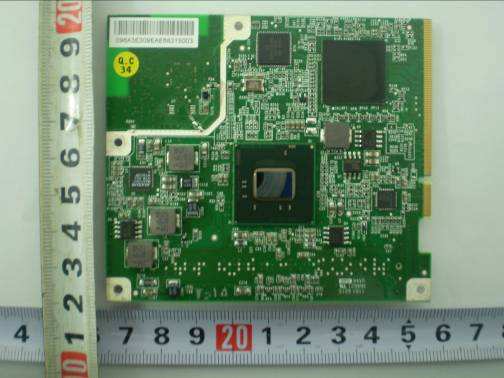

COM-PT Installation Guide ADLINK TECHNOLOGY INC. 1 1. Hardware Installation 1.1 COM-PT Interface and Placement Figure 1-1 COM-PT Front View Figure 1-2 COM-PT Rear View 2 1.2 COM-PT Installation The COM-PT is a SOM (System on Module), which can be combined design with any industrial or consumer products as well as general purpose system or devices goods. The carrier board for COM-PT is depends on the customer application requirement. The standard interface between COM-PT and customer’s carrier board are using FOXCONN AS0B946-S50U-7H connector for I/O communication and functionality implements. Below are the roughly procedures for COM-PT install into the customer’s carrier board. Step1 Using 25 degrees angle to insert DDR2 SO-DIMM memory into the SO-DIMM socket. Step2 Pressed DDR2 memory until it completed locked into the SO-DIMM socket. 3 Step3 Using 25 degrees angle to insert COM-PT into FOXCONN AS0B946-S50U-7H connector. Step4 Fasten the screw in position Step5 Fasten the screw in position 4 Step 6 COM-PT hardware installation completed 2. Software Installation The COM-PT is using Intel wireless WiFi adaptors technology. Therefore COM-PT will require same driver and wireless WiFi connection utility as Intel® WiFi Link 1000. For COM-PT detail driver installation and the utility operation, please refer ‘Intel(R) PROSet/Wireless WiFi Connection Utility User's Guide’. 5 RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ADLINK TECHNOLOGY INC. 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 (January 29, 2010) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ ADLINK TECHNOLOGY INC. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: System on Module Model name: COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 We affirm that between SIEMIC and _ ADLINK TECHNOLOGY INC. _ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Maggie Huang/Product Manager of ADLINK Contact information / address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 TEL:+886-2-82265877

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 ADLINK TECHNOLOGY INC. 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 (January 29, 2010) To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: X4D-COM-PT We hereby request confidential treatment of information accompanying this application as outlined below: --Operational Description --Schematic --Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Maggie Huang/Product Manager of ADLINK Contact information / address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 TEL:+886-2-82265877

SCS-F26 Modular Approval Letter Page 2 of 2 Rev 1.0 ADLINK TECHNOLOGY INC. 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 (January 29, 2010) (Product name) FCC ID : X4D-COM-PT , is seeking FCC Authorization as a Limited modular transmitter. The EUT meets 7 out of 8 of the requirements for modular approval as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” YES 2. “The modular transmitter must have buffered modulation/data inputs.” YES 3. “The modular transmitter must have its own power supply regulation.” YES 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” YES 5. “The modular transmitter must be tested in a stand-alone configuration.” NO 6. “The modular transmitter must be labeled with its own FCC ID number.” YES 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” YES 8. “The modular transmitter must comply with any applicable RF exposure requirements.” YES Client’s signature Client’s name / title : Maggie Huang/Product Manager of ADLINK Contact information / address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei, Taiwan ZIP:235 TEL:+886-2-82265877

Product: System on Module Model No.: COM-PT-450,COM-PT-455,COM-PT-475,COM-PT- 540 FCC ID: X4D-COM-PT 2200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference r eceived, including interference that may cause undesired operation. ADLINK TECHNOLOGY INC. Made in Taiwan ADLINK

Label Location

FCCID:X4D-COM-PT Portable device According to § 15.247(e)(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excessof the Commission’s guidelines. According toKDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz)High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 243725 Maximum measured transmitter power802.11b ConductedPower (mw)Max Antenna Gain (dBi)EIRP (mw) 15.850.7919.02 Maximum measured transmitter power802.11g Conducted Power (mw)Max Antenna Gain (dBi)EIRP (mw) 12.880.7915.46 Maximum measured transmitter power802.11n-20MHz Conducted Power (mw)Max Antenna Gain (dBi)EIRP (mw) 9.120.7910.94 Maximum measured transmitter power802.11n-40MHz Conducted Power (mw)Max Antenna Gain (dBi)EIRP (mw) 7.590.799.11 Threshold at which no SAR required is 25 mw. Maximum Tx power is19.02mwEIRP. Conclusion:No SAR is required. SIMULTANEOUS TRANSMISSIONEVALUATION N/A

ADLINKTECHNOLOGYINC. SystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 27January2010 ReportNo.:902501-FCC (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: PeterCai ComplianceEngineer LeslieBai Director of Certification This test report may be reproduced in fullonly. Test result presented in this test report is applicable to the representative sample only. Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:2of121 www.siemic.com.cn Laboratory Introduction ATION SIEMIC,headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina,Asia Pacific,North America, European, and internationalcompliance requirements, assures the fastest, mostcost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF/Wireless, Telecom TaiwanBSMI , NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF/Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF/Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC , RF , Telecom Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:3of121 www.siemic.com.cn This page has been left blank intentionally. Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:4of121 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY &EUT INFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................98 ANNEX B.EUT AND TEST SETUP PHOTOGRAPHS.........................................................................................................102 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT.................................................................................................103 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.....................................................................107 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES........................................................................................................108 Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:5of121 www.siemic.com.cn 1Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of theADLINKTECHNOLOGYINC. SystemonModule, and modelCOM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540against the current Stipulated Standards. TheSystemonModulehasdemonstrated compliance with theFCC 15.247:2009. EUT Information EUT Description : System on Module Model No :COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 Serial No :N/A InputPower :DC 3.3V Classification Per Stipulated Test Standard : SpreadSpectrumSystem/Device Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:6of121 www.siemic.com.cn 2TECHNICAL DETAILS PurposeCompliance testing ofSystem on Modulewith stipulated standard Applicant / Client ADLINKTECHNOLOGYINC. 9F,No.166,JianYiRoad, ChunghoCity,Taipei,TaiwanZIP:235,R.O.C. Manufacturer ADLINKTECHNOLOGYINC. 9F,No.166,JianYiRoad, ChunghoCity,Taipei,TaiwanZIP:235,R.O.C. Laboratory performing the tests SIEMIC Nanjing(China)Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number902501-FCC Date EUT receivedJanuary222010 Standard appliedFCC15.247:2009 Dates of test (from–to)January23~January252010 No of Units:#1 Equipment Category:DTS Trade Name:N/A Model :COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 RFOperating Frequency (ies)2412MHz-2462MHz, 2422MHz-2452MHz Number of Channels :11, no of channel for 802.11n(40MHz) Modulation :802.11b/g/n FCC ID：X4D-COM-PT Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:7of121 www.siemic.com.cn 3MODIFICATION NONE Title:RFTestReport forSystemonModule Model:COM-PT-450,COM-PT-455,COM-PT-475,COM-PT-540 To:FCC15.247:2009 Serial#:902501-FCC Issue Date:27January2010 Page:8of121 …

Text truncated - open the document above for the full version.

Radiated Emission Rear View below 1GHz Radiated Emission Front View below 1GHz Radiated Emission Front View above 1GHz Radiated Emission Rear View above 1GHz Conducted Emission Front View Conducted Emission Side View
