X4D-IMX-3000Rugged Handheld Device

1 IMX-3000 Rugged Handheld Device User’s Manual Manual Revision: 0.2 Revision Date: 07.08.2014 Part No.: 50-1Z156-1000 2 Revision History Version Date Description 0.10 2013/11/28 Preliminary release Copyright 2013 ADLINK Technology, Inc. All Rights Reserved The information in this document is subject to change without prior notice in order to improve reliability, design, and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Trademarks Product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. 3 Table of Contents Revision History.................................................................................................................................... 2 Table of Contents................................................................................................................................. 3 Notices.................................................................................................................................................. 4 Product Notes.............................................................................................................................. 4 Important Safety Instructions......................................................................................................5 FCC Statement.............................................................................................................................. 6 Quick guide........................................................................................................................................... 7 1 IMX-3000 layout................................................................................................................... 7 2 Package of Contents............................................................................................................. 7 3 Installing SIM card and Micro SD card................................................................................. 8 4 Install Battery....................................................................................................................... 9 Getting Start....................................................................................................................................... 10 1 Android Wizard in first start............................................................................................... 10 2 Key Definition..................................................................................................................... 11 3 Status Indicator.................................................................................................................. 11 3.1 Indicator LED......................................................................................................11 3.2 Indicate icons..................................................................................................... 11 Connection......................................................................................................................................... 12 2 Connecting to Wi-Fi Network............................................................................................ 12 3 Connecting to Bluetooth Network..................................................................................... 13 4 Using GPS & AGPS.............................................................................................................. 14 5 WCDMA/GSM.................................................................................................................... 16 6 NFC..................................................................................................................................... 18 Using Camera..................................................................................................................................... 19 1 Picture mode...................................................................................................................... 19 2 Video mode........................................................................................................................ 22 System Setting.................................................................................................................................... 23 1 About Phone...................................................................................................................... 23 2 Display................................................................................................................................ 23 Utilities............................................................................................................................................... 25 1 Button utility...................................................................................................................... 25 2 Reader Utility..................................................................................................................... 26 Technical Support............................................................................................................................... 29 4 Notices Product Notes For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. To avoid damaging the product due to improper operation, please read the manual …

Text truncated - open the document above for the full version.

ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Date : August , 20 ,2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: X4D-IMX-3000 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ADLINK TECHNOLOGY INC. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams BOM Theor y of Operation ADLINK TECHNOLOGY INC. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, _____________________________________ Signature Name/Title: Sean Ba / Senior Engineer Company Name: ADLINK TECHNOLOGY INC. Address: 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan TEL: +886-2-8226-5877#8361 FAX: +886-2-8226-5730 Email: [email protected]

ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Date : August , 20 ,2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: X4D-IMX-3000 To Whom It May Concern: We, ADLINK TECHNOLOGY INC. , hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Your Sincerely, _____________________________________ Signature Name/Title: Sean Ba / Senior Engineer Company Name: ADLINK TECHNOLOGY INC. Address: 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan TEL: +886-2-8226-5877#8361 FAX: +886-2-8226-5730 Email: [email protected]

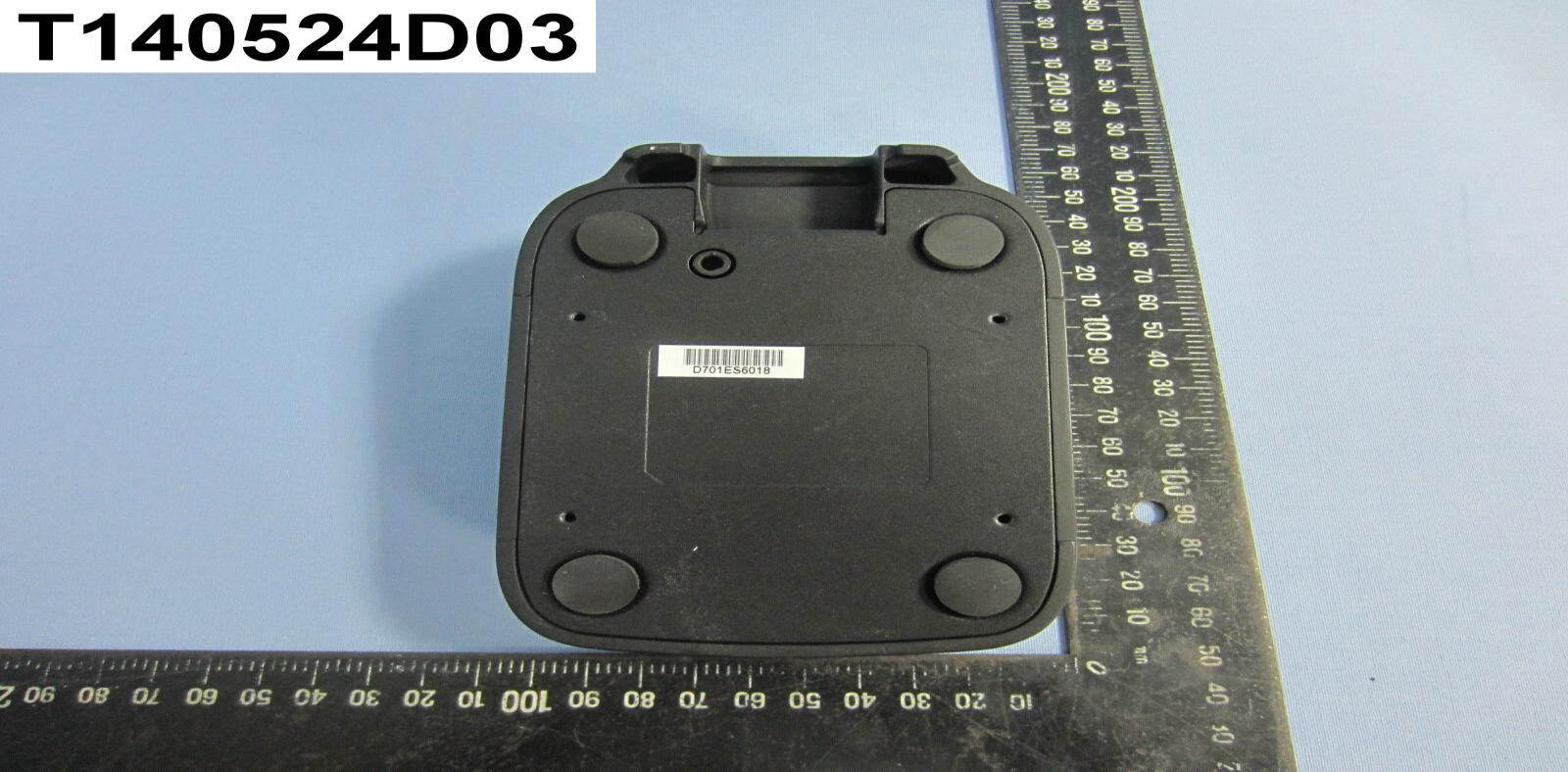

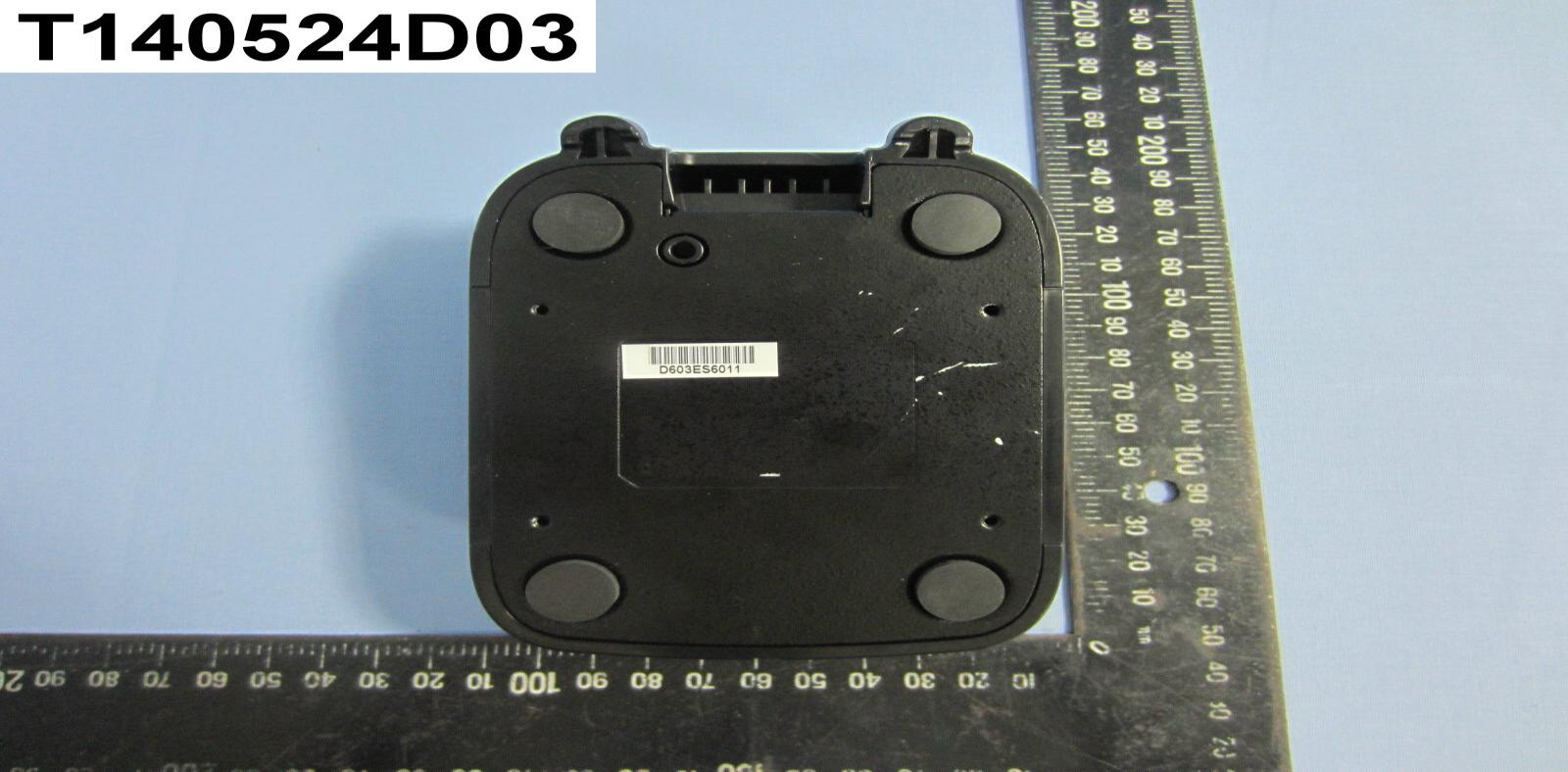

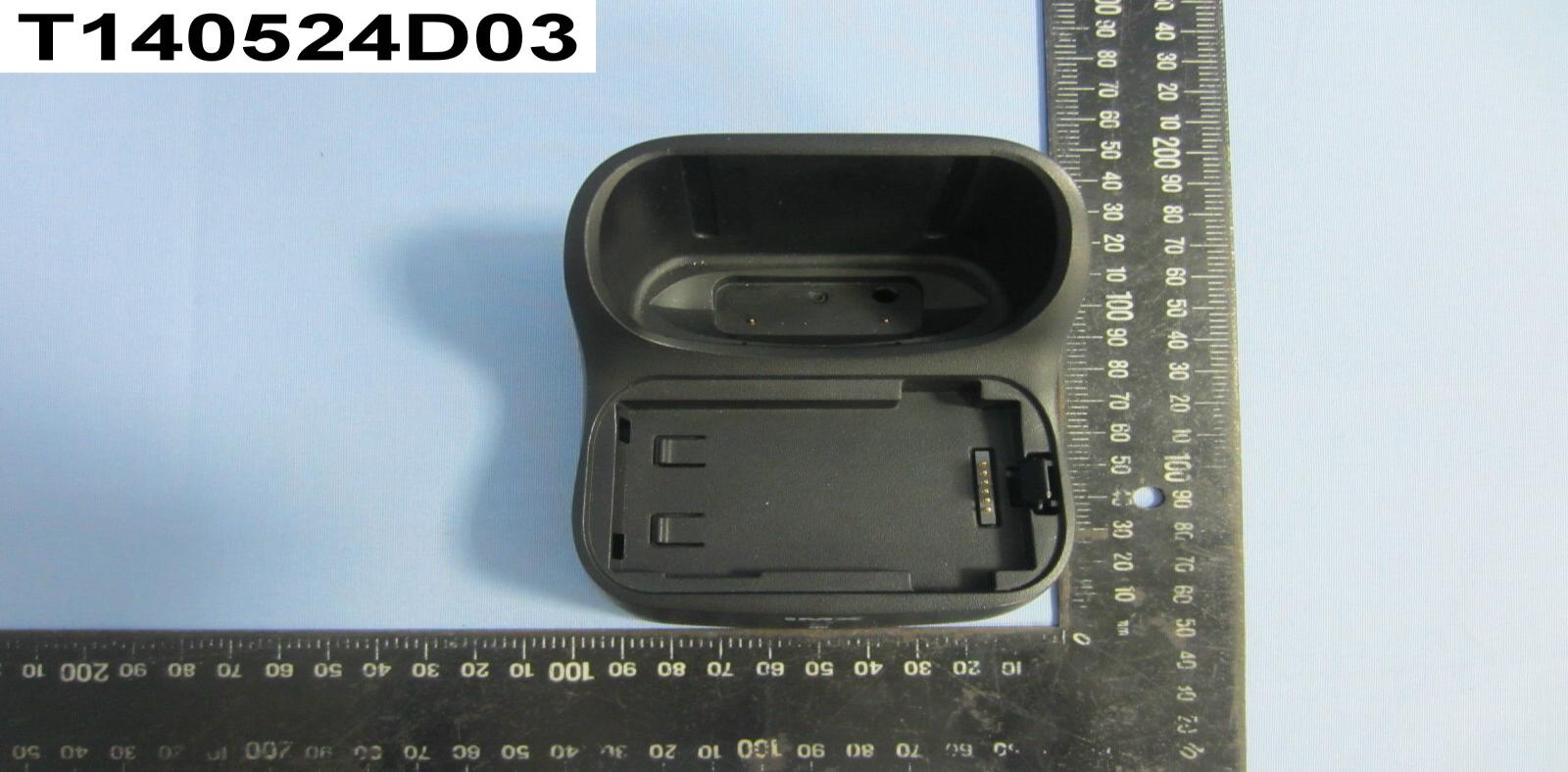

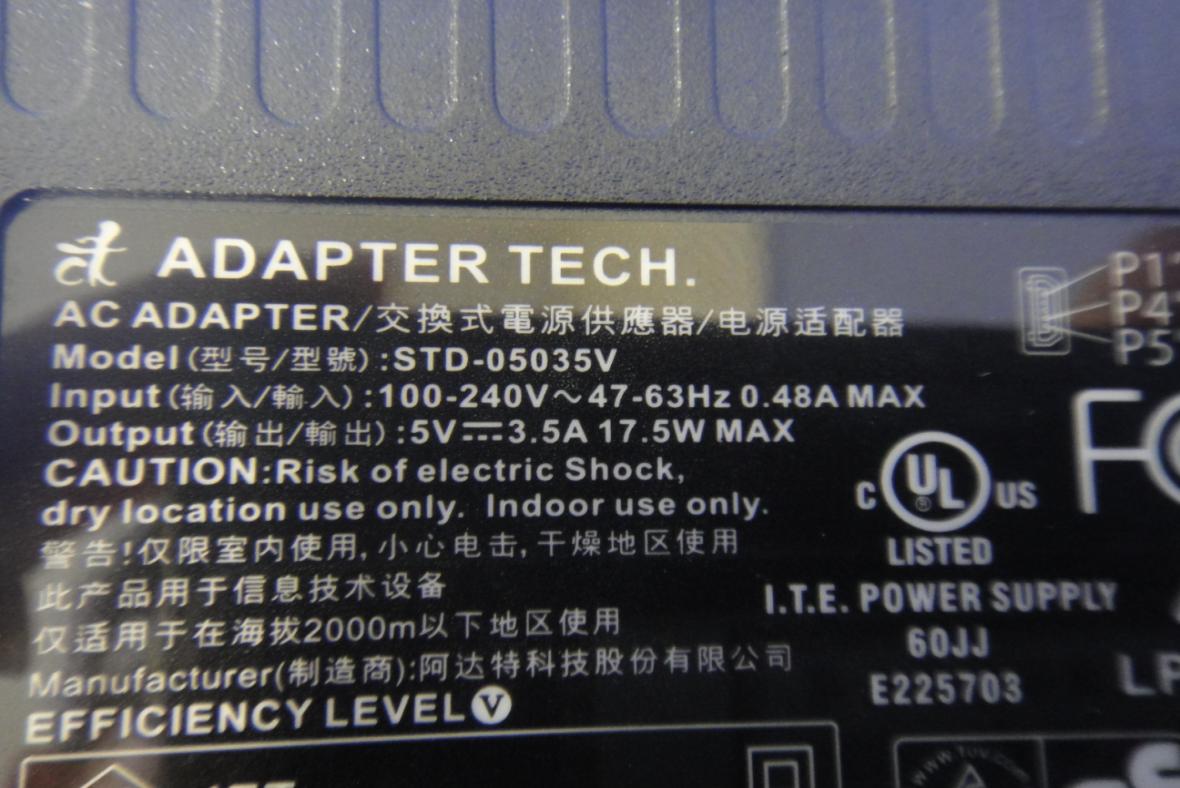

Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 1 / 44 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 17 Rev. 00 For IMX-110 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 20 Rev. 00 For IMX-1101 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 21 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 23 Rev. 00

Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 24 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 25 Rev. 00 For Battery Model: IMX3000-B26L-1 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 26 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 27 Rev. 00 For Battery Model: IMX3000-B39L-1 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 28 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 29 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 30 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 31 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 32 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 33 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 34 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 35 Rev. 00 For IMX-110 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 36 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 37 Rev. 00 For IMX-1101 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 38 Rev. 00 2G Antenna Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 39 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 40 Rev. 00 NFC Antenna Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 41 Rev. 00 Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 42 Rev. 00 WIFI & BT Antenna Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 43 Rev. 00 2G Module Compliance Certification Services Inc. Report No.: T140524D03 Date of Issue: June 25, 2014 A1 - 44 Rev. 00 NFC Module WIFI & BT Module

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/06/19 GPRS 850 Frequency: 824.2 MHz; Duty Cycle: 1:2.09894; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.5°C Medium parameters used (interpolated): f = 824.2 MHz; ! = 0.939 S/m; " r = 56.186; # = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 Front/GPRS850 Band_4Slot/CH128/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.924 W/kg Front/GPRS850 Band_4Slot/CH128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.85 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.782 W/kg; SAR(10 g) = 0.594 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.952 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/06/19 GPRS 850 Frequency: 824.2 MHz; Duty Cycle: 1:2.09894; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.5°C Medium parameters used (interpolated): f = 824.2 MHz; ! = 0.939 S/m; " r = 56.186; # = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 Edge/Edge1 /GPRS850 Band_4Slot/CH128/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.260 W/kg Edge/Edge1 /GPRS850 Band_4Slot/CH128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.82 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.193 W/kg; SAR(10 g) = 0.132 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.256 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/06/19 GPRS 850 Frequency: 824.2 MHz; Duty Cycle: 1:2.09894; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.5°C Medium parameters used (interpolated): f = 824.2 MHz; ! = 0.939 S/m; " r = 56.186; # = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 Edge/Edge2/GPRS850 Band_4Slot/CH128/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.50 W/kg Edge/Edge2/GPRS850 Band_4Slot/CH128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 43.07 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.15 W/kg; SAR(10 g) = 0.824 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.47 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/06/19 GPRS 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.09894; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.5°C Medium parameters used (interpolated): f = 836.6 MHz; ! = 0.952 S/m; " r = 56.067; # = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 Edge/Edge2/GPRS850 Band_4Slot/CH190/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.29 W/kg Edge/Edge2/GPRS850 Band_4Slot/CH190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 40.31 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.733 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.37 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/06/19 GPRS 850 Frequency: 848.8 MHz; Duty Cycle: 1:2.09894; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.5°C Medium parameters used (interpolated): f = 848.8 MHz; ! = 0.964 S/m; " r = 55.98; # = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 Edge/Edge2/GPRS850 Band_4Slot/CH251/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.08 W/kg Edge/Edge2/GPRS850 Band_4Slot/CH251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 37.12 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.30 W/kg SAR(1 g) = 0.894 W/kg; SAR(10 g) = 0.632 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.16 W/kg Test Laboratory: …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 82 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Rugged Handheld Device Model: IMX-3000 Trade Name: Issued to ADLINK TECHNOLOGY INC. 9F, No.166, Jian Yi Rd., Zhonghe Dist., New Taipei City, 235 Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 18, 2014 Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 18, 2014 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................................6 3.2 EUT EXERCISE .................................................................................................................................6 3.3 GENERAL TEST PROCEDURES ..........................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................8 4. INSTRUMENT CALIBRATION .....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY .......................................................................................... 10 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 11 5.1 FACILITIES .................................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .................................................................................. 12 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT .................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................ 13 7. FCC PART 15.247 REQUIREMENTS .......................................................................................... 14 7.1 20 DB BANDWIDTH .................................................................................................................. 14 7.2 PEAK POWER ................................................................................................................................. 21 7.3 BAND EDGES MEASUREMENT ............................................................................................. 22 7.4 FREQUENCY SEPARATION .................................................................................................... 40 7.5 NUMBER OF HOPPING FREQUENCY .................................................................................... 45 7.6 TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 50 7.7 SPURIOUS EMISSIONS ............................................................................................................. 59 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................ 77 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 80 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: ADLINK TECHNOLOGY INC. 9F, No.166, Jian Yi Rd., Zhonghe Dist., New Taipei City, 235 Taiwan Equipment Under Test: Rugged Handheld Device Trade Name: Model: IMX-3000 Date of Test: June 7 ~ July 8, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements set forth in the above standards. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services In…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 80 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 81 Rev.00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: X4D-IMX-3000 Report No.: T140524D03-RP2 Page 82 Rev.00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
