X4D-IMX-2000Rugged Handheld Device

IMX-2000 Rugged Handheld Device User’s Manual Manual Revision: 0.11 Revision Date: October 23, 2012 Part No.: 50-1Z131-1000 IMX-2000 User's Manual 2 Revision History Version Date Description 0.10 2012/10/23 Preliminary release 0.11 2012/12/19 Add FCC statement 0.12 2013/4/10 Modify FCC RF Radiation Exposure Statement Copyright 2012 ADLINK Technology, Inc. All Rights Reserved The information in this document is subject to change without prior notice in order to improve reliability, design, and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Trademarks Product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. IMX-2000 User's Manual 3 Product Notes For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. To avoid damaging the product due to improper operation, please read the manual thoroughly before use.
IMX-2000 working temperature: Operating temperature range is -10°C to 50°C . Storage temperature range is -20°C to 60°C. Discharge temperature range is 0°C to 40°C.
The use of any batteries or accessories not originally sold or manufactured by ADLINK may cause damage to the product.
The charging cradle only supports charging of two batteries simultaneously. Attempting to charge three or more batteries at the same time may damage the cradle or result in other safety risks.
Only connect one device to the DC adapter when charging the batteries as this may damage the cradle or result in other safety risks.
Do not power on the IMX-2000 if it is forbidden to use wireless equipment or if using such equipment will cause noise, interference or other dangers.
Wireless devices may suffer decreased performance due to electromagnetic interference.
Power off the IMX-2000 when refueling. Do not use the IMX-2000 in gas stations or when near flammables.
Power off the IMX-2000 in or nearby areas where blasting occurs and abide by related safety rules. Do not use the IMX-2000 in places with blasting operation.
Only authorized maintenance staff can repair the IMX-2000.
Before trying to connect the IMX-2000 to other devices, read the user manual for proper instructions. Do not connect the IMX-2000 to any incompatible products.
Do not stare into the scanner beam to avoid injury to your eyes. IMX-2000 User's Manual 4 Important Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.
Please read these safety instructions carefully.
Please keep this User‘s Manual for later reference.
The equipment can be operated at an ambient temperature of 50ºC for discharge; 40ºC for charge.
The equipment should be operated only from the type of power source indicated on the rating label. Make sure the voltage of the power source when connect the equipment to the power outlet.
If the equipment is not use for long time, disconnect the equipment from mains to avoid being damaged by transient overvoltage.
All cautions and warnings on the equipment should be noted.
Please keep this equipment from humidity.
Do not use this equipment near water or a heat source.
Never pour any liquid into opening; this could cause fire or electrical shock.
Openings in the case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space around the system for ventilation when you set up your work area. Never insert objects of any kind into the ventilation openings.
To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before removing covers.
If one of the following situations arises, get the equipment checked by a service personnel: A. Liquid has penetrated into the equipment. B. The equipment has been exposed to moisture. C. The equipment has not work well or you can not get it work according to user‘s manual. D. The equipment has dropped and damaged. E. If the equipment has obvious sign of breakage.
Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
“CAUTION – Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions” IMX-2000 User's Manual 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connect…

Text truncated - open the document above for the full version.

ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Date：March 7, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: X4D-IMX-2000 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ADLINK TECHNOLOGY INC. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, ----------------------------------------- Name/Title: Sean Ba / Senior Engineer Company Name: ADLINK TECHNOLOGY INC. Address: 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan TEL: +886-2-8226-5877#8361 FAX: +886-2-8226-5730 Email: [email protected]

ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Date: April. 02, 2013 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: X4D-IMX-2000, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: ADLINK / IMX-2000 FCC ID: X4D-IMX-2000 Product Name: Rugged Handheld Device Regards, ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Name/Title: Sean Ba / Senior Engineer Company Name: ADLINK TECHNOLOGY INC. Address: 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan TEL: +886-2-8226-5877#8361 FAX: +886-2-8226-5730 Email: [email protected]

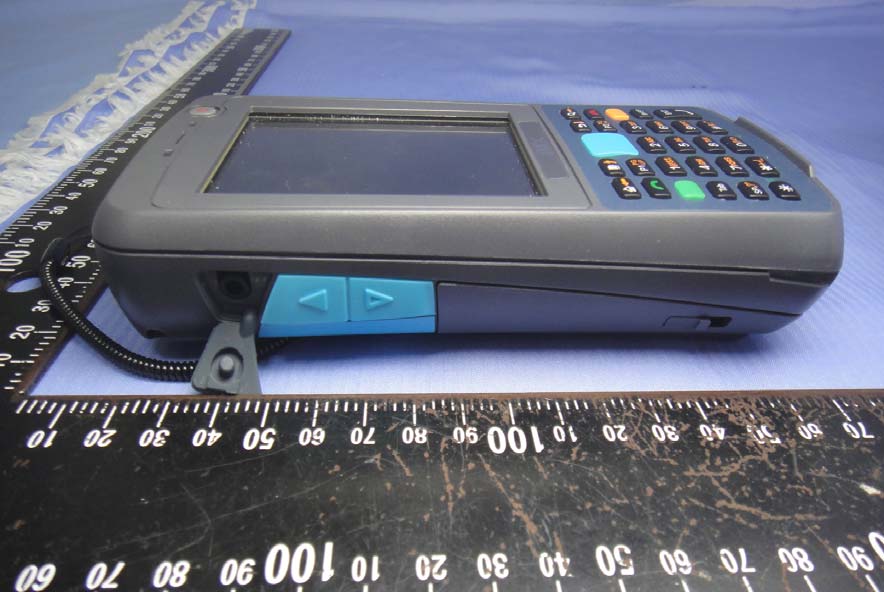

Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 1 / 16 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 2 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 3 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 4 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 5 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 7 Rev. 00


Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T121221D03 Date of Issue: February 5, 2013 A1 - 16 Rev. 00

Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 81 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Rugged Handheld Device Model: IMX-2000 Tra d e Na me: Issued to ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District New Taipei City 235, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: February 4, 2013 Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 4, 2013 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION.....................................................................................................................6 3.2 EUT EXERCISE.................................................................................................................................6 3.3 GENERAL TEST PROCEDURES..........................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................7 3.5 DESCRIPTION OF TEST MODES........................................................................................................8 4. INSTRUMENT CALIBRATION.....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY ..........................................................................................10 5. FACILITIES AND ACCREDITATIONS .....................................................................................11 5.1 FACILITIES ....................................................................................................................................11 5.2 EQUIPMENT...................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................13 6.1 SETUP CONFIGURATION OF EUT....................................................................................................13 6.2 SUPPORT EQUIPMENT ............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS..........................................................................................14 7.1 20 DB BANDWIDTH..................................................................................................................14 7.2 PEAK POWER.................................................................................................................................21 7.3 BAND EDGES MEASUREMENT .............................................................................................22 7.4 FREQUENCY SEPARATION ....................................................................................................40 7.5 NUMBER OF HOPPING FREQUENCY....................................................................................45 7.6 TIME OF OCCUPANCY (DWELL TIME) ................................................................................50 7.7 SPURIOUS EMISSIONS .............................................................................................................58 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................76 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................79 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: ADLINK TECHNOLOGY INC. 9F, No.166 Jian Yi Road, Zhonghe District New Taipei City 235, Taiwan Equipment Under Test: Rugged Handheld Device Tr a d e N a m e : Model: IMX-2000 Date of Test: January 15 ~ 31, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements set forth in the above standards. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certif…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 79 Rev.00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 80 Rev.00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: X4D-IMX-2000 Report No.: T121221D03-RP1 Page 81 Rev.00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
