X5NLBI-023Wii Remote

Wii Remote Controller I . BRIEF INTRODUCTION Wii Remote CONTROLLER is specially designed for Nintendo Wii. It support long distance wireless control, also provide with motion sense, shake and mini speaker. II . PRODUCT INTRODUCTION Package Content ： - Remote CONTROLLER r - User Manual 1. B BUTTON 2. SYNC BUTTON 3. POWER BUTTON 4. DIRECTION BUTTON 5. A BUTTON 6. + BUTTON 7. HOME BUTTON 8. - BUTTON 9. 1 BUTTON 10. 2 BUTTON 11. IV LED 12. III LED 13. II LED 14. I LED III . PRODUCT FEATURES 1. Continuous playing for up to 6 hours by 2 AA Alkaline batteries 2. Support multiple signal transmissions without interference 3. Infrared transmission: long distance up to three meters 4. Bluetooth transmission: long distance up to eight meters 5. 3D Motion Sense, shake and audio output function 6. Sync button for synchronization IV . OPERATION INSTRUCTION 1. Sync Function Before using this product, please turn on the Wii console power first, and insert the battery to this remote controller. Press and button of this product, the four signal LEDs will flashing, and press the SYNC button on the Wii Console, them press the SYNC button on the back of this controller. After a few minutes, one of the signal LED will turn on, it indicate the controller already successful connect to the Wii Console. 2. 3D Motion Sense and Shake Function Use the controller control the 3d direction and feel the shake. (The Game need support the 3d motion sense and shake function) 3. Audio Output Function This controller integrated with a mini speaker. (The Game need support the speaker function) 4. Infrared Transmission Please keep the distance between controller and console in three meters when use the controller selecting game/console options. 5. Bluetooth Transmission All games support the Bluetooth transmission function. V . PRECAUTION: 1. In order to avoid the interference, don’t use this game controller with any other electronics which use the same radio frequency at the same time. 2. Please make sure there is no action or pressure on any of the controls or buttons on the game controller before switching on the game controller and the game consoles. 3. Don’t dismantle the game controller without permission. 4. Your controller should be situated away from heat sources such as radiators and heaters. 5. Keep your controller dry and av oid contacting with damp or wet areas. 6. Please do not use batteries of different types at the same time. 7. Please do not use a new battery and used battery at the same time. 8. If the battery power is low, please change the battery immediately. 9. If you do not use your game controller for a while, please unload the battery to protect the game controller. 10. Please read this user manual care fully before the installation of your controller. FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pu rsuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resident ial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not o ccur in a particular installation. If this equipment does cause harmful in terference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

24MHz

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007

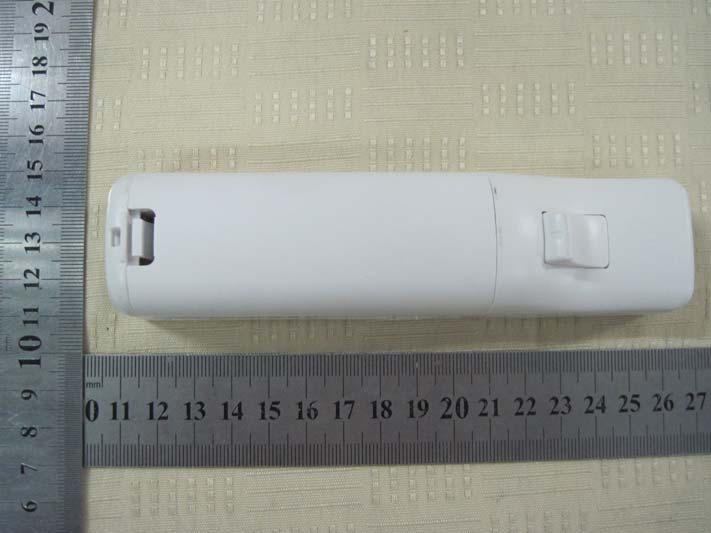

External of EUT External of EUT

FCC ID Label FCC ID: X5NLBI-023 Made in China

FCC ID Label Location Proposed Label Location on EUT

Internal of EUT Internal of EUT

1. Wii Remote applies to Wii Player console. It uses Bluetooth wireless communications to contact with the host. The built-in CMOS sensor detects infrared light, and then the sound modules convey the induced sound that sent out from the Wii player console. To further increase the game's fun. 2. Provide 13 digit keypad Front keys: Wii console power, Cross keypad: (up, down, left, right), “A”, “+”, “Home”, “-“, “1”, “2”. Rear keys: B, Register. 3. Wii Remote supplied by 1.5V*2 batteries. The working voltage range is 2.8V to 3.0V and the working current range is 70mA±10mA. 4. Distance range of qualitative use is 50cm to 6m(visually variation), the distance of sound use may further than 6m in the case of non-barrier. 5. Antenna Style: PCB trace antenna.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 19-May-2009 Sheet of File: F:\ 工作文件 \ 双面 REMOT E\PCB\do ubl e remo te.dd b Drawn By: SW6 2 SW7 1 S12 SYNC SW11 HOME P0-0 SW5 + SW10 - SW1LEFT SW9 A SW2RIGHT SW3 DOWN SW4 UP SW13 ON/OFF SW8 B P2-4 VDDA R4 470R D7 P3-4 D5 D8 D6 R2 470R R5 470R R3 470R P3-2 P1-3P1-2 123456 J2CON6 GND 8 SDA 7 SCL 6 SDA1 5 SCL1 4 RESET 3 VDD 2 GND 1 GND 9 CLK 10 GND 11 GND 12 GND 13 GND 14 GND 15 GND 16 J1 CURSOR SCL FIL3 BEAD SCL FIL6 BEAD SDA SDA P2-2 P3-5P3-3 P2-0 P1-4P2-5P1-5P1-6P1-7P2-1P1-1P1-0 V3.0V FIL5 BEAD FIL4 BEAD g1 1 g2 2 3.3V 3 GND 4 NC 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC 11 Sleep 12 Z 13 X 14 Y 15 NC 16 U8 V3.0V P4-5 P4-2 P4-3 C50 104P V3.0V CE 1 VOUT 2 NC 3 GND 4 LX 5 U2 QX2301 3.0V L3 33UH D1 RB551 C10 10UF C49 47UF C1 104P Q21 SI2305DS +3.0V Q5DTC115EKA R2133K T2 V3.0V C63 104P BT1.5V*2 F1 300OHM/600MA C12104P R39 0R V1.8-3.3V V1.8-3.3V C7 0.22UF C8 0.22UF C9 0.22UF P4-3P4-2P4-5 RESET-N Vset0 1 Gnd 2 Reset 3 Vdd 4 Vset2 5 Vset1 6 U1 RT9801PBE V1.8-3.3V B 1 C 2 E 3 Q2 2N3904 D10RB521 VDDA C36 10UF A - + M1 MOTOR SERVO P3-1 C4 10UF R20 470R P4-1 V3.0V FIL2 BEAD F3 1000 OHM/500MA P0-1 C55 3300UF R37 0R R1710R C5613P P2-6 SDA1SCL1 R15 4.7K C37 104P Power Manage MODULE +3.0V R32 10K Camera Lens MODULE Key-Press MODULE LED MODULE Connecter MODULE Motor MODULE R52 33R G-Sensor MODULE R22 100K C16104P V3.0V C51 104P SCLSDA C21 10UF R9 144K 1% AUDIO MODULE LS SPEAKER PTA5 1 PTA4 2 VDD 3 VSS 4 EXTAL 5 XTAL 6 PTB5 7 PTB4 8 PTB3 9 PTB2 10 PTB1 11 PTB0 12 PTA3 13 PTA2 14 PTA1 15 PTA0 16 U6 GH8848 V3.0V CLK VDD 1 PWM1 2 PWM2 3 NC 4 PA0 5 PA1 6 PA2 7 PA3 8 PA4 9 PA5 10 PA6 11 PA7 12 PB1 13 RES 14 OSC1 15 GND 16 U7 GH7824 V3.0V TP1TP2 C28 104P VDDA V3.0V VDDA R38100K SCLSDA +3.0V C55 10UF P0-0 P3-2P2-0 GND 1 P1-5 2 1.8V OUT 3 P2-4 4 P2-2 5 P1-6 6 P1-7 7 P2-1 8 VBAT IN 9 P3-5 10 P3-4 11 P3-3 12 P3-2 13 P1-3 14 P2-0 15 P1-2 16 P1-4 17 P1-1 18 P1-0 19 P2-7 20 P2-6 21 P4-4/DET 22 ANT 23 GND 24 P4-5 25 P4-3 26 P4-2 27 REST2 28 P4-1 29 GND 30 P2-5 31 P0-3 32 AVDD OUT 33 P0-2 34 RESET-N 35 P3-1 36 TX 37 RX 38 +3.0V IN 39 P0-0 40 P3-0 41 P0-1 42 SCL 43 SDA 44 U11 GH2703A ANT P2-4 T2 P1-5P2-2P1-6P1-7P2-1P3-5P3-4P3-3P1-3P1-2P1-4P1-1P1-0P2-6 P4-5P4-3P4-2P2-5P3-1 TP3TP4 P0-1 RESET-N R710K R1 10K V3.0V Bluetooth MODULE P4-1 E88-5.4A SCH/REMOTE FIL1 181 OHM C610UF

SHENZHEN EMTEK CO., LTD. REPORT NO: E0912161F FCC ID: X5NLBI-023 DATE: 01/25/2010 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C AND CANADIAN RSS-210 ISSUE 6 REQUIREMENT OF Wii Remote MODEL No.: LBI-023 FCC ID: X5NLBI-023 REPORT NO: E0912161F ISSUE DATE: January 25, 2010 Prepared for SHENZHEN XINGDASHINE ELECTRONICS CO., LTD. D3 East Xintang Industrial Zone, Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO:E0912161F FCC ID: X5NLBI-023 DATE: 01/25/2010 Page 2 of 19 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN XINGDASHINE ELECTRONICS CO., LTD. D3 East Xintang Industrial Zone, Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China Product Description: Wii Remote Model Number: LBI-023 File Number: E0912161F Date of Test: December 24, 2009 to January 22, 2010 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. also, the model complies with Canadian RSS-210 Issue 6 standard. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee / Q.A. Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO:E0912161F FCC ID: X5NLBI-023 DATE: 01/25/2010 Page 3 of 19 Table of Contents 1. GENERAL INFORMATION ................................................................................................. 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................... 4 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S ) ..................................................................................................... 4 1.3 T EST M ETHODOLOGY .............................................................................................................................. 4 1.4 S PECIAL A CCESSORIES ............................................................................................................................ 4 1.5 E QUIPMENT M ODIFICATIONS .................................................................................................................. 4 1.6 T EST F ACILITY ........................................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT C ONFIGURATION ............................................................................................................................. 6 2.2 EUT E XERCISE ........................................................................................................................................ 6 2.3 T EST P ROCEDURE .................................................................................................................................... 6 2.4 L IMITATION ............................................................................................................................................. 6 2.5 C ONFIGURATION OF T ESTED S YSTEM ..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. RADIATED EMISSION TEST ............................................................................................ 11 5.1 MEASUREMENT PROCEDURE................................................................................................................. 11 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ....................................................................... 11 5.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 12 5.4 OUT OF BAND RADIATED MEASUREMENT RESULT.............................................................................. 12 5.5 R ADIATED M EASUREMENT P HOTOS : ................................................................................................... 18 6. ANTENNA APPLICATION ........................................................................................................... 19 6.1 A NTENNA REQUIREMENT ........................................................................................................................... 19 SHENZHEN EMTEK CO., LTD. REPORT NO:E0912161F FCC ID: X5NLBI-023 DATE: 01/25/2010 Page 4 of 19 1. GENERAL INFORMATION 1.1 Product Description The SHENZHEN XINGDASHINE ELECTRONICS CO., LTD. Model: LBI-023 (referred to as the EUT in this report) The EUT is an short range, lower power, Wii Remote designed as an “Input Device”. It is designed by way of utilizing the GFSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 2402MHz-2480MHz B). Modulation: GFSK C). Number of Channel: 79 D). Antenna Designation: PCB trace antenna E). Duty cycle: 100% F). Transmitter power: max 0dBm G).Power Supply: DC 2*1.5V Battery 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: X5NLBI-023 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules and RSS-210, The composite system (receiver) is compliance with Subpart B is authorized under a DoC procedure. 1…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST
