X5NLBP-024PS3 wireless controller

Wireless Controller for PS3 BRIEF OVERVIEW The PS3 wireless controller is specially de signed for the Sony PS3. It uses 2.4 GHz radio frequency (RF) with 3D motion sensor & rumble technology. PRODUCT INTRODUCTION Package Content ： - PS3 wireless CONTROLLER x 1 - Wireless Receiver x 1 - User Manual x 1 Requires x2 AAA Batteries (Batteries not included) PRODUCT FEATURES 1. Support multiple signal transmissions without interference; 2. Support Digital Mode and Analog Mode 3. Operation distance up to 10 meters; 4. Controller 3D Motion Sensor 5. Controller Rumble OPERATION INSTRUCTIONS 1. Connect RF receiver with PS3 Game Console & Controller Plug the receiver into the USB port of the PS3 game console and then turn on the console, you will find the Red LED on the receiver flashing, press the CONNECT button on the receiver first and then switch the controller ON, press the controller SELECT and L3 button together for three seconds let go, the receiver will then automatically search for the connecting signal from the wireless game controller. When the controller connects the receiver the Red LED will stay ON. After the controller successfully conne cts to the receiver, press the PS button to active the controller on PS3 console. To maintain the connection between the PS console and controller please leave the Wireless Receiver in the console at all times. Then when you restart your console and want to re-connect your controller press the PS button, and this will reactivate the controller. 2. Wireless Game Controller Power Control The power switch of the wireless game controller is situated at the back right side of the controller. Position the switch to “ON” to switch on the power and “OFF” to switch off the power. 3. 3D Motion Sensor Function & Rumble Use the controller 3d motion sensor to control the direction and rumble (the game should support the Sixaxis & DualShock3 function for this to work) Please switch on both functi ons using in “in game options menu” 5. Operation on PS3 console a. Press the PS button when entering the game, choose the “Assign Controllers Ports” on the function menu, then press the X button once, the PS3 will give you a number menu to choose, use the up/down button on the controller to choose the port, and press X button to confirm, now the indicator LED on th e controller will turn on, it means the controller already setup successful, then press the X button back to the game. b. A list of channels with its corresponding LED indicators is as follows Channel 1 - LED Indicator 1 Channel 2 - LED Indicator 2 Channel 3 - LED Indicator 3 Channel 4 - LED Indicator 4 Channel 5 - LED Indicator 1 & 4 Channel 6 - LED Indicator 2 & 4 Channel 7 - LED Indicator 3 & 4 PRECAUTIONS AND MAINTENANCE Please review the following guidelines to ensure optimal performance of the product. 1. Please make sure there is no ex treme pressure put on this product. 2. Don’t dismantle this product without permission. 3. This product should be situated away from heat sources such as radiators and heaters. 4. Keep this product dry and avoid contacting with damp or wet areas. PlayStation3/PS3 is a registered trademark of Sony Computer Entertainment Inc "Polaroid" and "Polaroid and Pixel" are trademarks of PLR IP Holdings, LLC. FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation. Changes or modifications not ex pressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Re orient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007

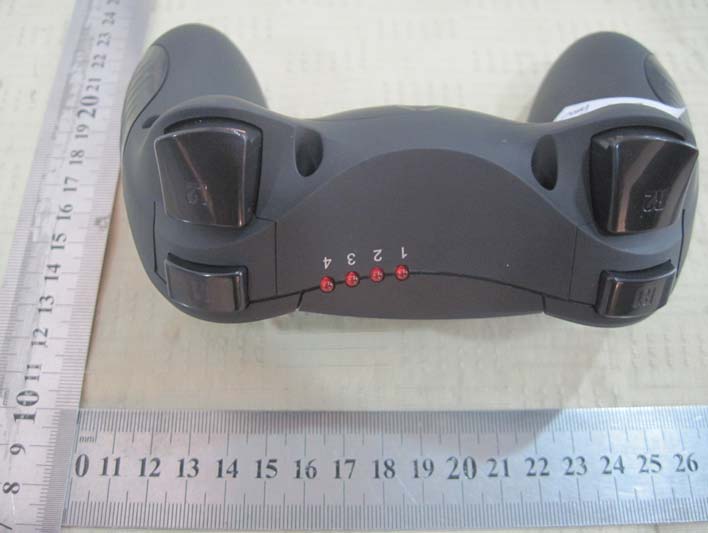

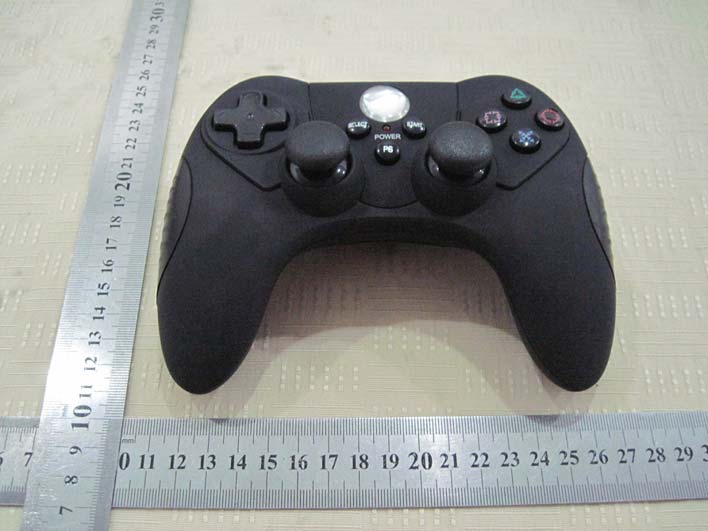

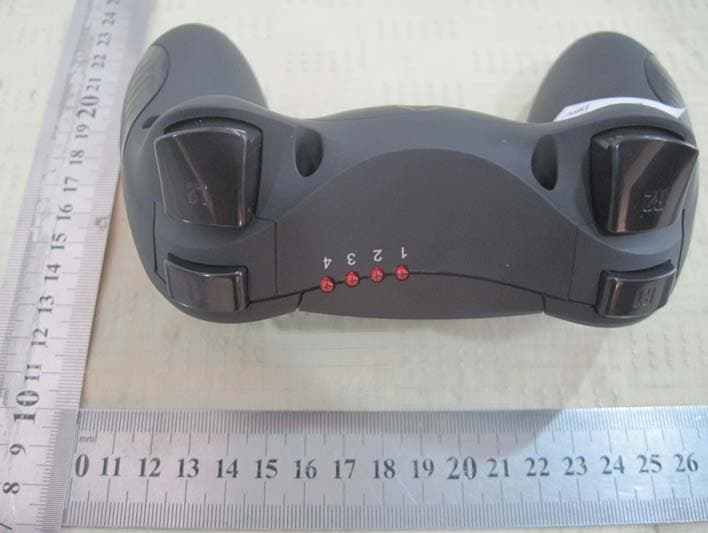

External of EUT External of EUT

FCC ID Label FCC ID: X5NLBP-024 Made in China

FCC ID Label Location Proposed Label Location on EUT

Internal of EUT Internal of EUT

When the handle is power up, 12MHZ crystal Kai oscillator, U1 and modules start to work, now the handle is in search state, LED lights are flashing, (Note: U1 searches to communication channels through the RF module by frequency-hopping modulation, and issues the connection command. Once the handle searched the target device, U1 will determine whether connect to it, if connect, then instruction through the LED lighting always, U1 will produce a random code and stored it in U2. The receiver will issue a request for Axis values and key commands, waiting for the the Axis value and key value of the handle input. If there are key inputs at this time, U2 will process and send these values to module, the values are modulated by the module with 50-ohm antenna. The receiver will estimate and process the receiving values and then send them to the host.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:3-Feb-2010 Sheet of File:C:\Documents and Settings\Administrator\桌面\LBP-024原理图\PS3TX~1.DDBDrawn By: U-comm_RF_Device_Ps3Pad_Sgn6210 Ver1.1 1 / 1 VCC R42 1K C4 823(5%)-Mylar SW1 Select SW2 Start SW3 PSButton R5 10K R43 1K R10 10K AD D4D3 X1 12M C1 15pF C2 15pF 12345678 J3 Left_stick 12345678 J4 Right_Stick AD 12345678 JP3 Left_stick SW5 L3 LY 10K LX 10K 12345678 JP4 Right_stick SW6 R3 RY 10K RX 10K LEFT 10K UP 10K RIGHT 10K DOWN 10K CRO/A/A 10K SQU/X/B 10K TRI/Y/Y 10K CIR/B/X 10K AD AD R1_key 10K R2_key 10K L2_key/White/Z 10K L1_key 10K R13 10K C3 104 R40 1K R41 1K D6D5 C5 104 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U2 Atmel24C02VCC 123456 J2 MA5826A0-M VCC IIC_SDA/SIIIC_SCL R110K VCC C15 104 BT1 2*1.5V +C10 47uF R11 220k R12 300k D7 1N5817 L1 100UH D8 1N4148 C11 104 +C14 100uF C13 104 +C12 47uF Vout 3 Vin 2 GND 1 U3 BL8503-33 VPP Vout 2 SW 3 GND 1 U4 AIC1642-33 Spi_Mosi(BDDATA) Uart_CSUart_Data R356K R256K VCC POWER SW1 Q1 NC R19 NC Q2 NC R17 NC D10 NC D9 NC 1 2 M1 1 2 M2 C20 NC C21 NC VPP R15 330K R14 360k VPP the component in the dashed line only used for motor vibration R6 4.7K Fifo_flag(Bxtlen) Spi_Miso(BData1) Spi_clk(BDCLK) Reset_n(Bnpwr) Spi_Mosi(BDDATA) PKT_flag(BPKTCTL) Spi_ss(BnDEN) R756K Spi_clk(BDclk) Reset_n(Bnpwr) Spi_Miso(BData1) Fifo_flag(Bxtlen) 1 2 3 4 5 6 7 8 9 10 11 RF RF Module Spi_Mosi(BDDATA) VCC used for large rf module Spi_ss(BnDEN) PKT_flag(BPKTCTL) Uart_Data AD VSS 41 INT 42 DATA 43 CLK 44 P90 1 P91 2 P92/SDI 3 P93/SDO 4 P50 7 P51 8 P54 11 P56 13 P57 14 P80 15 P81 16 P82 18 P83 19 P84 20 P85 21 P86 22 P87 23 P60 24 P61 25 P62 26 P63 27 P64 28 P65 29 P66 30 P67 31 P72 32 P71 33 P70 34 VDD 38 OSCI 39 OSCO 40 P94/SCLK 5 P95/SS 6 P52 9 P53 10 P55 12 NC 17 NC 37 NC 35 NC 36 U1 5852O097AB-D R1 R1 1 2 3 4 5 6 7 8 910 11 12 13 14 15 16 17 18 U5 NC ADC2 ADC3 CS POWER SAVE SEN0 SEN1 X3O X3I ADC0 ADC1 VCC C35 NC C34 NC VCC VCC X3 NC R34 NC R36 NC R33 NC R35 NC VCC ADC0 ADC1 POWER SAVE 1 2 3 4 5 NC Right Sensor POWER SAVE ADC2 ADC3 C36 NC C37 NC VCC VCC Uart_Data Uart_Data Uart_CS IIC_SCL IIC_SDA/SI 1 2 3 45 6 7 8 LEFT SENSOR NC R44 1K D1 UnRegistered

SHENZHEN EMTEK CO., LTD. REPORT NO:E1001109F FCC ID: X5NLBP-024 DATE: 02/03/2010 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C AND CANADIAN RSS-210 ISSUE 6 REQUIREMENT OF PS3 wireless controller MODEL No.: LBP-024 FCC ID: X5NLBP-024 REPORT NO: E1001109F ISSUE DATE: February 03, 2010 Prepared for SHENZHEN XINGDASHINE ELECTRONICS CO., LTD. D3 East Xintang Industrial Zone, Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO:E1001109F FCC ID: X5NLBP-024 DATE: 02/03/2010 Page 2 of 19 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN XINGDASHINE ELECTRONICS CO., LTD. D3 East Xintang Industrial Zone, Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China Product Description: PS3 wireless controller Model Number: LBP-024 File Number: E1001109F Date of Test: January 23, 2010 to February 02, 2010 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. also, the model complies with Canadian RSS-210 Issue 6 standard. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee / Q.A. Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO:E1001109F FCC ID: X5NLBP-024 DATE: 02/03/2010 Page 3 of 19 Table of Contents 1. GENERAL INFORMATION ................................................................................................. 4 1.1 P RODUCT D ESCRIPTION ........................................................................................................................... 4 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S ) ..................................................................................................... 4 1.3 T EST M ETHODOLOGY .............................................................................................................................. 4 1.4 S PECIAL A CCESSORIES ............................................................................................................................ 4 1.5 E QUIPMENT M ODIFICATIONS .................................................................................................................. 4 1.6 T EST F ACILITY ........................................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT C ONFIGURATION ............................................................................................................................. 6 2.2 EUT E XERCISE ........................................................................................................................................ 6 2.3 T EST P ROCEDURE .................................................................................................................................... 6 2.4 L IMITATION ............................................................................................................................................. 6 2.5 C ONFIGURATION OF T ESTED S YSTEM ..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. RADIATED EMISSION TEST ............................................................................................ 11 5.1 MEASUREMENT PROCEDURE................................................................................................................. 11 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ....................................................................... 11 5.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 12 5.4 OUT OF BAND RADIATED MEASUREMENT RESULT.............................................................................. 12 5.5 R ADIATED M EASUREMENT P HOTOS : ......................................................................................................... 18 6. ANTENNA APPLICATION ........................................................................................................... 19 6.1 A NTENNA REQUIREMENT ........................................................................................................................... 19 SHENZHEN EMTEK CO., LTD. REPORT NO:E1001109F FCC ID: X5NLBP-024 DATE: 02/03/2010 Page 4 of 19 1. GENERAL INFORMATION 1.1 Product Description The SHENZHEN XINDASHINE ELECTRONICS CO., LTD. Model: LBP-024 (referred to as the EUT in this report) The EUT is an short range, lower power, PS3 wireless controller designed as an “Input Device”. It is designed by way of utilizing the GFSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 2402MHz-2483.5MHz(Channel 0: 2402MHz, Channel 39: 2441MHz, Channel 79: 2481MHz) B). Modulation: GFSK C). Number of Channel: 80 D). Antenna Designation: Internal E). Duty cycle: 100% F). Rated RF Output Power: Less than 1mW G). Power Supply: DC 2*1.5V Battery 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: X5NLBP-024 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules and…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST
