X5YF567DHDERBS ECOS-D VHF A2T

Selex ES SPA
RBS ECOS-D VHF A2T - FCC ID X5YF567DHDE - Selex ES SPA
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Mar 07, 2010
Application Purpose
Original Equipment
Date of Application
Feb 04, 2010
Equipment Note
RBS ECOS-D VHF A2T
Frequency Range
150.00000000 - 174.00000000
Company
Selex ES SPA
Country
Italy

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Installation, configuration and maintenance ECOS-D Digital Simulcast Technology Radio Base Station Guide SELEX Communications Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by SELEX Communications S.p.A. in writing 2 January 2010 REVISION TABLE Date Revision Comment 21/01/2010 1 First issue Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by SELEX Communications S.p.A. in writing. SELEX Communications S.p.A. reserves the right to alter without notice the specification, design or conditions of supply of any product or service. SELEX Communications logo is a trademark of SELEX Communications S.p.A. Printed in Italy. © SELEX Communications S.p.A. All Rights reserved. SELEX Communications Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by SELEX Communications S.p.A. in writing 3 January 2010 Summary 1. Scope ............................................................................................................................................................... 5 2. First aid for electrical shock and safety rules................................................................................................ 5 2.1 First aid for electrical shock ................................................................................................................. 5 2.1.1 Artificial respiration ........................................................................................................................ 5 2.1.2 Treatment of burns........................................................................................................................... 5 2.2 Product Safety and RF Exposure Compliance.................................................................................... 7 2.2.1 RF Exposure Compliance ................................................................................................................ 7 2.2.2 Electrostatic protection .................................................................................................................... 7 3. Technical/Environmental Specification ........................................................................................................ 8 4. Device Assembly and composition ................................................................................................................. 9 5. Installation .................................................................................................................................................... 12 5.1 Overview............................................................................................................................................... 12 5.1.1 Installation Pre-requisites .............................................................................................................. 12 5.1.2 Unpack........................................................................................................................................... 12 5.1.3 Mechanical installation .................................................................................................................. 13 5.1.4 Electrical wiring ............................................................................................................................ 14 5.1.5 Unit grounding............................................................................................................................... 14 5.1.6 DC input ........................................................................................................................................ 15 5.2 Radio Interfaces................................................................................................................................... 16 5.2.1 Dual N type connector ................................................................................................................... 16 5.3 Line interfaces...................................................................................................................................... 17 5.3.1 4W and 4W+E/M Link .................................................................................................................. 17 5.3.2 AF in/out........................................................................................................................................ 24 5.4 Syncronization Interfaces ................................................................................................................... 28 5.4.1 Main GPS Interface ....................................................................................................................... 28 5.5 Other Interfaces................................................................................................................................... 29 5.5.1 Door break-in................................................................................................................................. 29 5.5.2 LAN Interface................................................................................................................................ 30 5.5.3 Serial Interface............................................................................................................................... 32 SELEX Communications Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by SELEX Communications S.p.A. in writing 4 January 2010 5.5.4 Auxiliary Serial Interface .............................................................................................................. 34 5.5.5 Digital Input/Output Interface ....................................................................................................... 37 5.5.6 Local Microphone Interface ........................................................................................................…

Text truncated - open the document above for the full version.

External Photos

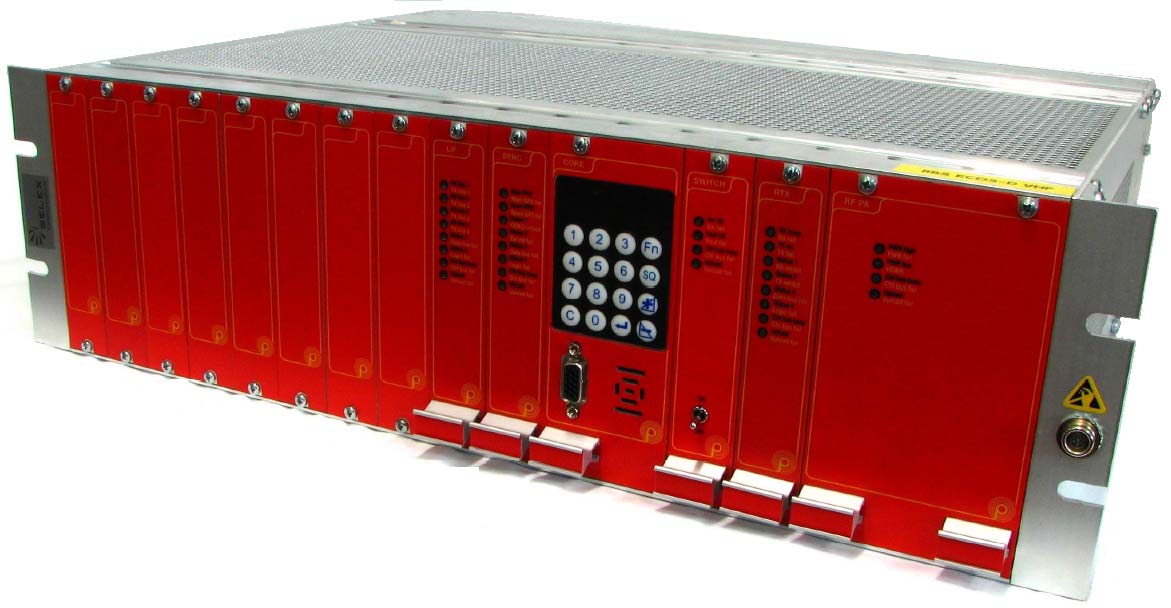

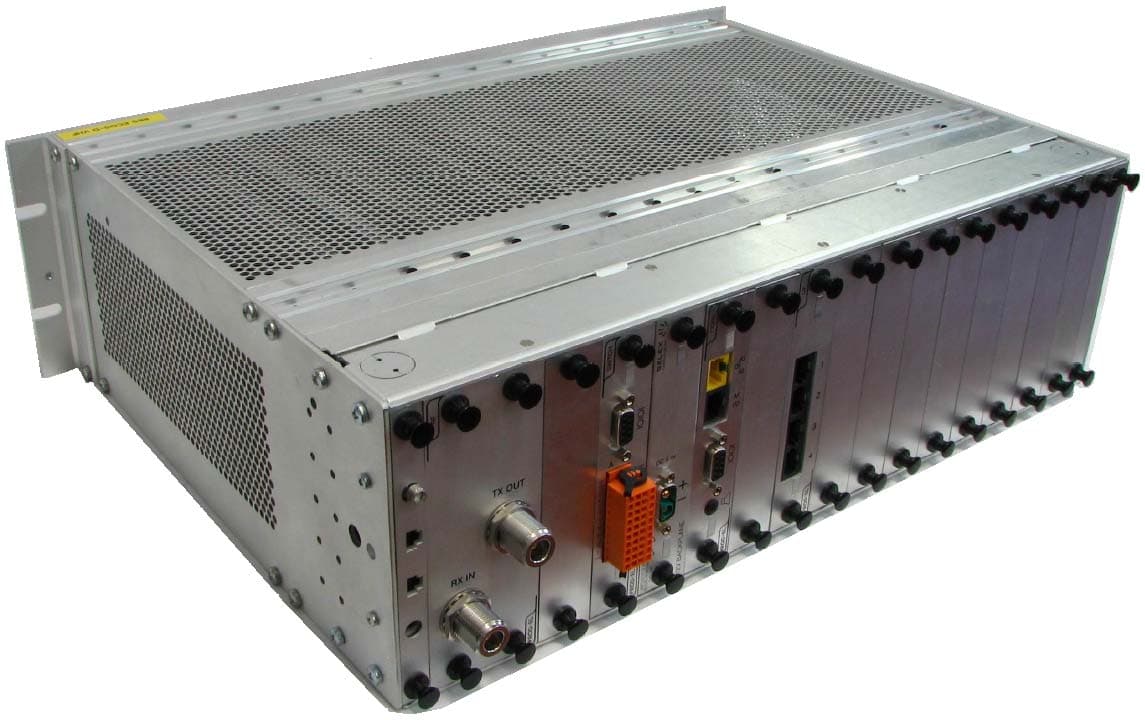

FCC ID: X5YF567DHDE Product Name: RBS ECOS-D VHF A2T External Photos FRONT VIEW REAR VIEW

ID Label/Location Info

FCC ID: X5YF567DHDE Product Name: RBS ECOS-D VHF A2T FCC ID Label Format and Location FORMAT The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic. LOCATION A nameplate of the type presented above will be affixed to every transmitter. It will be placed on the left front portion of the unit. Shown below is a diagram of the actual label affixed to the cast chassis of the transmitter. 1.5 inches 0.5 inches

Test Report

www.nemko.com Nemko Italy S.p.A., Via del Carroccio 4, 20046, Biassono, Italy. Report number: 142739-2TRFWL Apparatus: RBS ECOS-D VHF A2T Applicant: Selex Communications Spa Via Palmanova, 185 I 20132 Milano FCC ID: X5YF567DHDE Test specification: Title 47-Telecommunication Chapter I - Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services − Subpart I – General technical standards Reviewed by: 2010/02/12 Signature Date P. Barbieri, Wireless/EMC Specialist Tested by: 2010/02/12 Signature Date G. Curioni, Wireless/EMC Specialist Nemko S.p.A. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko S.p.A. accepts no responsibility for damages, if any suffered by any third party as a result of decisions made or actions based on this report. This report shall not be reproduced except in full without the written approval of the testing laboratory. Report Number: 142739-2TRFWL Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Specification: FCC 90 Page 2 of 72 Table of contents Section 1: Report summary................................................................................................................... 3 Section 2: Equipment under test .......................................................................................................... 4 2.1 Identification of equipment under test (EUT) ............................................................................ 4 2.2 Accessories and support equipment......................................................................................... 4 2.3 EUT description ........................................................................................................................ 5 2.4 Technical specifications of the EUT.......................................................................................... 5 2.5 EUT setup diagram .................................................................................................................. 6 2.6 Operation of the EUT during testing ......................................................................................... 6 2.7 Modifications incorporated in the EUT ...................................................................................... 6 Section 3: Test conditions .................................................................................................................... 7 3.1 Deviations from laboratory tests procedures............................................................................. 7 3.2 Test conditions, power source and ambient temperatures........................................................ 7 3.3 Measurement uncertainty ......................................................................................................... 8 3.4 Test equipment......................................................................................................................... 8 Section 4: Result summary ................................................................................................................... 9 4.1 FCC Part 90: Test results ......................................................................................................... 9 Appendix A: Test results ..................................................................................................................... 10 Clause 90.205 Output power............................................................................................................ 10 Clause 90.207 Modulation characteristics ........................................................................................ 12 Clause 90.209 Occupied bandwidth ................................................................................................. 20 Clause 90.210 Spurious emissions at the antenna terminal ............................................................. 34 Clause 90.210 Field strength of spurious radiation........................................................................... 46 Clause 90.213 Frequency stability.................................................................................................... 53 Clause 90.214 Transient frequency behavior ................................................................................... 56 Clause 90.219 Use of boosters ........................................................................................................ 70 Appendix B: Block diagrams of test set-ups ..................................................................................... 71 Section 1: Report summary Report Number: 142739-2TRFWL Nemko Italy S.p.A. Via del Carroccio 4, 20046, Biassono, Italy. Specification: FCC 90 Page 3 of 72 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Italy SpA. Test specification: FCC Part 90 Private land mobile services Subpart I – General technical standards Compliance status: Complies Exclusions: None Non-compliances: None Report release history: Original release Test location: Nemko Italy S.p.A. Via del Carroccio 4, 20046, Biassono, Italy. Registration number: 481407 (10 m Semi anechoic chamber) These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with th…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Carmelo Augello
[email protected]+390691852476Fax: +390691852653

Technical Contact

Selex Communications LtdEnrico Tallone
[email protected]+30 0225928217

Via Palmanova 185 · Milano · Italy

Non-Technical Contact

Selex Communications SpACarmello Augello
[email protected]+390691852476

Test Firm

Nemko SpARoberto Franza
[email protected]39-0392201201Fax: 39-0392201221

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
49150 MHz - 174 MHz25 W11K0G3E1.5 ppm
Confidentiality
Long Term
Grant Notes
Power listed is conducted and is variable from 2 to 25 watts in 0.1 dB steps. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
