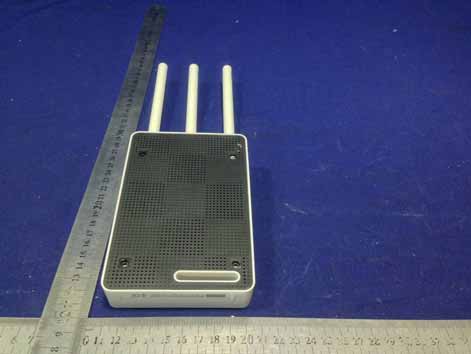

X7D-IP04213300Mbps Wireless N Router

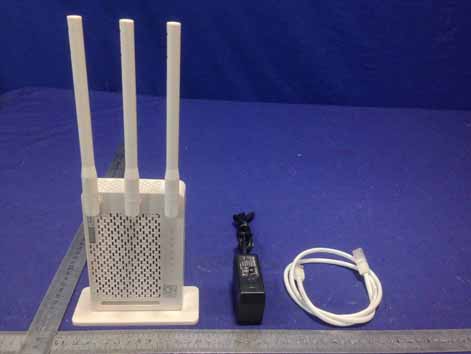

Contents: Wireless Broadband Router, Power adapter, QIG, UTP cable, Installation Helper CD. Hardware Installation If use ADSL access Internet, please comply with step 1, 2, 3, 4 in proper order in below diagram; If use residential broadband access Internet, please complay with step 2, 3, 4, connect your router WAN port to the residential broadband directly. After connected, please check if the indicator light is normal. Name WLAN indicator light WAN indicator light LAN indicator light CPU indicator light Normal Status Flashing while data access Light on or flashing The corresponding indicator light which connect to PC is on or flashing Flashing Note 1. Please disconnect the power adapter and all cable during thunderstorm; 2. Keep away from heat source and keep well ventilated; 3. Please pay attention to the waterproofing and moisture-proof when storing, transporting and running. 4. The power supply must reached the rated current and power. 5. Put the router in flat places. Set Up PC Windows 2000 or Windows XP Operating System, please comply with following steps to set up. Right-click “My Network Places”, click “Properties” Right-click “Local Area Connection”, click “Properties” Double-click “Internet Protocol (TCP/IP)” Choose “Obtain an IP address automatically” and “Obtain DNS server address automatically”, click “OK”; go back to previous interface and click “OK” Windows Vista or Windows 7 Operating System, please comply with following steps to set up. Click “Start— Control Panel— Network and Internet— Network Connection”, right-click “Local Area Connection”, and choose “Properties”. Double-click “Internet Protocol Version 4 (TCP/IPv4)” Choose “Obtain an IP address automatically” and “Obtain DNS server address automatically”, click “OK”; go back to previous interface and click “OK” Set Up Router Please set up the router as following steps. Run the Web browser. Telephone Wire Telephone Wire Telephone Wire Network Cable Network Cable Type 192.168.1.1 in the Web browser address bar, and press enter, then click “Setup Tool”. Input user name and password, and then click “OK”. (The default user name and password are “admin”.) Wireless Network Connection Right-click “My Network Places”, click “Properties” Right-click “Wireless Network Connection”, and click “View Available Wireless Networks” Confirm the wireless network SSID name, choose one that you would like to connect, then click “Connect” Input the encrytion key and click “Connect” Have connected wireless network, you can access Internet through wireless mode. For more information, please go to www.totolink.net Internet Access Mode DHCP PPPoE Static IP Parameters that provided by ISP (Service Provider) User name & Password Fixed IP address, Subnet mask, Default gateway and DNS server ISP do not provide any parameters, you can access Internet when without router, no need set up the PC. Access Internet Mode Judgement Method Internet Access Mode Settings Wireless Settings Router Security Settings LAN/DHCP Server Settings When power on, press the button for 5 seconds, the system will be restored to factory settings. Use auto setup wizard CD of TOTOLINK router, can help you to set up the router by one-click. Website: http://www.totolink.net Quick Installation Guide 300Mbps Wireless N Router ModelN302R Plus, IP04213 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 ZIONCOM ELECTRONICS (SHENZHEN) LTD. 2014-11-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ZIONCOM ELECTRONICS (SHENZHEN) LTD. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): 300Mbps Wireless N Router Model Namer : N302R Plus, IP04213 FCC ID: X7D-IP04213 Sincerely, Stone Xu/Product Manager E-mail: [email protected] Phone: +86-755-61363299 Fax: +86-755-61363322 Address: Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 ZIONCOM ELECTRONICS (SHENZHEN) LTD. 2014-11-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: X7D-IP04213 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Stone Xu/Product Manager E-mail: [email protected] Phone: +86-755-61363299 Fax: +86-755-61363322 Address: Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China

Family models declaration letter. 2014-11-15 We ZIONCOM ELECTRONICS (SHENZHEN) LTD. Of Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China address Declare under our sole responsibility that the product 300Mbps Wireless N Router Model Namer : N302R Plus, IP04213 FCC ID: X7D-IP04213 All models have the same constructions, circuit diagram and PCB layout. Only model name is different. Unless otherwise stated Thanks Sincerely, Stone Xu/Product Manager E-mail: [email protected] Phone: +86-755-61363299 Fax: +86-755-61363322 Address: Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China

ZIONCOM ELECTRONICS (SHENZHEN) LTD. Date: 2014-11-15 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: X7D-IP04213 To Whom It May Concern: This letter is to ascertain that ZIONCOM ELECTRONICS (SHENZHEN) LTD. 300Mbps Wireless N Router Model Namer : N302R Plus, IP04213 has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Stone Xu/Product Manager E-mail: [email protected] Phone: +86-755-61363299 Fax: +86-755-61363322 Address: Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China

40mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: N302R Plus Trade Name:TOTOLINK Product Name: 300Mbps Wireless N Router FCC ID: X7D-IP04213 20mm

Label Location

Wifi Module Antenna

FCC ID : X7D-IP04213 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 5.0dBi for per antenna 802.11b:Antenna 1 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 10.17 10.0±1 11.0 3.1623 0.0079 1 6 2437 9.80 10.0±1 11.0 3.1623 0.0079 1 11 2462 9.38 10.0±1 11.0 3.1623 0.0079 1 802.11b:Antenna 2 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 9.29 10.0±1 11.0 3.1623 0.0079 1 6 2437 9.07 10.0±1 11.0 3.1623 0.0079 1 11 2462 9.67 10.0±1 11.0 3.1623 0.0079 1 802.11g: Antenna 1 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 12.71 12.0±1 13.0 3.1623 0.0126 1 6 2437 11.70 12.0±1 13.0 3.1623 0.0126 1 11 2462 11.39 12.0±1 13.0 3.1623 0.0126 1 802.11g: Antenna 2 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 11.87 12.0±1 13.0 3.1623 0.0126 1 6 2437 12.28 12.0±1 13.0 3.1623 0.0126 1 11 2462 11.86 12.0±1 13.0 3.1623 0.0126 1 802.11n HT20: Antenna 1 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 10.43 10.0±1 11.0 3.1623 0.0079 1 6 2437 10.37 10.0±1 11.0 3.1623 0.0079 1 11 2462 9.63 10.0±1 11.0 3.1623 0.0079 1 802.11n HT20: Antenna 2 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 11.63 11.0±1 12.0 3.1623 0.0100 1 6 2437 11.40 11.0±1 12.0 3.1623 0.0100 1 11 2462 11.93 11.0±1 12.0 3.1623 0.0100 1 802.11n HT40 : Antenna 1 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 3 2432 12.60 13.0±1 14.0 3.1623 0.0158 1 6 2437 12.70 13.0±1 14.0 3.1623 0.0158 1 9 2452 13.89 13.0±1 14.0 3.1623 0.0158 1 802.11n HT40 : Antenna 2 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 3 2432 11.51 11.0±1 12.0 3.1623 0.0100 1 6 2437 11.45 11.0±1 12.0 3.1623 0.0100 1 9 2452 11.80 11.0±1 12.0 3.1623 0.0100 1 802.11n HT40 : Antenna 1+2 Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 3 2432 15.10 15.0±1 16.0 6.3096 0.0500 1 6 2437 15.13 15.0±1 16.0 6.3096 0.0500 1 9 2452 15.98 15.0±1 16.0 6.3096 0.0500 1

TRF No：FCC 15.247/A Page 1 of 69 Report No.: ES141023303E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For 300Mbps Wireless N Router MODEL No.: N302R Plus, IP04213 FCC ID:X7D-IP04213 Trade Mark: TOTOLINK REPORT NO.: ES141023303E ISSUE DATE: November 12, 2014 Prepared for ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 69 Report No.: ES141023303E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 6 4 TEST METHODOLOGY ........................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................. 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 8 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 9 5.1 FACILITIES ....................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................ 9 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ....................................................................................... 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 DTS (6DB) BANDWIDTH ................................................................................................................ 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER...................................................................... 26 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................... 27 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................... 40 8.5 RADIATED SPURIOUS EMISSION ................................................................................................ 49 8.6 CONDUCTED EMISSIONS TEST .................................................................................................. 66 8.7 ANTENNA APPLICATION ............................................................................................................... 69 TRF No：FCC 15.247/A Page 3 of 69 Report No.: ES141023303E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World 1 TEST RESULT CERTIFICATION Applicant: ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China Manufacturer: ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China EUT Description: 300Mbps Wireless N Router Model Number: N302R Plus, IP04213 File Number: ES141023303E Date of Test: November 1, 2014 to November 12, 2014 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : November 1, 2014 to November 12, 2014 Prepared by : Joe Xia/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 4 of 69 Report No.: ES141023303E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Z…

Text truncated - open the document above for the full version.

CONDUCTED EMISSIONS TEST RADIATED EMISSION TEST
