Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to Put into the CD Right-click the ralink icon on the desktop and choose Switch to AP Mode. Double-click the CD drive letter, choose the corresponding model No., then click “Install”. Choose TOTOlink /or Windows wireless LAN adapter configuration program, and click “Next”. Choose the installation type, and click “Next” Accept and click “Next” Click “Install” Click “Finish”, the driver program is installed successfully. Switch wireless LAN Adapter configuration program Wireless LAN adapter provides two wireless LAN adapter connection configuration programs, one is TOTOLINK wireless LAN adapter connection configuration program, another is Windows wireless LAN adapter connection configuration program. After soft AP setup, the persons around can search the SSID and access Internet after a successful connection establishment. Choose the wireless network which you would like to connect and click “Connect” Input WPAPSK secret key, click “Connet” Have connected the wireless network. Instruction of Install LAN Adapter Driver LAN Adapter Physical Connection Diagram LAN Adapter Windows Search Connection WEP/ WPAPSK Encryption Network Diagram Windows 7/Vista Connection Network Diagram Regional Channel in the computer settings LAN Adapter Windows Search Connection No Encryption Network Diagram TOTOLINK LAN Adapter Configuration Tool Search Connection Network Diagram Right-click “My Network Places”, and choose “Properties” Right-click “Wireless Network Connection”, choose “View available wireless connection” Confirm the SSID name of wireless network, choose the wireless network which you would like to connect and click “Connect” When the wireless network is connected, then you can access Internet. Right-click “My Network Places”, and choose “Properties” Right-click “Wireless Network Connection”, choose “View available wireless connection” Right-click “Network”,choose “Properties”. Click “Connect to a network”. Note Computer found the wireless LAN adapter hardware, have to install the driver. Click this icon and the wireless connection configuration windows will pop up. You can find2.4GHz & 5GHz band signal by the adapter, and the wireless connection methods are the same. Website: http://www.totolink.net Win 7/Vista Soft AP Setup PCTOTOLINK TOTOLINK Please follow these steps to setup Soft AP: As it’s a dual band wireless adapter, it can operate on both 2.4GHz&5GHz, we should setup wireless mode and select country region code manually. Follow these steps to set up your PC. Select the correct Channel according to you situation, then click the arrows icon again. 3 1 Right click “My Computerand select Manage. Choose Device Manageron the sidebar. 1 2 3 4 Choose the encryption mode and type for security. WPA-PSK and WPA2-PSK is recommended. Then click the arrows icon to finish AP setup. 4 Soft AP setup successfully and you can see the detail information in the interface . 5 Click the setup icon, and enter the SSID, then click the arrows icon to next step. 2 Click the add symbol beside “ Network adapter ”, and then right click “ 802.11ac Wireless LAN Card ”. Select “ properties ”. Click “Advanced” . You can select the option you want to change on the left and then choose the value on the right. Wireless Dual Band AC USB Adapter Model: A1000UA Method One: Connect the adapter and your computer with the provided USB cable. Method Two: Insert the adapter to the USB port of your computer directly. Wireless Network connected successfully. Enter the password and then click the arrows icon again. Double-click the SSID, and click the arrows icon. Connect to WPA-PSK/WPA2-PSK Encryption Wireless Network: Double-click the SSID. Wireless Network connected successfully. Click the available Networks icon. Connect to no encryption Wireless Network: Quick Installation Guide TOTOLINK TOTO LINK TOTOLINK Connect to No Encrytion Network Connect to Encrytion Network (WEP / WPAPSK) Finish Finish A1000UA A1000UA Thanks very much for purchasing TOTOLINK Wireless LAN USB Adapter. Before you connect this adapter to computer, you must prepare a wireless router or AP to make it work. Different Wireless router or AP may use different connection mode. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition…

Text truncated - open the document above for the full version.

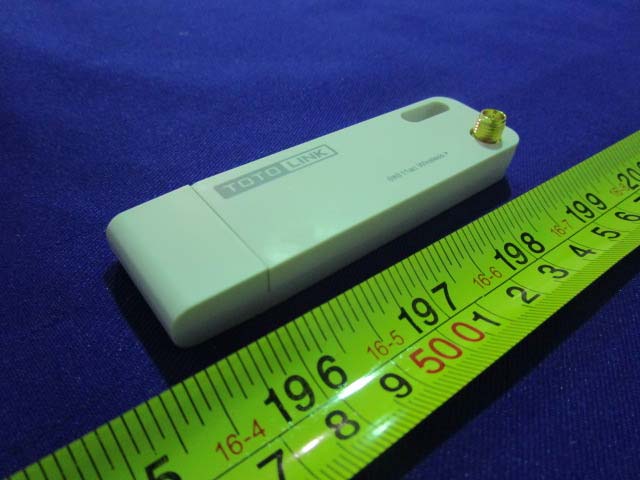

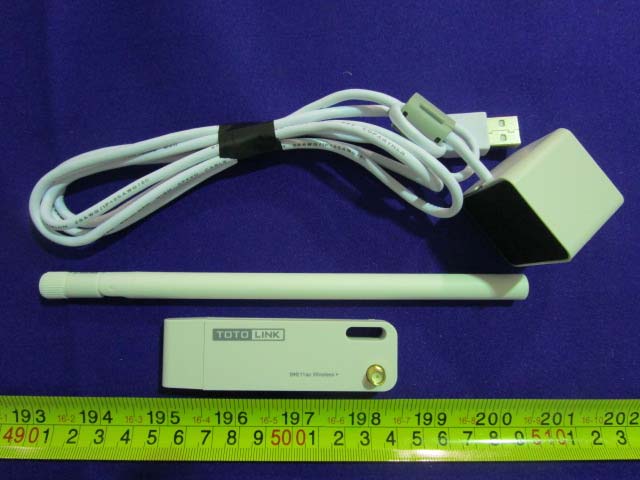

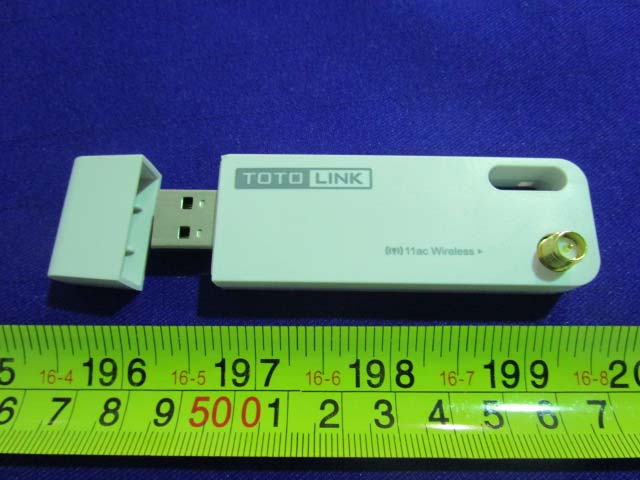

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT – Side View EUT – Side View EUT – Open View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT –RF Chip View EUT –Antenna View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 9 of 105 FCC §15.407 (f) - RF EXPOSURE Applicable Standard According to§15.407(f) U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB447498 D01 General RF Exposure Guidance v05r02: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Measurement Result For 5150-5250 MHz band: The maximum conducted output power= 7.61dBm (5.77mW) at 5230 MHz [(max. power of channel, mW)/(min. test separation distance, mm)] [√f(GHz)] = 5.77/5*(√5.230) = 2.64 < 3.0 For 5725-5850 MHz band: The maximum conducted output power= 7.59dBm (5.74mW) at 5825 MHz [(max. power of channel, mW)/(min. test separation distance, mm)] [√f(GHz)] = 5.74/5*(√5.825) = 2.77 < 3.0 So the stand-alone SAR evaluation is not necessary.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.407 TEST REPORT For ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen City, China Report Type: Original Report Product Type: AC600 Wireless Dual Band USB Adapter Test En gineer: Dean Liu Re port Number: RDG141110002-00B Re port Date: 2014-11-20 Reviewed By: Sula Huang RF Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: X7D-WL0273 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 2 of 105 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL CABLE ........................................................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.407 (f) - RF EXPOSURE ................................................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.407(b) (1) (6) (7) –UNWANTED EMISSION ........................................................... 16 APPLICABLE STANDARD .............................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 65 of 105 FCC §15.407(a) –EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH Applicable Standard 15.407(a) (e) Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Analyzer FSEM DE31388 2014-05-09 2015-05-09 * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). Test Procedure 1. According to KDB 789033 D02 General UNII Test Procedures New Rules v01 Test Data Environmental Conditions Temperature:25.4°C ~26.2 °C Relative Humidity: 47%~56 % ATM Pressure: 101.2 kPa ~101.6 kPa The testing was performed by Dean Liu from 2014-11-12 & 2014-11-19. Test Result: Pass. Please refer to the following tables and plots. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 66 of 105 Test mode: Transmitting 5150MHz-5250MHz: Mode Channel Frequency MHz 26 dB Bandwidth MHz 99% occupied bandwidth MHz Result 802.11a Low 5180 19.71 16.67 PASS Middle 5200 19.48 16.67 PASS High 5240 19.80 16.67 PASS 802.11n20 Low 5180 20.52 17.63 PASS Middle 5200 20.52 17.63 PASS High 5240 20.52 17.63 PASS 802.11n40 Low 5190 40.56 36.23 PASS High 5230 40.56 36.23 PASS 802.11ac80 / 5210 82.40 75.99 PASS 5725MHz-5850MHz: Mode Channel Frequency MHz 26 dB Bandwidth MHz 6 dB Bandwidth MHz 99% occupied bandwidth MHz Result 802.11a Low 5745 19.88 16.67 16.83 PASS Middle 5785 19.80 16.67 16.67 PASS High 5825 19.72 16.67 16.67 PASS 802.11n20 Low 5745 20.20 16.67 17.64 PASS Middle 5785 20.04 16.67 17.64 PASS High 5825 20.04 16.67 17.56 PASS 802.11n40 Low 5755 40.56 36.23 36.39 PASS High 5795 40.80 36.15 36.39 PASS 802.11ac80 / 5775 82.72 76.63 75.99 PASS Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 67 of 105 5150MHz-5250MHz: 802.11a Low Channel 802.11a Middle Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 68 of 105 802.11a High Channel 802.11n ht20 Low Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 69 of 105 802.11n ht20 Middle Channel 802.11n ht20 High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 70 of 105 802.11n ht40 Low Channel 802.11n ht40 High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 71 of 105 802.11n ac80 5725MHz-5850MHz: 26 dB Bandwidth 802.11a Low Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 72 of 105 802.11a Middle Channel 802.11a High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 73 of 105 802.11n ht20 Low Channel 802.11n ht20 Middle Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 74 of 105 802.11n ht20 High Channel 802.11n ht40 Low Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 75 of 105 802.11n ht40 High Channel 802.11n ac80 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 76 of 105 6 dB Bandwidth 802.11a Low Channel 802.11a Middle Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 77 of 105 802.11a High Channel 802.11n ht20 Low Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 78 of 105 802.11n ht20 Middle Channel 802.11n ht20 High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 79 of 105 802.11n ht40 Low Channel 802.11n ht40 High Channel Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 80 of 105 802.11n ac80 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG141110002-00B FCC Part 15.407 Page 81 of 105 FCC §15.407(a) (1) (ii) (4) –MAXIMUM CONDUCTED OUTPUT POWER Applicable Standard (a) Power limits: (1) For the band 5.15-5.25 GHz. (i) For an outdoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. The maximum e.i.r.p. at any elevation angle above 30 degrees as measured from the horizon must not exceed 125 mW (21 dBm). (ii) For an indoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 17 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (iii) For fixed point-to-point access points operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. Fixed point-to-point U-NII devices may employ antennas with directional gain up to 23 dBi without any corresponding reduction in the maximum conducted output power or maximum power spectral density. For fixed point- to-point transm…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions –Side View Radiated Emission Below 1GHz -Front View Radiated Emission Below 1GHz - Rear View Radiated Emission Above 1GHz -Front View Radiated Emission Above 1GHz- Rear View
