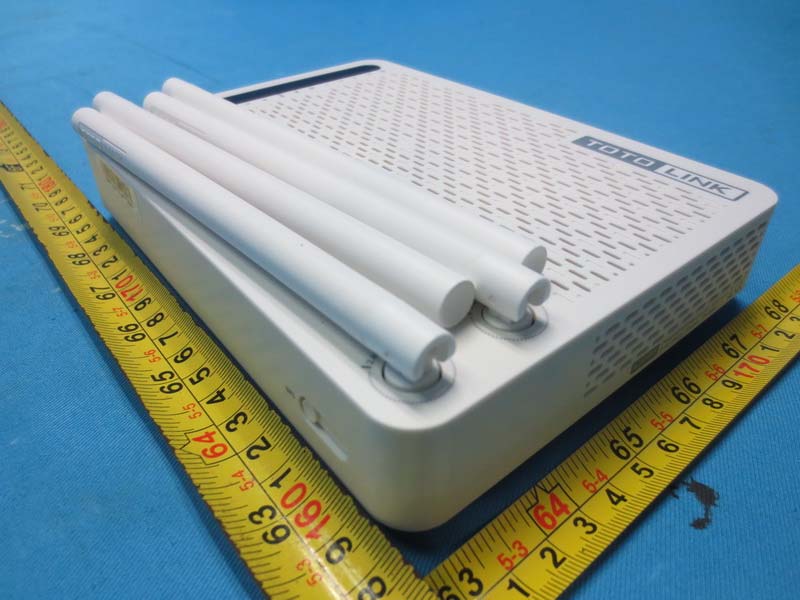

X7D-IP04227AC1200 Wireless Dual Band Gigabit Router

Hardware Installation If you access Internet by ADSL, please comply with step 1, 2, 3 and 4 in below diagram in correct order; if you access Internet by residential broadband, please comply with step 2, 3 and 4 to connect the WAN port of your router with the residential broadband directly. Description This indicator lights blue while the router receiving power, otherwise it is off. This indicator keeps blinking blue after the router powered on. This indicator lights blue when the router’s 2.4G wireless enabled. When the WAN port is connected successfully the indicator lights blue. While transmitting or receiving data through the WAN port the indicator blinks blue. While transmitting or receiving data through the LAN port the indicator blinks blue. This indicator lights blue when you have plugged a USB device on the router. When one of the LAN ports has a successful connection, the corresponding indicator lights blue. Name Power CPU 2.4G WAN 1/2/3/4 LAN USB 5GThis indicator lights blue when the router’s 2.4G wireless enabled. 1. Please disconnect the power adapter and all cables during thunderstorm weather; 2. Keep away from heat source and keep well ventilated; 3. Please pay attention to the waterproofing and moisture-proof when storing, transporting and running; 4. The power supply must reach the rated current and power; 5. Put the router in flat places. Set Up PC For Windows 2000 or Windows XP Operating System, please comply with following steps to set up. Right-click “My Network Places”, click “Properties” Right-click “Local Area Connection”, click “Properties” Double-click “Internet Protocol (TCP/IP)” Choose “Obtain an IP address automatically” and “Obtain DNS server address automatically”, click “OK”; go back to previous interface and click “OK” For Windows Vista or Windows 7 Operating System, please comply with following steps to set up. Click “Start— Control Panel— Network and Internet— Network Connection”, right-click “Local Area Connection”, and choose “Properties”. Double-click “Internet Protocol Version 4 (TCP/IPv4)” Choose “Obtain an IP address automatically” and “Obtain DNS server address automatically”, click “OK”; go back to previous interface and click “OK” Quick Installation Guide AC1200 Wireless Dual Band Gigabit Router After connected, please check whether the LED indicators are normal. NOTE: Set Up Router Please set up the router following below steps. It will show up the following page, please click Internet Wizard icon . Enter valid User Name and Password (The default User name and Password are “admin”). Then click “OK” button or press Enter. Wireless Network Connection Right-click “My Network Places”, click “Properties” Right-click “Wireless Network Connection”, and click “View Available Wireless Networks” Confirm the wireless network SSID name, choose one that you would like to connect, then click “Connect” Input the encrytion key and click “Connect” Have connected wireless network, you can access Internet through wireless mode. For more information, please go to www.totolink.net Type 192.168.1.1 in the Web Browser address bar, then press Enter key. Run the Web browser. 6 7 8 9 10 11 14 17 18 15 16 12 13 Two configuration methods are offered in this part, “Manual Internet Configuration” is recommended to choose. A B Choose Internet connection types provided by your ISP. Telephone Wire Telephone Wire Telephone Wire Network Cable Network Cable The DHCP method is selected by default. Here we take it as an example. You can choose one method to set MAC address according to need. Then click “Next”. Click Save and Close button to reply configuration. After Internet wizard, please click the wireless wizard icon to start wireless settings. Click “Next” to process this wizard. Choose your country region and click “Next”. Click “check SSID” and click “Next” if the SSID is available. Choose the best channel, and click “Next”. Click “Next” if the setting is no problem. Setup the encryption for the security of your network.After confirming the settings, click “Apply and Set 5GHz Wireless Network” button to apply all configuration values. 5GHz wireless network wizard is similar with the settings of 2.4GHz, please refer to the introduction of 2.4GHz wireless settings. Select TKIP or AES cryptography, and then click “Next”. Input the password (more than 8 characters). A2004NS provides a USB2.0 Port, data sharing can be easier and faster via FTP service and Samba service. After plugged a USB device on the router , please click Setup Tool icon to enter the setup interface. Then click Advanced Setup->USB Storage on the sidebar to view the status and configure USB function. Information in this docutment is subject to change without prior notice. 2.4GHz5GHz2.4GHz5GHz 2.4GHz 5GHz Router FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it al…

Text truncated - open the document above for the full version.

Author Rules. the cri Part 15 Equi p Mode Bran d Applic Addre Stand Repo r The te was(w accred techni sampl rized under . The produ iteria limits 5, Subpart pment A l Name A d Name T cant Z ess B H dard(s) F A rt(s) B est data, da were) obtain dited by the ical standar e and item( CER r Declaratio uct listed in Class B o f B, establish AC1200 Wir A2004NS; IP TOTOLINK ZIONCOM E Building A1 Henggang B CC Part 15 ANSI C63.4- BTL-FCCE-1 ata evaluatio ned utilizin e Authority rd(s). The te (s) tested. TIFIC on of Confor follows wa f conducted hed by the F reless Dual P04227 ELECTRON ~A2, Lanti Block Shaj 5, Subpart -2009 1-1410C19 on, and equ g the test of TAF ac c est data co Au B1, No. 37 Nei-Hu Dis TE FA CATE rmity accor s (were) tes d and radia FCC, USA. l Band Gig NICS (SHEN an Science ing Street, B: 2013 1 uipment co procedur e cording to th ntained in t Andy C uthorized S BTL IN 7, Lane 365 strict, Taipei EL:+886-2-2 AX:+886-2-2 OF C rding to 47 sted in the ated emissio abit Route NZHEN) LTD e and Tech Baoan Di s nfiguration es, test ins he ISO-170 the referenc Chiu Signatory NC. , Yang-Gu a i City 114, T 2657-3299 2657-3331 COMP CFR, Part BTL EMC ons of the T r D. nology Pa r strict, Shen contained i struments, 025 quality ced test rep ang St., Taiwan. PLIAN 2 and Part Laboratory Technical S rk, Xinyu R nzhen City, in our test r test sites assessme n port relate o NCE 15 of the F to comply Standards F Road Xinqia China report(s) ab that has b nt standard only to the E FCC with FCC ao bove been and EUT

Project No.: 1410C191 Page 2 of 10 Project No.: 1410C191 Page 3 of 10 Project No.: 1410C191 Page 9 of 10 Project No.: 1410C191 Page 10 of 10

40x20mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: A2004NS Trade Name:TOTOLINK Product Name: AC1200 Wireless Dual Band Gigabit Router FCC ID: X7D-IP04227 ODEHOORFDWLRQ

Project No.: 1410C191 Page 4 of 10 Project No.: 1410C191 Page 5 of 10 Project No.: 1410C191 Page 6 of 10 Project No.: 1410C191 Page 7 of 10 Project No.: 1410C191 Page 8 of 10

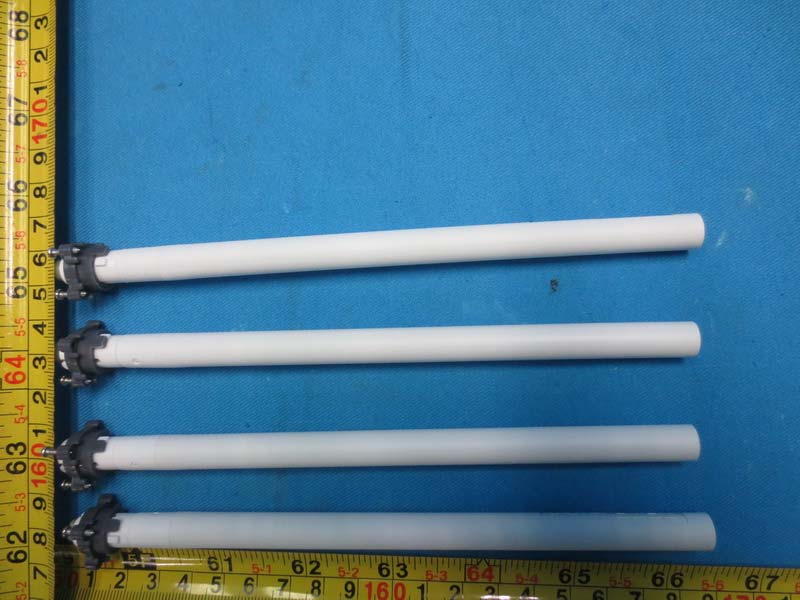

FCC RF EXPOSURE REPORT FCC ID: X7D-IP04227 Project No. : 1410C191 Equipment : AC1200 WirelessDual Band Gigabit Router Model : A2004NS; IP04227 Applicant : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address : Building A1~A2, Lantian Science and Technology Park, Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen City, China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant . Brand Model Name Antenna Type Conne ctor Gain (dBi) Note 3 H001-10164-B Dipole N/A 5 90mm 4 H001-10172-B Dipole N/A 5 210mm TEST RESULTS EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： UNII-1/TX A Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.82 9.5940 0.006038801 Complies 5 3.1623 9.81 9.5719 0.006024911 Complies 5 3.1623 9.71 9.3541 0.005887761 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： UNII-1/TX N20 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.23 8.3753 0.005271701 Complies 5 3.1623 9.33 8.5704 0.005394491 Complies 5 3.1623 9.31 8.5310 0.005369701 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-1/TX N40 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.75 9.4406 0.005942241 Complies 5 3.1623 9.88 9.7275 0.006122801 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-3/ TX A Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.62 9.1622 0.005767011 Complies 5 3.1623 9.9 9.7724 0.006151071 Complies 5 3.1623 9.94 9.8628 0.006207981 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-3/TX N20 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 8.91 7.7804 0.004897231 Complies 5 3.1623 9.09 8.1096 0.005104471 Complies 5 3.1623 9.2 8.3176 0.005235411 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-3/ TX N40 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.51 8.9331 0.005622771 Complies 5 3.1623 9.84 9.6383 0.006066671 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-1/TX AC20 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.28 8.4723 0.005332741 Complies 5 3.1623 9.05 8.0353 0.005057671 Complies 5 3.1623 9.4 8.7096 0.005482141 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-1/TX AC40 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.88 12.2462 0.007708151 Complies 5 3.1623 11.08 12.8233 0.008071431 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-1/TX AC80 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.76 11.9124 0.007498091 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-3/TX AC20 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 9.11 8.1470 0.005128031 Complies 5 3.1623 9.49 8.8920 0.005596941 Complies 5 3.1623 9.26 8.4333 0.005308241 Complies EUT： A2004NS; IP04227 Model Name : AC1200 WirelessDual Band Gigabit Router Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : UNII-3/TX AC40 Mode_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 11.04 12.7057 0.007997431 Complies 5 3.1623 10.89 12.2744 0.007725921 Complies EUT： A2004NS; IP0…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1410C191 Page 1 of 317 FCC Radio Test Report FCC ID: X7D-IP04227 This report concerns (check one): Original Grant Class II Change Project No. : 1410C191 Equipment : AC1200 Wireless Dual Band Gigabit Router Model Name : A2004NS; IP04227 Applicant : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address : Building A1~A2, Lantian Science and Technology Park, Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen City, China Date of Receipt : Oct. 23, 2014 Date of Test : Oct. 23, 2014~ Nov. 10, 2014 Issued Date : Nov. 12, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-2-1410C191 Page 2 of 317 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTLshall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTLissued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-2-1410C191 Page 3 of 317 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 13 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 15 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 3.5 DESCRIPTION OF SUPPORT UNITS 16 4 . EMC EMISSION TEST 17 4.1 CONDUCTED EMISSION MEASUREMENT 17 4.1.1 POWER LINE CONDUCTED EMISSION 17 4.1.2 TEST PROCEDURE 17 4.1.3 DEVIATION FROM TEST STANDARD 17 4.1.4 TEST SETUP 18 4.1.5 EUT OPERATING CONDITIONS 18 4.1.6 EUT TEST CONDITIONS 18 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 20 4.2.5 EUT OPERATING CONDITIONS 21 4.2.6 EUT TEST CONDITIONS 21 4.2.7 TEST RESULTS (9K TO 30MHz) 22 4.2.8 TEST RESULTS (BETWEEN 30 TO 1000 MHz) 22 4.2.9 TEST RESULTS (ABOVE 1000 MHz) 22 5 . 26dB SPECTRUM BANDWIDTH 23 5.1 APPLIED PROCEDURES / LIMIT 23 5.1.1 TEST PROCEDURE 23 5.1.2 DEVIATION FROM STANDARD 23 5.1.3 TEST SETUP 23 5.1.4 EUT OPERATION CONDITIONS 23 5.1.5 EUT TEST CONDITIONS 24 5.1.6 TEST RESULTS 24 6 . MAXIMUM CONDUCTED OUTPUT POWER 25 Report No.: BTL-FCCP-2-1410C191 Page 4 of 317 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 25 6.1.1 TEST PROCEDURE 25 6.1.2 DEVIATION FROM STANDARD 26 6.1.3 TEST SETUP 26 6.1.4 EUT OPERATION CONDITIONS 26 6.1.5 EUT TEST CONDITIONS 26 6.1.6 TEST RESULTS 26 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 7.1 APPLIED PROCEDURES / LIMIT 27 7.1.1 TEST PROCEDURE 27 7.1.2 DEVIATION FROM STANDARD 27 7.1.3 TEST SETUP 27 7.1.4 EUT OPERATION CONDITIONS 27 7.1.5 EUT TEST CONDITIONS 27 7.1.6 TEST RESULTS 27 8 . POWER SPECTRAL DENSITY TEST 28 8.1 APPLIED PROCEDURES / LIMIT 28 8.1.1 TEST PROCEDURE 28 8.1.1 DEVIATION FROM STANDARD 29 8.1.2 TEST SETUP 29 8.1.3 EUT OPERATION CONDITIONS 29 8.1.4 EUT TEST CONDITIONS 29 8.1.5 TEST RESULTS 29 9 . FREQUENCY STABILITY MEASUREMENT 30 9.1 APPLIED PROCEDURES / LIMIT 30 9.1.1 TEST PROCEDURE 30 9.1.2 DEVIATION FROM STANDARD 30 9.1.3 TEST SETUP 31 9.1.4 EUT OPERATION CONDITIONS 31 9.1.5 EUT TEST CONDITIONS 31 9.1.6 TEST RESULTS 31 10 . MEASUREMENT INSTRUMENTS LIST 32 ATTACHMENT A - CONDUCTED EMISSION 38 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 41 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 43 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 56 ATTACHMENT E - BANDWIDTH 175 ATTACHMENT F - MAXIMUM OUTPUT POWER 220 Report No.: BTL-FCCP-2-1410C191 Page 5 of 317 Table of Contents Page ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 233 ATTACHMENT H - POWER SPECTRAL DENSITY 258 ATTACHMENT I - FREQUENCY STABILITY 315 Report No.: BTL-FCCP-2-1410C191 Page 6 of 317 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-2-1410C191 Original Issue. Nov. 12, 2014 Report No.: BTL-FCCP-2-1410C191 Page 7 of 317 1. CERTIFICATION Equipment : AC1200 Wireless Dual Band Gigabit Router Brand Name : TOTOLINK Model Name : A2004NS; IP04227 Applicant : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Manufacturer : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address : Building A1~A2, Lantian Science and Technology Park, Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen City, China Factory : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address : Building A1~A2, Lantian Science and Technology Park, Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen City, China Date of Test : Oct. 23, 2014~ Nov. 10, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.4: 2009 FCC KDB 789033 D02 General UNI…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1410C191 Page 131 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC20 Mode 5240MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 132 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC20 Mode 5240MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 133 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5190MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 134 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5190MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 135 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5190MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 136 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5190MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 137 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5230MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 138 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5230MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 139 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5230MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 140 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC40 Mode 5230MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 141 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC80 Mode 5210MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 142 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC80 Mode 5210MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 143 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC80 Mode 5210MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 144 of 317 Orthogonal Axis: X Test Mode: UNII-1/ TX AC80 Mode 5210MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 145 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5745MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 146 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5745MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 147 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5745MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 148 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5745MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 149 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5785MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 150 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5785MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 151 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5785MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 152 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5785MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 153 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5825MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 154 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5825MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 155 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5825MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 156 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC20 Mode 5825MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 157 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5755MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 158 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5755MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 159 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5755MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 160 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5755MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 161 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5795MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 162 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5795MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 163 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5795MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 164 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC40 Mode 5795MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 165 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC80 Mode 5775MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 166 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC80 Mode 5775MHz Vertical Report No.: BTL-FCCP-2-1410C191 Page 167 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC80 Mode 5775MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 168 of 317 Orthogonal Axis: X Test Mode: UNII-3/TX AC80 Mode 5775MHz Horizontal Report No.: BTL-FCCP-2-1410C191 Page 169 of 317 TX A Mode_DUTY CYCLE Duty cycle: TX 5180MHz Duty cycle = T ON / T Total T ON : 1.44 msec T Total : 1.48 msec Duty cycle: 0.973 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 0.12 Report No.: BTL-FCCP-2-1410C191 Page 170 of 317 TX N20 Mode_DUTY CYCLE Duty cycle: TX 5180MHz Duty cycle = T ON / T Total T ON : 0.698 msec T Total : 0.788 msec Duty cycle: 0.886 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 0.53 Report No.: BTL-FCCP-2-1410C191 Page 171 of 317 TX N40 Mode_DUTY CYCLE Duty cycle: TX 5190MHz Duty cycle = T ON / T Total T ON : 0.376 msec T Total : 0.480 msec Duty cycle: 0.783 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 1.06 Report No.: BTL-FCCP-2-1410C191 Page 172 of 317 TX AC20 Mode_DUTY CYCLE Duty cycle: TX 5180MHz Duty cycle = T ON / T Total T ON : 0.160 msec T Total : 0.294 msec Duty cycle: 0.544 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 2.64 Report No.: BTL-FCCP-2-1410C191 Page 173 of 317 TX AC40 Mode_DUTY CYCLE Duty cycle: TX 5190MHz Duty cycle = T ON / T Total T ON : 0.100 msec T Total : 0.270 msec Duty cycle: 0.370 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 4.31 Report No.: BTL-FCCP-2-1410C191 Page 174 of 317 TX AC80 Mode_DUTY CYCLE Duty cycle: TX 5210MHz Duty cycle = T ON / T Total T ON : 0.082 msec T Total : 0.222 msec Duty cycle: 0.369 Duty Factor = 10 log(1/Duty cycle) Duty Factor = 4.33 Report No.: BTL-FCCP-2-1410C191 Page 175 of 317 ATTACHMENT E - BANDWIDTH Report No.: BTL-FCCP-2-1410C191 Page 176 of 317 Test Mode: UNII-1/TX A Mode_CH36/CH40/CH48_ANT 1 CH3651802…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1410C191 Page 34 of 317 10.1. EUT TEST PHOTOS Conducted Measurement Photos Report No.: BTL-FCCP-2-1410C191 Page 35 of 317 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-2-1410C191 Page 36 of 317 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-2-1410C191 Page 37 of 317 Radiated Measurement Photos Above 1000MHz
