Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 For the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: 300Mbps Wireless N Range Extender Brand Name: TOTOLINK Model Number: EX200 Report Number: BL-SZ2140760-401 FCC ID: X7D-WX029 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: Company Address: Telephone: Fax: Person is responsible for marking this declaration: Carmen Lee_____ _______ Mangaer________ Name (Full name ) Position / Title ___________________________ 2021.7.23 Legal Signature Date ZIONCOM ELECTRONICS (SHENZHEN) LTD.

Label: Label location:

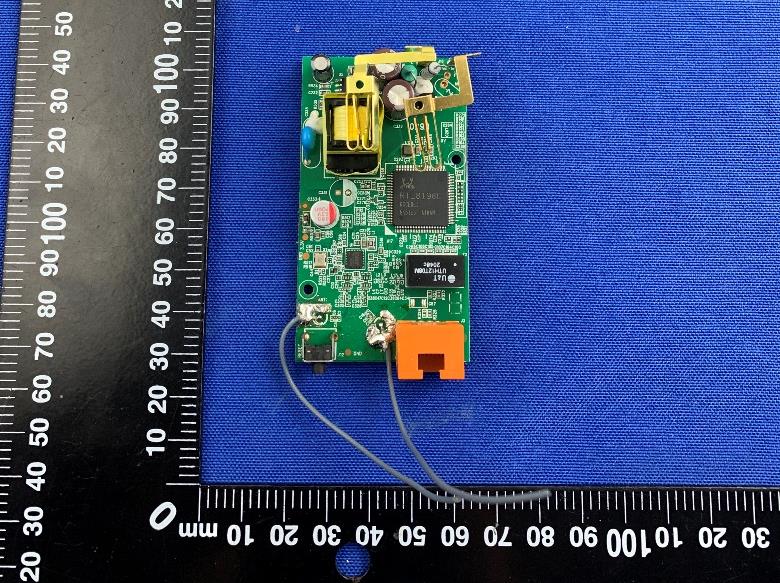

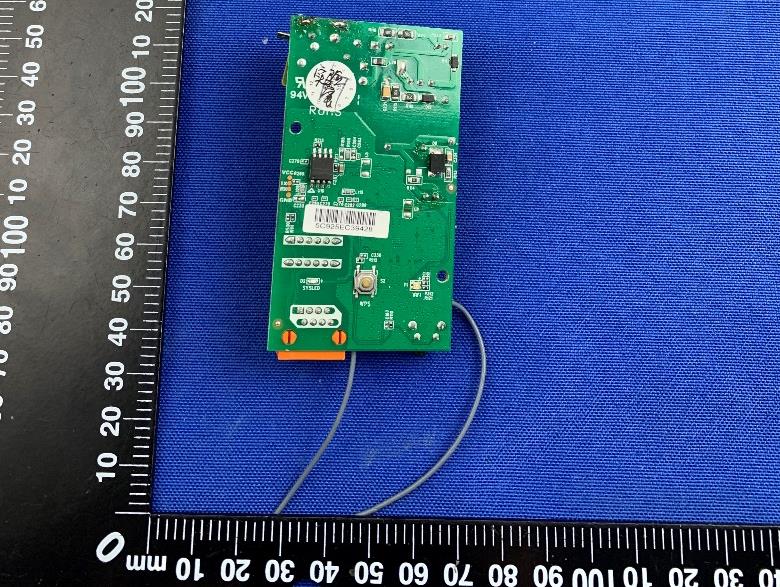

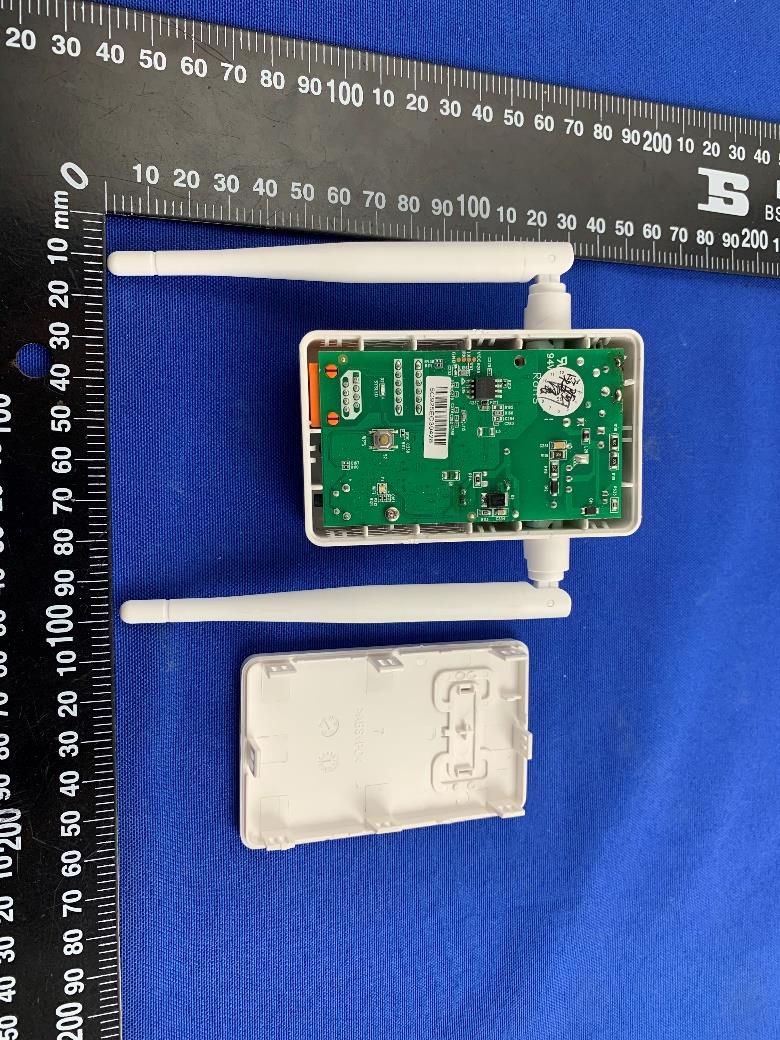

Annex No.: BL-SZ2140760-AI 1 / 2 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW Dipole Antenna Annex No.: BL-SZ2140760-AI 2 / 2 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW RF Chip

RF Exposure Evaluation for FCC ID: X7D-WX029 Refer user manual this device is a 300Mbps Wireless N Range Extender, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test data 2.4G WIFI Mode Main Antenna 802.11b 802.11g 802.11n-20 802.11n-40 Peak Power (dBm) 20.41 25.46 25.60 25.96 Mode Aux. Antenna 802.11b 802.11g 802.11n-20 802.11n-40 Peak Power (dBm) 18.74 24.86 24.99 25.22 Mode MIMO-Main Antenna 802.11b 802.11g 802.11n-20 802.11n-40 Peak Power (dBm) 17.35 22.04 22.11 22.42 Mode MIMO-Aux. Antenna 802.11b 802.11g 802.11n-20 802.11n-40 Peak Power (dBm) 14.78 20.60 20.80 20.86 Mode MIMO 802.11b 802.11g 802.11n-20 802.11n-40 Peak Power (dBm) 19.26 24.39 24.51 24.71 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power 2.4G WIFI Antenna Type Range (dBm) Main Antenna 20.00-26.00 Aux. Antenna 18.50-25.50 MIMO-Main Antenna 16.50-22.50 MIMO-Aux. Antenna 14.50-21.00 MIMO 18.50-25.00 Test result 2.4G WIFI Antenna Type Maximum peak output power （dBm） Antenna Gain (typical) (dBi): Total Power (mw) Distance (cm) Limit of Power Density (mW/cm² ) Power Density (mW/cm² ) Verdict Main Antenna 26.00 4.00 1000.00 20 1.00 0.20 Pass Aux. Antenna 25.50 4.00 891.25 20 1.00 0.18 Pass MIMO-Main Antenna 22.50 4.00 446.68 20 1.00 0.09 Pass MIMO-Aux. Antenna 21.00 4.00 316.23 20 1.00 0.06 Pass MIMO 25.00 4.00 794.33 20 1.00 0.16 Pass Note: 1. The 300Mbps Wireless N Range Extender work frequency range used is 2400 MHz ~ 2483.5 MHz, the result close to the limit by the above formula. 2. More power list please refer to RF test report. Conclusion: RF exposure Evaluation Results: Compliance

Report No.: BL-SZ2140760-601 101 / 180 802.11g HIGH CHANNEL, Carrier level 802.11g HIGH CHANNEL, Reference level 802.11n-20 MHz LOW CHANNEL, Carrier level 802.11n-20 MHz LOW CHANNEL, Reference level 802.11n-20 MHz HIGH CHANNEL, Carrier level 802.11n-20 MHz HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 102 / 180 802.11n-40 MHz LOW CHANNEL, Carrier level 802.11n-40 MHz LOW CHANNEL, Reference level 802.11n-40 MHz HIGH CHANNEL, Carrier level 802.11n-40 MHz HIGH CHANNEL, Reference level Aux. Antenna 802.11b LOW CHANNEL, Carrier level 802.11b LOW CHANNEL, Reference level Report No.: BL-SZ2140760-601 103 / 180 802.11b HIGH CHANNEL, Carrier level 802.11b HIGH CHANNEL, Reference level 802.11g LOW CHANNEL, Carrier level 802.11g LOW CHANNEL, Reference level 802.11g HIGH CHANNEL, Carrier level 802.11g HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 104 / 180 802.11n-20 MHz LOW CHANNEL, Carrier level 802.11n-20 MHz LOW CHANNEL, Reference level 802.11n-20 MHz HIGH CHANNEL, Carrier level 802.11n-20 MHz HIGH CHANNEL, Reference level 802.11n-40 MHz LOW CHANNEL, Carrier level 802.11n-40 MHz LOW CHANNEL, Reference level Report No.: BL-SZ2140760-601 105 / 180 802.11n-40 MHz HIGH CHANNEL, Carrier level 802.11n-40 MHz HIGH CHANNEL, Reference level MIMO-Main Antenna 802.11b LOW CHANNEL, Carrier level 802.11b LOW CHANNEL, Reference level 802.11b HIGH CHANNEL, Carrier level 802.11b HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 106 / 180 802.11g LOW CHANNEL, Carrier level 802.11g LOW CHANNEL, Reference level 802.11g HIGH CHANNEL, Carrier level 802.11g HIGH CHANNEL, Reference level 802.11n-20 MHz LOW CHANNEL, Carrier level 802.11n-20 MHz LOW CHANNEL, Reference level Report No.: BL-SZ2140760-601 107 / 180 802.11n-20 MHz HIGH CHANNEL, Carrier level 802.11n-20 MHz HIGH CHANNEL, Reference level 802.11n-40 MHz LOW CHANNEL, Carrier level 802.11n-40 MHz LOW CHANNEL, Reference level 802.11n-40 MHz HIGH CHANNEL, Carrier level 802.11n-40 MHz HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 108 / 180 MIMO-Aux. Antenna 802.11b LOW CHANNEL, Carrier level 802.11b LOW CHANNEL, Reference level 802.11b HIGH CHANNEL, Carrier level 802.11b HIGH CHANNEL, Reference level 802.11g LOW CHANNEL, Carrier level 802.11g LOW CHANNEL, Reference level Report No.: BL-SZ2140760-601 109 / 180 802.11g HIGH CHANNEL, Carrier level 802.11g HIGH CHANNEL, Reference level 802.11n-20 MHz LOW CHANNEL, Carrier level 802.11n-20 MHz LOW CHANNEL, Reference level 802.11n-20 MHz HIGH CHANNEL, Carrier level 802.11n-20 MHz HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 110 / 180 802.11n-40 MHz LOW CHANNEL, Carrier level 802.11n-40 MHz LOW CHANNEL, Reference level 802.11n-40 MHz HIGH CHANNEL, Carrier level 802.11n-40 MHz HIGH CHANNEL, Reference level Report No.: BL-SZ2140760-601 111 / 180 A.5 Conducted Emissions Note 1 : The EUT is working in the Normal link mode. All modes have been tested and normal link mode is worst. Note 2 : Devices subject to Part 15 must be tested for all available U.S. voltages and frequencies (such as a nominal 120 VAC, 60 Hz and 240 VAC, 50 Hz) for which the device is capable of operation. So, The configuration 120 VAC, 60 Hz and 240 VAC, 50 Hz were tested respectively, but only the worst configuration (120 VAC, 60 Hz) shown here. Test Data and Plots PHASE L No. Frequency (MHz) Results (dBuV) Factor (dB) Limit (dBuV) Over Limit (dB) Detector Line Verdict 1 0.184 41.71 10.39 64.30 -22.59 Peak L Pass 1** 0.184 27.85 10.39 54.30 -26.45 AV L Pass 2 0.270 43.39 10.34 61.12 -17.73 Peak L Pass 2** 0.270 27.75 10.34 51.12 -23.37 AV L Pass 3 0.444 41.69 10.30 56.99 -15.30 Peak L Pass 3** 0.444 30.64 10.30 46.99 -16.35 AV L Pass 4 0.864 37.79 10.24 56.00 -18.21 Peak L Pass 4** 0.864 26.28 10.24 46.00 -19.72 AV L Pass 5 2.606 37.43 10.28 56.00 -18.57 Peak L Pass 5** 2.606 25.50 10.28 46.00 -20.50 AV L Pass 6 13.568 36.64 10.39 60.00 -23.36 Peak L Pass 6** 13.568 24.59 10.39 50.00 -25.41 AV L Pass Report No.: BL-SZ2140760-601 112 / 180 PHASE N No. Frequency (MHz) Results (dBuV) Factor (dB) Limit (dBuV) Over Limit (dB) Detector Line Verdict 1 0.174 42.56 10.39 64.77 -22.21 Peak N Pass 1** 0.174 27.16 10.39 54.77 -27.61 AV N Pass 2 0.302 40.15 10.33 60.19 -20.04 Peak N Pass 2** 0.302 26.42 10.33 50.19 -23.77 AV N Pass 3 0.442 41.30 10.31 57.02 -15.72 Peak N Pass 3** 0.442 33.54 10.31 47.02 -13.48 AV N Pass 4 1.536 36.44 10.24 56.00 -19.56 Peak N Pass 4** 1.536 24.08 10.24 46.00 -21.92 AV N Pass 5 5.616 35.82 10.32 60.00 -24.18 Peak N Pass 5** 5.616 23.67 10.32 50.00 -26.33 AV N Pass 6 11.372 36.41 10.38 60.00 -23.59 Peak N Pass 6** 11.372 24.39 10.38 50.00 -25.61 AV N Pass Report No.: BL-SZ2140760-601 113 / 180 A.6 Radiated Emission Note 1 : The symbol of “--” in the table which means not application. Note 2 : For the test data above 1 GHz，According the ANSI C63.10-2013, where limits are specified for both average and peak (or quasi-peak) detector functions, if the peak (or quasi-peak) measured value complies with the average limit, it is unnecessary to perform an average measurement. Note 3 : The low frequency, which started from 9 kHz to 30 MHz, was pre-scanned and the result which was 20 dB lower than the limit line per 15.31(o) was not reported. Note 4 : The EUT is working in the Normal link mode below 1 GHz. All modes have been tested and normal link mode is worst. Test Data and Plots 30 MHz to 1 GHz, ANT H No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 52.746 14.78 -23.04 40.0 -25.22 Peak 9.40 200 Horizontal Pass 2 99.743 18.45 -24.78 43.5 -25.05 Peak 210.20 200 Horizontal Pass 3 199.653 18.08 -24.11 43.5 -25.42 Peak 199.80 200 Horizontal Pass 4 312.513 32.12 -21.33 46.0 -13.88 Peak 79.20 100 Horizontal Pass 5 399.716 24.38 -19.06 46.0 -21.62 Peak 360.00 200 Horizontal Pass 6 500.014 26.08 -16.93 46.0 -19.92 Peak 360.00 200 Horizontal Pass Report No.: BL-SZ2140760-601 114 / 180 30 MHz to 1 GHz, ANT V No…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2140760-601 2 / 180 Revision History Version Issue Date Revisions Content Rev. 01 Jul. 20, 2021 Initial Issue Rev. 02 Jul. 22, 2021 Modified the product type in section 2.5 TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ....................................................................................... 5 1.2 Identification of the Responsible Testing Location ...................................................................... 5 1.3 Laboratory Condition ................................................................................................................... 5 1.4 Announce .................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant Information ................................................................................................................... 6 2.2 Manufacturer Information ............................................................................................................ 6 2.3 Factory Information ..................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ................................................................ 6 2.5 Technical Information .................................................................................................................. 7 2.6 Additional Instructions ................................................................................................................. 9 3 SUMMARY OF TEST RESULTS ............................................................................................................ 10 3.1 Test Standards .......................................................................................................................... 10 3.2 Verdict ....................................................................................................................................... 10 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 11 4.1 Test Environments .................................................................................................................... 11 4.2 Test Equipment List ................................................................................................................... 11 4.3 Measurement Uncertainty ......................................................................................................... 11 4.4 Description of Test Setup .......................................................................................................... 12 4.4.1 For Antenna Port Test ............................................................................................................... 12 4.4.2 For AC Power Supply Port Test ................................................................................................ 1 2 4.4.3 For Radiated Test (Below 30 MHz) ........................................................................................... 13 4.4.4 For Radiated Test (30 MHz-1 GHz) .......................................................................................... 13 4.4.5 For Radiated Test (Above 1 GHz) ............................................................................................. 14 Report No.: BL-SZ2140760-601 3 / 180 4.5 Measurement Results Explanation Example ........................................................................... 15 4.5.1 For conducted test items: ....................................................................................................... 15 4.5.2 For radiated band edges and spurious emission test: ............................................................. 15 5 TEST ITEMS ....................................................................................................................................... 16 5.1 Antenna Requirements ........................................................................................................... 16 5.1.1 Relevant Standards ................................................................................................................ 16 5.1.2 Antenna Anti-Replacement Construction ................................................................................ 16 5.1.3 Antenna Gain ......................................................................................................................... 16 5.2 Output Power ......................................................................................................................... 17 5.2.1 Test Limit ................................................................................................................................ 17 5.2.2 Test Setup .............................................................................................................................. 17 5.2.3 Test Procedure ....................................................................................................................... 17 5.2.4 Test Result ............................................................................................................................. 18 5.3 6dB Bandwidth ....................................................................................................................... 19 5.3.1 Limit........................................................................................................................................ 19 5.3.2 Test Setup .............................................................................................................................. 19 5.3.3 Test Procedure ..............…

Text truncated - open the document above for the full version.

Annex No.: BL-SZ2140760-AR TEST SETUP PHOTOS 1 Radiated Test Photo Below 30 MHz 30 MHz-1 GHz Annex No.: BL-SZ2140760-AR Close-Up Above 1GHz Annex No.: BL-SZ2140760-AR Close-Up 2 Conducted Emissions Test Photo 1 Annex No.: BL-SZ2140760-AR Test Photo 2 3 Conducted Test Photo Conducted Test-2.4G WIFI Annex No.: BL-SZ2140760-AR Conducted Test-2.4G WIFI
