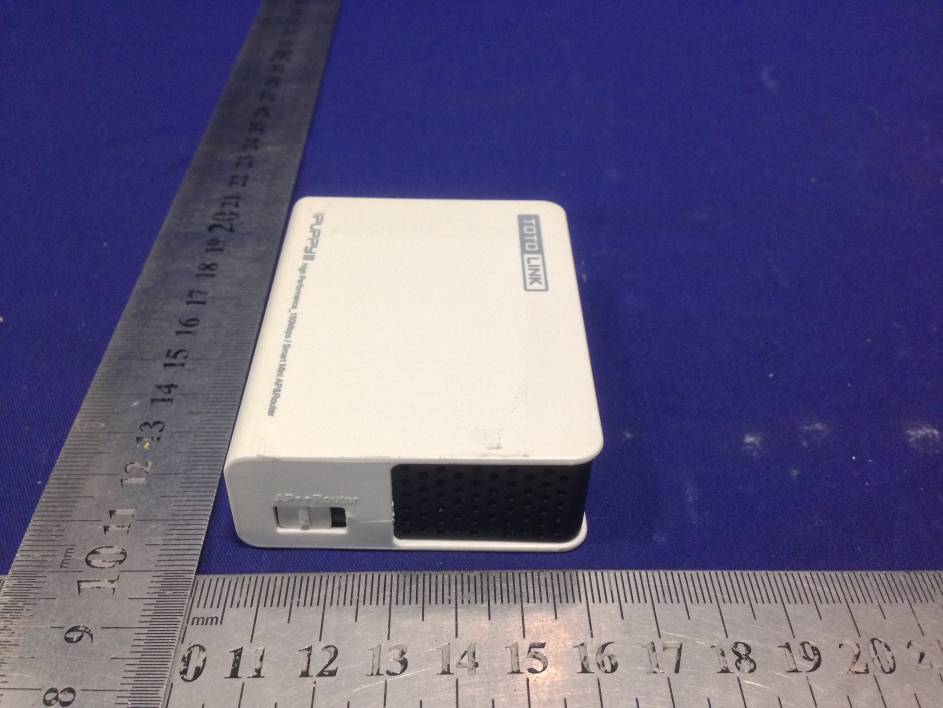

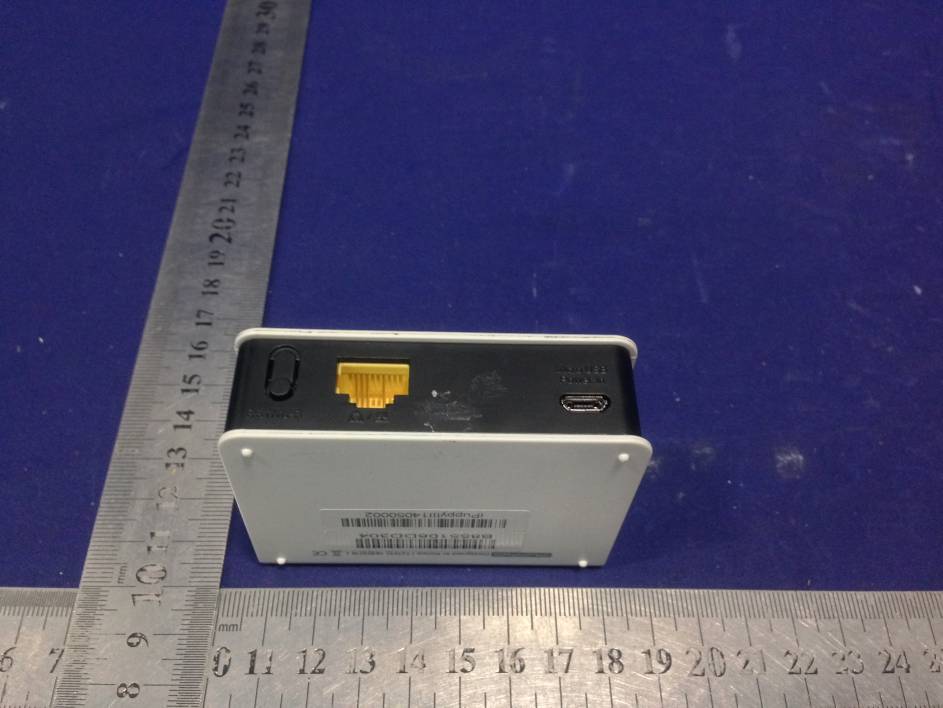

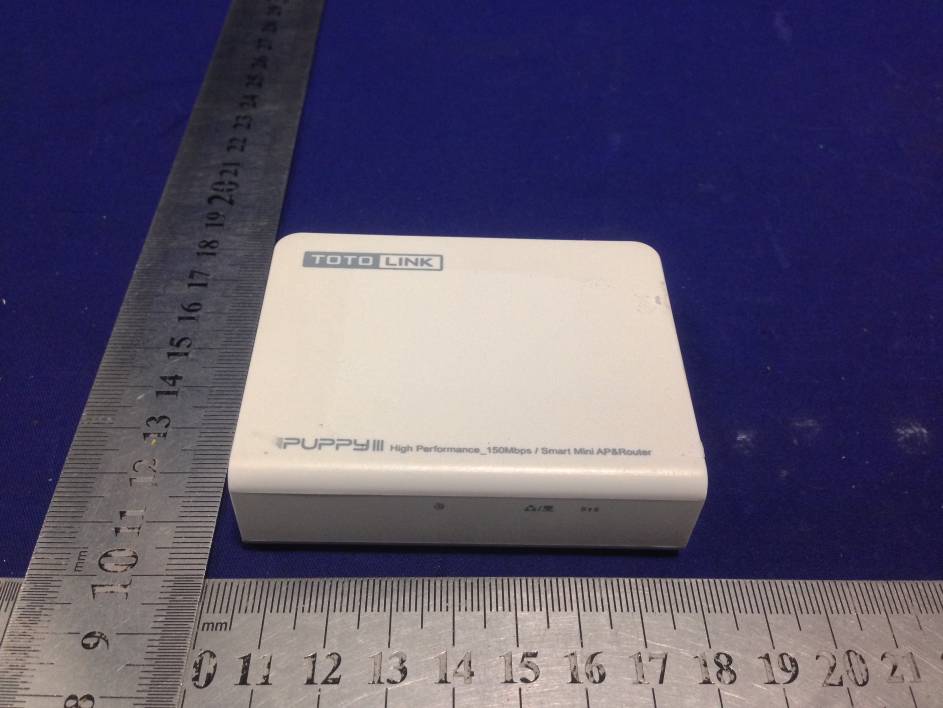

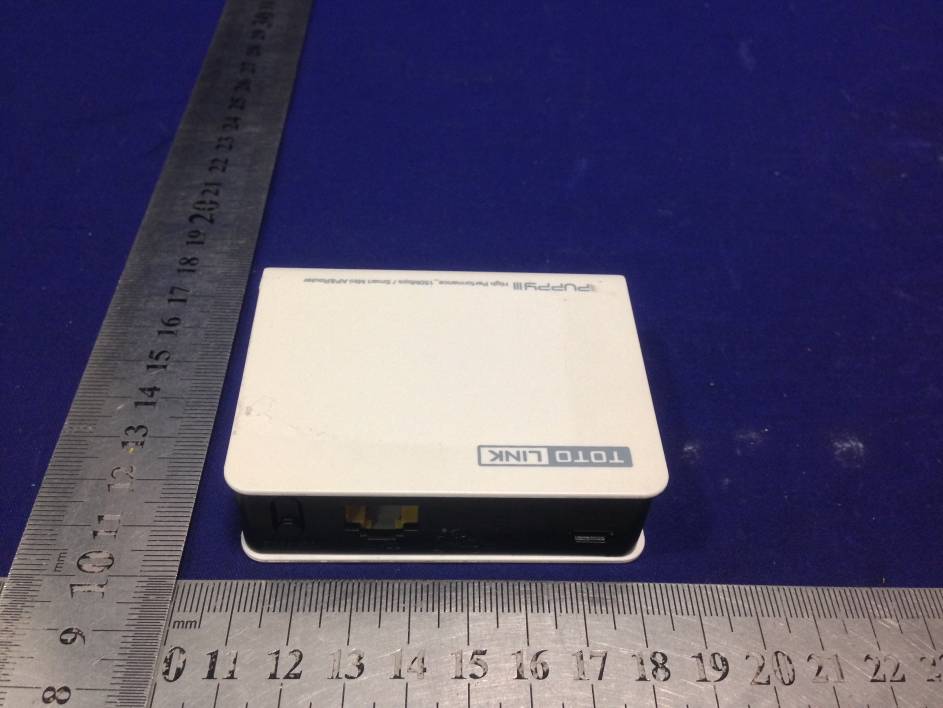

X7D-IP04223150Mbps Wireless N Portable AP

Hardware Installation W orking Modes AP Mode In this mode, you can access Internet by just two steps. Connect iPuppy III to PC or Power Adapter using provided USB cable. Plug existing network cable into the LAN/WAN port of iPuppy III. Router ModeRepeater After correct configuration, you can search for the SSID and enter the password (By default, it is TOTOLINK) to access Internet. This mode is mostly applied at home and in student hostels. Connect iPuppy III to PC or Power Adapter using provided USB cable. Connect your Modem and iPuppy III using network cable. Go to Setup interface of this device to make it connect Internet successfully (Please refer to Section 3 Set up AP). Login to Setup interface of this device to make it connect Internet successfully (Please refer to Section 3 Configure Router.) Go to Wireless—Wireless Multibridge to set your repeater parameters. See below: Configure Router Wireless Network Connection Right-click “My Network Places”, click “Properties” Right-click “Wireless Network Connection”, and click “View A vailable Wireless Networks” Confirm the wireless network SSID name, choose one that you would like to connect, then click “Connect” Input the encrytion key and click “Connect” Have connected wireless network, you can access Internet through wireless mode. For more information, please go to www.totolink.net This mode makes iPuppy III work like a wireless router. It supports three methods to access Internet: DHCP/PPPoE/Static IP. For example, if you connect Internet by modem, you will have to: Now, you can search for the SSID of iPuppy III and enter the password (By default, it is TOTOLINK) to access Internet. Generally, this mode is applied in hotels, restaurants and small offices. This function allows iPuppy III to get wireless signals from other router or AP. Sometimes, the wireless signal your PC gets is very weak because of distance. Then you can use the repeater of iPuppy III to solve this problem. Please follow below steps to setup repeater function: Network Cable Internet Quick Installation Guide 150Mbps Wireless Pocket AP MODEL：iPuppyIII Copyrights 2013 by TOTOLINK All rights reserved. Website: http://www.totolink.net Information in this document is subject to change without prior notice. Please set up the router following the below steps. Run the Web browser. T ype 192.168.1.1 in the Web browser address bar, then press Enter. Input User Name and Password, then click “OK”. (the default User Name and Password are “admin”.) Click Setup Wizard. DHCP (you don’t need to do any configuration.) Static IP PPPoE Wireless Wizard Access Internet Mode Judgement Method Internet Access ModeParameters that provided by ISP (Service Provider) A B C DHCP(Cable) Static IP PPPoE User name & Password. Fixed IP address, Subnet mask, Default gateway and DNS server ISPs do not provide any parameters, you can access Internet without router, no need set up the PC. After you set the Encryption key, please remember your Network Name (SSID) and the Encryption key to connect with your wireless LAN. With iPuppy III powered on, press the WPS/Rst button for 2-3 seconds, the Power LED indicator changes to solid lighting, it is WPS working. For about 10 seconds, it is Reset working, the AP will reboot to factory default settings. Internet Configuration Wizard. A B C Choose the right one and click Select AP. It will turn back to Multibridge page which shows you some information of this SSID: Then you can set the encryption for this connection and click Apply to make the repeater operation work. Click Scan AP, it will pop up a window requiring you to choose one Repeater Network Name. Ports and Buttons WPS/Rst Micro USB Power in Description Press this button for 2-3 seconds, the power LED indicator keeps solid light, it is WPS working. If press for about 10 seconds, the device will restore to factory settings. This port is used for power-in NOTE: the charging wire we provided can only be used for charging, data transmission not supported. This port connects the AP to Internet. Router/AP This slide switch allows users to switch device mode between Router & AP. Ports and Buttons LED IndicatorsDescription This LED indicator lights orange when this device gets power. When there is WLAN connection, this indicator blinks orange. This LED indicator lights orange when it is connected and working. LED Indicators 2 -a 2 -b 2 -a 2 -b Network Cable 2 -a 2 -b ADSL Modem PC connect to iPuppy III Android Phone connect to iPuppy III iPhone connect to iPuppy III Choose Settings. 1 It shows Connected below the SSID. You have connect to iPuppy III successfully . 5 Choose Settings. 1 Enter password of this SSID, by default, it is TOT OLINK. Click Join. 4 There is a tick before TOT OLINK iPuppy III, you have connected to this AP successfully. 5 Choose WLAN. 2 Choose TOTOLINK iPuppy III. 3 Click Wi-Fi. 2 Please choose TOTOLINK iPuppy III. 3 Click Connect. 4 TOTOLINK iPuppy III TOTOLINK N151RA TOTOLINK N301RA TOTOLINK iPuppy III TOTOLINK N151RA TOTOLINK iPuppy III TOTOLINK N301RA ZionZion TOTOLINK N151RA TOTOLINK iPuppy III TOTOLINK N301RA TOTOLINK N151RA TOTOLINK N301RA TOTOLINK iPuppy III Enter the password for “TOTOLINK iPuppy III ” TOTOLINK N100RE TOTOLINK N100RE ● The default Network Name (SSID): TOTOLINK iPuppy III ● Password: TOTOLINK TOTOLINK iPuppy III TOTOLINK iPuppy III TOTOLINK iPuppy III The network ‘TOTOLINK iPuppy III’ requires a network key (also called a WEP key or WPA key). A network key helps prevent unknown intruders from connecting to this network. If you want to change the SSID and password of this device, you must connect to it in Router Mode (Please refer to Part 3- ). FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio freq…

Text truncated - open the document above for the full version.

Family models declaration letter. 2014-11-6 We ZIONCOM ELECTRONICS (SHENZHEN) LTD. Of Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China （address） Declare under our sole responsibility that the product Product: 150Mbps Wireless N Portable AP Model Namer : IPuppy III, IP04223 FCC ID: X7D-IP04223 All models have the same constructions, circuit diagram and PCB layout. Only model name is different. Unless otherwise stated Thanks Sincerely, Stone Xu/Product Manager E-mail: [email protected] Phone: +86-755-61363299 Fax: +86-755-61363322 Address: Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China

Trade Name:TOTOLINK FCC ID: X7D-IP04223 Model Name: iPuppy III 150Mbps Wireless N Portable AP 35*12mm

Label Location

Antenna Wifi Module

FCC ID : X7D-IP04223 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 2.0dBi 802.11b: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 12.53 12.0±1 13.0 1.5849 0.0063 1 6 2437 12.05 12.0±1 13.0 1.5849 0.0063 1 11 2462 12.42 12.0±1 13.0 1.5849 0.0063 1 802.11g: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 9.04 9.0±1 10.0 1.5849 0.0032 1 6 2437 9.26 9.0±1 10.0 1.5849 0.0032 1 11 2462 9.43 9.0±1 10.0 1.5849 0.0032 1 802.11n HT20: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 8.91 9.0±1 10.0 1.5849 0.0032 1 6 2437 9.16 9.0±1 10.0 1.5849 0.0032 1 11 2462 9.37 9.0±1 10.0 1.5849 0.0032 1 802.11n HT40 : Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 8.79 9.0±1 10.0 1.5849 0.0032 1 6 2437 9.16 9.0±1 10.0 1.5849 0.0032 1 11 2462 9.43 9.0±1 10.0 1.5849 0.0032 1

TRF No.: FCC 15.247/A Page 1 of 57 Report No.: ES141023301E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENTS OF 150Mbps Wireless N Portable AP MODEL No.: IPuppy III, IP04223 FCC ID: X7D-IP04223 Trade Mark: TOTOLINK REPORT NO.: ES141023301E ISSUE DATE: November 5, 2014 Prepared for ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.: FCC 15.247/A Page 2 of 57 Report No.: ES141023301E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China Manufacturer: ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, China Product Description: 150Mbps Wireless N Portable AP Model Number: IPuppy III , IP04223 File Number: ES141023301E Date of Test: October 23, 2014 to November 5, 2014 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : October 23, 2014 to November 5, 2014 Prepared by : Joe Xia /Editor Reviewer : Jack Li /Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.: FCC 15.247/A Page 3 of 57 Report No.: ES141023301E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1. GENERAL INFORMATION ...................................................................................................................... 5 1.1 Product Description ........................................................................................................................... 5 1.2 Related Submittal(S) / Grant(S) ........................................................................................................ 5 1.3 Test Methodology .............................................................................................................................. 5 1.4 Special Accessories .......................................................................................................................... 5 1.5 Equipment Modifications ................................................................................................................... 5 1.6 Test Facility ....................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION ......................................................................................................... 7 2.1 Eut Configuration .............................................................................................................................. 7 2.2 Eut Exercise ...................................................................................................................................... 7 2.3 Test Procedure .................................................................................................................................. 7 2.4 Configuration Of Tested System ....................................................................................................... 8 3. DESCRIPTION OF TEST MODES ........................................................................................................... 9 4. SUMMARY OF TEST RESULTS ............................................................................................................ 10 5. CONDUCTED EMISSIONS TEST ......................................................................................................... 11 5.1 Measurement Procedure................................................................................................................. 11 5.2 Test Set-Up (Block Diagram Of Configuration) ............................................................................... 11 5.3 Measurement Equipment Used ...................................................................................................... 11 5.4 Conducted Emission Limit .............................................................................................................. 11 5.5 Measurement Result ....................................................................................................................... 12 6. RADIATED EMISSION TEST ................................................................................................................. 14 6.1 Measurement Procedure................................................................................................................. 14 6.2 Test Set-Up (Block Diagram Of Configuration) ............................................................................... 15 6.3 Measurement Equipment Used ...............................…
