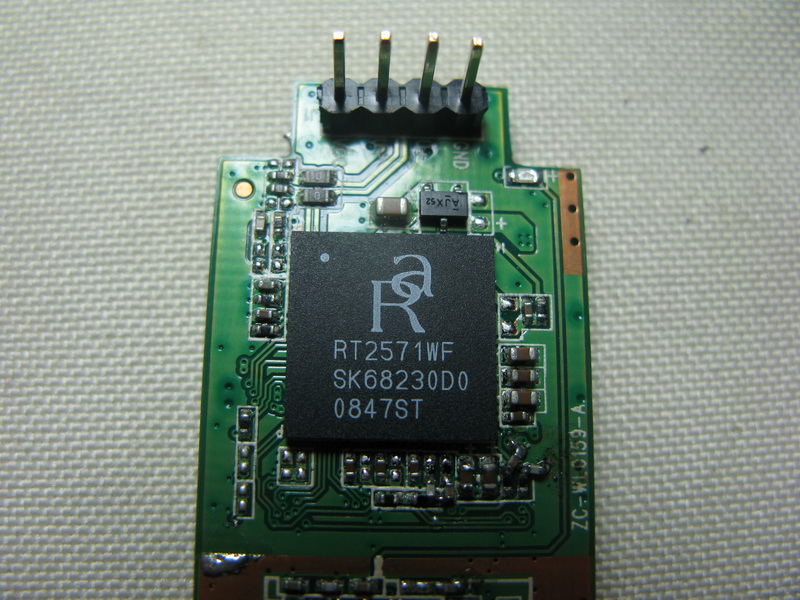

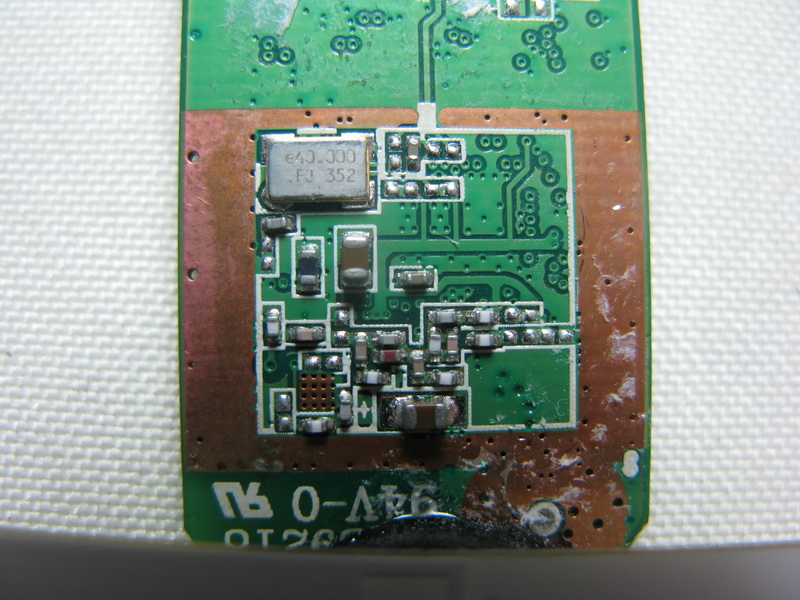

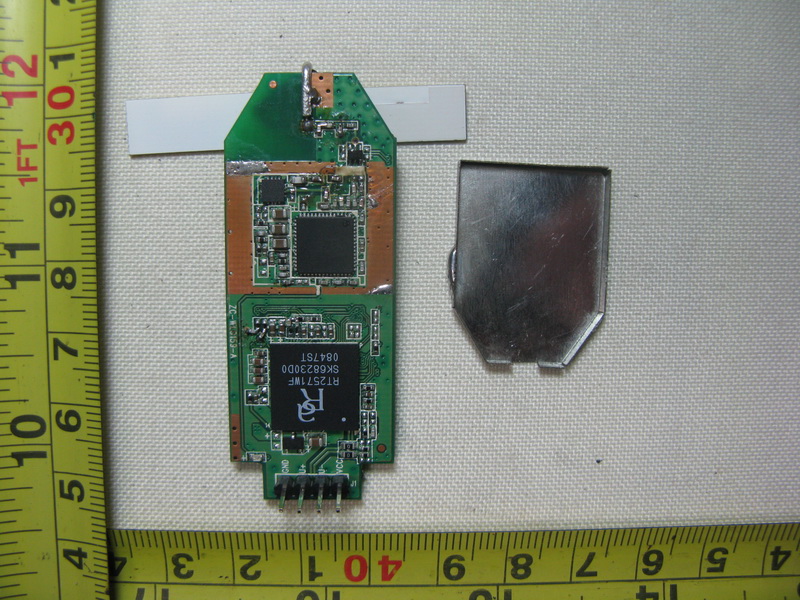

X7D-WL0159WIFI MODULE

Wireless 802.11g/b Adapter ZC-WL0159 is a high-gain wireless PIN Interface adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. You can just plug it into computer's A-type USB 2.0 Connector port and enjoy incredible high-speed wireless network access. ™ Complies with IEEE 802.11g; 802.11b standard for 2.4GHz Wireless LAN. ™ Supports Ad-Hoc/Infrastructure modes ™ Supports PC Card hot-SWAP and true Plug & Play. ™ Works with all existing network infrastructure. ™ Supports Wi-Fi Protected Setup (WPS) configuration function ™ Capable of up to 128-Bit WEP Encryption. ™ Freedom to roam while staying connected. ™ 22-Mbps Packet Binary Convolution Coding (PBCC) (according to the IEEE Std 802.11b high-rate specification ). ™ UP to 54 Mbps High-Speed Transfer Rate in 802.11g mode of operation. ™ Rich diagnostic LED indicators with Integrated Antenna. ™ Supports Windows 2000, XP32/64,Vista32/64, Linux,Mac ™ Low power consumption. ™ Easy to install and configure. Standard IEEE802.11g; IEEE 802.11b Modulation Type OFDM with BPSK, QPSK, 16QAM,64QAM (11g) BPSK, QPSK, CCK (11b) Interface 4PIN Interface Frequency 2.4~2.4835 GHz Transmission Distance Indoor up to 100m , outdoor up to 300m (it is limited in an environment) Data Rate 11b 1/2/5.5/11Mbps 11g 6/9/12/24/36/48/54Mbps Auto fallback Transmit Power 15 dBm (Typical) Data Security 64/128-bit WEP Data Encryption, WPA (TKIP with IEEE 802.1x) and AES LED Indicator Link/Activity Operating Temperature 0 ~ 55°C Storage -40°C~70°C (-40°F~158°F) Humidity 5 ~ 95% non-condensing Operating System Windows 2000, XP32/64, Vista32/64, Linux,Mac WIFI MODULE IEEE 802.11g/b Model No: WL0159 Product Description Product Features Product Specification FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. 1. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This compliance to FCC radiation exposure limits for an uncontrolled environment, and minimum of 20 cm separation between antenna and body. 3. Only the type of chip antenna tested may be used. 4. The end product must carry a label stating "Contains TX FCC ID: X7D-WL0159".

Neutron Engineering Inc. Project No.: 1002C114 Page 2 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 2 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 3 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 3 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 4 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 4 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 5 of 5 1002C114

Neutron Engineering Inc. Project No.: 1002C114 Page 2 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 2 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 3 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 3 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 4 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 4 of 5 1002C114 1002C114 Neutron Engineering Inc. Project No.: 1002C114 Page 5 of 5 1002C114

1.1. Test Result of RF Exposure Evaluation . Product: WIFI MODULE Test Item: RF Exposure Evaluation Data . Test site: OATS . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: DSSS Test Date: Feb 26, 2010 Temperature:24°C Humidity: 60％ TX B MODE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 12.78 0.00598343 06 2437 13.19 0.00657583 11 2462 13.12 0.00647069 Modulation Standard: OFDM Test Date: Feb 26, 2010 Temperature:24°C Humidity: 60％ TX G MODE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 13.32 0.00677564 06 2437 13.41 0.00691752 11 2462 13.02 0.00632340 The MPE is calculated as 0.00691752 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. a For 2412~2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 2 of 77 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 3 of 77 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 47 5 . BANDWIDTH TEST 55 5.1 APPLIED PROCEDURES / LIMIT 55 5.1.1 MEASUREMENT INSTRUMENTS LIST 55 5.1.2 TEST PROCEDURE 55 5.1.3 DEVIATION FROM STANDARD 55 5.1.4 TEST SETUP 56 5.1.5 EUT OPERATION CONDITIONS 56 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 4 of 77 Table of Contents Page 5.1.6 TEST RESULTS 57 6 . PEAK OUTPUT POWER TEST 61 6.1 APPLIED PROCEDURES / LIMIT 61 6.1.1 MEASUREMENT INSTRUMENTS LIST 61 6.1.2 TEST PROCEDURE 61 6.1.3 DEVIATION FROM STANDARD 61 6.1.4 TEST SETUP 61 6.1.5 EUT OPERATION CONDITIONS 61 6.1.6 TEST RESULTS 62 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 63 7.1 APPLIED PROCEDURES / LIMIT 63 7.1.1 MEASUREMENT INSTRUMENTS LIST 63 7.1.2 TEST PROCEDURE 63 7.1.3 DEVIATION FROM STANDARD 63 7.1.4 TEST SETUP 63 7.1.5 EUT OPERATION CONDITIONS 64 7.1.6 TEST RESULTS 65 8 . POWER SPECTRAL DENSITY TEST 69 8.1 APPLIED PROCEDURES / LIMIT 69 8.1.1 MEASUREMENT INSTRUMENTS LIST 69 8.1.2 TEST PROCEDURE 69 8.1.3 DEVIATION FROM STANDARD 69 8.1.4 TEST SETUP 69 8.1.5 EUT OPERATION CONDITIONS 69 8.1.6 TEST RESULTS 70 9 . RF EXPOSURE TEST 74 9.1 APPLIED PROCEDURES / LIMIT 74 9.1.1 MPE CALCULATION METHOD 74 9.1.2 DEVIATION FROM STANDARD 74 9.1.3 EUT OPERATION CONDITIONS 74 9.1.4 TEST RESULTS 75 10 . EUT TEST PHOTO 76 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 5 of 77 1. CERTIFICATION E q u i p m e n t : WIFI MODULE Brand Name : N/A Model Name : WL0159 A p p l i c a n t : ZIONCOM TECHNOLOGY LIMITED Date of Test : Feb. 25, 2010 ~ Mar. 16, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1002C114) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 6 of 77 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 7 of 77 2.1 TEST FACILITY The test facilities used to collect the test data in this report is CB03/DG-C03 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-CO3 ANSI150 KHz ~ 30MHz 1.94 B. Radiated Me…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 76 of 77 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 76 of 77 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 77 of 77 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1002C114 Page 77 of 77 Radiated Measurement Photos
