X7DWL0183802.11b/g/n wireless USB adapter

Wireless USB Adapter user’s manual 1. Install the driver a. Insert the installation CD into your CD-ROM driver,Double click the icon to start setup. b. c. Choose Ralink configuration Tool and click next to go on d. Choose optimize for wifi mode and click next to go on e. Choose Click Install to begin the installation and click Install to go on f. Click Finish to end the setup 2. Plug in your usb wireless LAN adapter,it will be recognized and auto installed..Just confirmed it like below: 3. Make infrastructure connection Double click the icon in red circle You will see: You can click the button Rescan to find which AP is in range,the will show on the window,choice one you want to connect,and click the button connect. An infrastructure connection is accomplished. Note,please choose correct channel setting up to your law,for example,ch13 is permitted in your country,and you set your router at ch13,while you choose ch1-ch11(default setting),you will never find the AP,and you will have to choose ch1-ch13 seting in Advanced page as below. 4. Some help information in Ralink Wireless utility ● How to find out your ip address: 5.Mske Ad-hoc mode connection ●Mske an Ad-hoc SSID ● A ● B ● C 5.2 Setup static IP address for the AD-Hoc link ●A At its property page,double click item Internet Protocol(TCP/IP) ● B You will get ● C Fill the IP address blank,example as below: ● D Click ok to finish the setup 5.3 Ad-Hoc setup for one point accomplished 5.4 Setup another Ad-hoc point as step A、B、 C、D. 5.5 Ad-hoc mode link accomplished.And you can visit each other. Note:To make an Ad-Hoc mode link.Do remember to choice the same channel.Its static IP address should be in the same netsub,and the SSID should be the same too. WL0183 is designed to provide a high-speed and unrivaled wireless performance for your computer. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on. Use the most advanced wireless networking technology IEEE802.11n (Draft 2.0) standard. When 802.11n devices are in both connection ends, MIMO technology utilizes twice radio wave length band to increase three times transmission speed. WL0183 supports WPS, which can help you create a wireless connection with effortless security setup, to prevent outside intrusion and protect your personal information from Product Description being exposed. It is a perfect solution for small office and home needs. ™ Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards. ™ Provides USB v2.0 interface ™ 150Mbps wireless transmission rate ™ Provides two methods of operation: Infrastructure and AD-Hoc. ™ Adopts CCA technology which automatically avoids channel conflicts using its channel selection feature. ™ Wi-Fi protected Security(WPS),set your security at a push of button ™ Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES) ™ supports MIC, IV Expansion, Shared Key Product Features Authentication, IEEE 802.1X ™ Simple Configuration and monitoring ™ Supports Windows2000,XP 32/64,Vista 32/64,Win7 32/64, Linux, Mac ™ Seamlessly compatible with 802.11b/g/n devices ™ USB Cabel Standard IEEE802.11N, IEEE802.11G, IEEE802.11B Modulation Type OFDM/CCK/16-QAM/64-QAM Standard IEEE802.11N, IEEE802.11G, IEEE802.11B Interface USB v2.0 Frequency 2.4~2.4835 GHZ Product Specification Data Rate 11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps Data Security 64/128/152bitWEP, WPA/WPA2 WPA-PSK/WPA2-PSK(TKIP/A ES) WPS(wi-fi Protected system) LED Indicator ACT (Connect with flashing) Wireless RF Power 11g:15±1dbm;11b:18±1d bm; 11n:13±1dbm Work Mode Ad-Hoc Infrastructure Chipset Ralink3070 WPS One-touch button Antenna 1* detachable antenna Receiver Sensitivity 150M: -68 dBm@10% PER 130M: -68 dBm@10% PER 108M: -68 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER Operating System Windows2000, XP32/64, Vista 32/64, Win7 32/64, Linux, Mac Environ ment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40~70°C (-40°F~158°F) Relative humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing FCC Statement ™ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference ™ to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ™ -Reorient or relocate the receiving antenna. ™ -Increase the separation between the equipment and receiver. ™ -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ™ -Consult the dealer or an experienced radio/TV technician for help. ™ To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). ™ ™ FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To comply with RF exposure limits this device must not be co-located or operating in conjunction with any other antenna or transmitter. When using this device in laptop/notebook computers, user must not simultaneously operate wireless products in adjacent USB-ports or cardbus slots. ™ ™ This equipment complies with Pa…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1005C133 Page 2 of 6 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 3 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 3 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 4 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 4 of 6 1005C133 1005C133

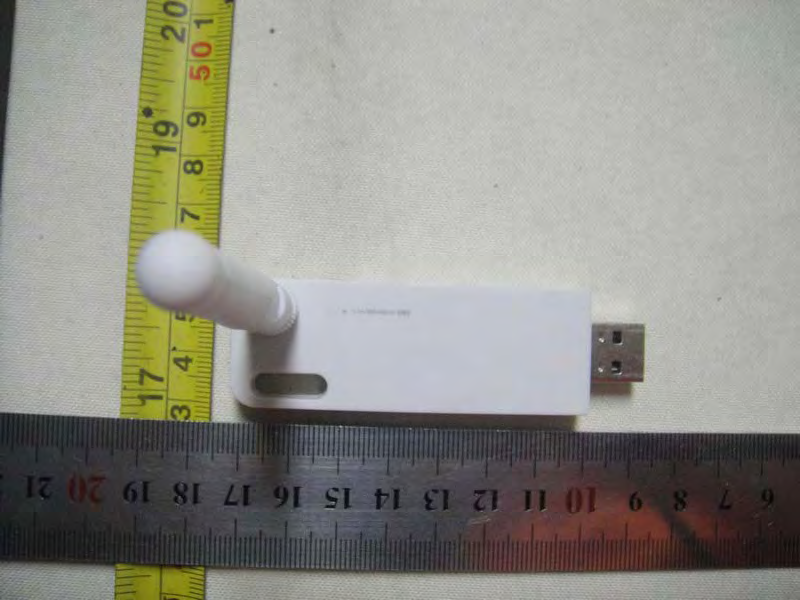

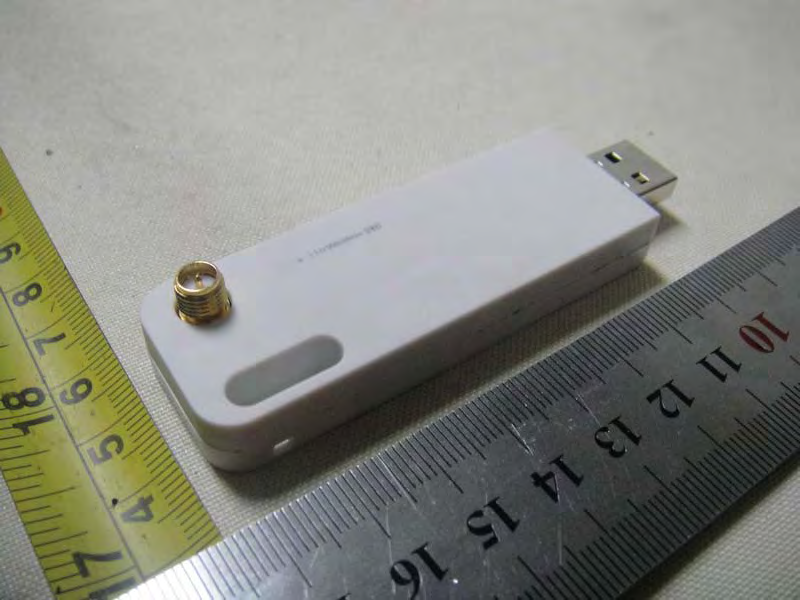

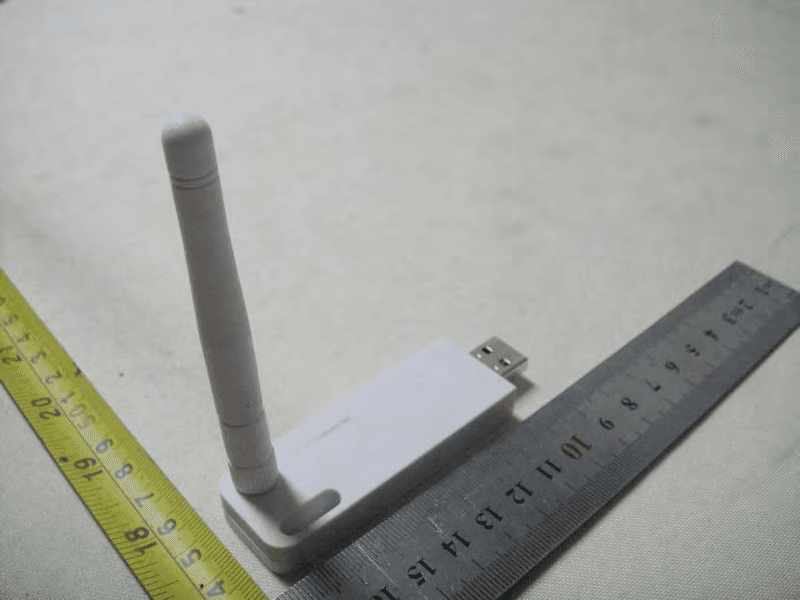

ModelWL0183 FCC ID:X7DWL0183 20mm 5mm

Neutron Engineering Inc. Project No.: 1005C133 Page 5 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 5 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 6 of 6 1005C133 1005C133 Neutron Engineering Inc. Project No.: 1005C133 Page 6 of 6 1005C133 1005C133

1.1. Test Result of RF Exposure Evaluation . Product: 802.11b/g/n wireless USB adapter Test Item: RF Exposure Evaluation Data . Test site: OATS . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.5 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: DSSS Test Date: May 30, 2010 Temperature:24°C Humidity: 60％ TX B MODE CH01, CH06, CH11 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 11.94 0.004395 06 2437 11.55 0.004017 11 2462 11.95 0.004405 Modulation Standard: OFDM Test Date: May 30, 2010 Temperature:24°C Humidity: 60％ TX G MODE CH01, CH06, CH11 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 12.03 0.004487 06 2437 11.73 0.004187 11 2462 11.86 0.004315 Modulation Standard: OFDM Test Date: May 30, 2010 Temperature: 24°C Humidity: 60％ TX N-20M MODE CH01, CH06, CH11 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 11.76 0.004216 06 2437 12.01 0.004466 11 2462 12.02 0.004477 Modulation Standard: OFDM Test Date: May 30, 2010 Temperature: 24°C Humidity: 60％ TX N-40M MODE CH03, CH06, CH09 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 03 2422 11.89 0.004345 06 2437 12.01 0.004466 09 2452 12.02 0.004477 The max out EIRP output power of this device is 12.03dBm which is below the threshold Level of 13.86dBm for SAR requirements, So, RF exposure limit warning or SAR test are not required. a For 2412~2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 2 of 107 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 3 of 107 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 5 . BANDWIDTH TEST 71 5.1 APPLIED PROCEDURES / LIMIT 71 5.1.1 MEASUREMENT INSTRUMENTS LIST 71 5.1.2 TEST PROCEDURE 71 5.1.3 DEVIATION FROM STANDARD 71 5.1.4 TEST SETUP 72 5.1.5 EUT OPERATION CONDITIONS 72 5.1.6 TEST RESULTS 73 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 4 of 107 Table of Contents Page 6 . PEAK OUTPUT POWER TEST 81 6.1 APPLIED PROCEDURES / LIMIT 81 6.1.1 MEASUREMENT INSTRUMENTS LIST 81 6.1.2 TEST PROCEDURE 81 6.1.3 DEVIATION FROM STANDARD 81 6.1.4 TEST SETUP 81 6.1.5 EUT OPERATION CONDITIONS 81 6.1.6 TEST RESULTS 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 84 7.1 APPLIED PROCEDURES / LIMIT 84 7.1.1 MEASUREMENT INSTRUMENTS LIST 84 7.1.2 TEST PROCEDURE 84 7.1.3 DEVIATION FROM STANDARD 84 7.1.4 TEST SETUP 84 7.1.5 EUT OPERATION CONDITIONS 85 7.1.6 TEST RESULTS 86 8 . POWER SPECTRAL DENSITY TEST 94 8.1 APPLIED PROCEDURES / LIMIT 94 8.1.1 MEASUREMENT INSTRUMENTS LIST 94 8.1.2 TEST PROCEDURE 94 8.1.3 DEVIATION FROM STANDARD 94 8.1.4 TEST SETUP 94 8.1.5 EUT OPERATION CONDITIONS 94 8.1.6 TEST RESULTS 95 9 . RF EXPOSURE TEST 103 9.1 APPLIED PROCEDURES / LIMIT 103 9.1.1 MPE CALCULATION METHOD 103 9.1.2 DEVIATION FROM STANDARD 103 9.1.3 EUT OPERATION CONDITIONS 103 9.1.4 TEST RESULTS 104 10 . EUT TEST PHOTO 106 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 5 of 107 1. CERTIFICATION E q u i p m e n t : 802.11b/g/n wireless USB adapter Brand Name : N/A Model Name : WL0183 A p p l i c a n t : Zioncom Technology Limited Date of Test : May. 21, 2010 ~ May. 31, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1005C133) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 6 of 107 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1005C133 Page 7 of 107 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-C03/CB03at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Cond…
