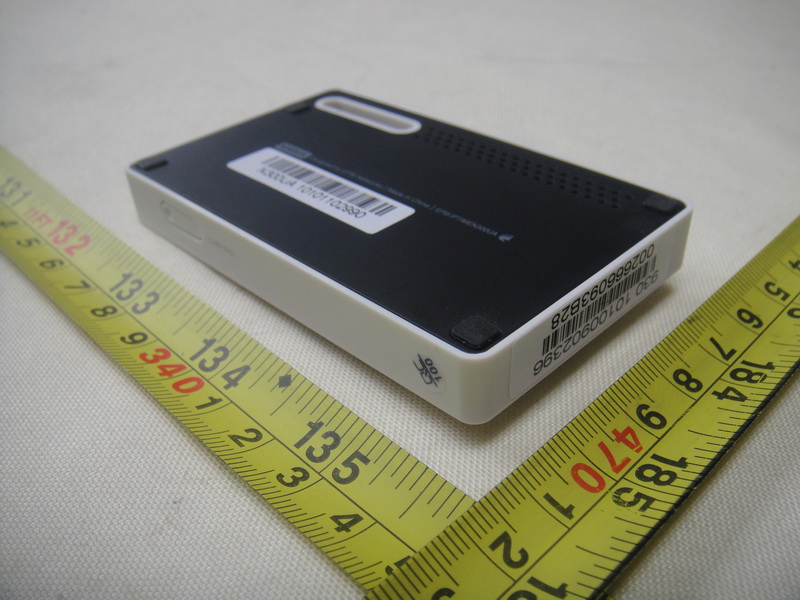

X7DWL0187USB WIRELESS LAN CARD

USB Wireless Lan card user’s manual WL0187/N300UA 1. Install the driver a. Insert the installation CD into your CD-ROM driver,Double click the icon to start setup. b. c. Choose Ralink configuration Tool and click next to go on d. Choose optimize for wifi mode and click next to go on e. Choose Click Install to begin the installation and click Install to go on f. Click Finish to end the setup 2. Plug in your usb wireless LAN adapter,it will be recognized and auto installed..Just confirmed it like below: 3. Make infrastructure connection Double click the icon in red circle You will see: You can click the button Rescan to find which AP is in range,the will show on the window,choice one you want to connect,and click the button connect. An infrastructure connection is accomplished. Note,please choose correct channel setting up to your law,for example,ch13 is permitted in your country,and you set your router at ch13,while you choose ch1-ch11(default setting),you will never find the AP,and you will have to choose ch1-ch13 seting in Advanced page as below. 4. Some help information in Ralink Wireless utility ● How to find out your ip address: 5.Mske Ad-hoc mode connection ●Mske an Ad-hoc SSID ● A ● B ● C 5.2 Setup static IP address for the AD-Hoc link ●A At its property page,double click item Internet Protocol(TCP/IP) ● B You will get ● C Fill the IP address blank,example as below: ● D Click ok to finish the setup 5.3 Ad-Hoc setup for one point accomplished 5.4 Setup another Ad-hoc point as step A、B、 C、D. 5.5 Ad-hoc mode link accomplished.And you can visit each other. Note:To make an Ad-Hoc mode link.Do remember to choice the same channel.Its static IP address should be in the same netsub,and the SSID should be the same too. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Neutron Engineering Inc. Project No.: 1012C257 Page 2 of 9 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 3 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 3 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 4 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 4 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 5 of 9 1012C257

Neutron Engineering Inc. Project No.: 1012C257 Page 6 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 6 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 7 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 7 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 8 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 8 of 9 1012C257 1012C257 Neutron Engineering Inc. Project No.: 1012C257 Page 9 of 9 1012C257

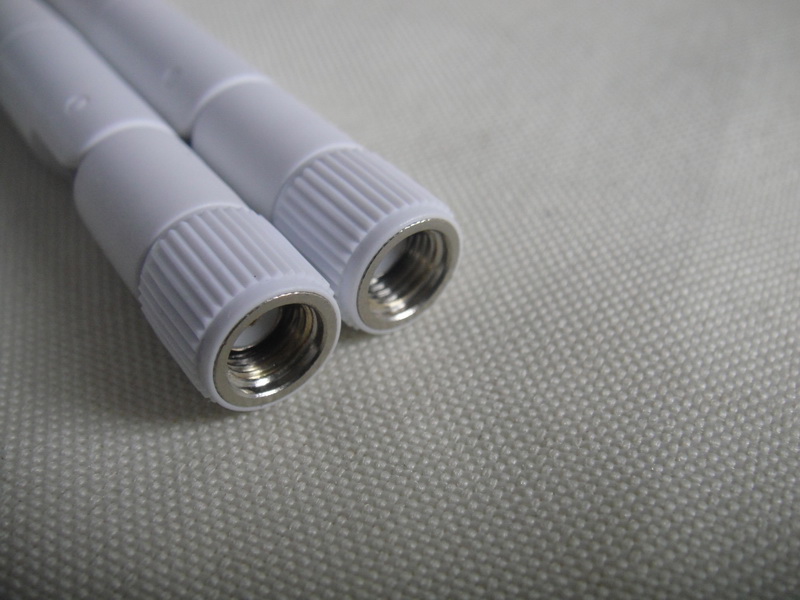

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: X7DWL0187 Project No. : 1012C257 Equipment : USB WIRELESS LAN CARD Model : WL0187;N300UA Applicant : ZIONCOM ELECTRONICS (SHENZHEN) LTD Address : Building A1~A2 Lantian Science and Technology Park,Xinyu Road Xinqiao Henggang Block Shajing Street, Baoan District. Shenzhen City, China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 HongLin G009-3100 10-A Dipole Antenna R-SMA 1.5 TEST RESULTS EUT： USB WIRELESS LAN CARD Model Name ： WL0187 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.5 1.4125 10.48 11.1686 0.003140151 Complies 1.5 1.4125 10.65 11.6145 0.003265511 Complies 1.5 1.4125 10.55 11.3501 0.003191171 Complies Neutron Engineering Inc. EUT： USB WIRELESS LAN CARD Model Name ： WL0187 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.5 1.4125 23.09 203.7042 0.057273061 Complies 1.5 1.4125 23.18 207.9697 0.058472331 Complies 1.5 1.4125 23.41 219.2805 0.061652451 Complies EUT： USB WIRELESS LAN CARD Model Name ： WL0187 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20MHz MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.5 1.4125 24.92 310.4560 0.087287161 Complies 1.5 1.4125 24.99 315.5005 0.088705461 Complies 1.5 1.4125 24.92 310.4560 0.087287161 Complies EUT： USB WIRELESS LAN CARD Model Name ： WL0187 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40MHz MODE CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.5 1.4125 25.09 322.8494 0.090771681 Complies 1.5 1.4125 25.09 322.8494 0.090771681 Complies 1.5 1.4125 25.33 341.1929 0.095929101 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 2 of 123 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 3 of 123 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS (RADIATED MODE) 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 5 . BANDWIDTH TEST 72 5.1 APPLIED PROCEDURES / LIMIT 72 5.1.1 MEASUREMENT INSTRUMENTS LIST 72 5.1.2 TEST PROCEDURE 72 5.1.3 DEVIATION FROM STANDARD 72 5.1.4 TEST SETUP 72 5.1.5 EUT OPERATION CONDITIONS 72 5.1.6 TEST RESULTS 73 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 4 of 123 Table of Contents Page 6 . PEAK OUTPUT POWER TEST 81 6.1 APPLIED PROCEDURES / LIMIT 81 6.1.1 MEASUREMENT INSTRUMENTS LIST 81 6.1.2 TEST PROCEDURE 81 6.1.3 DEVIATION FROM STANDARD 81 6.1.4 TEST SETUP 81 6.1.5 EUT OPERATION CONDITIONS 81 6.1.6 TEST RESULTS 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 88 7.1 APPLIED PROCEDURES / LIMIT 88 7.1.1 MEASUREMENT INSTRUMENTS LIST 88 7.1.2 TEST PROCEDURE 88 7.1.3 DEVIATION FROM STANDARD 88 7.1.4 TEST SETUP 88 7.1.5 EUT OPERATION CONDITIONS 88 7.1.6 TEST RESULTS 89 8 . POWER SPECTRAL DENSITY TEST 109 8.1 APPLIED PROCEDURES / LIMIT 109 8.1.1 MEASUREMENT INSTRUMENTS LIST 109 8.1.2 TEST PROCEDURE 109 8.1.3 DEVIATION FROM STANDARD 109 8.1.4 TEST SETUP 109 8.1.5 EUT OPERATION CONDITIONS 109 8.1.6 TEST RESULTS 110 9 . EUT TEST PHOTO 122 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 5 of 123 1. CERTIFICATION E q u i p m e n t : USB WIRELESS LAN CARD Brand Name : N/A Model Name : WL0187;N300UA A p p l i c a n t : ZIONCOM ELECTRONICS (SHENZHEN) LTD Date of Test : Dec. 31, 2010 ~ Jan. 17, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1012C257) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 6 of 123 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 7 of 123 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-CB03/DG-C03 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C03 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE 30MHz…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 122 of 123 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 122 of 123 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 123 of 123 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1012C257 Page 123 of 123 Radiated Measurement Photos
