X7DWL0217Wi-Fi MODULE WL0217E (IEEE 802.11b/g/n)

V1.1 _________________________________________________________________ www.zioncom.net 1 Zioncom Electronics (Shenzhen)Ltd. Tel:+86-755-61363299 Fax:+86-755-61363322 Specification For Approval WiFi Module WL0217E(IEEE 802.11b/g/n) WL0217 V1.1 _________________________________________________________________ www.zioncom.net 2 Approved Reference Table of Contents Chapter 1 revision 1.1 Version Histor ----------------------------------------------------------------3 Chapter 2 Introduction 2.1 Introduction ------------------------------------------------------------------3 2.2 Product Features --------------------------------------------------------------4 2.3 Applications ------------------------------------------------------------------4 Chapter 3 Hardware 3.1 General Overview ------------------------------------------------------------4 3.2 Hardware Architecture -------------------------------------------------------4 3.3 Main Chipset Information ----------------------------------------------------4 3.4 PCB size -------------------------------------------------------------------4 Chapter 4 Software 4.1 Operating System Supported --------------------------------------------------4 4.2 Wireless Mode Supported -----------------------------------------------------4 4.3 Security encryption ---------------------------------------------------------5 Chapter 5 Appearance 5.1 Drawings --------------------------------------------------------------------6 Chapter 6 Specification 6.1 Product Specifications ---------------------------------------------------- 7-8 Chapter 7 Packaging 7.1 Packaging -------------------------------------------------------------------- 8 7.2 Fcc IC Label and Lable Location-----------------------------------------------8 Chapter 8 Sample test report 8.1 Sample test report --------------------------------------------------------- 9-12 V1.1 _________________________________________________________________ www.zioncom.net 3 Chapter 1 revision 1.1 Version History Version Amendments Revision Date Revised V1.0 Preliminary document 2011-08-11 Jiemy V1.1 Add FCC IC Label and Lable Location 2011-9-11 Jiemy V1.1 _________________________________________________________________ www.zioncom.net 4 Chapter 2 Introduction 2.1 Introduction WL0217 is a single band wireless 802.11n USB module for Blu-ray players and other multi-media devices. It enables multi-media devices to connect onto 802.11n WLAN network and attain data communication speeds up to 300 megabits-per-second (Mbps). It is also backward compatible to the existing 802.11b/g network. 2.2 Product Features Product Features ♦ High speed for wireless LAN connection, Up to 300 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11/b/g WLAN network. ♦ On-board high gain antenna ♦ Support USB v2.0 2.2 Applications ♦ Home networking for device ♦ Wireless multimedia. Chapter 3 Hardware 3.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. 3.2 Hardware Architecture ♦ Broadcom 43235 single chip USB2.0 3.3 Main Chipset Information ♦ BCM43235: MIMO MAC + Baseband processor and RF with integrated 2.4GHz PA 3.4 PCB dimension: ♦ PCB Dimensions: 54mm x 20mm x 1mm (L x W x H) 3.5 Host Interface ♦ USB 2.0. interface (4-pin connector) 3.5 Antenna ♦ Print Antenna 2dBi Chapter 4 Software 4.1 Operating System Supported ♦ Windows 2000, XP, Vista ♦ Linux Driver 4.2 Wireless Mode Supported V1.1 _________________________________________________________________ www.zioncom.net 5 ♦Infrastructure/Ad-hoc mode 4.3 Security encryption ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. V1.1 _________________________________________________________________ www.z ioncom.n et 6 Chapter 5 Appearance 5.1 Drawings C hapter 6 Specifications V1.1 _________________________________________________________________ www.zioncom.net 7 ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power: ( Typical ) 11b 17 +/- 1 dBm@11 Mbps 11g 15 +/- 1 dBm@54 Mbps 11n 14 +/- 1 dBm@64-QAM, 20MHz channel spacing 11n 11 +/- 1 dBm@64-QAM, 40MHz channel spacing Rx Sensitivity : ( Typical ) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing ♦ Modulation DBPSK @1Mbps DQPSK@2Mbp [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above ♦ Current consumption ( 5V DC ): TX: TBD Max, @MCS7, 40MHz RX: TBD 310mA Max, @MCS15, 40MHz Power Saving: < TBD Radio OFF mode: < TBD ♦ Operating Temperature: 0 ~ 40 oC ambient ♦ Storage Temperature: -10 ~ 70 oC ambient ♦ Humidity: 5 ~ 90% and must be non-condensing ♦ Regulation and certification compliance available: V1.1 _________________________________________________________________ www.z ioncom.n et 8 References  IEEE 802.11b Standard Specification  IEEE 802.11g Standard Specification  IEEE 802.11n draft Standard Specification C hapter 7 Packaging 7 .1 Packaging 7 .2 Fcc IC Label and Lable Location V1.1 _________________________________________________________________ www.zioncom.net 9 Chapter 8 Sample test report 8.1 Sample test report Produce performance parameter table (1)RF hardware performance(2.4G) Antenna 0 Power 54M CH1 12.43dBM CH6 13.91dBM CH11 15.07dBM 11N(HT20) MCS7 CH1 11.00dBM CH6 12.00dBM CH11 12.90dBM 11N(HT40) MCS7 CH6 12.18dBM EVM 54M CH1 -29.93dB CH6 -32.19dB CH11 -28.84dB 11N(HT20) MCS7 CH1 -30.34dB CH6 -30.33dB CH11 -31.99dB 11N(HT40) MCS7 CH6 -31.52dB MAX RX Sensitivity 54M CH1 -74.0dBm CH6 -74.0dBm CH11 -74.0dBm …

Text truncated - open the document above for the full version.

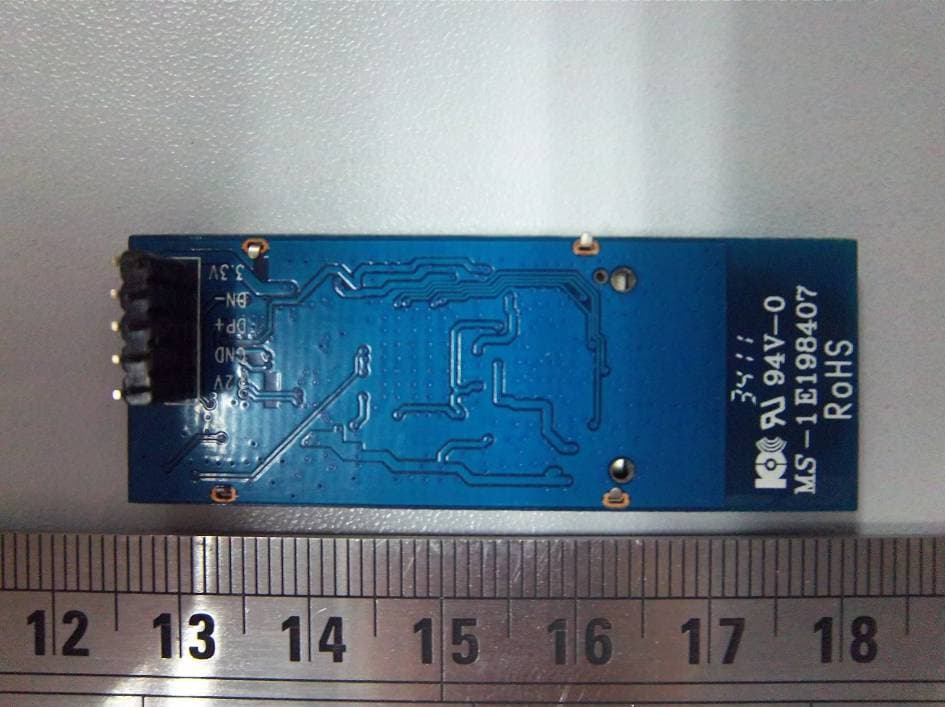

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 1 of 2 EXHIBIT B - EUT PHOTOGRAPHS EUT – Top View EUT – Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 1 of 1 EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

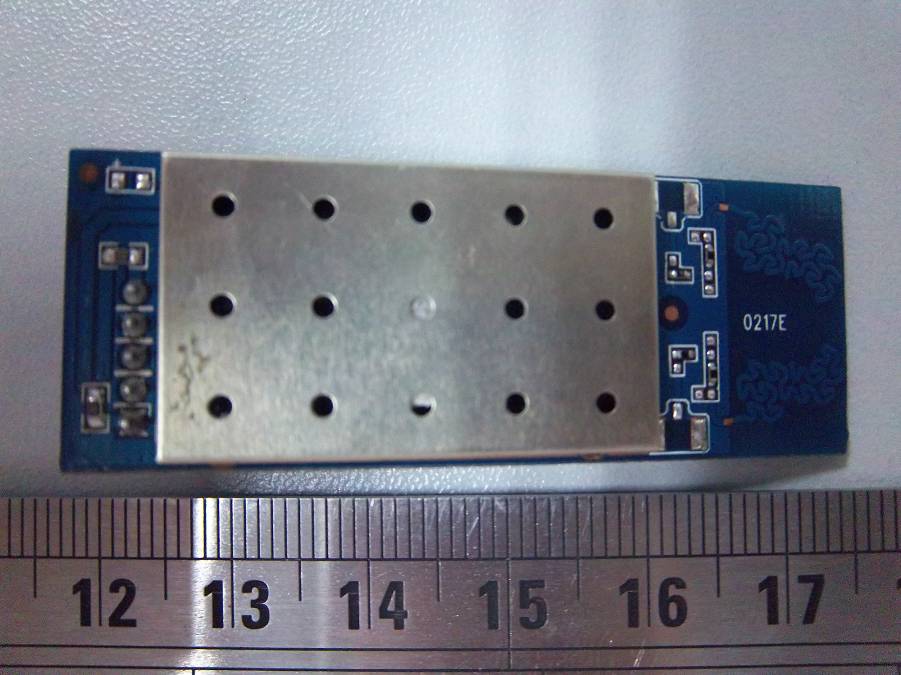

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 2 of 2 EUT – Top Shielding off View Antenna EUT – Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 10 of 102 FCC §15.247 (i) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §15.247(i) and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = PG/4πR 2 S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Antenna Gain Conducted Power Radio Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 802.11b 2437 2 1.585 18.6973.96 20 0.023 1.0 802.11g 2412 2 1.585 15.3230.04 20 0.009 1.0 802.11n20 2437 2 1.585 14.5928.77 20 0.009 1.0 802.11n40 2452 2 1.585 14.4828.05 20 0.009 1.0 Result: The device meets FCC MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 TEST REPORT For ZIONCOM ELECTRONICS (SHENZHEN) LTD. Building A1~A2, Lantian Science and Technology Park, Xinyu Road, Xinqiao Henggang Block Shajing Street, Baoan District, Shenzhen, Guangdong, China Report Type: Original Report Product Type: Wi-Fi MODULE WL0217E (IEEE 802.11b/g/n) Test Engineer: Leon Chen Report Number: RDG110906002-00 Report Date: 2011-10-17 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: X7DWL0217 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 2 of 102 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS...............................................................................................................................9 FCC §15.247 (i) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................10 APPLICABLE STANDARD............................................................................................................................................10 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST RESULTS SUMMARY..........................................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................16 APPLICABLE STANDARD............…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 1 of 3 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions- Front View Conducted Emissions- Rear View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 2 of 3 Below 1 GHz: Radiated Emissions - Front View Below 1 GHz: Radiated Emissions - Rear View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG110906002-00 FCC Part 15.247 Page 3 of 3 Above 1 GHz: Radiated Emissions - Front View Above 1 GHz: Radiated Emissions - Rear View
