X9PKB6007IBLUETOOTH KEYBOARD

KB6007I User manual 1、Contents 1.1、Bluetooth keyboard 1PCS 1.2、Instruction manual 1PCS 1.3、USB Charging cable 1PCS 2、Product Features 2.1、use Broadcom20730 main control chip, have Bluetooth3.0 interface. 2.2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software. 2.3、built-in power management software, can be in Microsoft's Windows system automatically usable capacity. 2.4、With folding design, keyboard can be carried easily. 2.5、Mute design: effectively avoid disturbing other sleeping person (especially for one room with several person). 2.6、Architecture design, provides comfortable handling feel. 2.7、Support Iphone, Mac, Windows and Android system etc. It’s more convenient for you. 3、Specifications 3.01、executive standard: bluetooth V3.0 3.02、maximum operating distance: 10 meters 3.03、modulation mode: 2.4 G FHSS 3.04、transmit power: Class 2 levels 3.05、working voltage: 3.7V 3.06、working current: 2.0 mA 3.07、standby current: 1.0mA 3.08、sleep current: 52uA 3.09、charging current: 150mA 3.10、standby time: 120days 3.11、theoretical use time: 20days 3.12、continuous uninterrupted use time: 85hours 3.13、theoretical charging time: 1.5-2 hours 3.14、lithium battery capacity: 170mAh 3.15、lithium battery life span: three years 3.16、 the lithium battery type: 302530 3.17、the key dynamics: 60 + 10g 3.18、buttons life: 5 million times 3.19、operation temperature: 0-55 °C 3.20、storage temperature: - 20-60°C 1．4、Bluetooth keyboard installation 2．Keyboard pair with iPad procedure: 3．(1)、Turn on the swith”ON”, the blue indicator light 5 seconds then extinguished which advise you the keyboard be turned on. Please see below instruction picture. (2)、Press “Connect”button,”Status” indicator twinkle which advise you is pairing. （3）、Click the setting button of IPAD and IPHONE, Then choose the General and bluetooth. Turn on the bluetooth, then the IPAD will searching bluetooth device . （4）、After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow picture), IPAD will advise you input the password. Then press “Enter”key. Warning : There are no advise when you input the password. Please make sure input correct and press enter button. （5）、If IPAD and keyboard connect success. The Status indicator will extinguished .You can use the keyboard 5、Charging When you use keyboard in process, the status tinkle which advise you the battery is shortage. You should charging. （1）、Separate put the USB terminal cable plug into the PC and keyboard.As follow picture. （2）、When you charging, the red light on. When the light off, the battery is full enough.(theoretical charging time 2hours) 6、Keyboard and iPad hotkeys specification. Press this button can fulfill the digital function of “`” on the computer, hold on “FN” and then press this button can return to the IPAD homepage. Press this button can fulfill the digital function of “1” on the computer, hold on “FN” and then press this button can control the brightness decrease of the ipad screen. Press this button can fulfill the digital function of “2” on the computer, hold on “FN” and then press this button can control the brightness increase of the ipad screen. Press this button can fulfill the digital function of “3” on the computer, hold on “FN” and then press this button, IPAD can enter the interface of the screensaver picture under the locked. Status. Press this button can fulfill the digital function of “4” on the computer, when you edit the document on ipad,, hold on “FN” and then press this button can callout and hide the IPAD’s virtual keyboard. Press this button can fulfill the digital function of “5” on the computer, hold on “FN” and then press this button can switch the IPAD’s language. Press this button can fulfill the digital function of “6” on the computer, hold on “FN” and then press this button can enter the interface of Ipad search when Ipad is on. Press this button can fulfill the digital function of “7” on the computer, when play music, hold on “FN” and then press this button can control the music to the last song. Press this button can fulfill the digital function of “8” on the computer, when ipad is on, hold on “FN” and then press this button can pause/play music. Press this button can fulfill the digital function of “9” on the computer, when play music, hold on “FN” and then press this button can control the music to the next song. Press this button can fulfill the digital function of “0” on the computer, hold on “FN” and then press this button to mute, press again to cancel the mute. Press this button can fulfill the digital function of “-” on the computer, hold on “FN” and then press this button can decrease the volume. Press this button can fulfill the digital function of “+” on the computer, hold on “FN” and then press this button can increase the volume. Press this button to lock the Ipad screen.; 7、Storage （1）、When you don’t want to use the keyboard and carry.Don’t forget turn off the power switch of keyboard. In order to extend your battery life span. （2）、If you want to store the keyboard long time.Don’t forget charging the keyboard around 1hour till the battery half which can extend your battery life span. 8、Troubleshooting Keyboard and IPAD cannot establish connections ①、please check your iPad bluetooth device is already open and went in search of state. ②、Press and release the”connect” button of keyboard ,check the Status indicator flash or not. ③、keyboard and iPad connected within 10 meters from working range. ④、Bluetooth devices of iPad changing or not, if it is, need to match again. ⑤、Your iPad bluetooth device is also connected to the other bluetooth terminal and confirm Ipad bluetooth device speed. ⑥、Checking your battery, if there is electricity shortage, please charge. This device compliance to the fifteen clause of FCC. Please use the product base on following two rules. 1、this device is not cause adverse interference 2. This device can overcome the po…

Text truncated - open the document above for the full version.

Shenzhen Paoluy Silicone Technology Co., Ltd. Date: 25.07.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name BLUETOOTH KEYBOARD Model Name KB6007I Brand Name N/A . Yours sincerely, Signatory Name Xiaogang Yang Position Quality Director Company Name Shenzhen Paoluy Silicone Technology Co., Ltd. Address No.31, Furong Road, Gushu Village Xixiang Town, Baoan District, Shenzhen, China Tel (86) 755-33819221 Fax (86) 755-33676866 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Shenzhen Paoluy Silicone Technology Co., Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Shenzhen Paoluy Silicone Technology Co., Ltd. FCC ID : X9PKB6007I FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Xiaogang Yang Position Quality Director Company Name Shenzhen Paoluy Silicone Technology Co., Ltd. Address No.31, Furong Road, Gushu Village Xixiang Town, Baoan District, Shenzhen, China Tel (86) 755-33819221 Fax (86) 755-33676866 Email [email protected]

X9PKB6007I

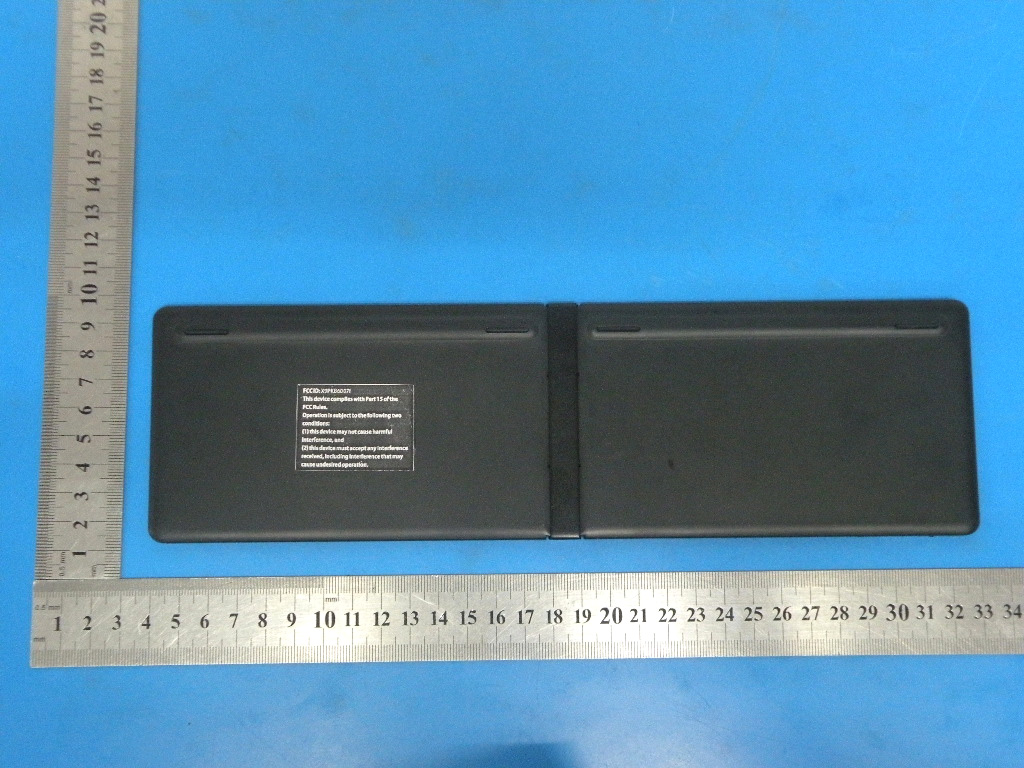

Label Location

ANTENNA

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: X9PKB6007I Page 1 of 69 TEST REPORT FCC ID: X9PKB6007I Applicant : Shenzhen Paoluy Silicone Technology Co., Ltd. Address : Ath Building 5th floor, Forzen Industrial park, Fuyuan 2nd Road, Heping Village Fuyong Town, Baoan District, Shenzhen, China Equipment Under Test (EUT): Name : BLUETOOTH KEYBOARD Model : KB6007I In Accordance with: FCC PART 15, SUBPART C : 2012 (Section 15.247) Report No : STI130710112 Date of Test : July 12-25, 2013 Date of Issue : July 26, 2013 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STI130710112 FCC ID: X9PKB6007I Page 2 of 69 Contents 1. General Information ...................................................................................................4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................4 1.3. Test Lab information ............................................................................................4 2. Summary of test ..........................................................................................................5 2.1. Summary of test result .........................................................................................5 2.2. Assistant equipment used for test.........................................................................5 2.3. Block Diagram .....................................................................................................5 2.4. Test mode .............................................................................................................6 2.5. Test Conditions.....................................................................................................6 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................6 2.7. Test Equipment.....................................................................................................7 3. Maximum Peak Output power ..................................................................................8 3.1. Limit .....................................................................................................................8 3.2. Test Procedure ......................................................................................................8 3.3. Test Setup ...............................................................................................................8 3.4. Test Result ............................................................................................................8 4. 20dB Bandwidth ...........................................................................................................9 4.1. Limit .....................................................................................................................9 4.2. Test Procedure ......................................................................................................9 4.3. Test Result ............................................................................................................9 5. Carrier Frequency Separation.................................................................................13 5.1. Limit ...................................................................................................................13 5.2. Test Procedure ....................................................................................................13 5.3. Test Result ..........................................................................................................13 6. Number Of Hopping Channel..................................................................................15 6.1. Limit ...................................................................................................................15 6.2. Test Procedure ....................................................................................................15 6.3. Test Result ..........................................................................................................15 7. Dwell Time .................................................................................................................18 7.1. Test limit ............................................................................................................18 7.2. Test Procedure....................................................................................................18 7.3. Test Results ........................................................................................................18 8. Radiated emissions....................................................................................................29 8.1. Limit ...................................................................................................................29 8.2. Block Diagram of Test setup ..............................................................................30 8.3. Test Procedure .....................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup Radiated Emission Test Setup in Chamber
