X9PKB6013IBluetooth Keyboard

KB6013i 使用说明书 1、产品内容 1.1、蓝牙键盘一只 Bluetooth keyboard1PCS 1.2、说明书一份 Instruction manual1PCS 1.3、USB 充电线一条 USB Charging cable 1PCS 2、产品特点 Product Features 2.1、使用 Broadcom20730 主控芯片，具备Bluetooth3.0 接口； use Broadcom20730 main control chip, have Bluetooth3.0 interface。 2.2、使用业界领先的蓝牙解决方案，WIDCOMM BTW（微软官方指定软件）蓝牙软件； industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software。 2.3、内置独有的电源管理软件，可在微软视窗系统中自动显示可用容量； built-in power management software, can be in Microsoft's Windows system automatically usable capacity。 2.4、IPAD Air 键盘+ IPAD Air 保护壳，专为 IPAD Air 而设计； Ipad Air keyboard with case, just design for Air Ipad. 2.5、静音设计：有效地避免了干扰他人休息（特别适合同一房间多人居住人群）；Mute design: effectively avoid other person sleeping(especially for one room with several person). 2.6、剪刀脚架构设计，手感舒适，符合人体工学设计；Architecturedesign, provides comfortable handling feel. 2.7、加入 Caps lock 状态指示，在您需要输入英文大小写的时候可以一目了然；Caps lock signal helps in capital letters writing 2.8、同时支持 Ipone、Mac、Windows、Android 等系统，给您的工作带来更大的方便；Support Iphone,Mac,Windows and Android system etc.It’s more convenient for you. 3、规格参数 Specifications 3.01、执行标准：蓝牙 V3.0Executive standard: Bluetooth V3.0 3.02、最大操作距离：10 米Maximum operating distance: 10 meters 3.03、调制方式：2.4G 直序跳频（FHSS）Modulation mode: 2.4 G straight sequence fh (FHSS) 3.04、发射功率:Class 2 级别Transmit power: Class 2 levels 3.05、工作电压：3.7VWorking voltage: 3.7V 3.06、工作电流：2.0mAworking current: 2.0 MA 3.07、待机电流：1.0 mAstandby current: 1.0 MA 3.08、睡眠电流：40uAsleep current40uA 3.09、充电电流：150mAcharging current: 110mA 3.10、待机时间：350 天standby time: 350days 3.11、理论使用时间：40 天theoretical use time: 40days 3.12、连续不间断使用时间： 190 小时continuous uninterrupted use time: 40hours 3.13、理论充电时间：3.5-4 小时theoretical charging time: 3.5-4 hours 3.14、锂电池容量：380mAhlithium battery capacity: 380mAh 3.15、锂电池型号：452447the lithium battery type: 452747 3.16、按键力度：60±10gthe key dynamics: 60 + 10g 3.17、按键寿命：500万次buttons life: 5 million times 3.18、操作温度：0－55°Coperation temperature: 0-55°C 3.19、储藏温度：-20－70°Cstorage temperature: - 20-70°C 4、设置键盘和IPAD或Iphone Keyboardand Ipad / Iphone setting 4.1、键盘使用内置锂电池设计，采用Bluetooth技术与IPAD、手机或电脑连接。Built in lithium battery with bluetooth and connectwith IPAD,mobilephone or PC. 4.1.1、以下内容将向您介绍如何使用、设置键盘，以及键盘在什么状态下需要充电以及怎样充电。要了解如何进行以下操 作：Below information will show you how to use, set and charging. 4.2、关于键盘开机和关机 POWER ON/OFF 4.2.1、键盘开机：拨动开关至NO，键盘power指示灯和bluetooth指示灯同时亮起约3-5秒提示开机。 4.2.1:Power on :Switch to ON, power LED and bluetooth LED flash at the same time about 3-5 seconds. 4.2.2、 拨动开关至 OFF，键盘指示灯 POWER 熄灭，键盘关机。 Power off:Switch to OFF,power LED shut off, keyboard is turned off. 4.3、关于指示灯Indicator 4.3.1、键盘上的LED指示灯分别用做电源指示、状态指示，充电指示和caps lock指示灯，首次给键盘开电时，Power指 示灯和Bluetooth指示灯会同时亮起约3-5秒钟，表示电池状态良好，约3-5秒种后，如果键盘未与IPAD、手机或电脑等设备 配对，Bluetooth指示灯会闪烁，表示键盘处于发现模式，已经准备好与IPAD、手机或电脑等设备配对。（配对意味着键盘 与IPAD、手机或电脑已经以无线方式连接，并准备好相互通信）。 The LED indicators on the keyboard are: power indicator、 state indicator、charge indicator and Caps lock indicator. If you turn on the keyboard first time, constantly the power indicator and the bluetooth indicator light 3-5 seconds. The battery is good.After 3-5 seconds,if keyboard didn’ t match the IPAD, mobile phone and PC, the indicator will twinkle . The keyboard is seraching and ready to match IPAD, mobile phone and PC etc.(Match means wireless connect with IPAD,mobilephoe and PC,and ready to correspondence.) 4.3.2、如果10分钟内您还没有将键盘与IPAD、手机或电脑等设备配对，Power和Bluetooth指示灯均熄灭，键盘关闭，以节 省电量。 If the keyboard don’t match the IPAD, mobile phone and PC within 10 minutes.The light of power and bluetooth will turn off.The keyboard will turn off to save electricity 4.3.3、键盘与IPAD、手机或电脑配对成功后，Bluetooth指示灯熄灭，Power指示灯长亮。After t he keyboard and IPAD,mobile phone and PC matched successfully ,the bluetooth indicator turn off,the power constant light. 4.3.4、当键盘与IPAD、手机或电脑配对成功且能正常使用后，如果您超过15分钟没有使用您的键盘，那么Power指示灯 灭，键盘进入睡眠状态，当您需要再次使用键盘时，您只需轻按键盘上的任一按键唤醒键盘，Power指示灯再次亮起，您就 可以重新使用键盘. When the keyboard and IPAD,mobile phone and PC match successfully to use.If you don’t use the keyboard over 15minutes,the light of power will turn off,the keyboard turns into sleeping mode.When you want to use the keyboard again,you just press any button softly.The power will light again,you can use the keyboard. 4.3.5、键盘在正常使用过程中，如果Power指示灯闪烁，此时提示您电池电量不够5%，您需要给键盘充电。 When you are using the keyboard, if the power indicator twinkles, it advise you that battary is less than 5%,you need charing. 4.3.6、插入充电器到充电接口后，Charge指示灯亮，电池电量充满后，Charge指示灯灭。 Plug the charger into the charing interface.The charge light.If the battary is full enough,the chargewill cut off automatically. 4.3.7、在键盘使用过程中，当键盘锁定大小写时，Caps指示灯亮，当键盘解锁大小写时，Caps指示灯灭。 When you are using the keyboard , you lock the upper and lowercase letters,the Caps light,when you unlocked,the Caps will off. 4.4、将键盘与新的IPAD或新的Iphone配对：the keyboard with new IPAD and IPHONE connection: 4.4.1、将键盘Power开关拨动至ＯＮ处。Power灯Bluetooth同时亮起约3-5秒键盘提示开机，随后按下键盘的对码按键约2秒 bluetooth指示灯开始闪烁此时为对码状态。 Switch to ON button, Power LED and Bluetooth LED light up at the same time, Bluetooth LED flash about 3-5 seconds ,then it enters the status of match code. 4.4.2、点击IPAD或Iphone上的Settings按钮，IPAD进入Settings区；然后选择General选项，再选择Bluetooth选项将Bluetooth 打开，此时IPAD进入蓝牙设备搜索状态，寻找蓝牙设备。 Click the setting button of IPAD and IPHONE,Then choose the General and bluetooth.The IPAD is searching bluetooth device. 4.4.3、IPAD或Iphone进入搜索状态，寻找蓝牙设备并搜索到蓝牙键盘（如下图所示），搜索到蓝牙键盘后，IPAD会提示 您在键盘上输入密码与IPAD或Iphone进行连接。 After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow picture),IPAD will advise you input the password. 4.4.4、 建立连接：IPAD进入搜索状态，寻找蓝牙设备并搜索到蓝牙键盘，搜索到蓝牙键盘后直接点击即可与键盘连接 Get connected: iPad search for Bluetooth devices and find the Bluetooth keyboard, then directly click to establish the connection 4.4.5、IPAD与键盘连接成功后，Power指示灯长亮，表示键盘对码成功，Power指示灯长亮是为了提醒您在不使用键盘的 时候关闭键盘电源。 If IPAD and keyboard connect successfully .the power LED keep constant light. Power constant light advise youturnoffthekeyboardwhileyoudon’tuseit. 4.5…

Text truncated - open the document above for the full version.

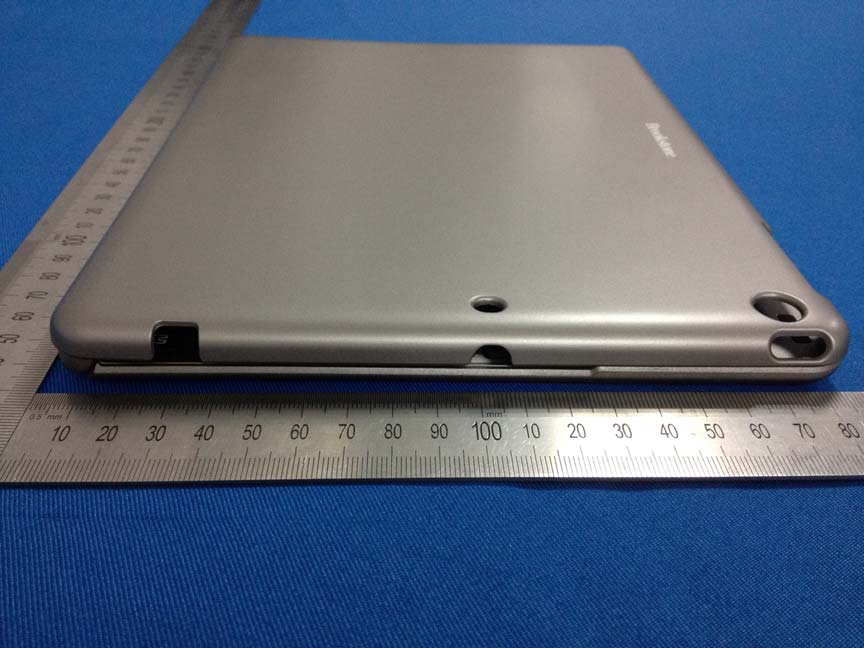

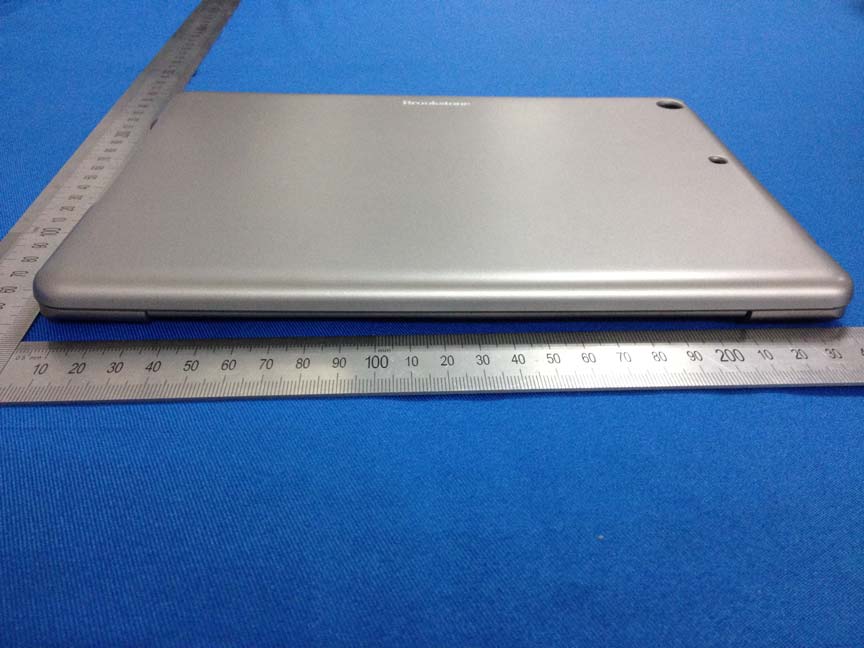

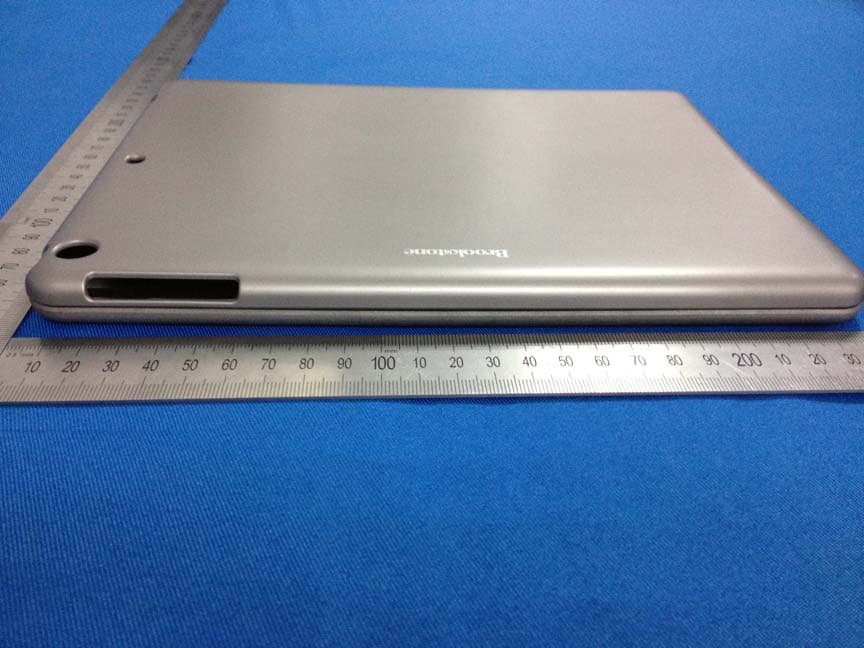

Externalphoto

Proposed FCC ID Label Location Label size: L*W=85*15mm

FCC ID Label Sample for FCC ID: X9PKB6013I This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Inside View of the EUT

FCC ID TEST REPORT for BLUETOOTH KEYBOARD Model: KB6013 FCC ID: X9PKB6013I Prepared for:Shenzhen Paoluy Silicone Technology Co., Ltd. No.31, Furong Road, Gushu Village Xixiang Town, Baoan District, Shenzhen, China Prepared by:Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT140514079F2-1 Date of Test：May. 15-May. 22, 2014 Date of Report：May. 23, 2014 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: X9PKB6013I Report Number:TCT140514079F2-1Page 2 of 50 Table of Contents 1.0 General Details........................................................................................................................................................ 3 1.1 Test Lab Details...............................................................................................................................................3 1.2 Applicant Details.............................................................................................................................................3 1.3 Description of EUT......................................................................................................................................... 4 1.4 Statement.........................................................................................................................................................4 1.5 Test Engineer...................................................................................................................................................4 2.0 Test equipments and Associated Equipment used during the test.......................................................................... 5 2.1 Test Equipments.............................................................................................................................................. 5 2.2 AE used during the test....................................................................................................................................5 3.0 Technical Details..................................................................................................................................................... 6 3.1 Summary of test results...................................................................................................................................6 3.2 Test Standards..................................................................................................................................................6 4.0 EUT Modification................................................................................................................................................... 6 5.0 Measurement Uncertainty（95% confidence levels, k=2).....................................................................................6 6.0 Power Line Conducted Emission Test.................................................................................................................... 7 7.0 20dB Bandwidth Measurement.............................................................................................................................11 8.0 Maximum Peak Output Power..............................................................................................................................14 9.0 Carrier Frequency Separation................................................................................................................................17 10.0 Number of Hopping Channels............................................................................................................................ 20 11.0 Time of Occupancy (Dwell Time).......................................................................................................................22 12.0 Band edge Measurement..................................................................................................................................... 25 13.0 Spurious Emission Test....................................................................................................................................... 30 14.0 Antenna Requirement..........................................................................................................................................39 15.0 Photos of Testing................................................................................................................................................. 40 15.1 Conducted Emission Test View...................................................................................................................40 15.2 Radiated Emission Test View......................................................................................................................41 16.0 Photos for EUT....................................................................................................................................................42 FCC ID: X9PKB6013I Report Number:TCT140514079F2-1Page 3 of 50 1.0 General Details 1.1 Test Lab Details Name:Shenzhen Tongce Testing Lab Address:1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Telephone:13410377511 Fax:-- The test facility is recognized, certified, or accredited by the following organizations: FCC Registration Number: 572331 Shenzhen TCT Testing Technology Co., Ltd., Shenzhen EMC Laboratory: Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 572331 Industry Canada (IC) The 3m…
