XBADSB05Multisensor - Motion, Temperature, Humidity

MultiSensor (Z-Wave 4-in-1 Sensor: Motion, Temperature, Humidity, and Light Sensor) Introduction: Important Disclaimer: The Aeotec MultiSensor is a USB or battery-powered Z-Wave motion sensor, temperature sensor, humidity sensor, and lighting sensor all in one package. The sensor will send radio signals to up to 6 associated Z-Wave devices within its own Z-Wave network when the Motion Sensor detects IR changes in front of its viewing window. Indoor/Outdoor functional tolerances allow the Aeotec MultiSensor to function under weatherized conditions. Various sensitivity levels can be configured to avoid unintentional triggering from small animals such as cats and dogs. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. This product uses radio to wirelessly communicate data between itself and other devices. Radio communication is inherently not always 100% reliable, and as such, this product should not be used in situations in which life and/or valuables are solely dependent on its function. · MultiSensor Physical Instructions: There are 2 methods to physically mount the MultiSensor on the wall or ceiling. It can be mounted flat against the wall via the Back-Mount Plate or angled in a direction via the Back-Mount Arm. Important: The MultiSensor is weatherized and can operate outdoors in rain and snow. Placed outdoors where directly exposed to rain and snow, the MultiSensor should be oriented such that the Temperature/Humidity Sensor is facing downward and positioned on the bottom of the unit. (See the Weatherization Orientation section.) Recommendation: For networks which do not have a method to display the battery level of the Aeotec MultiSensor, it is recommended that the sensor be tested occasionally to ensure that the battery still hold enough charge to operate. Batteries naturally lose their charge over time. Note: The Back-Mount Arm may be locked in various angles by turning the Friction Lock clockwise and counter-clockwise to tighten or loosen (respectively) the angle of the arm. Recommendation: For best performance, the MultiSensor should NOT be mounted directly on or near metal framing or other large metallic objects. Large metal objects may weaken the radio signal transmitted. 1 Mounting the MultiSensor flat against the wall via the Back-Mount Plate. 2 Mounting the MultiSensor angled in a direction via the Back-Mount Arm. 2 Insert 4 AAA batteries oriented according to the picture located in the battery holder (with the negative end depressing the battery spring). 3 Lock the MultiSensor main unit to its battery cover by aligning the Lock/Unlock Half-Dimple Markers under the “unlock” symbol and twisting the battery cover from the main unit in a clockwise motion until the Lock/Unlock Half-Dimple Markers form a circle under the “lock” symbol (a tangible click will be felt). The Aeotec MultiSensor has built in battery level detection. It will automatically report its battery level to the associated gateway throughout its life until the battery is fully drained and needs replacing. The battery status will often be displayed in the user interface of the gateway. When used properly in an optimized Z-Wave network, operation via battery can function for 12 months before battery replacement. 1 Unlock the MultiSensor from it’s battery cover by twisting the battery cover from the main unit in a counter-clockwise motion and pulling the battery cover outward to separate the main unit from the battery cover. Main Unit Battery Cover Unlocked Main Unit Battery Cover Locked This Side UP OPEN CLOSE Sensitivity Knob Battery Holder USB Power Port Z-Wave Button Back Mount Hook Back Mount Plate Back Mount Arm Friction Lock Temperature/ Humidity Sensor Motion Sensing Window Lock/Unlock Half-Dimple Markers LED Back Mount Plate Ceiling Back Mount Plate Back Mount Arm Tighten/Loosen Friction Lock CORRECT WRONG Water can enter humidity sensor Technical Specs Package Contents: 1) MultiSensor 2) Back-Mount Plate 3) Back-Mount Arm 4) AAA Batteries (x4) 5) USB Cable 6) Screws (x2) 2 3 6 5 4 1 Sensitivity AAA AAA AAA AAA 10 meters 3 meters Celling · MultiSensor Power Instructions: · Adjusting the Sensitivity on the MultiSensor Turn the Sensitivity Knob in a clockwise direction to increase sensitivity and counter-clockwise to decrease sensitivity. · Motion Sensor Effective Range: · MultiSensor Physical Installation Instructions: · Weatherization Orientation: Sensitivity Knob Sensitivity AAA AAA AAA AAA 1 2 Ground Wall 2.5 meters Ground 3.5 meters 120 5 meters 0.5 meter 6 meters FCC NOTICE (for USA): The MultiSensor can report temperature, humidity, and luminance to a Z-Wave gateway or controller when requested. If this function is supported by the gateway/controller, the data will be displayed in the user interface of the gateway/controller. (The specific Z-Wave command supporting the monitoring is the Multilevel Sensor Command Class and Multi Channel Command Class. Automatic reports are sent to association group 1, which is setup via the Association Command Class.) Please consult the operation manual for these gateways/controllers for specific instructions on setting the MultiSensor. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause…

Text truncated - open the document above for the full version.

Aeon Labs LLC. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Aeon Labs LLC. Addresss 121 Buckingham drive, unit36 santa claras City Santa Clara, CA95051 Country USA request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: XBA DSB05 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Schematics Diagrams √ Block Diagrams √ Circuit Description Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Santa Clara, USA 2012-06-21 William Li Director of Business Development 121 Buckingham drive, unit36

FCC ID Label Sample for FCC ID: XBADSB05 FCC ID: XBADSB05 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, in- cluding interference that may cause undesired operation. dimensions: 5.5 x 2.3 cm

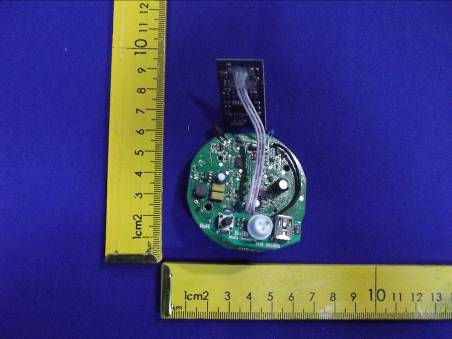

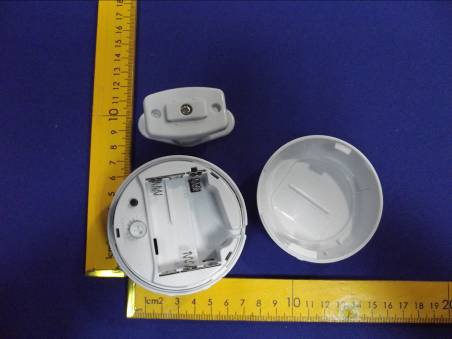

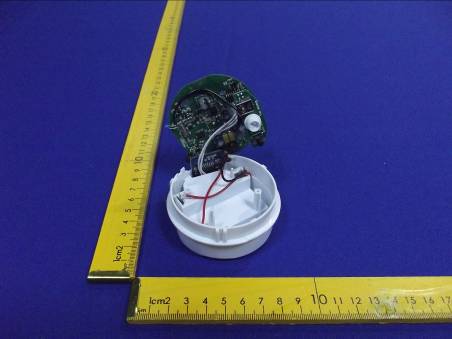

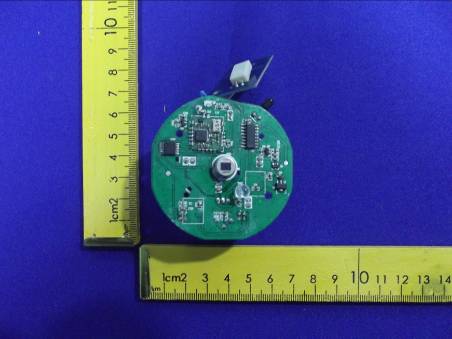

Page 19 of 22 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Page 20 of 22 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F Figure 9 The EUT-Inside View Figure 10 The EUT-Inside View Page 21 of 22 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F Figure 11 The EUT-Inside View Figure 12 PCB of the EUT-Front View Page 22 of 22 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F Figure 13 PCB of the EUT-Back View

Page 1 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F FCC TEST REPORT for Aeon Labs LLC. Multisensor Model No.: DSB05-ZWUS Report Number : 201202775F Date of Test : May 15~Jun. 05, 2012 Date of Report : Jun. 06, 2012 Prepared for : Aeon Labs LLC. Address : 121 Buckingham drive, unit36 santa claras CA95051 USA Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Page 2 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1.Description of Device (EUT).....................................................................................................................4 1.2.Description of Test Facility .......................................................................................................................5 1.3.Measurement Uncertainty..........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. RADIATION INTERFERENCE.................................................................................................... 8 4.1. Requirements (15.249, 15.209): ...............................................................................................................8 4.2 Test Procedure ...........................................................................................................................................8 4.3 Test Results................................................................................................................................................8 5. OCCUPIED BANDWIDTH..........................................................................................................11 5.1. Requirements (15.249): ..........................................................................................................................11 5.2 Test Results..............................................................................................................................................11 6. PHOTOGRAPH............................................................................................................................. 14 6.1. Photo of Radiation Emission Test ..........................................................................................................14 APPENDIX I (Photos of EUT) (2 Pages) Page 3 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F TEST REPORT Applicant : Aeon Labs LLC. Manufacturer : Aeon Labs LLC. EUT : Multisensor Model No. : DSB05-ZWUS Serial No. : N/A Rating : DC 5V, 50mA Trade Mark : N/A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.209&15.249 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : May 15~Jun. 05, 2012 Prepared by : (Engineer / Andy Chen) Reviewer : (Project Manager / Jerry Du) Approved & Authorized Signer : (Manager /Tom Chen) Page 4 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Multisensor Model Number : DSB05-ZWUS Test Power Supply : DC 5V, 50mA Frequency : 908.42MHz / 908.40MHz Antenna : Gain is 3dBi (The antenna used in this product is Monopole antenna) Applicant : Aeon Labs LLC. Address : 121 Buckingham drive, unit36 santa claras CA95051 USA Manufacturer : Aeon Labs LLC. Address : 121 Buckingham drive, unit36 santa claras CA95051 USA Date of receiver : May 15, 2012 Date of Test : May 15~Jun. 05, 2012 Page 5 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F 1.2. Description of Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS - LAB Code: L3503 Anbotek Compliance Laboratory Limited., Laboratory has been assessed and in compliance with CNAS/CL01: 2006 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of Testing Laboratories. FCC-Registration No.: 752021 Anbotek Compliance Laboratory Limited, EMC Laboratory has been registed and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 752021, August 20, 2010. IC-Registration No.: 8058A-1 Anbotek Compliance Laboratory Limited., EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration 8058A-1, August 30, 2010. Test Location All Emissions tests were performed at Anbotek Compliance Laboratory Limited. at 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China 1.3. Measurement Uncertainty Radiation Uncertainty : Ur = 4.3dB Conduction Un…

Text truncated - open the document above for the full version.

Page 14 of 17 FCC ID: XBADSB05 Anbotek Compliance Laboratory Limited Report No.201202775F 6. PHOTOGRAPH 6.1. Photo of Radiation Emission Test
