XBAZW078HEAVY DUTY SMART SWITCH GEN5

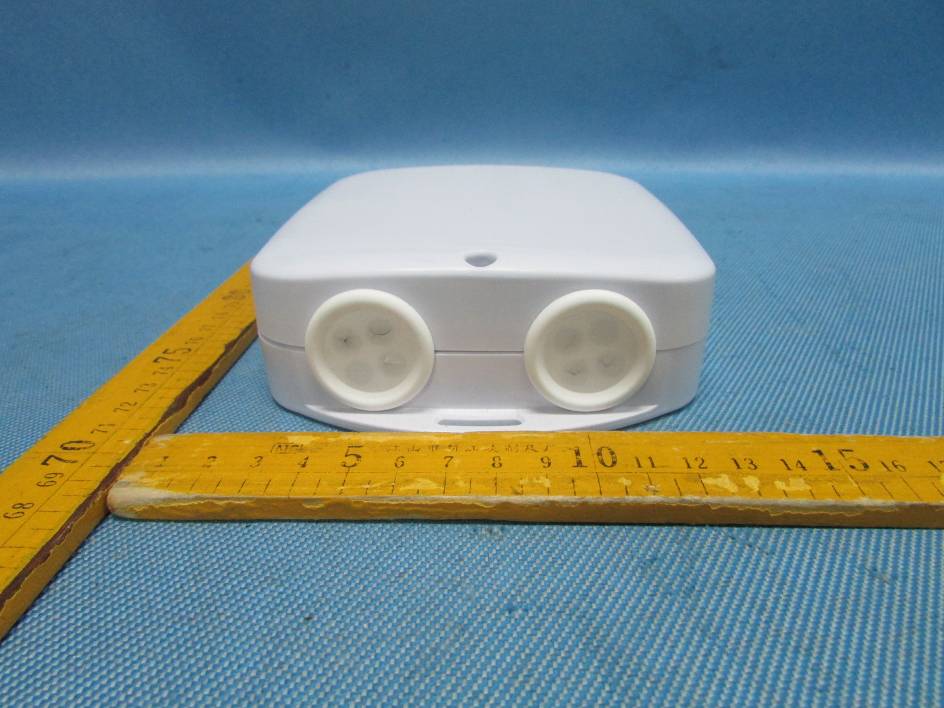

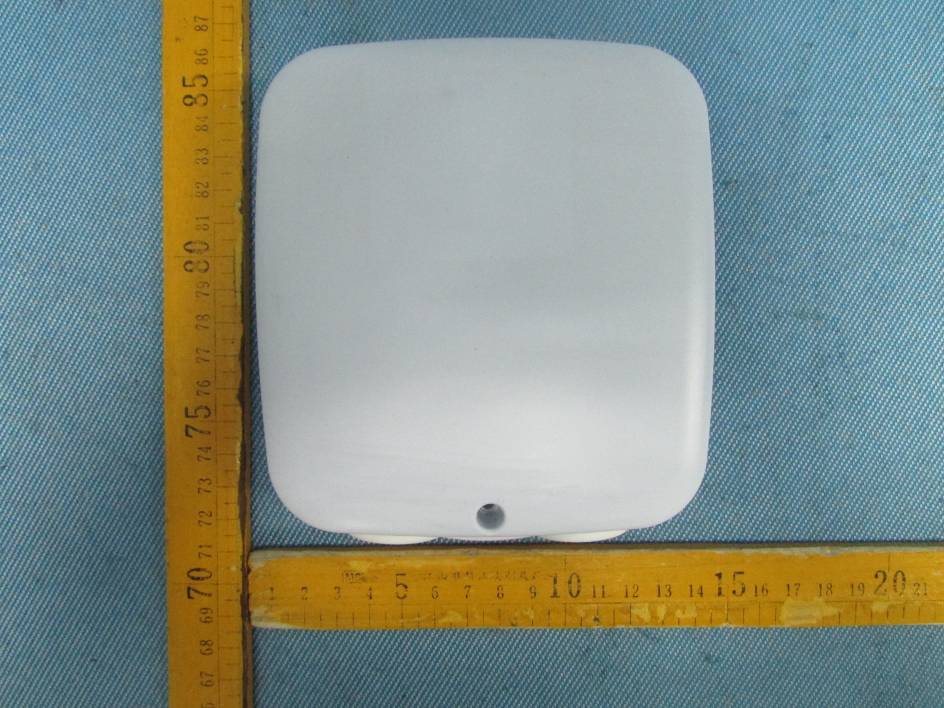

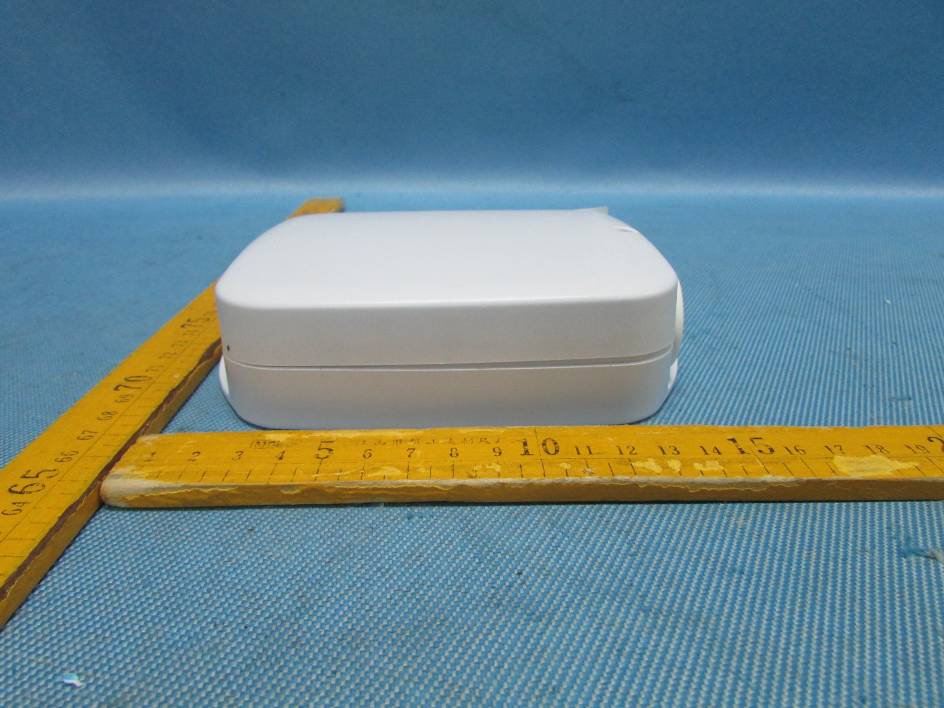

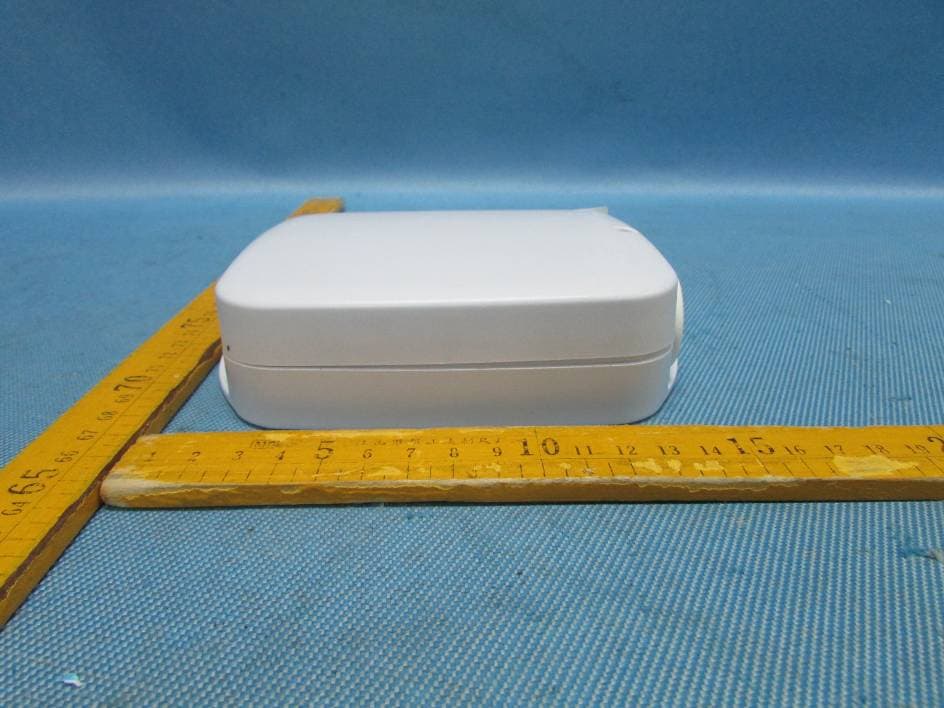

Heavy Duty Smart Switch Gen5 http://aeot.ec/spprt/heavyduty View the digital manual: Aeotec by Aeon Labs’ Heavy Duty Smart Switch is a Z-Wave switch controller that can also report the wattage energy usage and KWH usage of the device wired in to it. As part of its switching functionality, Heavy Duty Smart Switch can be controlled by other Z-Wave devices to turn loads on or off. It can bear up to 40 amps current of resister loads. It also act as a repeater, forwarding Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified device. Aeotec by Aeon Labs Heavy Duty Smart Switch Important: A licensed electrician with knowledge and understanding electrician systems and electrical safety should complete the electrical installation. Your Heavy Duty Smar t Switch Heavy Duty Smart Switch .......... x1 8AWG Wire terminal ................................ x8 10AWG Wire terminal .............................. x8 Screws ................................................... x2 Instruction Manual.................................... x1 ............... Package Contents Action button: Used for Heavy Duty Smart Switch’s Z- Wave network inclusion and exclusion and to manually turn on/off; Status LED: Indicates the switch’s status; Terminals: There are two groups of terminals. As marked of the silk print, AC Power be connected to main power, Load for electric load. Installation Important : Heavy Duty Smart Switch MUST wired behind an air break switch for safety and electric appliance protection. Before wiring, you must switch off the Air Break Switch and confirm the circuit power is down, if the Air Break Switch is out of sight, please lock it to ‘OFF’ position and tag it to prevent unexpected application of power: 1. Mount Heavy Duty Smart Switch on a wall as shown in following figure: 2. Loosen your switch’s lower screw to release its shell. Remove the shell to reveal the inner electronics. 3. Preparing the wires you will be attaching to your Heavy Duty Smart Switch by stripping the wires to the necessary length. Add wire terminals to each wire. 4. Wire according to the following diagram, as shown in the figure, connect each live lines(L1,L2) from Air Break Switch to corresponding terminals that marked L1 and L2 on the Heavy Duty Smart Switch, if there is Neutral line and ‘GND’, please connect to the terminals which market ‘GND’ and ‘N’ on Heavy Duty Smart Switch, similarly wire the electric load with Heavy Duty Smart Switch. Then tighten screws to the wire terminals. Important: You must make sure the wire terminals connected firmly with each corresponding terminals on the Heavy Duty Smart Switch. 5. Power on your Heavy Duty Smart Switch. At this stage you need to add it to your Z-Wave network. For instructions on how to do this, please refer to the following “Z- Wave Network Instructions” section. 6. Once added to your Z-Wave network, replace your Heavy Duty Smart Switch’s shell, and refasten to the shell. Your installation is now complete. Z-Wave Network Instructions Adding/Including/Pairing your Heav y Duty Smar t Switch into a Z-Wave Network Heavy Duty Smart Switch must be paired(included) into a Z-Wave network before it can receive Z-Wave commands to turn on/off and report its energy usage. The Heavy Duty Smart Switch can only communicate to devices within its own Z-Wave network. Note: The LED on the Heavy Duty Smart Switch will blink if it is currently not operating within a Z-Wave network. Tip: Before including / excluding Heavy Duty Smart Switch from your Z-Wave network, it’s recommended that you turn off most of the appliances connected to it. This will help to prevent load damage. To add your Heavy Duty Smart Switch to your Z-Wave network with a Z-Stick, bring your Z-Stick near your Heavy Duty Smart Switch then press the button on the Z- Stick to begin the Z-Wave inclusion process. When your Heavy Duty Smart Switch is first powered on and it’s not a part of a Z-Wave network, its Status LED will blink. If it’s not blinking see the tip below. Press your switch’s Action button to connect it to the Z-Stick. If it’s successfully added to the network its Status LED will stop blinking or pulse steadily. If this fails, repeat the above steps. Tip: If the Status LED of your Heavy Duty Smart Switch does not blink when it’s first powered up, it means that your switch is already part of another Z-Wave network. To rectify this, first follow the subsequent Removing instructions before following the Adding/Including/Pairing steps above. Action Button OR To add your Heavy Duty Smart Switch to your Z-Wave network with a Minimote, bring your Minimote to be within range of your Heavy Duty Smart Switch then press the remote button labelled “Include” on the Aeon Labs Minimote to begin the Z-Wave inclusion process. Include When your Heavy Duty Smart Switch is first powered on and it’s not a part of a Z-Wave network, its Status LED will blink. If it’s not blinking see the tip below. Press your switch’s Action button to connect it to the Z-Stick. If it’s successfully added to the network its Status LED will stop blinking or pulse steadily. If this fails, repeat the above steps. Tip: If the Status LED of your Heavy Duty Smart Switch does not blink when it’s first powered up, it means that your switch is already part of another Z-Wave network. To rectify this, first follow the subsequent Removing instructions before following the Adding/Including/Pairing steps above. Action Button Status LED Wire terminals N L2L1 Load GNDGND Acpower L2 L1 N Air Break Switch Load To include the Aeon Labs Heavy Duty Smart Switch with other controllers, please consult the operation manual for these controllers on how to include Z-Wave products into an existing network. Aeo…
