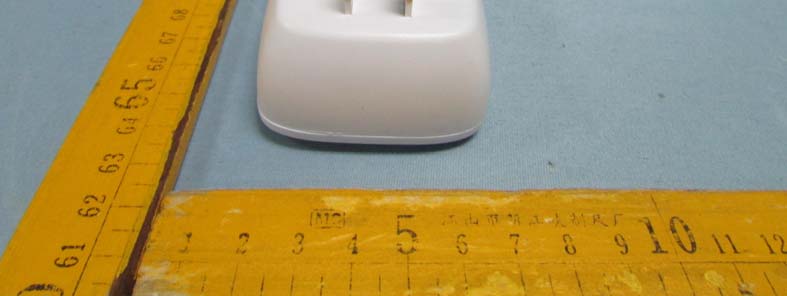

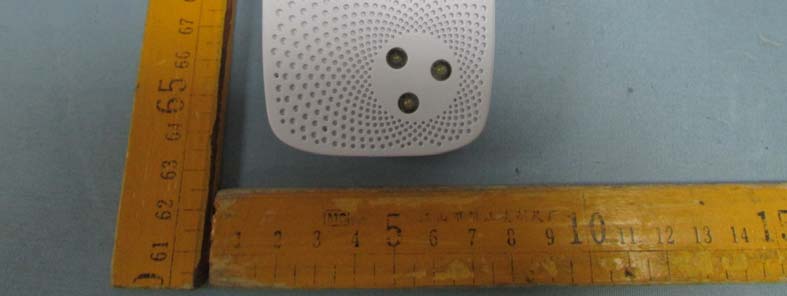

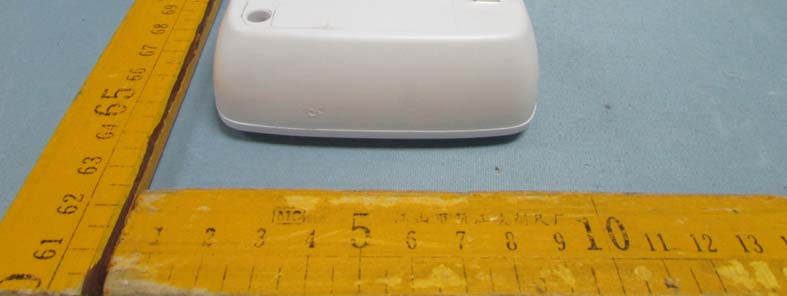

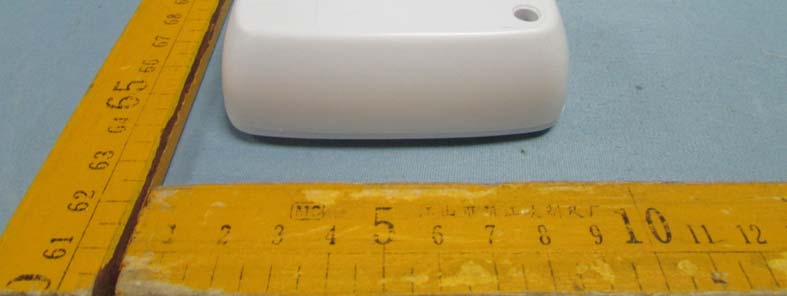

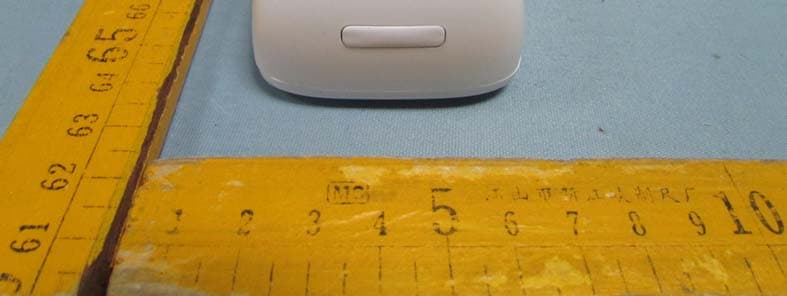

XBAZW080Siren Gen5

Aeotec by Aeon Labs Siren Gen5. Familiarise yourself with your Siren Gen5. Action Button105 dB speaker systemSafety LEDNetwork LED Quick start. If you're using a Z-Stick: If you're using a Minimote: Removing your Siren Gen5 from a Z-Wave network. If you're using a Z-Stick: No longer just a smart home. Now you own a safe home.Siren takes the best smart home technology and uses it to help youbuild a safe home. Most smart home systems have a safety flaw: in an emergency theysend your smartphone a push notification. That means that yoursafety, and your family’s safety, depends on everyone having a smartphone, and on those smartphones being turned on, and on thepush notification being heard and read. In other words, your family’s safety depends on a lot of things going right just when a lot of things are going wrong. Getting your Siren up and running is as simple as plugging it into awall socket and linking it to your existing Z-Wave ® network. The following instructions tell you how to link your Siren to your Z-Wavenetwork using Aeotec by Aeon Labs’ Z-Stick or Minimote controllers. If you are using other products as your main Z-Wavecontroller, such as a Z-Wave gateway, please refer to the part of their respective manual that tells you how add new devices to your network. 2.3.4.5. 6. 1.2.3.4.5. With your Siren now working as a part of your smart home, you’ll beable to configure it from your home control software. Please refer to your software’s user guide for precise instructions on configuring Siren to your needs.You’re able to test your Siren’s speaker system manually. Please note that the speaker system is 105 dB and very loud – we recommend only testing your Siren while wearing the necessary ear protection given you’ll need to be next to your Siren while manually testing it. To manually test Siren, press and hold the Action Button for 5 seconds. Your Siren can be removed from your Z-Wave network at any time.You’ll need to use your Z-Wave network’s main controller to do this and the following instructions tell you how to do this using Aeotec byAeon Labs’ Z-Stick and Minimote controllers. If you are using other products as your main Z-Wave controller, please refer to the part oftheir respective manuals that tells you how remove devices from your network. If you're using a Minimote: 1.2.3.4.5.6. Action Button Network LED 105 dB Speaker System Safety LED View the expanded manual: http://aeot.ec/spprt/siren Siren is better than that. When an emergency is happening it lets youknow. Its 105 dB Speaker System is always heard. Its super-bright LED system lights your path even when it’s dark. Its backup battery means that Siren keeps on working even when your power is out or has been purposefully cut. Siren provides a smart home with theperfect security and safety features that it needs. Those security and safety features are matched by smart features. Siren’s speaker system can access 5 different audio alerts, allowing your smart home to pick the alert best suited to the emergency. Thespeaker system’s volume can also be adjusted so that Siren is perfect for every space in every home. Best of all, Siren is simple toinstall. Plug Siren in, sync it to your smart home, and then enjoy thepeace of mind that comes with knowing that your smart home is now a safe home. Decide on where you want your Siren to be placed and plug it in to a wall outlet. Its Network LED will begin to blink for 3 seconds when you short press and quickly release the Action Button.If your Z-Stick is plugged into a gateway or a computer, unplug it. Take your Z-Stick to your Siren.Press the Action Button on your Z-Stick.If Siren has been successfully linked to your Z-Wave network its Network LED will no longer blink when you short press and quickly release the Action button on Siren. If the linking was unsuccessful and the Network LED continues to blink when you short press and quickly release the Action button, repeat the above steps.Press the Action Button on the Z-Stick to take it out of installation mode and return it to your gateway or computer. If your Z-Stick is plugged into a gateway or a computer, unplug it.Take your Z-Stick to your Siren.Press the Action Button on your Z-Stick.Press the Action Button on your Siren.If your Siren has been successfully removed from your network, itsNetwork LED will blink for 3 seconds when you short press and quickly release your Siren’s Action Button. If the removal was unsuccessful, the Network LED will not blink.Press the Action Button on the Z-Stick to take it out of removal mode. Decide on where you want your Siren to be placed and plug it in to a wall socket. Its Network LED will begin to blink for 3 seconds when you short press and quickly release the Action Button.Take your Minimote to your Siren.Press the Include button on your Minimote.If Siren has been successfully linked to your Z-Wave network, its Network LED will no longer blink when you short press and quickly release the Action Button on Siren. If the linking was unsuccessfuland the Network LED continues to blink when you short press and quickly release the Action Button repeat the above steps.Press any button on your Minimote to take it out of installation mode. 1. Advanced functions. Associating different tones with difference events. Your Siren contains 5 different alert tones, and each can be set to be used for a different type of emergency. One tone is more relevant tointruder alerts, while others are more relevant to the likes of water leaks, medical emergencies and door chimes. This functionality can be setup and configured via supporting Z-Wave gateways. Please refer to your gateway's user manual for further information. Version: 501008000001-AA FCC NOTICE (for USA) Resetting your Siren Gen5 Built-in Lithium Battery: 430 mAh. Alarm Power: 1.7W.Max Standby Power: 0.7W. Max Volume: 105 dB, reduced in battery powered mode.Operating Temperature: 0-45 ȭ Operating Distance: Up to 550 feet/170 metres outdoors. 6 1.2.3.4.5. At…
