XBTSCT-230Wireless Environment sensor

Confidential SCT-230/STH-230 User's Manual Wireless Environment sensor Confidential 1 Contents 一、 Product Overview ..........................................................................................1 二、 Product Features.............................................................................................2 三、 Installation operation .....................................................................................3 四、 Precautions .....................................................................................................4 五、 Troubleshooting .............................................................................................5 六、 Product Specifications ...................................................................................5 Confidential 1 一、Product Overview 1. Product Name：Wireless Contact Sensor 2. Model：SCT-230 3. Power Supply：CR123A Battery (3V) x 1 4. Dimensions (mm) and Accessories：Detect body, magnets, batteries, manual 82(L)mm x 25.5(W)mm x 17.5(H) mm 1. LED window 2. Reed switch position 3. Setting key (SET) 4. CR123A Battery 5. Screws Confidential 2 二、Product Features 1. The wireless signal magnetic reed switch or the temperature and humidity of the transfer to the host、Panel Coordinator or Route, we can see that the doors and windows open and close or the temperature and humidity the current state, to prevent thieves invasive 2. Use CR123A Battery, battery power is insufficient to inform the host will automatically operate a very low power; the battery can be used for more than one year 3. Easy link, when install at the first time to press the set button on the side of product joining with Gateway、Panel Coordinator or Route Confidential 3 三、Installation operation 1. Placed batteries in the battery holder, as shown below. (Note: In accordance with the polarity of the battery icon) SCT-230/STH-230 on both sides to suppress uprooted open into the battery is completed 2. Connection: (EZ-MODE) To register the first host device ready－Press Gateway (host) or short press Router (router) behind the SET button，Then press the SET button on the rear of the machine。 At this point the host device and this opportunity within about 20 seconds while flashing red light；When the connection (join) success，The machine's LED will start blinking red light 20 seconds of micro, At this point if it can be paired (Binding) devices to join or press the SET button. Would try pairing， If the pairing is successful then stop lights， If the pairing fails, then goes off after 20 seconds。 3. If the connection fails，The two parties in 15 seconds the device will look after the long red flash。 4. Fixed base (restricted flat screw) and the magnet holder，Installed on windows and doors to detect，Before being started. The following figure. Fixed base (restricted flat screw) Confidential 4 5. Lift connection： Press quickly the rear of the machine SET key twice (Double Key), this time flashing red light, inherent in 5 seconds behind the machine even by SET key twice, this opportunity about three seconds after the long flashed red, that means lifting connection successful. 6. Wireless signal strength test (RSSI, Received Signal Strength Indication)： Press quickly the rear of the machine SET key twice (Double Key), this time flashing red light, inherent in 5 seconds behind the machine by double-clicking the SET button a second, this time in front of a different three kinds of LED light flashes to indicate how fast the wireless signal strength: (1) Signal Good: Fast flashing red light 15 seconds. (2) Weak signals: Slow flashing red light 15 seconds. (3) No Signal: red light three seconds, off one second. 7. Anti-removal function: When the unit and system connection, then closed his cover, 5 seconds after the flash two times, that is to start anti-removal function. When the cover is opened that will send a message notification (flash 3 times) 四、Precautions 1. SCT-230/STH-230 front top left there is an arrow mark, to be aligned with the center line of the magnet cover (pictured), when two or more intervals than 10mm, it will send a radio warning. 2. Recommended that the wall-mounted base, with screw lock screw hole locations or gum paste, fixed to a stationary part of the door or window frame, magnet fixed to the door or window frame movable parts. As shown below Proposed installation location Confidential 5 Please note that the machine being installed vertically, horizontally mounted upside down or avoid, avoid anti-removal operation does not function properly when installed, and cause excessive consumption phenomenon. 五、Troubleshooting 1. Abnormal conditions: SCT-230/STH-230 LED flashes the number of exceptions, do not recognize the connection status. Treatment: a. Ssure the battery is in good condition, the polarity is correct. b. Restore the factory default reset the connection. c. Handle invalid if the above situation, please contact your dealer. 2. Abnormal conditions: Unable to connect with the wireless host. Treatment: The first to test the wireless signal strength RSSI way, and then confirm the distance between the host SCT-230/STH-230, and is within the effective range of 50 meters straight unsheltered. If the shelter will shorten the effective distance, you can shorten the distance between the two, or adding repeaters, re-test for any improvement. 六、Product Specifications UIS/ Wireless Environment sensor Model No. SCT-230/STH-230 Electrical Specification Transmit Frequency 2.4GHz ISM band, IEEE802.15.4: 2405 ~ 2480MHz Operation Range Up to 50 meters (LOS) Operating Voltage 3.0 VDC Battery Type CR123A Battery (3V) x 1 Battery Life Up to 2 year LED Indicator Red Environmental Requirement Operating Temperature 0°C to 50°C Storage Temperature -10°C to 55°C Humidity 90% RH Max., Non-Condensing Mechanical Specification Dimension (WxHxD, mm) 15.7x25.5x82 Weight (w/o Battery) 14g Confidential 6 Notice : The changes or modifications not expressly approved by the party responsible f…

Text truncated - open the document above for the full version.

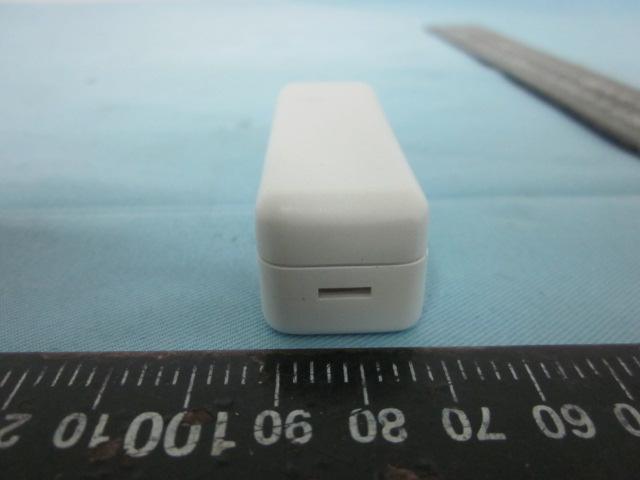

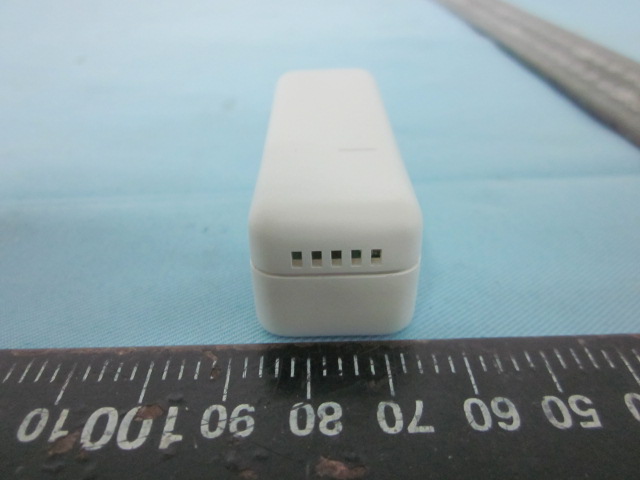

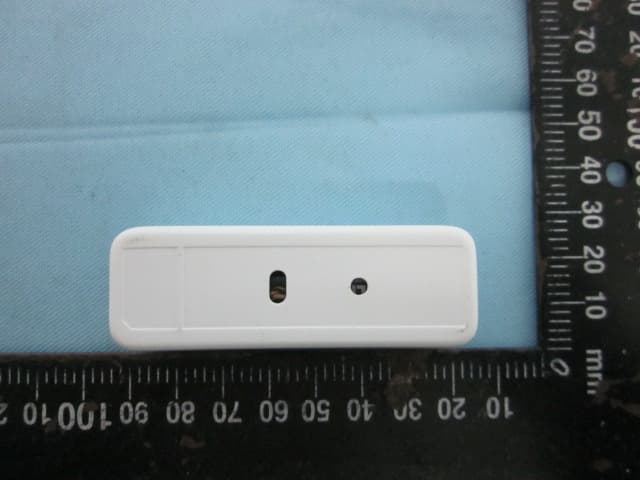

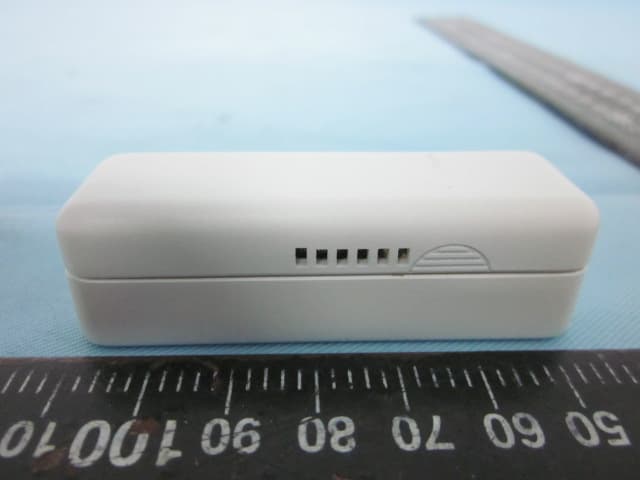

ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Sheet 1 of 5 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 1. 2. ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Sheet 2 of 5 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 3. 4. ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Sheet 3 of 5 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 5. 6.

貼於產品本體之FCC標籤 Model:STH-230

ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Sheet 4 of 5 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 7. 8. ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Sheet 5 of 5 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 9.

FCC ID: XBTSCT-230 RF Exposure Evaluation of E.U.T. : Wireless Environment sensor FCC ID. : XBTSCT-230 MODEL : SCT-230; STH-230 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-12-RBF-036-MPE FCC ID: XBTSCT-230 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Manufacturer : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Description of EUT a) Type of EUT : Wireless Environment sensor b) Trade Name : UIS. c) Model No. : SCT-230; STH-230 d) Power Supply : DC 3.0V Regulation Applied : FCC KDB447498 D03. The equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5). Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC FCC ID: XBTSCT-230 Date Test Item Received : Dec. 21, 2014 Date Test Campaign Completed : Jan. 05, 2015 Date of Issue : Jan. 13, 2015 Test Engineer : (Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN FCC ID: XBTSCT-230 Product Information: Type of EUT: Wireless Environment sensor FCC ID: XBTSCT-230 Model: SCT-230; STH-230 Description: Wireless Sensor with Zigbee. Maximum conducted output power (measured): 4.0 dBm or 2.512mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric N/A Inverted F Antenna 2.0 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: XBTSCT-230 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: XBTSCT-230 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 2.512mW G = 1.58 R = 20 cm S = (2.512 * 1.58) / (4*π*20 2 ) = 0.0008 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to FCC KDB447498 D03, the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Environment sensor FCC ID. : XBTSCT-230 Model No. : SCT-230; STH-230 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-12-RBF-036-01 ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Manufacturer : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Description of EUT a) Type of EUT : Wireless Environment sensor b) Trade Name : UIS. c) Model No. : SCT-230; STH-230 d) Power Supply : DC 3.0V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10-2009, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC Summary of Tests Test Results Radiated Emission Pass Conducted Emission N/A Emission Bandwidth Pass Output Power Pass 100 kHz Bandwidth of Band Edges Pass Power Density Pass Out-of-Band Conducted Emission Pass ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Rev. No 1.0 Date Test Item Received : Dec. 21, 2014 Date Test Campaign Completed : Jan. 05, 2015 Date of Issue : Jan. 13, 2015 Test Engineer : (Jiapeng Chen, En gineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 14-12-RBF-036-01 FCC ID.: XBTSCT-230 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 2 2 PROVISIONS APPLICABLE...................................................................................................... 3 2.1 Definition ..................................................................................................................................... 3 2.2 Requirement for Compliance ....................................................................................................... 4 2.3 Restricted Bands of Operation ..................................................................................................... 6 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 7 3. SYSTEM TEST CONFIGURATION .......................................................................................... 8 3.1 Justification .................................................................................................................................. 8 3.2 Devices for Tested System........................................................................................................... 8 4 RADIATED EMISSION MEASUREMENT .............................................................................. 9 4.1 Applicable Standard ..................................................................................................................... 9 4.2 Measurement Procedure............................................................................................................... 9 4.3 Measuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.5 Field Strength Calculation ......................................................................................................... 18 4.6 Photos of Radiation Measuring Setup........................................................................................ 19 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 20 5.1 Description ................................................................................................................................. 20 6 ANTENNA REQUIREMENT .................................................................................................... 21 6.1 Standard Applicable ................................................................................................................... 21 6.2 Antenna Construction................................................................................................................. 21 7 EMISSION BANDWIDTH MEASUREMENT ......................................................................... 22 7.1 Standard Applicable ................................................................................................................... 22 7.2 Measurement P…
