XBTSMT-230Wireless Motion Sensor

Wireless Motion Sensor User's Manual Product Name : Wireless Motion Sensor Model No : SMT-230 Input Power: 4.5V DC(Battery) / 5V/1A(Power Adaptor) Features Description: 1. The use of Infrared Motion Detection of sensor detector, it self cannot transmits light wave of the infrared. 2. The use of three UM-3 AA 1.5V alkaline batteries，battery power is insufficient to inform the host will automatically operate a very low power, the battery can be used for more than one years. 3. Easy link, when install at the first time to press the set button on the side of product Joining with Gateway、Panel Coordinator or Route. 4. Can use the WPW-220 (Wireless Power Controller) do so with even control, For example: Corridor night auxiliary lighting.。 5. When the device is connected to the power supply, it will automatically cut off the battery power. 6. This device must be compatible with Gateway using, if beyond the effective reception distance will not be used. Outline Dimensions: Installation Hints: 1. First use UM-3 AA 1.5V alkaline batteries into SMT-230 (Wireless Motion Sensor) battery holder, and check the battery positive and negative polarity marked is correct. 2. The SMT-230 (Wireless Motion Sensor) by pressing the SET button at the side, and then press the Gateway、Panel Coordinator or Route at the bottom of the SET button, Wait for 1 second to 15 seconds. If green LED indicator light flash and long light that means linking success. If green LED indicator light flash and red LED long light that means fail. 3. The SMT-230 (Wireless Motion Sensor) placed on the need to detect the channel next to， need to pay attention to the Wireless Motion Sensor detector window, do not be put into place where the sun, and not on where the ambient temperature is too high. 4. Can use the SMT-230 (Wireless Motion Sensor) signals through the Panel Coordinator, on the Wireless Power Controller do so even control. Join to link with Gateway, please reference user manual of Wireless Panel Coordinator). Troubleshooting: 1. Problem: When link with Gateway、Panel Coordinator or Route, there is no display of green LED indicator light flash and long light for SMT-230 (Wireless Motion Sensor to flash two or three times. Solution: a. Need to make sure the battery is good there is electricity, the installation of the battery positive and negative direction is correct. b. May be not press set button, need to link with Gateway、Panel Coordinator or Router again. c. If the above handles are invalid, please contact with agency. 2. Problem: Unable to link with Gateway、Panel Coordinator or Router. Solution: a. It needs to confirm the distance between SMT-230(Wireless Motion Sensor) and Gateway、Panel Coordinator or Route. Wireless connects in non-camouflage straight line effective range 10 meters. May pull closer between booth's distance tests to have a look first, whether to have the improvement segment condition Specification: : UIS/Wireless Motion Sensor Model No. SMT-230 Electrical Specification Transmit Frequency 2.4GHz ISM band, IEEE802.15.4: 2405 ~ 2480MHz Detection Mode Passive Infrared Operation Range Up to 200 meters (LOS) AC Adapter Input : AC 100 ~ 240V , 47 ~ 63Hz at 0.19A MAX Output : DC 5V/1A 5W MAX Battery Type AA Alkaline battery x 3 Battery Life up to 3 year Sensor Detection Range 8 M 25°C, Angle 110, LED Indicator Red Environmental Requirement Operating Temperature 0°C to 40°C Storage Temperature -10°C to 55°C Humidity 90% RH Max., Non-Condensing Mechanical Specification Dimension (WxHxD, mm) 86.3*53.1*71mm Weight (w/o Battery) 78g Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

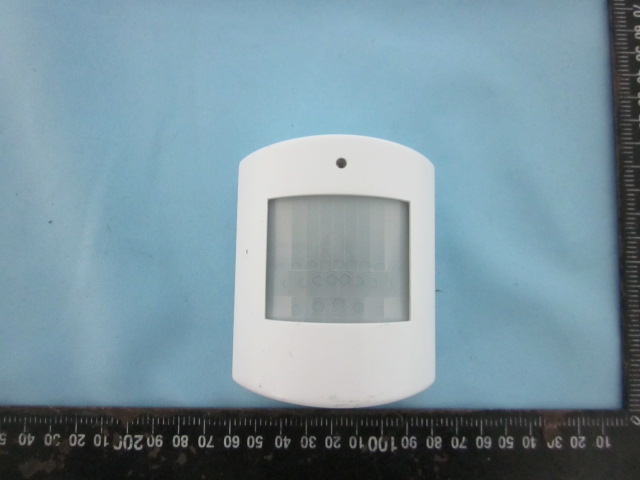

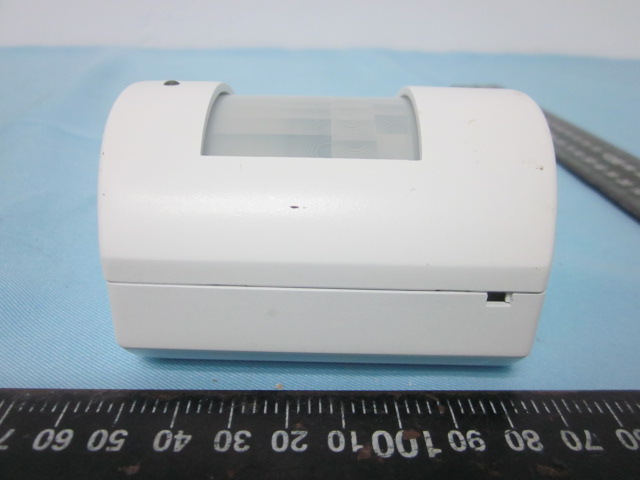

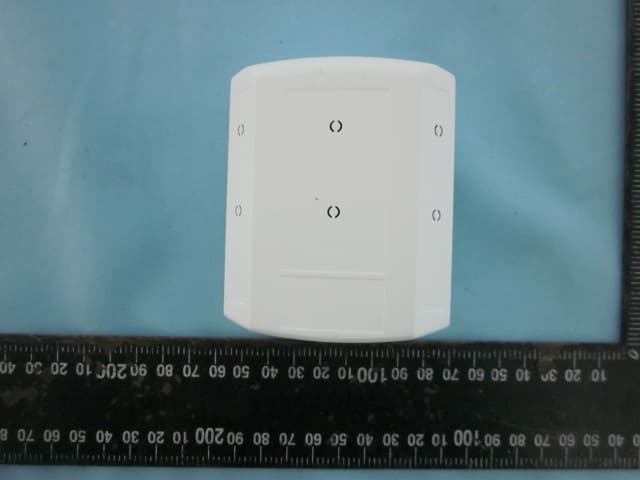

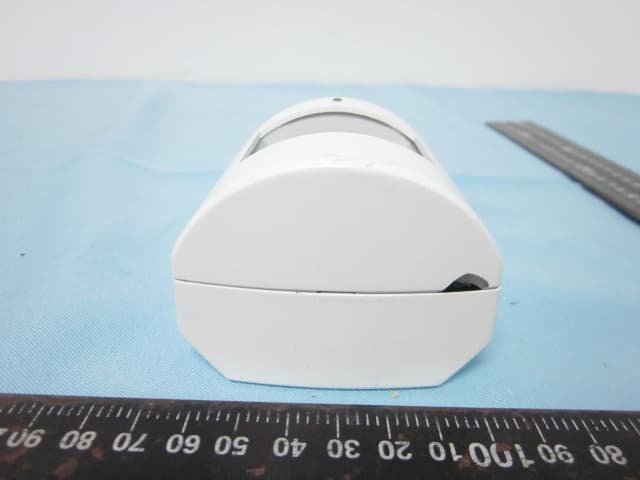

ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 1 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 1. 2. ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 2 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 3. 4. ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 3 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 5. 6. ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 5 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 9. Adaptor1: STD-05010U 10. ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 6 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 11. Adaptor2: HK-UA-050A100-US 12.

ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Sheet 4 of 6 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 7. 8.

FCC ID: XBTSMT-230 RF Exposure Evaluation of E.U.T. : Wireless Motion Sensor FCC ID. : XBTSMT-230 MODEL : SMT-230 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-11-RBF-058-MPE FCC ID: XBTSMT-230 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Manufacturer : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Description of EUT a) Type of EUT : Wireless Motion Sensor b) Trade Name : UIS. c) Model No. : SMT-230 d) Power Supply : Adaptor1 Model: STD-05010U I/P: 100-240V~ 47-63Hz 0.19A MAX O/P: 5.0V 1.0A 5.0W MAX Adaptor2 Model: HK-UA-050A100-US I/P: 100-240V~ 47-63Hz 0.2A O/P: 5V 1.0A Regulation Applied : FCC KDB447498 D03. The equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5). Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC FCC ID: XBTSMT-230 Date Test Item Received : Nov. 28, 2014 Date Test Campaign Completed : Jan. 24, 2015 Date of Issue : Jan. 29, 2015 Test Engineer : (Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN FCC ID: XBTSMT-230 Product Information: Type of EUT: Wireless Motion Sensor FCC ID: XBTSMT-230 Model: SMT-230 Description: Wireless Motion Sensor with Zigbee. Maximum conducted output power (measured): 15.0 dBm or 31.623mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric N/A Inverted F Antenna 3.3 2.14 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: XBTSMT-230 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: XBTSMT-230 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 31.623mW G = 2.14 R = 20 cm S = (31.623 * 2.14) / (4*π*20 2 ) = 0.0135 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to FCC KDB447498 D03, the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Motion Sensor FCC ID. : XBTSMT-230 Model No. : SMT-230 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-11-RBF-058-01 ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Manufacturer : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Description of EUT a) Type of EUT : Wireless Motion Sensor b) Trade Name : UIS. c) Model No. : SMT-230 d) Power Supply : Adaptor1 Model: STD-05010U I/P: 100-240V~ 47-63Hz 0.19A MAX O/P: 5.0V 1.0A 5.0W MAX Adaptor2 Model: HK-UA-050A100-US I/P: 100-240V~ 50/60Hz 0.2A O/P: 5V 1.0A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10-2009, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Emission Bandwidth Pass Output Power Pass 100 kHz Bandwidth of Band Edges Pass Power Density Pass Out-of-Band Conducted Emission Pass ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Rev. No 1.0 Date Test Item Received : Nov. 28, 2014 Date Test Campaign Completed : Jan. 24, 2015 Date of Issue : Jan. 29, 2015 Test Engineer : (Jiapeng Chen, En gineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 14-11-RBF-058-01 FCC ID.: XBTSMT-230 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 2 1.4 Test Facility.................................................................................................................................. 2 2 PROVISIONS APPLICABLE...................................................................................................... 3 2.1 Definition ..................................................................................................................................... 3 2.2 Requirement for Compliance ....................................................................................................... 4 2.3 Restricted Bands of Operation ..................................................................................................... 6 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 7 3. SYSTEM TEST CONFIGURATION .......................................................................................... 8 3.1 Justification .................................................................................................................................. 8 3.2 Devices for Tested System........................................................................................................... 8 4 RADIATED EMISSION MEASUREMENT .............................................................................. 9 4.1 Applicable Standard ..................................................................................................................... 9 4.2 Measurement Procedure............................................................................................................... 9 4.3 Measuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.5 Field Strength Calculation ......................................................................................................... 22 4.6 Photos of Radiation Measuring Setup........................................................................................23 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 25 5.1 Standard Applicable ................................................................................................................... 25 5.2 Measurement Procedure............................................................................................................. 25 5.3 Conducted Emission Data .......................................................................................................... 26 5.4 Result Data Calculation ............................................................................................................. 30 5.5 Conducted Measurement Equipment ......................................................................................... 30 5.6 Photos of Cond…
