XBTZBM-221ZigBee Module

UIS 1 | P a g e ZigBee Module User Manual ZBM-221 UIS 2 | P a g e Contents Certification Notices 1. Overview 2. Specification 3. Pin Assignment UIS 3 | P a g e Certification Notices FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Labeling requirements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. UIS 4 | P a g e Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. This device is intended for OEM integrators only. Please see the full Grant of Equipment document for other restrictions. This device must be operated and used with a locally approved access point. Information To Be Supplied to the End User by the OEM or Integrator The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Host system must be labeled with "Contains FCC ID:XBTZBM-221, FCC ID displayed on the label. The label text should be updated according to the table shown in Ordering Guide section of this document. UIS 5 | P a g e 1. Overview ZMB-221 is a wireless communication modem based on IEEE802.15.4, which can be widely used in home automation and security, automatic meter reading, factory automation, toys and so on. 2. SPECIFICATION General Specification Specification Transmit Frequency2405MHz to 2480MHz ModulationOQPSK Programmable Output PowerUp to 20 dBm Operation Voltage2.0V~3.6V Environmental Operating Temperature -10°C to 70°C Storage Temperature -40°C to 85°C Humidity90% RH Max., Non-Condensing Mechanical Specification Dimension (WxHxD, mm)30.2 x 2.6 x 22.2 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver UIS 6 | P a g e 3. Pin Assignment UIS 7 | P a g e Pin NameDescriptionDirection 1GNDPower Ground I 2P1_5Port 1.5I/O 3P1_4Port 1.4I/O 4P1_1I/O 30VDDDC input(+2.0 ~3.6V) I 5GNDPower Ground I 6P1_0I/O 7P0_6Port 0.6I/O 8P0_5Port 0.5I/O 9P0_4Port 0.4I/O 10P0_3Port 0.3I/O 11P0_2Port 0.2I/O 12P0_1Port 0.1I/O 13P0_0Port 0.0I/O 14RESET_NReset, active-lowI 15VDDDC input(+2.0 ~3.6V) I 16GNDPower Ground I 17VDDDC input(+2.0 ~3.6V) I 18GNDPower Ground I 19GNDPower Ground I 20RFRF OutputO 21GNDPower Ground I 31GNDPower Ground I 32GNDPower Ground I 33GNDPower Ground I 22VDDDC input(+2.0 ~3.6V) I 23Port 2.4/32.768 kHz XOSCI/O 24Port 2.3/32.768 kHz XOSCI/O 25P2_2Port 2.2I/O 26P2_1Port 2.1I/O 27P2_0Port 2.0I/O 28P1_7Port 1.7I/O 29P1_6Port 1.6I/O Port 1.1 – 20-mA drive capability Port 1.0 – 20-mA drive capability P2_4/XOSC3 2K_Q1 P2_3/XOSC3 2K_Q2

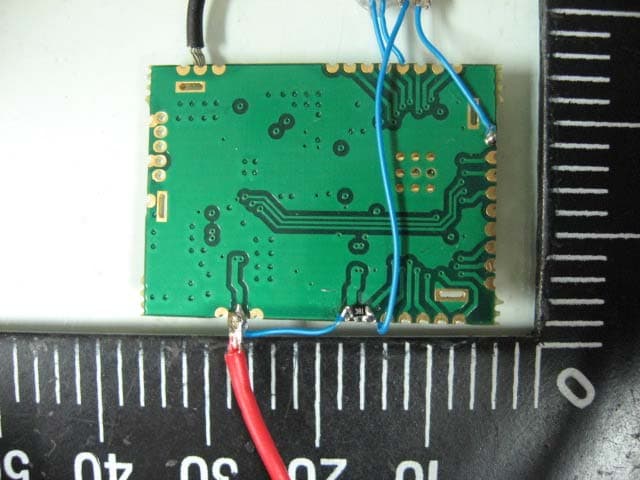

ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 1 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT EUT 1. 2. ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 2 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 3.

ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 1 of 4 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT EUT 1. 2. ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 2 of 4 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 3. ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 3 of 4 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT Antenna 1. 2. ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 4 of 4 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 3.

FCC ID: XBTZBM-221 RF Exposure Evaluation of E.U.T. : ZIGBEE MODULE FCC ID. : XBTZBM-221 MODEL : ZBM-221 for APPLICANT : United Integrated Services CO., LTD. ADDRESS : 5F No 3 Lane 7 Paokao Road Hsintien 23144 Taipei Hsien ,Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 13-01-RBF-036-MPE FCC ID: XBTZBM-221 Product Information: Type of EUT: ZIGBEE MODULE FCC ID: XBTZBM-221 Manufacturer: United Integrated Services CO., LTD. Model: ZBM-221 Description: Frequency band: 2405MHz~2480MHz Number of channels: 16 channels Channel spacing: 5MHz Transmitter antenna source: Dipole Antenna Maximum conducted output power (measured): 15.89 dBm or 38.815mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric 6604103081-000 Dipole 2.0 1.58 6602803081 Dipole 2.0 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: XBTZBM-221 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: XBTZBM-221 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 38.815mW G = 1.58 R = 20 cm S = (38.815 * 1.58) / (4*π*20 2 ) = 0.012 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (i).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : ZIGBEE MODULE Model No. : ZBM-221 FCC ID. : XBTZBM-221 for APPLICANT : United Integrated Services CO., LTD. ADDRESS : 5F No 3 Lane 7 Paokao Road Hsintien 23144 Taipei Hsien ,Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 13-01-RBF-036 ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD. 5F No 3 Lane 7 Paokao Road Hsintien 23144 Taipei Hsien ,Taiwan Manufacturer : United Integrated Services CO., LTD. 5F No 3 Lane 7 Paokao Road Hsintien 23144 Taipei Hsien ,Taiwan Description of EUT a) Type of EUT ZIGBEE MODULE b) Trade Name UIS c) Model No. ZBM-221 d) Power Supply : : : : DC 3V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Emission Bandwidth Pass Output Power Pass 100 kHz Bandwidth of Band Edges Pass Power Density Pass Out-of-Band Conducted Emission Pass ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Rev. No 1.0 Date Test Item Received : Jan. 26, 2013 Date Test Campaign Completed : Feb. 06, 2013 Date of Issue : May 17, 2013 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 23 4.6 Photos of Radiation Measuring Setup........................................................................................ 24 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 25 5.1 Standard Applicable ................................................................................................................... 25 5.2 Measurement Procedure............................................................................................................. 25 5.3 Conducted Emission Data .......................................................................................................... 27 5.4 Result Data Calculation ............................................................................................................. 29 5.5 Conducted Measurement Equipment ......................................................................................... 29 5.6 Photos of Conduction Measuring Setup..................................................................................... 30 6 ANTENNA REQUIREMENT ...............................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 24 of 51 Sheets Rev. No 2.0 4.6 Photos of Radiation Measuring Setup Test Model:Ant 1 ETC Report No. : 13-01-RBF-036 FCC ID: XBTZBM-221 Sheet 25 of 51 Sheets Rev. No 2.0 Test Model:Ant 2
