XBTWFM-220Wireless Module

UIS User Manual WFM‐220 Contents 1. Overview 2. Specification 3. Pin Assignment 4. Dimension 1. Overview WFM‐220 is a wireless communication modem based on IEEE802.11, which can be widely used in home automation and security, automatic meter reading, factory automation, toys and so on. 2. SPECIFICATION UIS/Wireless RF Module Model No. WFM-220 General Specification Specification 2.4-GHz IEEE 802.11 Compliant RF Transceiver Transmit Frequency 2412MHz to 2462MHz WiFi b/g/n Programmable Output Power Up to 20 dBm Operation Voltage 2.0V~3.6V Environmental Operating Temperature -10°C to 70°C Storage Temperature -40°C to 85°C Humidity 90% RH Max., Non-Condensing Mechanical Specification Dimension (WxHxD, mm) 25x16.5x3 3. Pin Assignment Pin Name Description direction 1 TP1 3.3V ‐ 2 TP2 GND ‐ 3 TP3 GND ‐ 4 TP4 GND ‐ 5 TP5 GND ‐ 6 TP6 D+ I/O 7 TP7 D‐ I/O 8 TP8 3.3V ‐ 4. Dimension The OEM integrator has to be aware of not to providing information to end users regarding how to install or remove this RF module in the user manual of the end product. The user manual which is provided by OEM integrators for end users must include the following information in a prominent location. Label for the end product must include “Contains FCC ID: XBTWFM‐220”or “A RF transmitter inside, FCC ID: XBTWFM‐220” You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Applicant/Grantee United Integrated Services CO., LTD. FCC ID: XBTWFM-220 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the device are buffered through WM1 inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 3.3V regulator. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. There are optional three kinds of antenna to be equipped for the device. Refer to antenna information . Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting The device was tested outside of the host device in a stand-alone configuration. Refer to setup photos. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module is installed only in products manufactured by the grantee and under the grantee’s control. The grantee has internal manufacturing processes and documentation for control of final products using this module. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with MPE limits requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

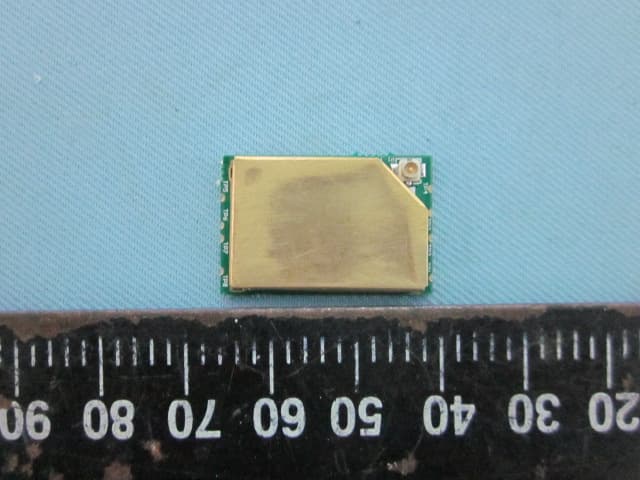

ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Sheet 1 of 4 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 1. 2.

貼於產品本體之FCC標籤

ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Sheet 2 of 4 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 3. 4. ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Sheet 3 of 4 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 5. Dipole to IPEX Antenna 6. Dipole For SMA Antenna Plug ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Sheet 4 of 4 Sheets Rev. No 2.0 CONSTRUCTION PHOTOS OF EUT 7. PCB Antenna

FCC ID: XBTWFM-220 RF Exposure Evaluation of E.U.T. : Wireless Module FCC ID. : XBTWFM-220 MODEL : WFM-220 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-11-RBF-014-MPE FCC ID: XBTWFM-220 Product Information: Type of EUT: Wireless Module FCC ID: XBTWFM-220 Manufacturer: United Integrated Services CO., LTD Model: WFM-220 Description: 802.11b/g/n WiFi Module Maximum conducted output power (Rated): 18.0 dBm or 63.095mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric AN2400-0331RS Dipole SMA connector 3.7 2.34 290-70074 Dipole SMA connector 2.05 1.60 AN2400-5505RS-01 Dipole SMA connector 2.0 1.58 290-70073 Dipole IPEX connector 2.6 1.82 AN2400-06193BF Dipole IPEX connector 3.7 2.34 290-70075 PCB 2.76 1.89 IVX0065-A PCB 2.0 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: XBTWFM-220 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: XBTWFM-220 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 63.095mW G = 2.34 R = 20 cm S = (63.095 * 2.34) / (4*π*20 2 ) = 0.0293 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Module FCC ID. : XBTWFM-220 Model No. : WFM-220 for APPLICANT : United Integrated Services CO., LTD ADDRESS : 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-11-RBF-014 ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Manufacturer : United Integrated Services CO., LTD 5F, No 3, Lane 7, Paokao Road, Hsintien District, New Taipei city, Taiwan Description of EUT a) Type of EUT : Wireless Module b) Trade Name : UIS. c) Model No. : WFM-220 d) Power Supply : 2.0V~3.6V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Emission Bandwidth Pass Output Power Pass 100 kHz Bandwidth of Band Edges Pass Power Density Pass Out-of-Band Conducted Emission Pass ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Rev. No 1.0 Date Test Item Received : Nov. 11, 2014 Date Test Campaign Completed : Nov. 17, 2014 Date of Issue : Nov. 25, 2014 Test Engineer : (Jiapeng Chen, En gineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 14-11-RBF-014 FCC ID.: XBTWFM-220 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 61 4.6 Photos of Radiation Measuring Setup........................................................................................62 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 63 5.1 Standard Applicable ................................................................................................................... 63 5.2 Measurement Procedure............................................................................................................. 63 5.3 Conducted Emission Data .......................................................................................................... 64 5.4 Result Data Calculation ............................................................................................................. 66 5.5 Conducted Measurement Equipment ......................................................................................... 66 5.6 Photos of Conduction Measuring Setup..................................................................................... 67 6 ANTENNA REQUIREMENT ...............................................…
