XGK-ACERNFCaccess-ER HF NFC/FAP30

Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide | Non-Contractual Pictures | QSG220137 A00 DEVICEHANDSTRAPEU PLUG NOTICECABLE MICRO USB C | USB ABATTERY BOXPOWER SUPPLYTEST REPORT WHAT'S IN THE BOX ? Access-ER –HF NFC / FAP30 Page 02 | 19 1 2 1 2 3 4 5 6 7 8 9 4 5 6 7 8 9 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide 3 QSG220137 A00 PRODUCT OVERVIEW | Non-Contractual Pictures | Access-ER –HF NFC / FAP30 Page 03 | 19 2D imager led indicators 5’’ touch panel volume keys +/- P3 function key SCAN |KEY RIGHT menu keys RETURN | HOME | RECENT APPLICATIONS on | off button P1 function key KEY LEFT UP P2 function key SCAN |KEY LEFT DOWN USB-C connectors for charging battery latch battery door camera NFC antenna area flash battery latch buckle for handstrap buckle for handstrap receiver extension connectors QSG220137 A00 camera Finger print Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Setting up your device NANO SIM |MICRO SD cards installation •Press the left and right latches at the same time and remove the battery. •Insert the Micro SD card into SD slot •Insert Nano SIM card into SIM slot Page 04 | 19 Micro SD card Nano SIM 1 card (slot 1) Nano SIM 2 card (slot 2) QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide NOTE Make sure that the latches are properly positioned to the left and right so that the battery door closes properly. CAUTION 1.Replace the battery onlywith an identical battery or with an equivalent type of battery recommended by Coppernic. 2.Please recycle used batteries in accordance with current regulations. Setting up your device Battery installation •Insert the battery, lower part first. •Press the upper side of the battery until you hear a "click". Page 05 | 19 QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Charge the BATTERY BeforeusingtheAccess-ER,pleasechargethebatteryusingoneofthefollowingaccessoriesapprovedbyCOPPERNIC. 1.InsertthemicroUSB-CcableintotheAccess-ERandtheUSBAcableintothepowersupply. > The Micro USB C | USB A cable is included in the device’s box. > The power supply is included in the device box. Page 06 | 19 Setting up your device CAUTION PleasemakesurethedevicebeingchargedfullywhenusingAccess-ERatfirsttime. DEVICE:Access-ER Remove the BATTERY •Press the left and right latches at the same time. •Remove the battery. Red LED blinks Low battery -Battery level <= 15% Red LED Battery is charging -Battery level > 15% and < 95% Green LED Battery is fully charged ->=95% LED indicators QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Setting up your device Page 07 | 19 Red LED Power connected and low battery power Green LED Connected to power supply and battery charged battery charger CAUTION Chargebatteriesintemperaturesfrom0°Cto40°C.Thedeviceorcradlealwaysperformsbatterycharginginasafeandintelligentmanner.Athigher temperatures(e.g.approximately+37°C)thedeviceorcradlemayforsmallperiodsoftimealternatelyenableanddisablebatterychargingtokeepthebatteryat acceptabletemperatures.TheAccess-ERanditscradleindicateswhenchargingisdisabledduetoabnormaltemperaturesviaitsLED. CRADLE: DS-ACCESS-1000 The LED indicator shows the connection status of the docking station as well as the battery charge status. 1.InserttheJackPowerAdapterintothedockingstationandthepowersupplyintothesocket. > Power supply is included in the docking station box. BACK VIEW QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Using your device TURNING ON | TURNING OFF yourdevice Power On |Press and hold for 3 seconds the ON | OFF button. Power Off |Press and hold for 2 seconds the ON | OFF button and select “Power off” in the dialog box. Reboot | Press and hold for 2 seconds the ON | OFF button and select “Reboot” in the dialog window to restart the device. Suspend Mode | Press and release the ON | OFF button to place the device in suspend mode. The display will be off and go into a low power state to conserve battery power. Reset | Press and hold the ON | OFF button during 30s. Page 08 | 19 QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Using your device DATA CAPTURE | photos & videos Use cameras to take photos and record videos. 1.Go to the Home screen > select "Camera" > press the camera icon to take a picture/ switch to the video icon and press for video recording. 2.Press the icon to switch between cameras (front | back). NOTE Ensure device memory or extend Micro SD card space is available. Highly suggest to use camera app which is included in Android OS already. Using 3rd party application may cause any malfunction. DATA CAPTURE | barcode scanner CAUTION Class2laserwhenopen. Donotstareintobeamorviewwithopticalinstruments. Complieswith21cfr1040.10and1040.11exceptfordeviationspursuanttolasernoticeno.50,datedJune24,2007andIEC/EN60825- 1:2014. Scan with the imager •Use the "B-Manager" application provided by Coppernic to set up the reader and the "B-Scan" application to read a barcode. Page 09 | 19 QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Using your device DATA CAPTURE | barcode scanner Side-Key Remapping for scanning •Go to "Settings" > Select "Remap key & Shortcut". •Select function keys P1, P2 or P3. •Press the "Remap Shortcut" button. •Press the ""B-Scan"" button. •Press the scan button to trigger a capture. •The red laser lights up to assist aiming, and the scan is ready when the beep sounds. FINGERPRINT SENSOR Please put the finger on the fingerprint sensor and ensure that it makes contact with the aluminum plate. NFC Please put the card/passport on the NFC antenna area. Page 10 | 19 QSG220137 A00 Access-ER -HF NFC / FAP30 Quick Start and Regulatory Guide Regulatory information OperatingfrequenciesAccess-ER Page 11 | 19 EUT typeHandheldDevice Brand NameCoppernic Model NameAccess-ER Tx Frequency Bands (Unit: MHz) GSM 850 : 824 ~ 845 GSM 1900 : 1850 ~ 1910 WCDMA Band II : 1850 ~ 1910 WCDMA Band IV : 1710 ~ 1755 WCDMA Ba…

Text truncated - open the document above for the full version.

Coppernic 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Coppernic Address: 20,rue Georges Claude Aix en Provence France 13290 Product Name: access-ER HF NFC/FAP30 FCC ID: XGK-ACERNFC Model(s): access-ER 2.911(d)(5)(i) EquipmentType We, [Coppernic] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: •Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. •Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Marc Piepers Date: 3/14/2023 Title and Company name: Chief Technical Officer / Coppernic NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Coppernic 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Coppernic Address: 20,rue Georges Claude Aix en Provence France 13290 Product Name: access-ER HF NFC/FAP30 FCC ID: XGK-ACERNFC Model(s): access-ER 2.911(d)(5)(ii) Applicant filing We, [Coppernic] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Marc Piepers Date: 3/14/2023 Title and Company name: Chief Technical Officer / Coppernic NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 03-09-2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID: XGK-ACERNFC Coppernic (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Coppernic Address:20,rue Georges Claude Aix en Provence France 13290 Signature: Contact Person: Marc Piepers Tel:0033442652565 Email: [email protected]

Coppernic Agent Authorization Letter (2023-03-13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Marc Piepers / Chief Technical Officer Date/City: 2023-03-13 / Aix en Provence Phone: 0033442652565 Fax: 0033442515732 E-mail: [email protected]

Coppernic Long Term Confidentiality Request Letter (2023-03-13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: access-ER HF NFC/FAP30 Model: access-ER FCC ID: XGK-ACERNFC To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematic Diagram • Block Diagram • Part List / BOM List / PCB Layout • Operational Description • Tune-up Procedure • FCC Software Security Requirements for UNII devices Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Marc Piepers / Chief Technical Officer Date/City: 2023-03-13 / Aix en Provence Phone: 0033442652565 Fax: 0033442515732 E-mail: [email protected]

Coppernic Short Term Confidentiality Request Letter (2023-03-13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: access-ER HF NFC/FAP30 Model: access-ER FCC ID: XGK-ACERNFC To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Coppernic >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Coppernic > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Coppernic > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Marc Piepers / Chief Technical Officer Date/City: 2023-03-13 / Aix en Provence Phone: 0033442652565 Fax: 0033442515732 E-mail: [email protected]

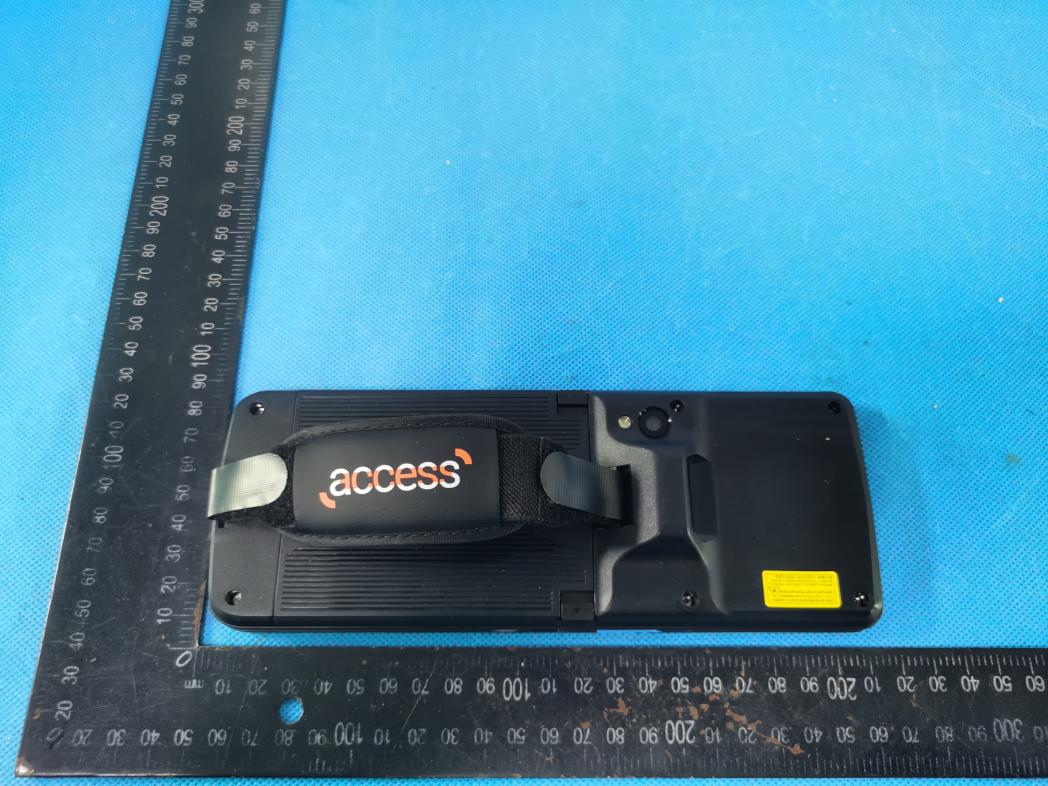

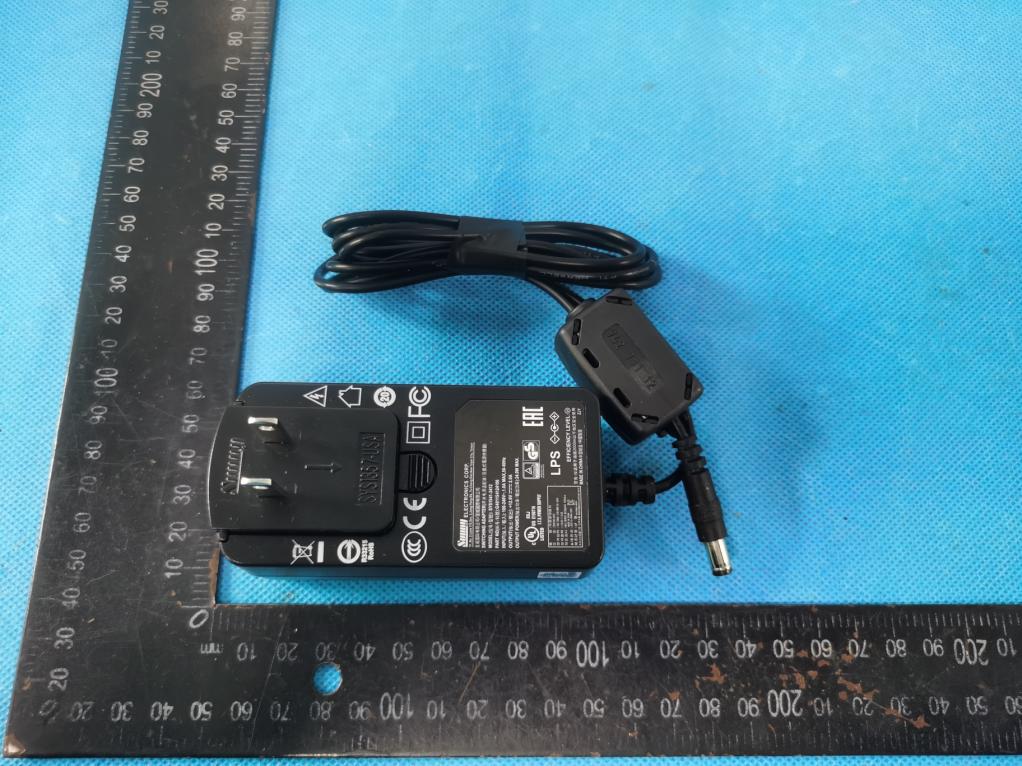

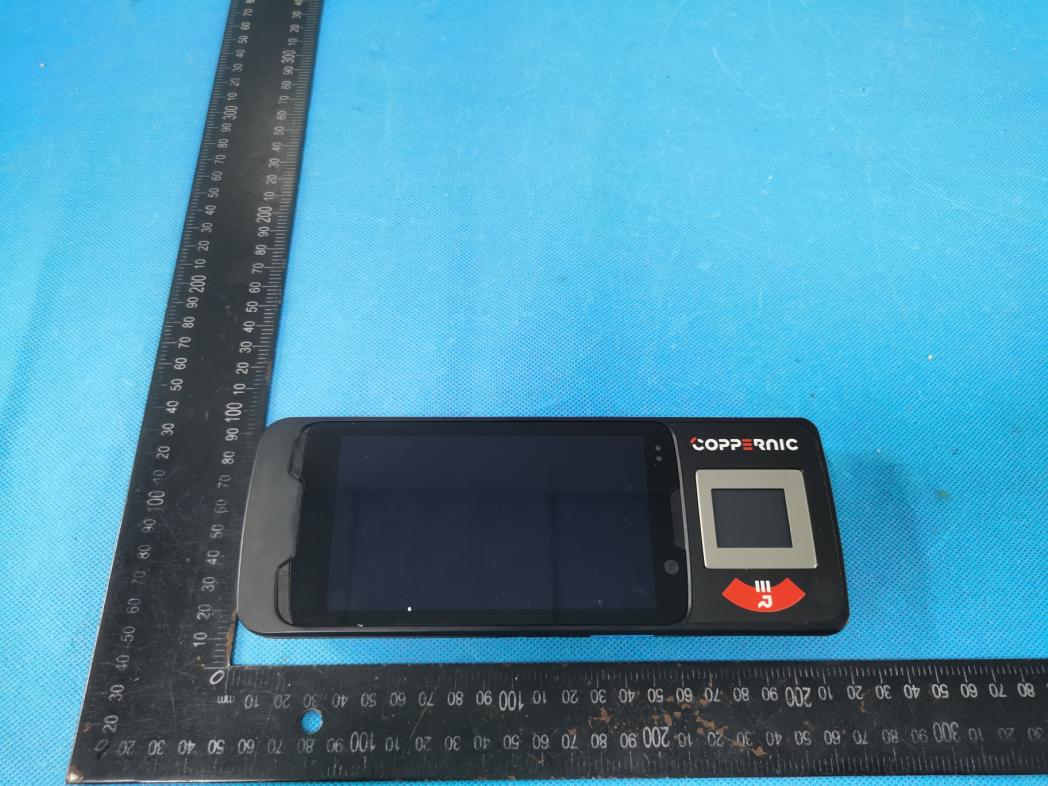

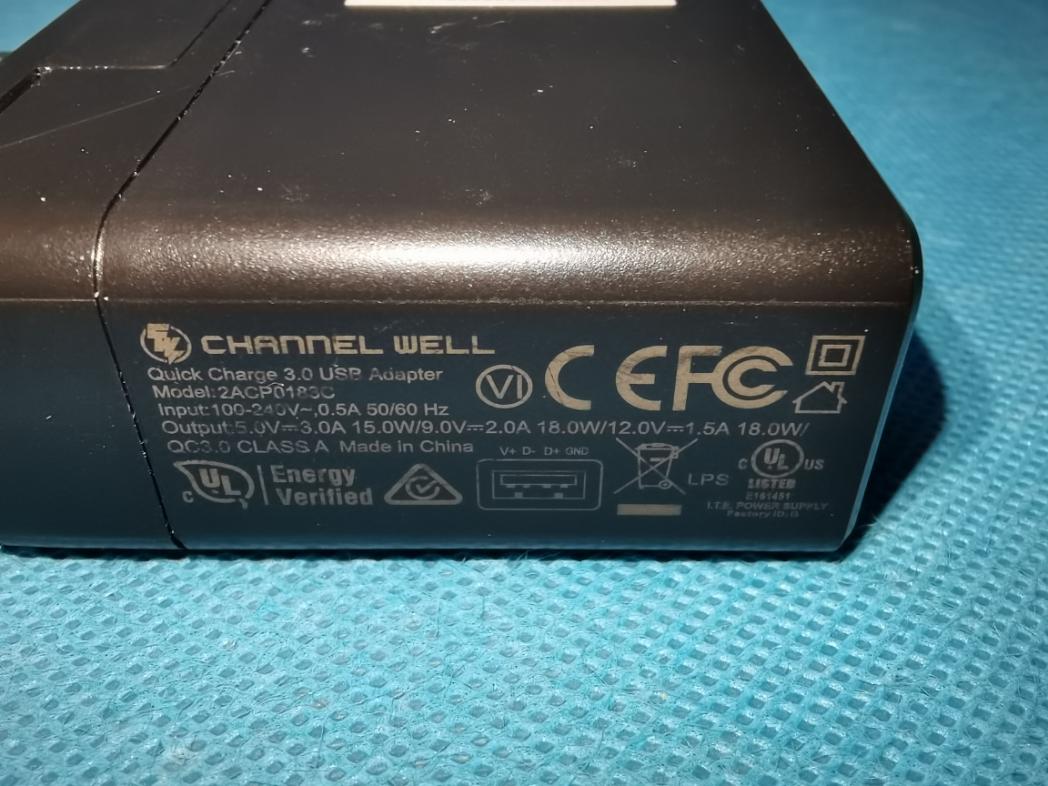

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

Regulatory label specification Access-ER P. Porte STD 220131 A30 03/03/23 1/3 LABEL SPECIFICATION The regulatory label is defined for the Access-ER product. COPPERNIC Model: access-ER Handheld Device Rating: +5V 3.0 A Serial No.: EXXXXXXXXXX IMEI1: XXXXXXXXXXXXXXX IMEI2: XXXXXXXXXXXXXXX MFD: XXX/XXXX Depend on product 33 mm 29,5 mm 13 mm Regulatory label specification Access-ER P. Porte STD 220131 A30 03/03/23 2/3 For the access-ER HF NFC / FAP30: P/N: ACCESS-ER-XXX1 XXX Product Name: access-ER HF NFC / FAP30 Model Name:access-ER FCC ID: XGK-ACERNFC IC: 8402A- ACERNFC HVIN:ACERNFC MADE IN FRANCE Regulatory label specification Access-ER P. Porte STD 220131 A30 03/03/23 3/3 LABEL POSITION : The label must be stick in this area : : Product Label

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 NFC ANT Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 BT/WIFI ANT Photo 25 Photo 26 LTE AUX ANT GSM/WCDMA/LTE Main ANT

Page 1 of 227 Report No.: S22101403930001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： access-ER HF NFC/FAP30 Trademark： COPPERNIC Model Name： access-ER Family Model： N/A FCC ID： XGK-ACERNFC Report No.： S22101403930001 Prepared for Coppernic 20,rue Georges Claude Aix en Provence France 13290 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 227 Report No.: S22101403930001 TEST RESULT CERTIFICATION Applicant’s name .................. : Coppernic Address .................................. : 20,rue Georges Claude Aix en Provence France 13290 Manufacturer's Name ........... : Askey Computer Corp. Address .................................. : 10F, No.119, JianKang RD.,Zhonghe Dist.,New Taipei City,23585 Taiwan,R.O.C Taiwan Product description Product name ......................... : access-ER HF NFC/FAP30 Trademark ............................ : COPPERNIC Model Name ......................... : access-ER Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093); ANSI/IEEE C95.1-1992 IEEE Std 1528-2013; Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S221014039031 Date of Test Date (s) of performance of tests ............. : Oct. 20, 2022 ~ Nov. 02, 2022 Date of Issue .......................................... : Jan. 04, 2023 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 227 Report No.: S22101403930001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 04, 2023 Jacob Chen Page 4 of 227 Report No.: S22101403930001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions .........................................................................…

Text truncated - open the document above for the full version.

Page 101 of 227 Report No.: S22101403930001 13. Appendix C. Plots of High SAR Measurement Table of contents MEASUREMENT 1 GSM 850 Body MEASUREMENT 2 GSM 1900 Body MEASUREMENT 3 WCDMA Band 2 Body MEASUREMENT 4 WCDMA Band 4 Body MEASUREMENT 5 WCDMA Band 5 Body MEASUREMENT 6 WLAN 5.2G Body MEASUREMENT 7 WLAN 5.3G Body MEASUREMENT 8 WLAN 5.6G Body MEASUREMENT 9 WLAN 2.4G Body MEASUREMENT 10 LTE Band 2 Body MEASUREMENT 11 LTE Band 4 Body MEASUREMENT 12 LTE Band 5 Body MEASUREMENT 13 LTE Band 7 Body MEASUREMENT 14 LTE Band 17 Body MEASUREMENT 15 LTE Band 26A Body MEASUREMENT 16 LTE Band 26B Body MEASUREMENT 17 LTE Band 41 Body Page 102 of 227 Report No.: S22101403930001 MEASUREMENT 1 Date of measurement: 20/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band GSM850 Channels Middle Signal TDMA (Crest factor: 2.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.165707 Relative permittivity (imaginary part) 19.826172 Conductivity (S/m) 0.921256 Variation (%) -3.160000 SURFACE SAR VOLUME SAR Maximum location: X=20.00, Y=-27.00 SAR Peak: 1.46 W/kg SAR 10g (W/Kg) 0.510509 SAR 1g (W/Kg) 0.906311 Page 103 of 227 Report No.: S22101403930001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.5293 0.9255 0.5040 0.3232 0.2164 0.1421 0.0912 3D screen shot Hot spot position Page 104 of 227 Report No.: S22101403930001 MEASUREMENT 2 Date of measurement: 2/11/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band GSM1900 Channels Low Signal TDMA (Crest factor: 4.0) ConvF 1.91 B. SAR Measurement Results Frequency (MHz) 1850.200000 Relative permittivity (real part) 38.711678 Relative permittivity (imaginary part) 13.921674 Conductivity (S/m) 1.430993 Variation (%) 1.230000 SURFACE SAR VOLUME SAR Maximum location: X=-7.00, Y=-40.00 SAR Peak: 1.80 W/kg SAR 10g (W/Kg) 0.635319 SAR 1g (W/Kg) 1.087978 Page 105 of 227 Report No.: S22101403930001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.6826 1.1173 0.6577 0.3940 0.2382 0.1439 0.0911 3D screen shot Hot spot position Page 106 of 227 Report No.: S22101403930001 MEASUREMENT 3 Date of measurement: 2/11/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band2_WCDMA1900 Channels Low Signal WCDMA (Crest factor: 1.0) ConvF 1.91 B. SAR Measurement Results Frequency (MHz) 1852.400000 Relative permittivity (real part) 38.645557 Relative permittivity (imaginary part) 13.926774 Conductivity (S/m) 1.433220 Variation (%) -1.370000 SURFACE SAR VOLUME SAR Maximum location: X=-9.00, Y=-10.00 SAR Peak: 1.94 W/kg SAR 10g (W/Kg) 0.605768 SAR 1g (W/Kg) 1.085667 Page 107 of 227 Report No.: S22101403930001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.8886 1.2190 0.6909 0.3989 0.2338 0.1399 0.0835 3D screen shot Hot spot position Page 108 of 227 Report No.: S22101403930001 MEASUREMENT 4 Date of measurement: 28/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band4_WCDMA1700 Channels High Signal WCDMA (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1752.600000 Relative permittivity (real part) 38.951023 Relative permittivity (imaginary part) 13.767764 Conductivity (S/m) 1.340062 Variation (%) -1.130000 SURFACE SAR VOLUME SAR Maximum location: X=-9.00, Y=-10.00 SAR Peak: 1.90 W/kg SAR 10g (W/Kg) 0.608535 SAR 1g (W/Kg) 1.160336 Page 109 of 227 Report No.: S22101403930001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.8202 1.2201 0.7249 0.4360 0.2596 0.1580 0.0980 3D screen shot Hot spot position Page 110 of 227 Report No.: S22101403930001 MEASUREMENT 5 Date of measurement: 20/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.165707 Relative permittivity (imaginary part) 19.826172 Conductivity (S/m) 0.921256 Variation (%) -0.180000 SURFACE SAR VOLUME SAR Maximum location: X=10.00, Y=3.00 SAR Peak: 0.94 W/kg SAR 10g (W/Kg) 0.502164 SAR 1g (W/Kg) 0.712709 Page 111 of 227 Report No.: S22101403930001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.9118 0.7252 0.5326 0.3789 0.2693 0.1945 0.1390 3D screen shot Hot spot position Page 112 of 227 Report No.: S22101403930001 MEASUREMENT 6 Date of measurement: 21/10/2022 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Body Band IEEE 802.11a U-NII Channels Middle Signal IEEE802.11a (Crest factor: 1.0) ConvF 1.80 B. SAR Measurement Results Frequency (MHz) 5200.000000 Relative permittivity (real part) 35.006924 Relative permittivity (imaginary part) 15.607523 Conductivity (S/m) 4.508840 Variation (%) -0.420000 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=9.00 SAR Peak: 1.06 W/kg SAR 10g (W/Kg) 0.148708 SAR 1g (W/Kg) 0.351829 Page 113 of 227 Report No.: S22101403930001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 0.98 37 0.59 13 0.30 32 0.17 46 0.09 87 0.06 60 0.05 01 0.04 12 0.03 52 0.04 36 0.03 36 0.03 58 3D screen shot Hot spot position Page 114 of 227 Report No.: S22101403930001 MEASUREMENT 7 Date of measurement: 25/10/2022 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Body Band IEEE 802.11ac U-NII Channels High Signal IEEE802.11ac (Crest factor: 1.0) ConvF 2.05 B. SAR Measureme…

Text truncated - open the document above for the full version.

Page 171 of 227 Report No.: S22101403930001 Page 172 of 227 Report No.: S22101403930001 Page 173 of 227 Report No.: S22101403930001 Page 174 of 227 Report No.: S22101403930001 Page 175 of 227 Report No.: S22101403930001 Page 176 of 227 Report No.: S22101403930001 Page 177 of 227 Report No.: S22101403930001 Page 178 of 227 Report No.: S22101403930001 Page 179 of 227 Report No.: S22101403930001 Page 180 of 227 Report No.: S22101403930001 Page 181 of 227 Report No.: S22101403930001 Page 182 of 227 Report No.: S22101403930001 Page 183 of 227 Report No.: S22101403930001 Page 184 of 227 Report No.: S22101403930001 Page 185 of 227 Report No.: S22101403930001 Page 186 of 227 Report No.: S22101403930001 Page 187 of 227 Report No.: S22101403930001 Page 188 of 227 Report No.: S22101403930001 Page 189 of 227 Report No.: S22101403930001 Page 190 of 227 Report No.: S22101403930001 Page 191 of 227 Report No.: S22101403930001 Page 192 of 227 Report No.: S22101403930001 Page 193 of 227 Report No.: S22101403930001 Page 194 of 227 Report No.: S22101403930001 Page 195 of 227 Report No.: S22101403930001 Page 196 of 227 Report No.: S22101403930001 Page 197 of 227 Report No.: S22101403930001 Page 198 of 227 Report No.: S22101403930001 Page 199 of 227 Report No.: S22101403930001 Page 200 of 227 Report No.: S22101403930001 Page 201 of 227 Report No.: S22101403930001 Page 202 of 227 Report No.: S22101403930001 Page 203 of 227 Report No.: S22101403930001 Page 204 of 227 Report No.: S22101403930001 Page 205 of 227 Report No.: S22101403930001 Page 206 of 227 Report No.: S22101403930001 Page 207 of 227 Report No.: S22101403930001 Page 208 of 227 Report No.: S22101403930001 Page 209 of 227 Report No.: S22101403930001 Page 210 of 227 Report No.: S22101403930001 Page 211 of 227 Report No.: S22101403930001 Page 212 of 227 Report No.: S22101403930001 Page 213 of 227 Report No.: S22101403930001 Page 214 of 227 Report No.: S22101403930001 Page 215 of 227 Report No.: S22101403930001 Page 216 of 227 Report No.: S22101403930001 Page 217 of 227 Report No.: S22101403930001 Page 218 of 227 Report No.: S22101403930001 Page 219 of 227 Report No.: S22101403930001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 220 of 227 Report No.: S22101403930001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date…

Text truncated - open the document above for the full version.
