XGKHFAM2G2RFID MODULE HF-AM2-G2

PSION TEKLOGIX Coppernic SAGEM MORPHOCHECK TERMINAL USERS Guide FEBRUARY 10, 2010 Rev 3 Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 2 / 15 Title MorphoCheck Terminal Doc Type User’s guide Doc Id DPD A00358 Revision Date Name Status/Comment A00 21/12/07 M.ARNAUD Initial Version A01 16/01/08 M.ARNAUD Add reference and correction A02 25/01/08 M.ARNAUD Add correction A03 10/02/10 M. PIEPERS Add WiFi and Bluetooth details A04 12/02/10 M. PIEPERS Add FCC warning THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 3 / 15 TABLE OF CONTENT 1. INTRODUCTION..........................................................................4 1.1. About this Manual....................................................................................4 2. DEVELOPMENT TOOLS............................................................5 2.1. WorkAboutPRO HDK .Net Wrapper.......................................................5 3. INTERFACE BOARD...................................................................6 3.1. Overview..................................................................................................6 3.2. Serial Communication Settings................................................................7 3.3. General Power Supply..............................................................................8 3.4. Dual Reader............................................................................................10 3.5. Fingerprint Reader..................................................................................12 4. SCANNER CONNECTOR..........................................................13 4.1. Overview................................................................................................13 4.2. MRZ Reader...........................................................................................14 4.3. Imager Reader........................................................................................15 5. Bluetooth radio.............................................................................15 6. WiFi 802.11b/g radio...................................................................15 Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 4 / 15 1. INTRODUCTION 1.1. About this Manual This manual provides guidance on how to access and control the peripherals of the Sagem MorphoCheck terminal base on the WorkAboutPRO G2 device. Chapter 1: Introduction Provides an overview of this manual. Chapter 3: Development tools Describes the libraries available for .Net and C++ developers Chapter 3: Interface board Describes how the dual (contact-less and contact) reader and the fingerprint reader are connected to the WorkAboutPRO G2 device through the interface board. Chapter 4: Scanner port Describes how to use the MRZ reader and the Imager module on the WorkAboutPRO. Chapter 5: Bluetooth radio and Psion Teklogix Mobile Device SDK Management of Bluetooth radio Chapter 6: WiFi radio and Psion Teklogix Mobile Device SDK Management of WiFi radio Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 5 / 15 2. DEVELOPMENT TOOLS 2.1. WorkAboutPRO HDK .Net Wrapper The WorkAboutPRO HDK is intended to support developers of third-party hardware for Psion Teklogix WorkAboutPRO Hand-Held Computer. On top of that, a library has been designed to wrap these low level functions for .Net developer. In this chapter all the code sample are extracted from the .Net wrapper, but can be easily translated to C++, see the WorkAboutPRO HDK .Net Wrapper documentation for more information. Everything you need to install and use the WorkaboutPro HDK .Net Wrapper can be downloaded on the Partner Database page of the Psion Teklogix website. Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 6 / 15 3. INTERFACE BOARD 3.1. Overview The interface board is used to multiplex the serial communication towards the dual reader or the fingerprint reader. This board is connected on the WorkAboutPRO through the XMod connector. Besides the 2 SAM sockets easily accessible on the top of the board, the interface board provides 2 connectors: 1. Dual Reader connector linked with the RFID and SmartCard reader (also called Dual Reader). 2. MSO-CBM connector linked with the Sagem MSO-CBM finger print reader. 2 SAM card slots 2. MSO-CBM Fingerprint connector 1. Dual reader connector (RFID and SmartCard reader) Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 7 / 15 3.2. Serial Communication Settings To enable the serial interface on the WorkAboutPRO expansion slot, you need to set the registry key as follows: HKLM\Drivers\PsionTeklogix\Expansion Slot\FFUART = dword:1 A warm reset of the terminal is mandatory after completion. The communication to both readers is multiplexed through the port number COM1. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void Init() { WorkAboutPro WAP = new WorkAboutPro(); // Enable the serial port COM1 by setting the registry key // HKLM\Drivers\PsionTeklogix\Expansion Slot\FFUART = dword:1 if( !WAP.COM1Active ) { WAP.COM1Active = true; WAP.Reboot(); } } } Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 8 / 15 3.3. General Power Supply General power supply is driven though the GPIO on pin 72. PIN 72 State General Power Supply FALSE ON TRUE OFF IMPORTANT NOTICE : Pin 70 must be set to false before switching the interface board power. Power overconsumption and a pin 70 damage may occur if not a…

Text truncated - open the document above for the full version.

Coppernic SAS Les Fontaines de la Duranne 185, Avenue Archimède 13857 Aix‐en‐Provence Cedex 3 France Tél. +33 (0)4 42 65 25 65 Fax +33 (0)4 42 51 57 32 SAS AU CAPITAL DE 100 000 EUROS • RCS AIX 509 059 572 SIRET : 509 059 572 00016 • APE 6201Z • TVA : FR 58 509 059 572 Tuesday, the 20 th of October 2009 EMITECH GRAND SUD BP 25 145 rue du Massacan 34741 VENDARGUES CEDEX France Téléphone : 04 67 87 11 02 Télécopie : 04 67 70 94 55 Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: Coppernic SAS Product: Integrated HF RFID Reader Model: RFID Module HF-AM2-G2 FCC ID: XGKHFAM2G2 To Whom It May Concern, We, Coppernic SAS, would like to request that the following items listed below, submitted with the application for certification be withheld from public disclosure as per section 0.459 of FCC rules. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them and materials which would not customarily be released to the public by that person. Confidential items: 1. Block Diagram 2. Schematics 3. Detailed Operational Description 4. Parst List Yours truly, Marc Piepers Director of Engineering

Coppernic SAS Les Fontaines de la Duranne 185, Avenue Archimède 13857 Aix‐en‐Provence Cedex 3 France Tél. +33 (0)4 42 65 25 65 Fax +33 (0)4 42 51 57 32 SAS AU CAPITAL DE 100 000 EUROS • RCS AIX 509 059 572 SIRET : 509 059 572 00016 • APE 6201Z • TVA : FR 58 509 059 572 Wednesday, the 10 th of February 2010 EMITECH GRAND SUD BP 80025 145 rue du Massacan 34741 VENDARGUES CEDEX France Téléphone : 04 67 87 11 02 Télécopie : 04 67 70 94 55 Subject: Certification request for RFID Module HF-AM2-G2. Applicant: Coppernic SAS Product: Integrated HF RFID Reader Model: RFID Module HF-AM2-G2 FCC ID: XGKHFAM2G2 This Filing is for a Limited Single Modular Approval for RFID module HF-AM2-G2 under FCCID XGKHFAM2G2 in host models Workabout Pro G2 7527C and 7527S. RFID HF-AM2-G2 module is already approved by PSION TEKLOGIX Company which authorise us to use their Grantee (GM3HFAM2G2). This RFID module (HF-AM2-G2) is collocated with already approved Bluetooth module FCCID GM37525BTB and 802.11g module FCCID GM37527RA2041 in host models Workabout Pro G2 7527C and 7527S. These 2 modules (Bluetooth and 802.11g) are electrically and mechanically identical to those originally approved including antennas. That device is intended and expected to be hand-held operated only at a distance >20cm from the body and that Coppernic does not supply or offer for sales any body-worn accessories Yours truly, Marc Piepers Director of Engineering

RFID Antenna WiFi Antenna Bluetooth Antenna

PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi PSION TEKLOGIX - Company confidential Author: Marc Piepers File: RFID Module HF-AM1- G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 2/10/10 Page: 1 / 5 Ref: DPC 090111 A01 PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi Author: Marc Piepers File: RFID Module HF-AM1-G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 10/02/09 Pages: 5 Reference: DPC 090111 A01 Revision Date Prepared by Verify by Validated by A00 A01 27/11/09 10/02/09 Marc Piepers Philippe Porte Christophe Simonetti COPPERNIC Printing date: 10/02/10 13:44 PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi PSION TEKLOGIX - Company confidential Author: Marc Piepers File: RFID Module HF-AM1- G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 2/10/10 Page: 2 / 5 Ref: DPC 090111 A01 TABLE OF CONTENTS 1. SCOPE OF DOCUMENT....................................................................................................3 2. TERMINOLOGY.................................................................................................................3 3. UPDATING OF DOCUMENT..............................................................................................3 4. ENVIRONMENT..................................................................................................................3 4.1. DOCUMENTS AND REFERENCE ELEMENTS.......................................................................................................3 5. DESCRIPTION....................................................................................................................4 5.1. LABEL US WAP-G2 RFID + BT + WIFI RA2041...........................................................................................4 6. INSTALLATION PROCEDURE..........................................................................................5 6.1. LABEL AREA FOR WAP-G2............................................................................................................................5 PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi PSION TEKLOGIX - Company confidential Author: Marc Piepers File: RFID Module HF-AM1- G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 2/10/10 Page: 3 / 5 Ref: DPC 090111 A01 1. SCOPE OF DOCUMENT This document describes the Product label specification of the MorphoCheck WiFi radio. This document is only for personnel associated in the project, and is strictly confidential. 2. TERMINOLOGY 3. UPDATING OF DOCUMENT Version Evolutions Author Date A00 Creation Marc Piepers 27/11/09 A01 Show label with the three FCC IDs (RFID, BT and 11bg) Marc Piepers 10/02/09 4. ENVIRONMENT 4.1. Documents and reference elements Document Reference Version Date PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi PSION TEKLOGIX - Company confidential Author: Marc Piepers File: RFID Module HF-AM1- G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 2/10/10 Page: 4 / 5 Ref: DPC 090111 A01 5. DESCRIPTION 5.1. Label US WAP-G2 RFID + BT + WIFI RA2041 WAP C G2: WAP S G2: 0536 CONTAINS : FCC ID: XGKHFAM2G2 FCC ID: GM37525BTB FCC ID: GM37527RA2041 0536 CONTAINS : FCC ID: XGKHFAM2G2 FCC ID: GM37525BTB FCC ID: GM37527RA2041 PRODUCT LABEL SPECIFICATIONS MorphoCheck WiFi PSION TEKLOGIX - Company confidential Author: Marc Piepers File: RFID Module HF-AM1- G2 LabelSmpl & LabelLoc Co-loc - rev01.doc Date: 2/10/10 Page: 5 / 5 Ref: DPC 090111 A01 6. INSTALLATION PROCEDURE 6.1. Label area for WAP-G2 WAP C G2 WAP S G2 Label area Label area

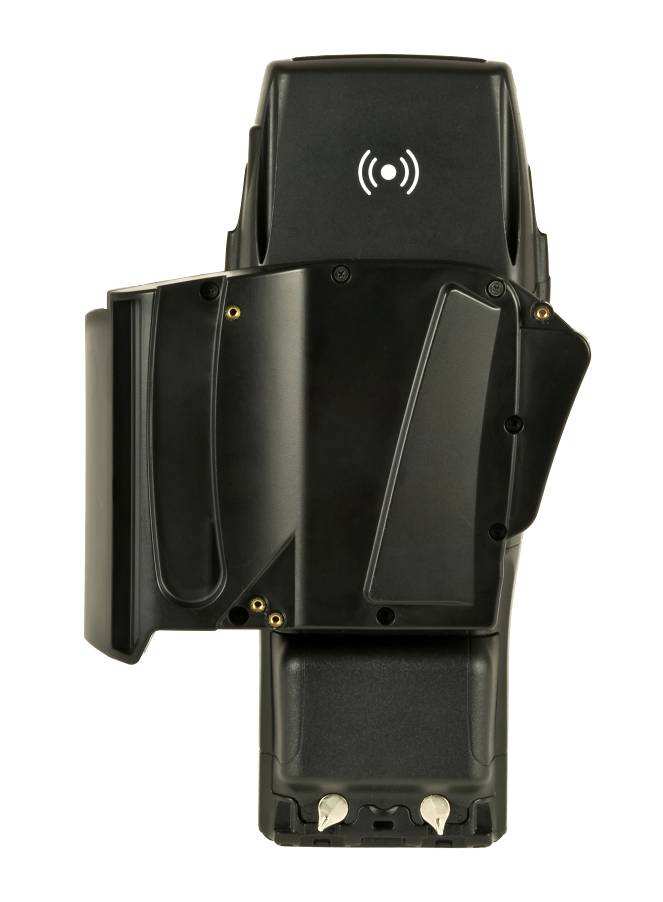

RFID Reader HF-AM2-G2 IntPho.pdf Page 1/8 RFID Reader HF-AM2-G2 RFID Reader HF-AM2-G2 IntPho.pdf Page 2/8 SAGEM MORPHOCHECK Dual Reader Endcap Assembly RFID Reader HF-AM2-G2 IntPho.pdf Page 3/8 RFID Reader HF-AM2-G2 IntPho.pdf Page 4/8 RFID Reader HF-AM2-G2 IntPho.pdf Page 5/8 RFID Reader HF-AM2-G2 IntPho.pdf Page 6/8 2D Imager HHP5180 Assembly RFID Reader HF-AM2-G2 IntPho.pdf Page 7/8 MRZ OCR Reader Assembly . RFID Reader HF-AM2-G2 IntPho.pdf Page 8/8

R041-07-105078-3A - RG / CD RADIO TEST REPORT According to the standard(s): FCC part 15: 09/2007 and RSS-210: 06/2007 Equipment under test: RFID Module HF-AM2-G2 FCC ID: GM3HFAM2G2 IC: 2739D-HFAM2G2 Company: PSION TEKLOGIX Diffusion: Mr DEBULOIS (Company: PSION TEKLOGIX) Number of pages: 33 including 1 annex Ed. Date Modified page(s) Written by Name Visa Technical verification and Quality approval Name Visa 0 29-Jan-08 Creation Regis GONZALEZ Olivier HEYER Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. R041-07-105078-3A Ed.0 PAGE: 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : RFID Module HF-AM2-G2 Serial number : None Part number : None Software Version : None MANUFACTURER'S NAME : PSION TEKLOGIX APPLICANT’S ADRESS: Company : PSION TEKLOGIX Adress : 135 rue de la Duranne BP 421000 13591 AIX EN PROVENCE CEDEX 3 FRANCE Person(s) present during the tests : Mr DEBULOIS Responsible : Mr DEBULOIS DATE(S) OF TESTS : October, from 8 th to 10 th and December 12 th and 13 th of 2007 TESTS LOCATION(S) : Emitech Grand Sud Laboratory in Vendargues (34) Open area test site in Salinelles (30) FCC Registration number: 8127-19 IC Filling number : 6290 TESTS SUPERVISOR(S) : None TESTS OPERATOR(S) : Regis GONZALEZ R041-07-105078-3A Ed.0 PAGE: 3 CONTENTS 1. INTRODUCTION ......................................................................................................................................... 4 2. REFERENCE DOCUMENT(S) .................................................................................................................... 4 3. EQUIPMENT UNDER TEST CONFIGURATION......................................................................................... 4 4. EQUIPMENT UNDER TEST CONFIGURATION SCHEME ........................................................................ 5 5. SUMMARY OF TEST RESULTS................................................................................................................. 6 6. CONDUCTED EMISSIONS – SECTION 15.207 & TABLE 2 OF RSS-GEN............................................... 7 7. RADIATED EMISSIONS - SECTION 15-209 & TABLE 2.3 OF RSS-210.................................................. 10 a) Radiated emissions (below 30MHz)............................................................................................................. 10 b) Radiated emissions (above 30MHz) ............................................................................................................ 11 8. OPERATING WITHIN THE BAND 13.110-14.010 MHZ - SECTION 15-225.............................................. 28 a) Field strength ............................................................................................................................................... 28 b) Frequency tolerance .................................................................................................................................... 30 ANNEX: PHOTOGRAPH(S) ............................................................................................................................ 31 R041-07-105078-3A Ed.0 PAGE: 4 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment RFID Module HF-AM2-G2 (denominated hereafter E.U.T.: equipment under test) according to document(s) listed below. 2. REFERENCE DOCUMENT(S) RSS-210 Issue 7 (June 2007) Low-power – Licence exempt Radiocommunication devices (all frequency bands): category 1 equipment FCC Part 15 (September 2007) Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commision Part 15 – Radio frequency devices Subpart C – Intentional Radiators RSS-Gen Issue 2 (June 2007) General requirements and information for the Certification of radiocommunication equipment ANSI C 63.4 (2003) American National Standard for Methods of measurement of Radio-Noise from low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 3. EQUIPMENT UNDER TEST CONFIGURATION Product description: IC: 2739D-HFAM2G2 FCC ID: GM3HFAM2G2 ITU emission code: A1D Utilization: RFID TAG reader Antenna type: Incorporated antenna Antenna gain: Unknown Operating frequency range: 13.56 MHz Number of channels: 1 Channel spacing: / Modulation: / Power source: 5 Vdc (stand alone) or mains voltage (with docking) Power level and frequency range are not user adjustable R041-07-105078-3A Ed.0 PAGE: 5 4. EQUIPMENT UNDER TEST CONFIGURATION SCHEME This configuration includes: - 2D Imager - RFID reader and smart card - Finger Print (Sagem) - MRZ reader Docking station RFID TAG reader 110 V ~ mains R041-07-105078-3A Ed.0 PAGE: 6 5. SUMMARY OF TEST RESULTS Tests designation Results satisfying? Comments Conducted emissions - section 15.207 and table 2 of RSS-Gen YES Radiated emissions - section 15:209 (below 30MHz) and table 3 of RSS-210 YES Radiated emissions - section 15:209 (above 30MHz) and table 2 of RSS-210 YES Field strength - section 15:225 and A2.6 of RSS-210 YES Frequency tolerance - section 15:225 and A2.6 of RSS-210 YES N.P.: Not Performed. N.A.: Not Applicable. ƒ In emission : Sample subject to the test complies with prescriptions of the standard(s) FCC part 15: 09/2007 and RSS-210: 06/2007 according to limits specified in this test report. R041-07-105078-3A Ed.0 PAGE: 7 6. CONDUCTED EMISSIONS – SECTION 15.207 & TABLE 2 OF RSS-Gen Standard: FCC part 15: 09/2007 and RSS-210: 06/2007 Test method: ANSI C63.4:2003 Test configuration: Tested cable(s) Measure with E.U.T. height Mains 110 Vac/60 Hz-40 Ohms load L.I.S.N. 80 cm Frequency band Tested cable(s) Resolution bandwidth Video bandwidth Detection mode 150kHz-1MHz Mains 110Vac/60Hz- 40 Ohms load 10KHz 30kHz Peak 1MHz-10MHz Mains 110Vac/60Hz- 40…

Text truncated - open the document above for the full version.

RC-032-PTE-09-104318-1-A Edition 0 PAGE 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : RFID Module HF-AM2-G2 with WiFi module type RA2041 Type - Serial number : - Part number : - Software Version : - MANUFACTURER'S NAME : PSION TEKLOGIX APPLICANT’S ADDRESS: Company : COPPERNIC Address : 185 avenue Archimède BP421000 13857 AIX-EN-PROVENCE CEDEX 3 Person present during the tests : Mr SIMONETTI-DIEZ Responsible : Mr PIEPERS DATE OF TESTS : 19/08/2009 TESTS LOCATION : Open area test site at Aunainville (28) - FRANCE TESTS OPERATOR : F. LHEUREUX RC-032-PTE-09-104318-1-A Edition 0 PAGE 3 CONTENTS 1. INTRODUCTION _______________________________________________________________ 4 2. REFERENCE DOCUMENT _______________________________________________________ 4 3. EQUIPMENT UNDER TEST CONFIGURATION _______________________________________ 4 4. SUMMARY OF TEST RESULTS ___________________________________________________ 7 5. UNINTENTIONAL RADIATED EMISSIONS IN THE BAND 30 MHZ – 25 GHZ _______________ 8 ANNEX 1: Antennas factors, insertion losses and amplifier values ANNEX 2: Calibration date RC-032-PTE-09-104318-1-A Edition 0 PAGE 4 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment « RFID Module HF-AM2-G2 with WiFi module type RA2041» (denominated hereafter E.U.T.: equipment under test) according to document listed below. 2. REFERENCE DOCUMENT FCC Part 15: 2008 Code of federal regulations Title 47- Telecommunication Chapter 1- Federal Communication Commission Part 15- Radio frequency devices Subpart B- Unintentional Radiators Limits and methods of measurement of radio disturbance Characteristic of information technology equipment. ANSI C 63.4 : 2003 Methods of Measurement of Radio-Noise Emissions from Low-voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. 3. EQUIPMENT UNDER TEST CONFIGURATION Equipment under test (E.U.T.) description : The E.U.T is composed a RFID module at 13.56 MHz, a bluetooth module, a WiFi module, 2D Imager, Finger print, and MRZ reader. It can be powered by 5 Vdc (stand alone) or mains voltage (with docking). Cycle and operating mode during emission tests : The bluetooth emission on channel 1 Ö 2402 MHz The bluetooth emission on channel 6 Ö 2432 MHz The bluetooth emission on channel 79 Ö 2480 MHz The WiFi emission on channel 1 Ö 2412 MHz The WiFi emission on channel 7 Ö 2442 MHz The WiFi emission on channel 13 Ö 2472 MHz The RFID emission is in continuous emission at 13.56 MHz without modulation. Modification of the equipment during the test : No RC-032-PTE-09-104318-1-A Edition 0 PAGE 5 Photographies of the equipment under test (EUT) RC-032-PTE-09-104318-1-A Edition 0 PAGE 6 RC-032-PTE-09-104318-1-A Edition 0 PAGE 7 4. SUMMARY OF TEST RESULTS The following table summarizes test results of the EUT. Test results Designation of test Pass Fail N.A. N.P. Comments Unintentional radiated emissions in the band 30 MHz – 25 GHz x Section 15.109 15.209 15.205 N.A.: Not Applicable N.P.: Not Performed RC-032-PTE-09-104318-1-A Edition 0 PAGE 8 5. UNINTENTIONAL RADIATED EMISSIONS IN THE BAND 30 MHZ – 25 GHZ Standard: FCC PART 15: 2008 Sections : 15.109 15.209 15.205 Test method: ANSI C 63.4: 2003 Equipment under test arrangement: Category of equipment : Table-top equipment The equipment under test (EUT) is placed on a non-conductive test table at 0.8 m above the horizontal reference ground plane. For maximum meter reading at each frequency, the antenna height is adjusted between 1 m and 4 m above the ground plane. A 360 degrees rotation of the EUT is performed in vertical and horizontal polarization. The frequency azimuth and antenna height are presented in the tables on the next pages. Test configuration photographies : RC-032-PTE-09-104318-1-A Edition 0 PAGE 9 RC-032-PTE-09-104318-1-A Edition 0 PAGE 10 Frequency range: 30 MHz - 25 GHz Detection mode: Quasi-peak for the frequency band 30 MHz – 1 GHz Average value for the frequency band 1 GHz – 25 GHz Resolution bandwidth: 120 kHz for the frequency band 30 MHz – 1 GHz 1 MHz for the frequency band 1 GHz – 25 GHz Measurement distance : 3 meters Limit: The EUT must satisfy requirements of the section 15.109 and 15.209 as shown in table below. Frequency range (MHz) Limit (dBμV/m) 30 to 88 40.0 88 to 216 43.5 216 to 960 46.0 960 to 25000 54.0 Operating mode during the test : EUT is in permanent transmission with modulation. RC-032-PTE-09-104318-1-A Edition 0 PAGE 11 Instrumentation test list: CATEGORY BRAND TYPE N r EMITECH Antenna Schwarzbeck Biconique VHA9103 317 Antenna Oritel Cornet CM 42-25 1045 Antenna Schwarzbeck Log-périodique UHALP 9108 3106 Antenna Emco Cornet 3115 3374 Antenna mast HD GmbH MA240 2341 Antenna mast HD GmbH HD100 2342 Cable Câbles & Connectiques N-12m 2450 Cable Câbles & Connectiques N-2m 2451 Cable Câbles & Connectiques N-13m 2452 Cable Câbles & Connectiques N-SMA 2864 Cable C&C N-13m 2896 Filter Trilithic passe haut 1097 Filter Trilithic passe haut 1529 Filter Micro-tronics Passe haut 4691 Open area test site Emitech Site champ libre Aunainville 187 Power supply AC SECAS CF1000 50/60 2102 Pre-Amplifier MITEQ HF 3229 Receiver Rohde & Schwarz R&S ESVP 1057 Spectrum analyzer Rohde & Schwarz R&S FSP40 5175 Results : Table reference Comments Table 1 Measurement in vertical polarization with Bluetooth on channel 1 + WiFi on channel 7 + RFID Table 2 Measurement in horizontal polarization with Bluetooth on channel 1 + WiFi on channel 7 + RFID Table 3 Measurement in vertical polarization with Bluetooth on channel 6 + WiFi on channel 13 + RFID Table 4 Measurement in horizontal polarization with Bluetooth on channel 6 + WiFi on channel 13 + RFID Table 5 Measurement in vertical polarization with Bluetooth on channel 79 + WiFi on channel 1 + RFID Table 6 Measurement in horizontal polarization with Bluetooth on channel 79 + WiFi on channel 1 + RFID RC-032-PTE-09-104318-1-A Edition 0 PAGE 12 Test site: Open area test site TABLE 1 Radiated emissio…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS
